Milwaukee 2786-20 M18 Fuel 18v Lithium-ion Brushless Cordless 9 Inch Cut Off Saw Instructions

milwaukee 2786-20 M18 Fuel 18V Lithium-Ion Brushless Cordless 9 Inch Cut Off Saw

Product Information

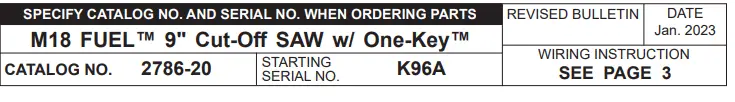

• Product Name: M18 FUELTM 9 Cut-Off SAW w/ One-KeyTM
• Catalog Number: 2786-20
• Starting Serial Number: K96A
• Warranty: Disassembly is not recommended and could void the warranty.

Product Usage Instructions

1. Before using the saw, read the user manual carefully.
2. Ensure that the saw is properly assembled and all parts are in good condition.
3. Connect the saw to a power source and turn it on.
4. Use the blade flange to attach the cutting blade to the saw.
5. Adjust the guard stop plate to the desired cutting depth.
6. Wear appropriate safety gear, including eye protection, gloves, and ear protection.
7. Hold the saw firmly with both hands and make sure the blade is perpendicular to the cutting material.
8. Press the trigger to start cutting.
9. After use, disconnect the saw from the power source and store it in a safe place.

If you experience any issues or have questions about the product, please contact Milwaukee Product Service at: Product Technical Support via phone at: 262.783.8642 or Via email at: [email protected]. For service-related questions and issues related to One-KeyTM electronics, contact e-Service at: www.milwaukeetool.com/e-service or call 1.800.SAWDUST (1.800.729.3878). Disassembly is not recommended and could void the warranty. Return it to a MILWAUKEE factory Service Center location, freight prepaid and insured. A copy of the proof of purchase should be included with the return product.

Due to the complexities of One-Key™ electronics contact the following for service related questions and issues:
e-Service at: www.milwaukeetool.com/e-service
or
questions, please call 1.800.SAWDUST (1.800.729.3878)
or
Return it to a MILWAUKEE factory Service Center location, freight prepaid and insured.
A copy of the proof of purchase should be included with the return product.

If you have questions please contact Milwaukee Product Service at:
Product Technical Support via phone at: 262.783.8642
or
Via email at: [email protected]
Disassembly is not recommended and could void the warranty

EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).

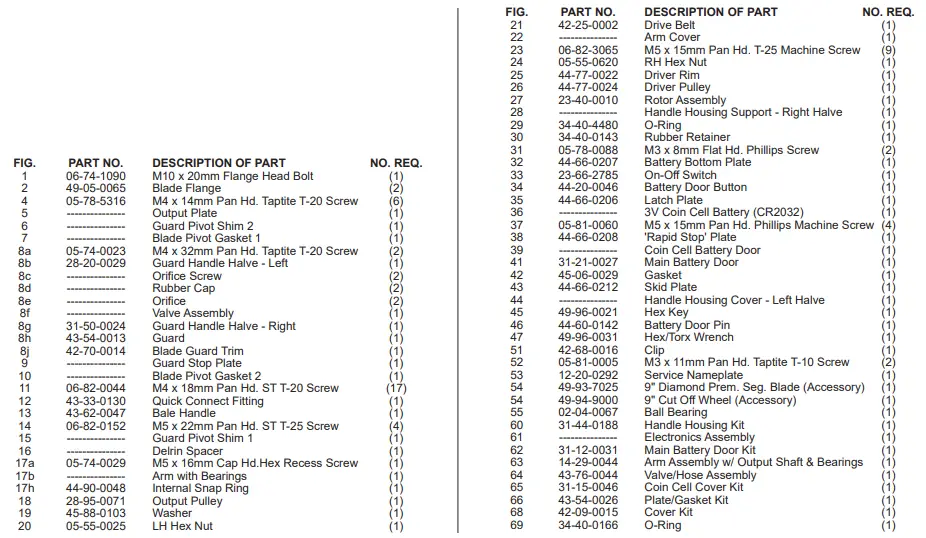

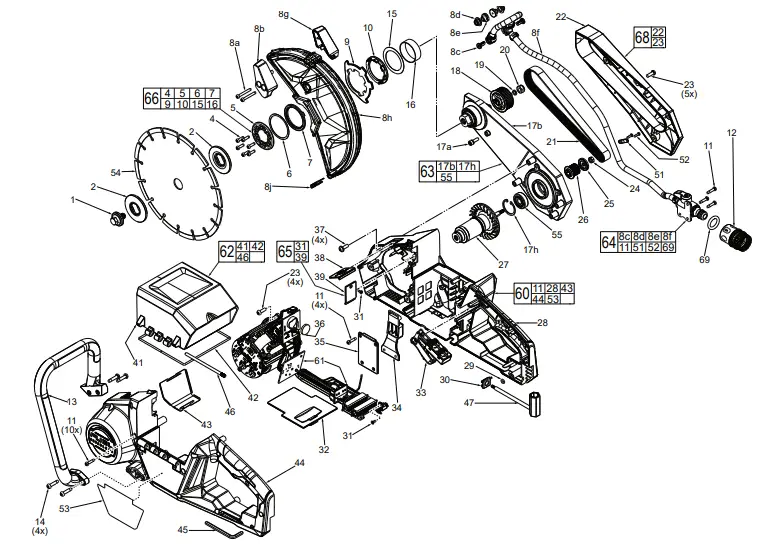

SERVICE PARTS LIST

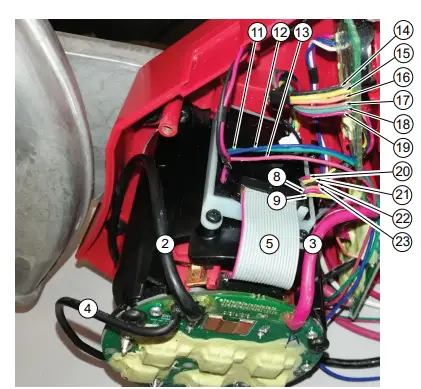

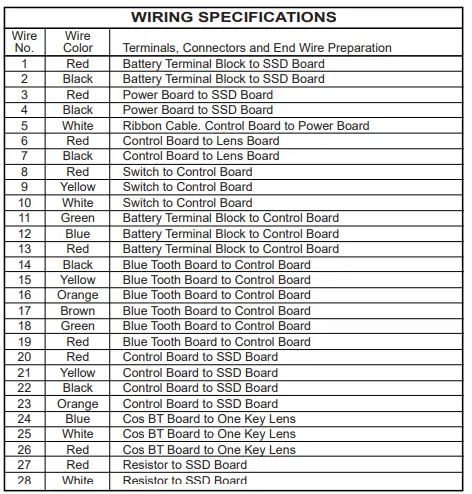

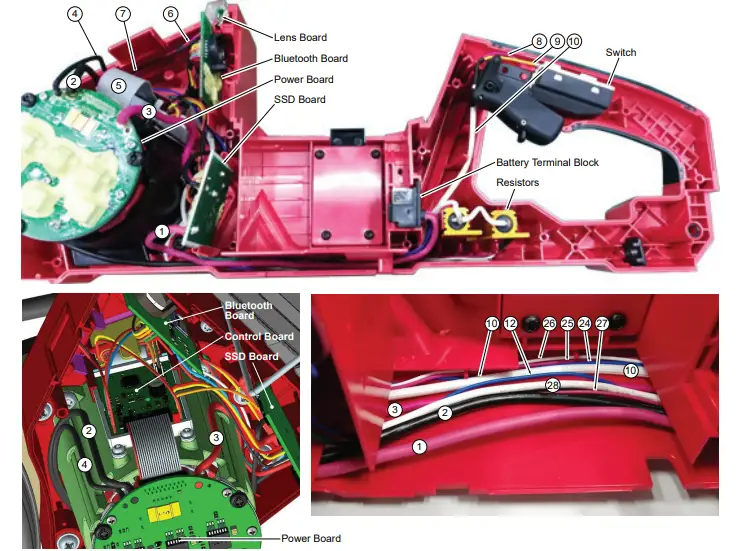

WIRING SPECIFICATIONS

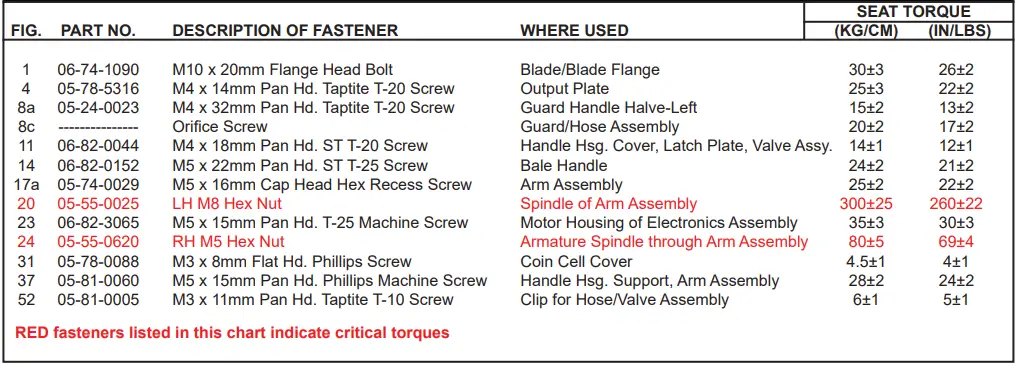

SCREW TORQUE SPECIFICATIONS
