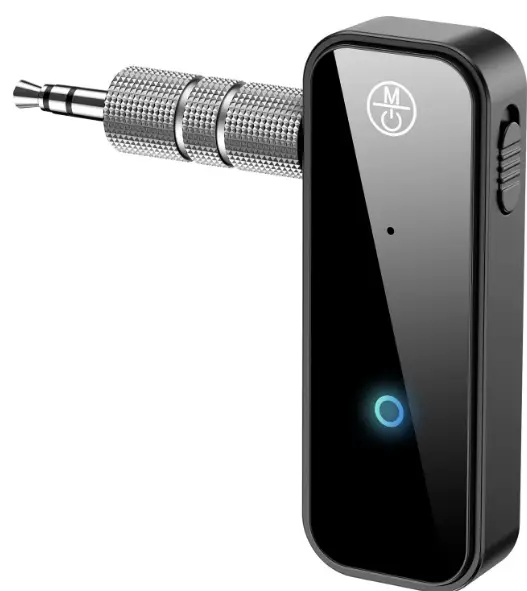

cafago C28 Wireless Transmitter Receiver
Package contents
- 1 C28.
- 1 Charge Cable.
- 1 3.5mm audio head.
- User manual.
Specifications
- Life time: 4 h
- Battery capacity: 140 mA
- Working range: open area up to 10 meters, without any obstacles
- Product size: 59.5mm (L) x 22mm (W) x 12mm (H)

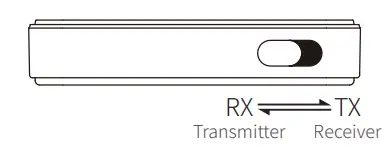

One Button Control
Easilly switch between transmitter (TX) & receriver (RX) mode.

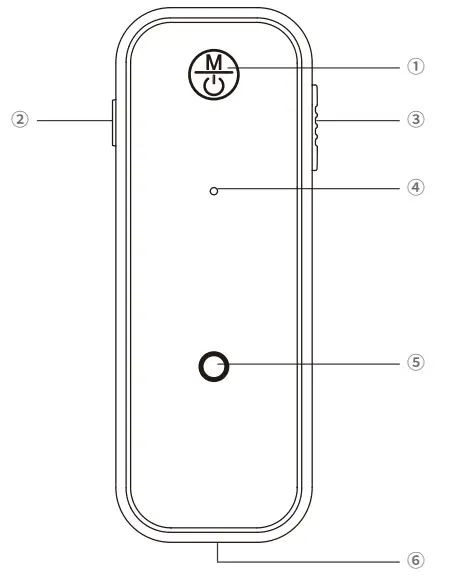

Interface diagram
- Multifuntion Botton(Power/Play/Pause).
- Aux in/out.
- Transmitter and Receiver Swiches.
- microphone
- Indicator Light.
- 5V/1A Charging port.
How To Use
Receiver Mode
- Use the micro USB cable to charge before use;
- Connect the C28 to your audio device using the AUX cable;
- Change the switch button to position RX;
- Turn on the device(Long press in the multifunction button) then the blue light will flash quickly, indicating that is ready for pairing;
- Find C28 in the wireless search of your phone and chose to pair.
Transmitter Mode
- Use the micro USB cable to charge before use;
- Connect the C28 to your audio device using the AUX cable;
- Change the switch button to position TX;
- Turn on the device(Long press in the multifunction button) then the red light will flash quickly, indicating that is ready for pairing;
- Turn on the device you want to connect and the C28 will automatically connect. When the connection is successful the wireless indicator will illuminate red.
Precautions
- Our adapter is only a converter, which sound quality depends on the sound effect of your own equipment and you can change your device then try it again.
- If you have any questions about our products, please contact us with the after-sales mailbox directly. We will reply in time to help you resolve and satisfy you. You can believe that we’d like to address any issues or concerns you have.
