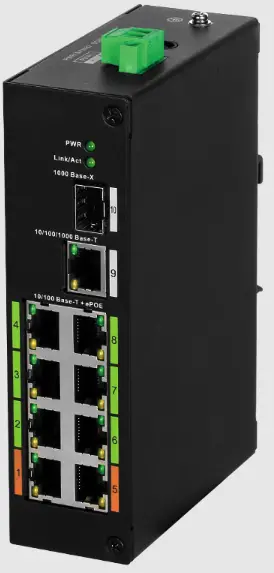

LOREX AEX8 8-Port ePoE Switch

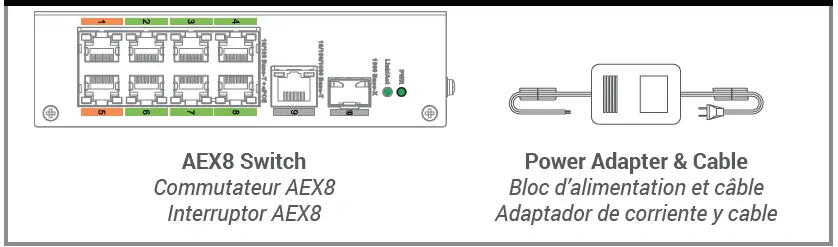

Package Contents
Safety Precautions
Please read the following safeguards and warnings carefully before using the product in order to avoid damages and losses:
- Do not expose the device to lampblack, steam or dust. Otherwise, it may cause fire or electric shock.
- Do not install the device at position exposed to sunlight or in high temperature. Temperature rise in device may cause fire.
- Do not expose the device to humid environment. Otherwise, it may cause fire.
- The device must be installed on solid and flat surface in order to guarantee safety under load and earthquake.
Otherwise, it may cause device to fall off or turnover. - Do not place the device on carpet or quilt.
- Do not block air vent of the device or ventilation around the device.
- Otherwise, temperature in device will rise and may cause fire.
- Do not place any object on the device.
- Do not disassemble the device without professional instruction.
- To avoid personal injury or damage to the device, power off the device before removing the cable.
- Voltage stabilizer and lightning arrester are optional according to site power supply and surrounding environment.
Warnings
- Do not use a power line other than the one specified. Please use it properly. Otherwise, it may cause fire or electric shock.
- Be sure to ground the device (cross section of copper wire: > 2.5 mm2 resistance to ground: < 4 0 Ω).
Disclaimers
- This manual is for reference only.
- All the designs and software here are subject to change without prior written notice.
Need Help?
For up-to-date information and resources:
- Visit help.lorex.com
- Search for the model number of your product
- Click on your product in the search results
- Click on the Downloads tab
Register your product
Please see our full Terms of Service and Limited Hardware Warranty Policy at: lorex.com/warranty
Product Overview

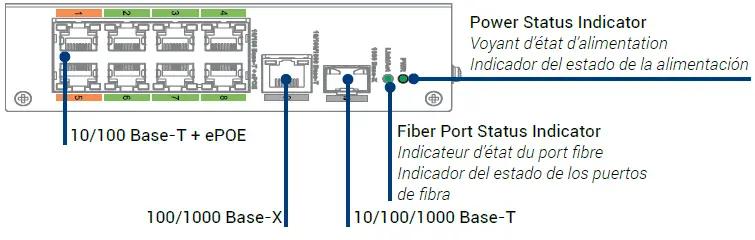

Front Panel

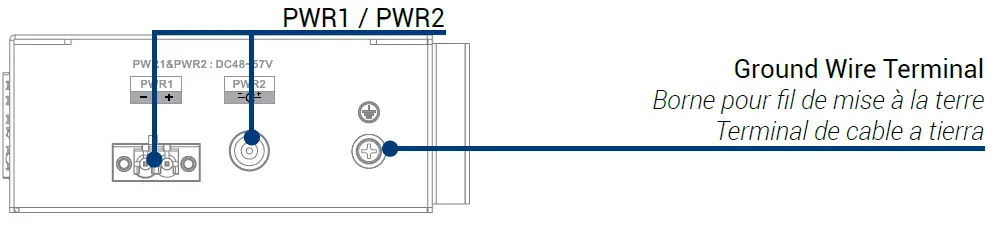

Side Panel
| Name | Function |
| 10/100 Base-T | 8” 10/100M self-adaptive PoE power supply ports |
| 10/100/1000 Base-T | 10/100/1000M self-adaptive RJ45 port Port RJ45 |
| 100/1000 Base-X | 100M self-adaptive fiber port |
| Link / Act | Fiber port status indicator light |
| Power Status Indicator | Power indicator light, used as PoE power supply status indicator light as well |
| PWR1 / PWR2 | Supports DC 48~57V |
| Ground Wire Terminal | Ground wire terminal |
| Power Status Indicator | During Setup | |
| Single port device power on | Slow flash twice | |
| Single port device power off | Quick flash once, slow flash once | |
| Total device consumption overload | Quick flash twice | |
| Port indicator light is to display the status of current transmission mode for the port, which includes IEEE mode, E100 and E10. | ||
| Status Indicator – Working Mode | Display Mode | |
| IEEE mode | Normally ON | |
| Single port (E100) device power off | Slow flash | |
| Total device (E10) consumption overload | Quick flash | |

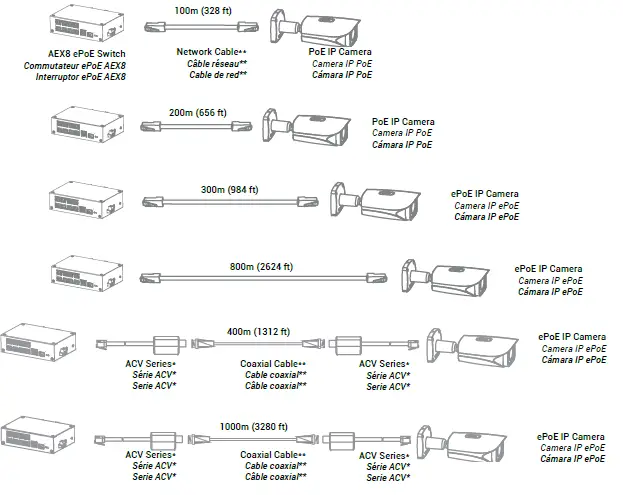

Setup
- Option
PowerHi-PoE
- Option
Power lEE - Option
Data+ Power E100 - Option
Data+ Power E100 - Option
Data+ Power E100 - Option
Data+ Power E10
*ACV Series Converter and camera not included
Product Description
8-Port ePoE Switch is a layer two hardened switch, which supports long distance Ethernet power supply. It provides eight 10/100M Ethernet ports, one 1000M Ether-net port and one 1000M fiber port. The product is equipped with three self-adaptive transmission modes which are IEEE, E100 and E10. It supports both twisted-pair transmission and coaxial cable transmission.

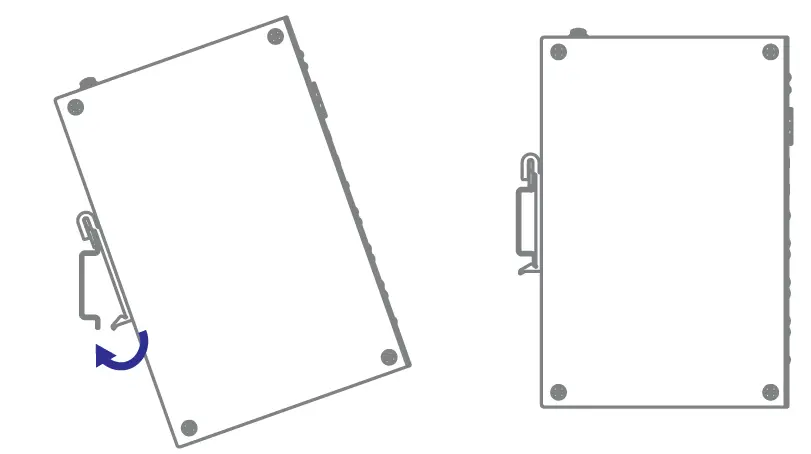

Mounting
The product supports DIN rail mounting. Lay the ePoe switch hook on the rail, then press the switch to secure the buckle into the slide.
Note: 8-port ePoE switch supports the slide width of 28mm (1.1”).
Copyright © 2022 Lorex Technology Inc
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
ePoE Power Supply Specifications (CAT)
| Cable Length (m) | Communication Bandwidth | PoE Max Load Capacity (W) | Hi-PoE Max Load Capacity (W) | Network Operating Mode |
| 100 | 100 | 25.5 | 53 | IEEE/E100 |
| 200 | 100 | 25.5 | 33 | E100 |
| 300 | 100 | 19 | 19 | E100 |
| 400 | 10 | 17 | 17 | E10 |
| 500 | 10 | 13 | 13 | E10 |
| 800 | 10 | 7 | 7 | E10 |
ePoE switch supply voltage 48V./ CAT5E/CAT6, max. DC resistance < 10 Ω / 100m (328 ft).
| Cable Length (m) | Communication Bandwidth | PoE Max Load Capacity (W) | Hi-PoE Max Load | Network Operating Mode |
| 100 | 100 | 25.5 | 53 | IEEE/E100 |
| 200 | 100 | 25.5 | 47 | E100 |
| 300 | 100 | 25.5 | 32 | E100 |
| 400 | 10 | 23 | 26 | E10 |
| 500 | 10 | 20 | 20 | E10 |
| 800 | 10 | 13 | 13 | E10 |
ePoE switch supply voltage 53V. / CAT5E/CAT6, max. DC resistance < 10 Ω / 100m (328 ft).
| Cable Length (m) | Communication Bandwidth (Mbps) | PoE Max Load Capacity (W) | Hi-PoE Max Load Capacity (W) | Network Operating Mode |
| 100 | 100 | 25.5 | 50 | IEEE/E100 |
| 200 | 100 | 25.5 | 30 | E100 |
| 300 | 100 | 18 | 18 | E100 |
| 400 | 100 | 15 | 15 | E10 |
| 500 | 10 | 12 | 12 | E10 |
| 800 | 10 | 6 | 6 | E10 |
| 1000 | 10 | 5 | 5 | E10 |
ePoE switch supply voltage 48V. / RG-59, max. DC resistance < 4 Ω / 100m (328 ft).
| Cable Length (m) | Communication Bandwidth (Mbps)
| PoE Max Load Capacity (W) | Hi-PoE Max Load Capacity (W) | Network Operating Mode |
| 100 | 100 | 25.5 | 52 | IEEE/E100 |
| 200 | 100 | 25.5 | 48 | E100 |
| 300 | 100 | 25.5 | 30 | E100 |
| 400 | 100 | 20 | 23 | E100 |
| 500 | 10 | 16 | 16 | E10 |
| 800 | 10 | 10 | 10 | E10 |
| 1000 | 10 | 8 | 8 | E10 |
ePoE switch supply voltage 53V. / RG-59, max. DC resistance < 4 Ω / 100m (328 ft).
