MODULAR SYSTEM FOR COMMERCIAL VEHICLES FITTING

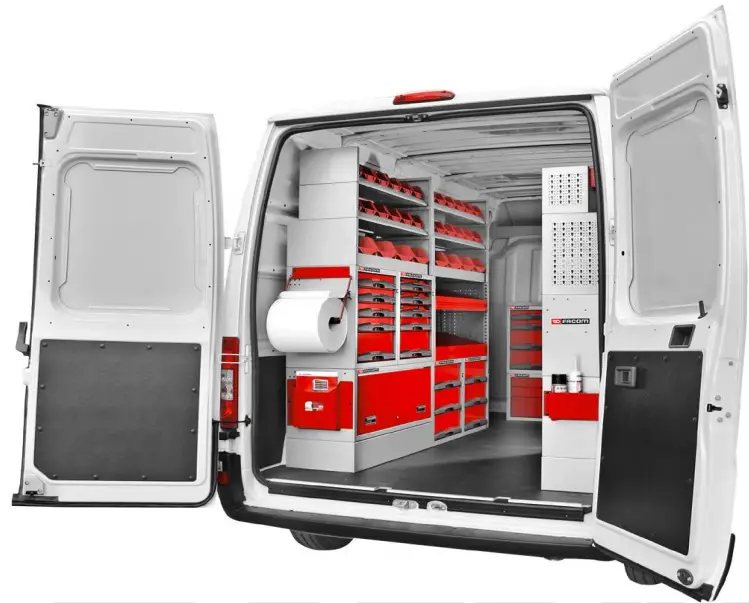

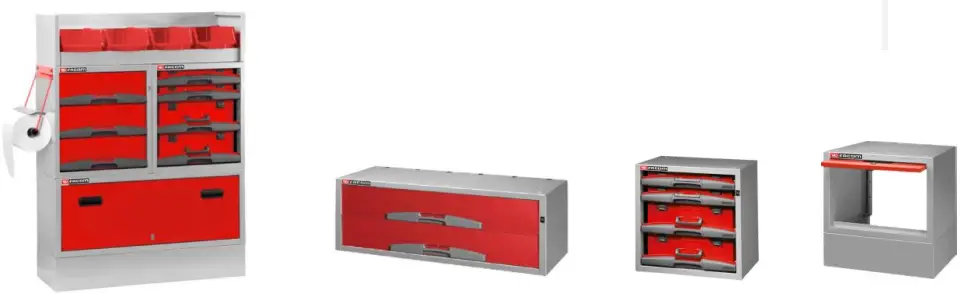

MATRIX Modular System for Commercial Vehicles Fitting

Please read these instructions carefully prior to installation and ensure all instructions are followed and adhered during installation.
Do not exceed the maximum capacities stated. Only FACOM attachments/components are to be used.
Failure to follow the installation instructions, and/or use FACOM attachments/components, may result in a risk to health & safety, personal injury and/or property damage.
FACOM will not accept any liability or responsibility for any personal injury or property damage caused by failure to follow and adhere to the installation instructions and/or
use FACOM attachments/components

Follow the assembly instructions step by step on the video

https://eqrcode.co/a/OGViiR

Warning: a wooden / composite floor is required to fix the modules

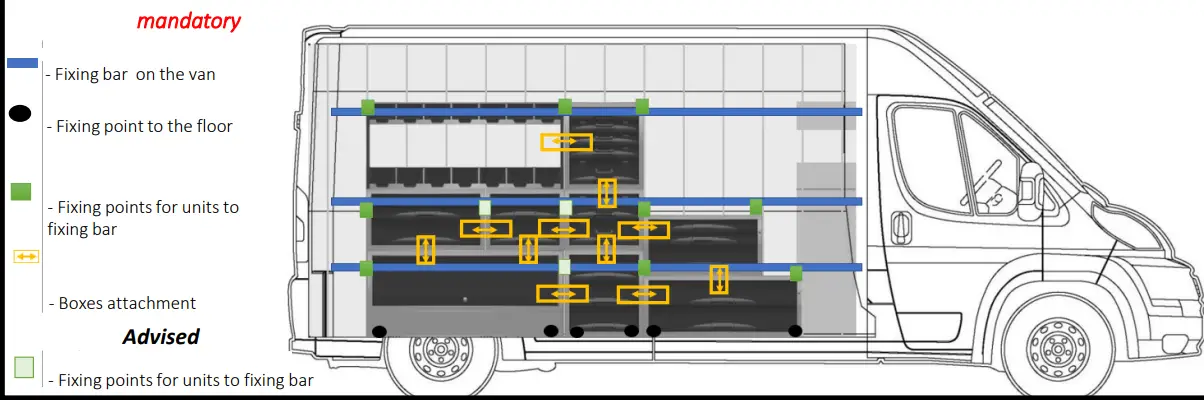

Step by step

0	Preposition your boxes and mark on the floor
1	fix the bars to the van
2	fix the bottom units to the floor
3	Fix the units to the bars
4	Attach the boxes together

Only FACOM attachments/co mponents are to be used.

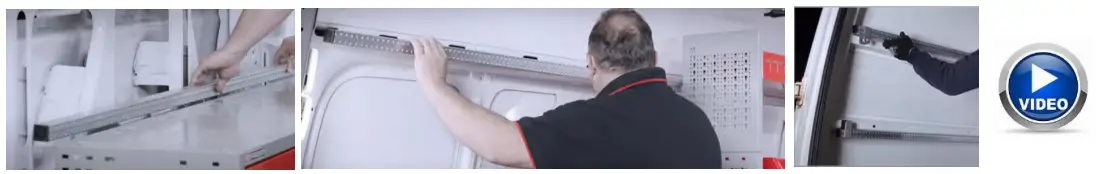

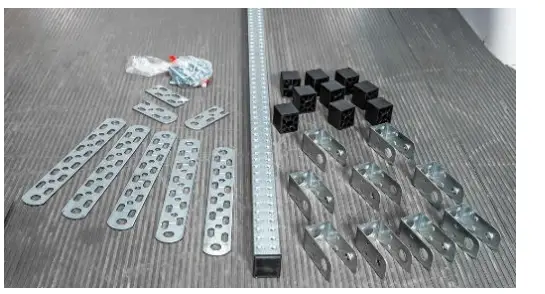

1. Before fixing the 1 st base unit to the floor of the vehicle, screw the

   1 fixing bar per level is required fixing bars to the vehicle walls.

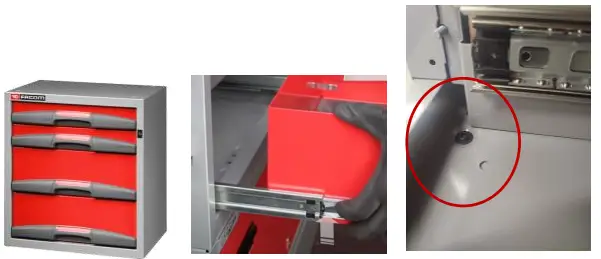

2. FIXING UNITS TO THE FLOOR
   • Direct fixing inside the box

   Remove the drawers

3. FIXING THE UNITS TO THE VEHICLE WALLS
   • Use the brackets to fix the assembled units to the bars fitted on the walls of the vehicle.

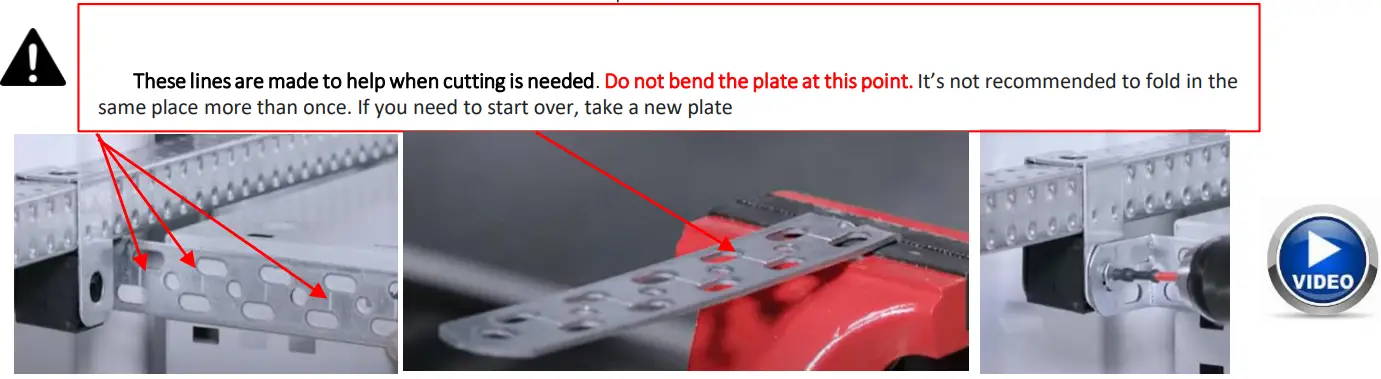

   • Note: Brackets can be bent and cut to suit the shape of the vehicle.

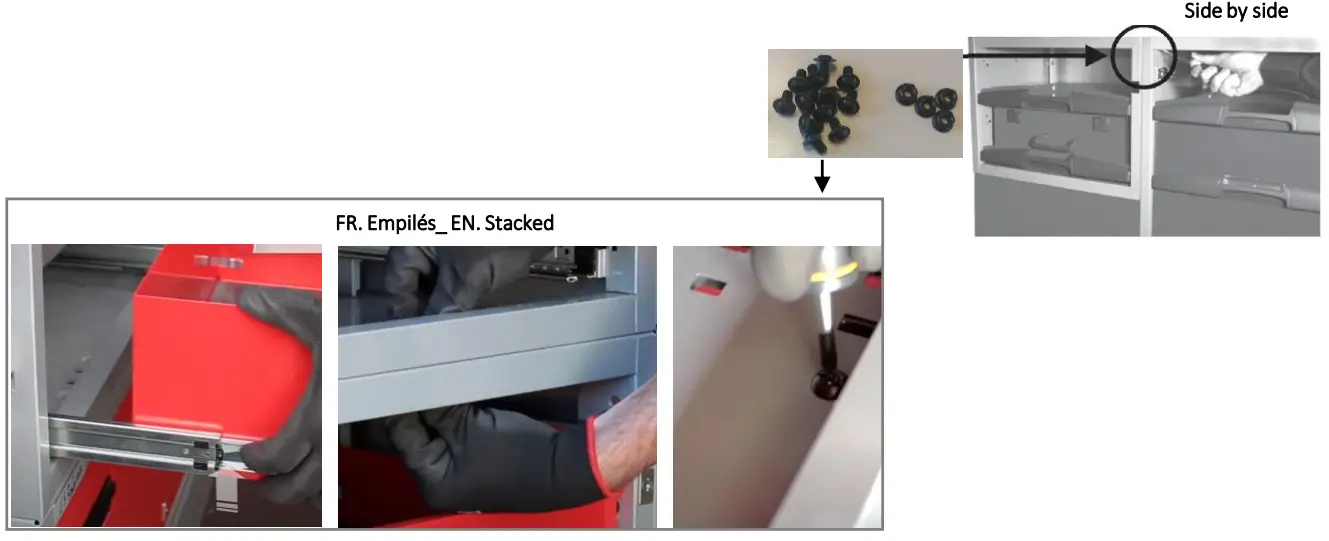

4. HORIZONTAL AND VERTICAL ASSEMBLY OF UNITS
   • Remove the drawers to have access to the unit assembly holes.
   • Assemble the units.

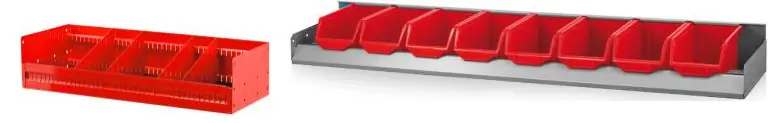

How to install the shelves ?

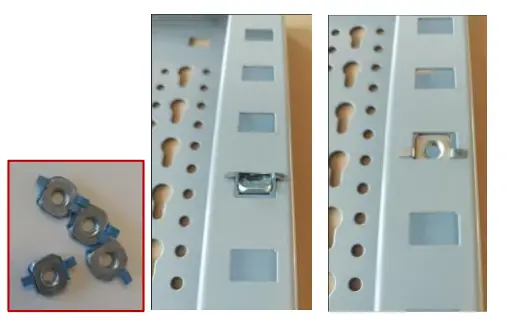

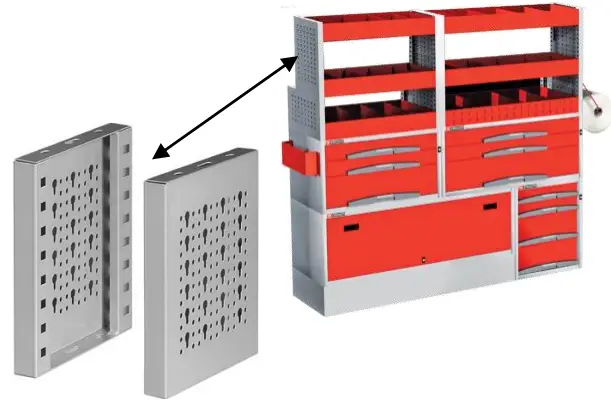

INSTALLING UPRIGHTS ON BOXES

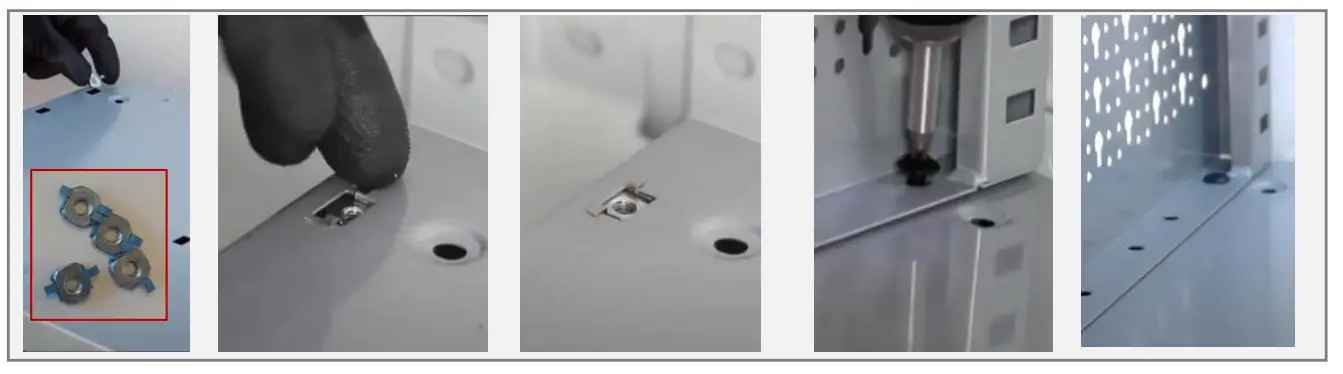

• Insert the caged nut into the square hole of the box, sliding the longest part first. (x2)
• Push the nut until it is correctly positioned at the center of the slot (x2)
• Position and fix the upright on the box

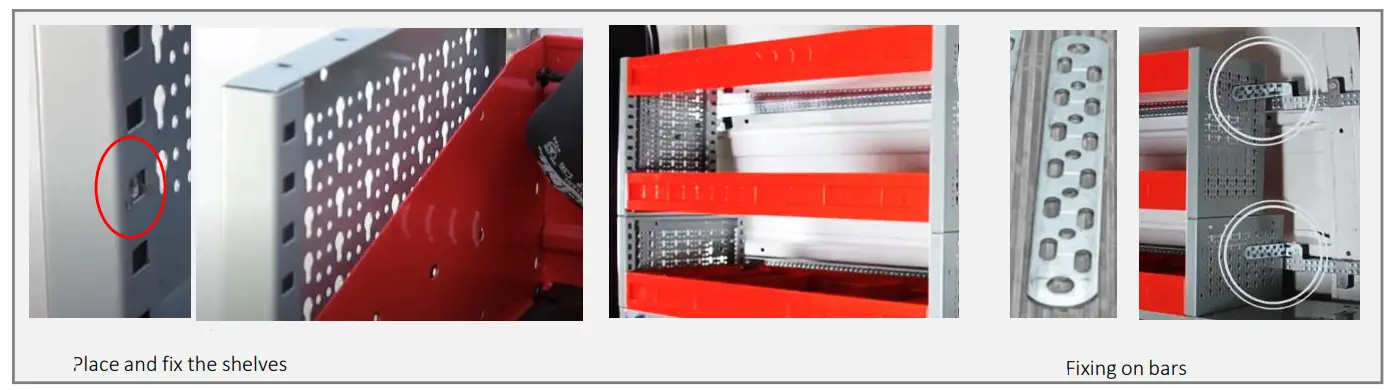

SHELVES ASSEMBLY ON THE UPRIGHTS

• Insert the nut at a slight angle into the slot in the upright.
• Push the nut down until it is correctly positioned at the center of the slot

HOW TO INSTALL

https://eqrcode.co/a/OGViiR

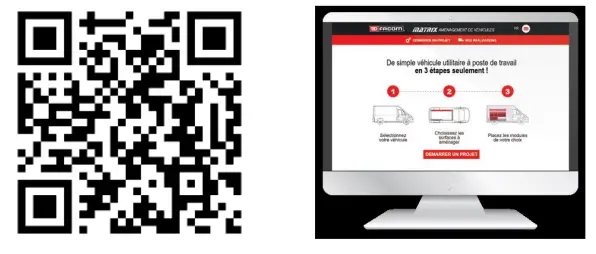

CONFIGURATOR

https://eqrcode.co/a/X5H58E

SPARE PARTS

https://www.2helpu.com/FACOM

UK Importer- FACOM UK, 270 Bath Rd, Slough SL1 4DX, England
FACOM EU, 62 Chemin de la Bruyère, 69570 Dardilly, France
NU-MATRIX_0322www.facom.com
