makes a difference

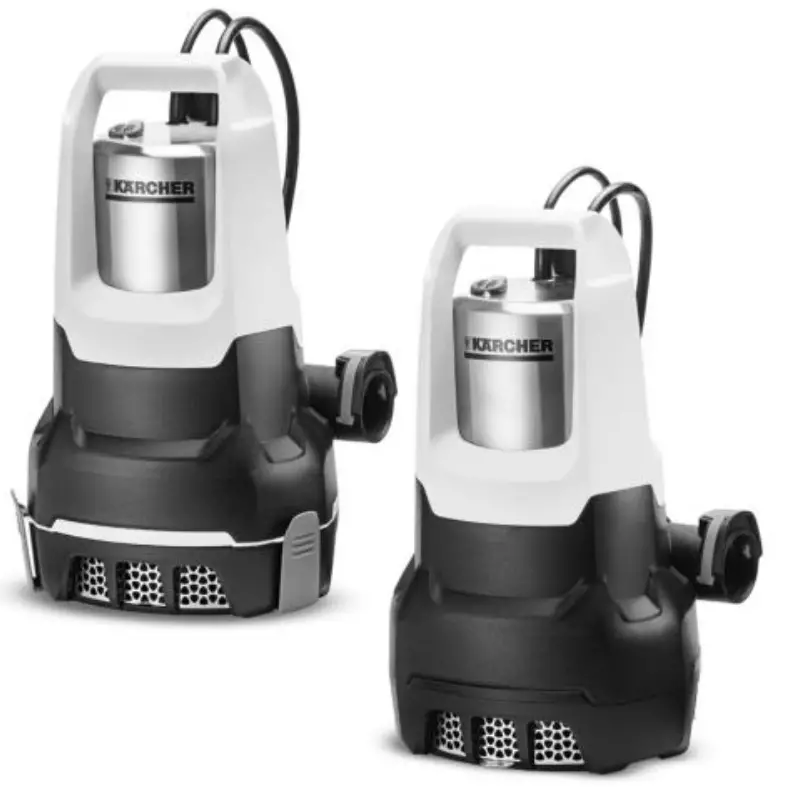

Flat Suction Submersible Pump
Instruction Manual

SP 6 Flat Inox
SP 7 Dirt Inox

Please read and comply with these original operating instructions and the enclosed safety instructions. Proceed ac- cordingly. Keep both booklets for future reference or subsequent owners.

Contents hide

1 Warranty

2 Environmental protection

3 Description of the Appliance

10 Special accessories

11 Troubleshooting

12 Specifications

13 Documents / Resources

13.1 References

14 Related Posts

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. The adhesive type label must not be removed from the device. Warranty is no longer granted if the label is removed.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.
Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collec- tion systems.

Note
The oil used to seal the ceramic slide ring is biodegradable. No negative effects are expected for humans or the environment if the oil smears or leaks. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH

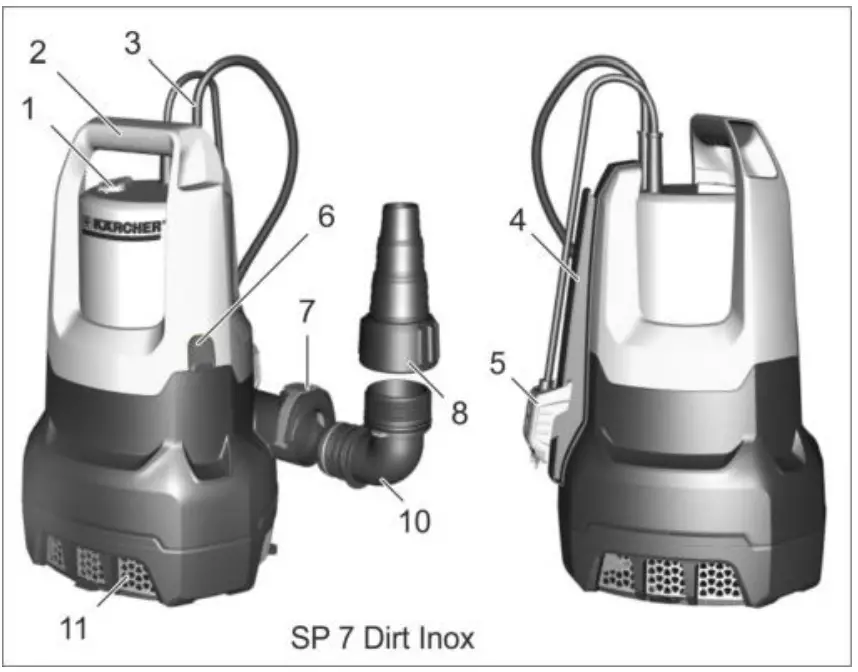

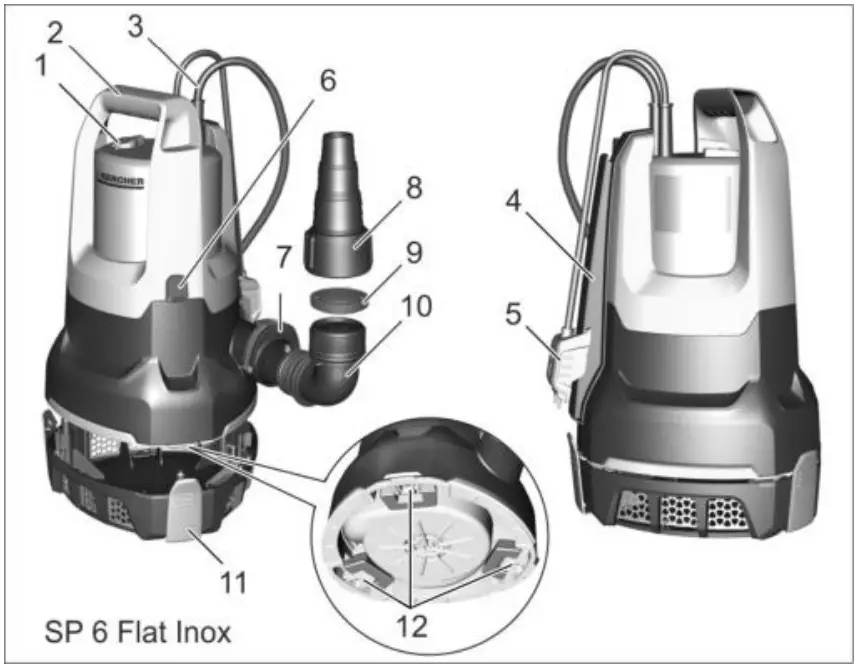

Description of the Appliance

Switch (automatic mode / manual operation)
Carrying handle
Power cord with plug
Rail (level sensor)
Level sensor
Automatic venting device
Quick-Connect
Pump connecting piece (1“, 1¼“ and 1½“ hose connection and G1½ – thread)
Check valve (SP 6 Flat Inox)
Connection nozzle (G1½ – thread)
Pre-filter (SP 6 Flat Inox removable)
Support legs (SP 6 Flat Inox)

Proper use

This appliance has been designed for use in private households and is not intended for commercial use. The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations. The device is mainly intended for draining building parts in case of flooding, but also for pumping over or out containers, for water removal from wells and shafts as well as for draining water from boats and yachts, provided that it is fresh water.
NOTICE The device is not suitable for continuous pump operation (e.g. continuous circulation in a pond) or as a stationary installations (e.g. lifting device, fountain pump).

Approved feed fluids

Fresh water up to a certain degree of soiling
Water from swimming pool (provided the dosing of additives is proper)
Washing lye, e.g. leaked washing machine load. Then clean with clear water.
Sp 7 Dirt Inox (wastewater pump)
Water with a degree of contamination up to a grain size of 30 mm
SP 6 Flat Inox (clean water pump)
Water with a impurities up to a maximum grain size of 5mm

DANGER
Risk of injury, risk of damage! Caustic, slightly inflammable and other explosive substances (such as petrol, petroleum, diluted nitrogen), greases, oils, salt water and waste water from toilets as well as sludgy water that has a slower flow capacity than water, must not be transported with this pump. The temperature of the delivered fluid must be between 5 °C and 35 °C.

Start up

NOTICE The shorter the hose length and the larger the hose diameter, the higher the pump capacity. In order to prevent the pump from clogging, use the enclosed pre-filter (SP 6 Flat Inox) or slide down the integrated pre-filter (SP 7 Dirt Inox) with hose diameters of less than 1¼ “. The pump connection is equipped with a plug system (Quick-Connect). The unmounted connection nozzle with pump connecting piece is enclosed in the device.

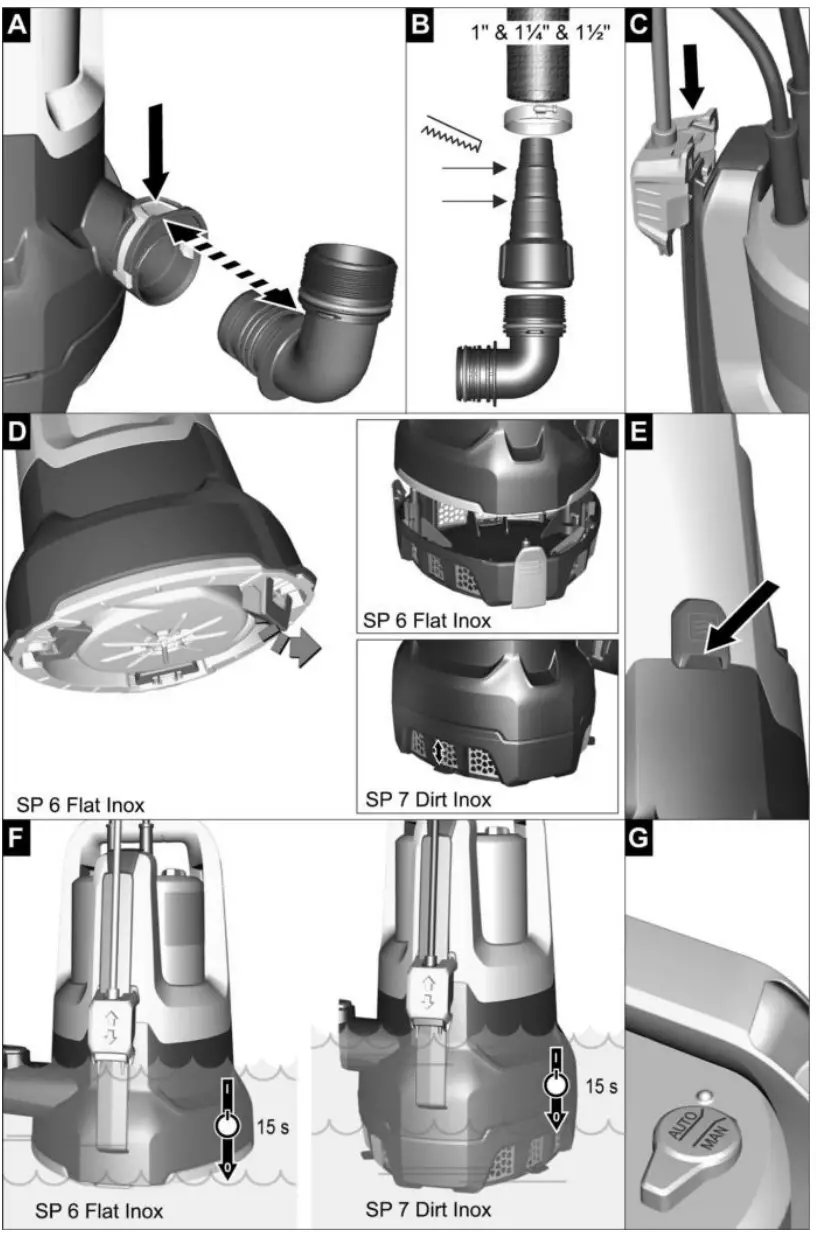

Illustration A

To remove the connection nozzle, press the QuickConnect (grey button).
Illustration B
Screw the pump connecting piece onto the connection nozzle.
Slide the hose clamp onto the hose.
Slide the hose onto the pump connecting piece and secure it by means of a hose clamp.
Slide the connection nozzle into the Quick-Connect.

NOTICE Hoses with a diameter of 1“, 1¼“ and 1½“ can be connected to the pump connecting piece. A sufficiently large hose diameter must be selected and the pump connecting piece must be shortened according to the grooves so that the required particle size can be used. A large hose diameter is also recommended for smaller particle sizes to allow a high flow volume.
Illustration C
Slide the level sensor onto the rail from the top.
Illustration D
Fold out or fold in the support legs (SP 6 Flat Inox) for the pump start.
NOTICE
It is not mandatory to fold out the support legs; a higher pump capacity is achieved by folding out the support legs.
Folding in the support legs enables the flat vacuuming of the fluid up to a residual fluid height of up to 1 mm.
Install or uninstall pre-filter (SP 6 Flat Inox).
Slide down or up the pre-filter (SP 7 Dirt Inox).
NOTICE It is not necessary to install the pre-filter, but a higher pump capacity is reached by installing the pre-filter (only for SP 6 Flat Inox). The feed fluids are pre-filtered by the pre-filter to protect the pump from heavy contamination. Particles up to 5 mm can still be used in the filter. Disassembly of the pre-filter allows for the flat vacuuming of the fluid up to 1 mm residual fluid height (SP 6 Flat Inox).
Safely place the pump on a stable surface in the feed fluid or immerse it using a rope tied to the carrying handle.
NOTICE
The suction area must not be blocked by soiling. In case of muddy ground, place the pump on a brick or the like. Ensure that the pump is level. Do not carry the pump on the cable or the hose.

Operation

DANGER
Risk of mortal danger on account of electric shock! Do not touch feed fluids, the rope attached to the carrying handle as well as objects that are in contact with the feed fluid (e.g. pipelines extending into the water, railings, etc.).

General
Illustration F
NOTICE
In order for the pump to draw independently, the fluid level must be at least 50 mm (SP 7 Dirt Inox) or 7 mm (SP 6 Flat Inox). The pump can pump up to a residual fluid eight of 35 mm (SP 7 Dirt Inox) or 1 mm (SP 6 Flat Inox).
Automatic venting device
Illustration E
With a low fluid level, possibly drawn air or air that is present in the pump escapes via the automatic venting device. In addition, fluid may leak at this spot. If the pump has suction problems with a low fluid level, unplug and plug in the mains plug repeatedly in order to support the suction process.

Automatic operation
Illustration F
NOTICE
In the automatic mode, the level sensor automatically controls the pumping operations. As soon as the level sensor has contact with the rising feed fluid the pump switches on.
The pump switches off as soon as the level sensor loses contact with the falling feed fluid and an after-running time of 15 s has passed.

Switching on:
Minimum fluid level required to enable the pump to suction independently (=minimum switch-on point): SP 6 Flat Inox: 7 mm (57 mm when using the pre-filter) SP7 Dirt Inox: 50mm

Highest adjustable switching height of the level sensor:
SP 6 Flat Inox: 190 mm without pre-filter (240 mm when using the pre-filter) SP 7 Dirt Inox: 237 mm

Minimum residual fluid height/max. Extraction depth:
The pump can pump out up to a residual liquid height of SP 6 Flat Inox: 1 mm (without pre-filter, with folded base) SP 7 Dirt Inox: 35 mm

NOTICE
It is recommended to use the pre-filter.

NOTICE
Ensure that the pump is level. Otherwise it can happen that the level sensor does not lose the fluid contact and the pump runs dry.
Push the level sensor to the desired switch-on height (contact with feed fluid).

NOTICE
The higher the level sensor is adjusted, the higher the switch-on and switch-off point. See the following table for application examples:

Min / Max	SP 6 Flat Inox	SP 7 Dirt Inox
Shaft with a diame- ter < of approx. 1 m (e.g. drainage)	Level sensor in the upmost po- sition	Level sensor in the upmost position
Shaft with a diame- ter < of approx. 1 m (e.g. drainage)	It is recom- mended to use the pre-filter.	Pre-filter flaps closed (protection against soiling)
Float basin, pond (only SP 7 Flat In- ox) or something similar	Level sensor in the lowest posi- tion	Level sensor in the lowest position
	Start pumping operations with pre-filter or folded out sup- port legs	Pre-filter flaps closed (protection against soil-ing)
	Continuation pumping operations without pre-filter and folded in support legs (residual fluid height 1 mm is reached) Note Perform in manual mode. Check the switch-off/shallow suction.	–

Set the switch to automatic mode (AUTO).
Insert the mains plug into the socket.

Manual operation

NOTICE
In manual operation the pump remains switched on continuously.
Illustration G
Set the switch to manual operation (MAN).
Insert the mains plug into the socket.
ATTENTION
Risk of damage! Dry running leads to increased wear; never leave the pump unattended during manual operation. Unplug immediately in case of dry running

Flat vacuuming (SP 6 Flat Inox)
It is recommended to use manual mode to reach the min. residual fluid height of 1 mm. A check valve is installed for the SP 6 Flat Inox. This prevents residual fluid in the hose from flowing back after the pumping process finishes.

Finish operation

NOTICE
Soiling can deposit and lead to malfunctions.
Pump clear water or thoroughly rinse the pump after every use. This especially applies after pumping chlorinated water or other liquids that leave residue.
Disconnect the main plug from the socket.

Maintenance

The pump is maintenace-free.

Transport

CAUTION
In order to prevent accidents or injuries, keep in mind the weight of the appliance during transport (see Specifications).
Lift and carry the pump on the carrying handle.
If you want to transport the appliance on a vehicle secure it from slipping.

CAUTION
In order to prevent accidents or injuries, keep in mind the weight of the appliance when selecting a storage location for it (see Specifications). Storage

Storing the pump

Completely drain the pump and allow it to dry.
Store the pump in a frost-free place.

Special accessories

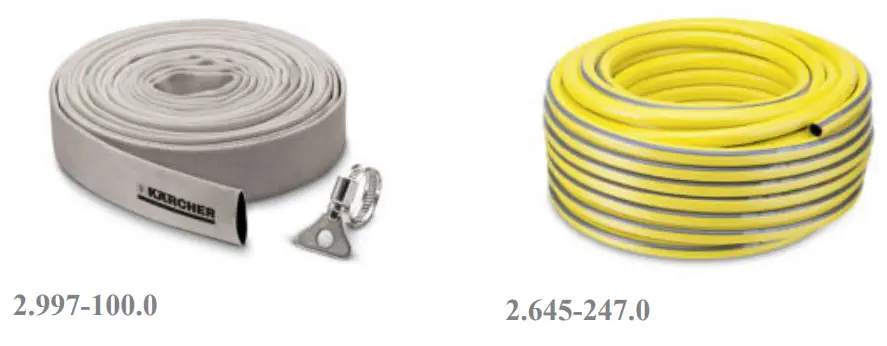

2.997-100.0	Braided hose set	Flexible 1 1/4″ braided hose with hose clamp (30 – 40 mm) with wing screw for a connection without tools. Especially recommendable for the immersion pumps when removing large water quantities. Max. operating pressure: 5 bar
6.997-346.0	Spiral hose, by the meter, 25 m, 1″	By the meter for cutting hoses to individual lengths.
2.645-247.0	Hose PrimoFlex, 50 m, 1″	Phthalate-free 1″ garden hose for draining away the water.

Troubleshooting

DANGER
Risk of mortal danger on account of electric shock!
To avoid risks, all repairs and replacement of spare parts may only be carried out by the authorised customer service personnel.

Fault	Cause	Remedy
Pump runs but does not transport	Air in the pump	Unplug and plug in the mains plug of the pump repeatedly until the fluid is drawn
	Suction area blocked	Pull out the mains plug and clean the suction area
	Water level below the minimum fluid level	Immerse, whenever possible, the pump deeper into the feed fluid or proceed as described in Chapter Operation.
Pump does not run or suddenly comes to a standstill during opera- tions	Power supply interrupted	Check fuses and electrical connections
	Thermal protection switch has switched off the pump due to over- heating	Pull out the mains plug, let the pump cool down, clean the suction area, prevent dry running
	Dirt particles have got jammed into the suction area	Pull out the mains plug and clean the suction area
	Level sensor stops pump	Check the position of the level sensor and correct it if necessary. The pump stops 15 s after the level sensor has no water contact anymore.
	The level sensor does not react as it is soiled	Clean the level sensor.
Pumping capacity is reducing	Suction area blocked	Pull out the mains plug and clean the suction area
Pumping capacity too low	The pumping capacity depends on the flow height, hose diameter and hose length.	Observe the maximum delivery height, see technical data. If necessary, use a larger hose diameter or a shorter hose length.
Quick-Connect cannot be opened or closed.	Soiling in the plug system.	Remove and clean clip.
The pump is running although there is no water contact with the level sensor	The level sensor does not react as it is soiled	Clean the level sensor.
	The switch is on manual operation (MAN)	Set the switch to automatic mode (AUTO).
After-running time is extended.	Level sensor contaminated.	Clean level sensor.

Specifications

		SP 6 Flat !fox	SP 7 Dirt Inox
Mains voltage	V	230 – 240 V	230 V
Mains frequency	Hz	50	50
Output 13„,„,	W	550	750
Max. flow rate	I/h	14000	15500
Max. pressure	bar	0.9	0.8
Max. flow height	m	9	8
Max. immersion depth	m	7	7
Max. grain size of the dirt particles that can be transported	mm	5	30
Minimum fluid height	mm	7	50
Residual fluid height	mm	1	35
Weight (without accessories)	kg	6.	7.
Length of connecting cable	m	10	10

Subject to technical modifications!

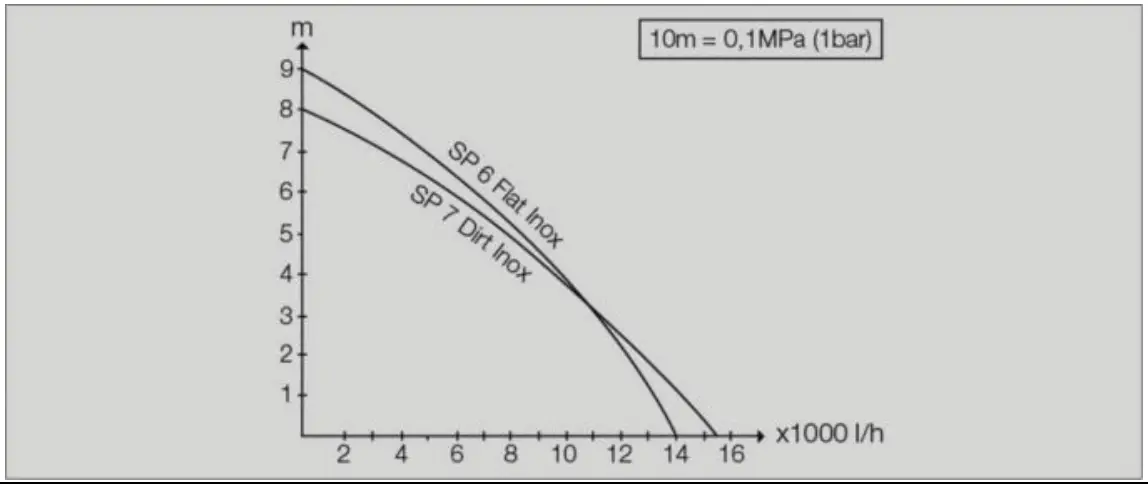

The possible delivery rate is even larger:
– the lower the delivery height
– the larger the diameter of the hose used
– the shorter the hose used
– the lower the pressure loss caused by the connected accessories
