FPP15206 Wired Programmable Thermostat Installation Guide
Must be installed by a competent person. To ensure your safety make sure the mains power is switched OFF before accessing wiring FPP15206 .
To prevent a short circuit from a loose wire:
- Multi-core cables: Only remove enough outer insulation to allow secure fixing of the cores into the terminal block.
- Single core cables: Secure them together with a cable tie as close as possible to the terminal block FPP15206 .

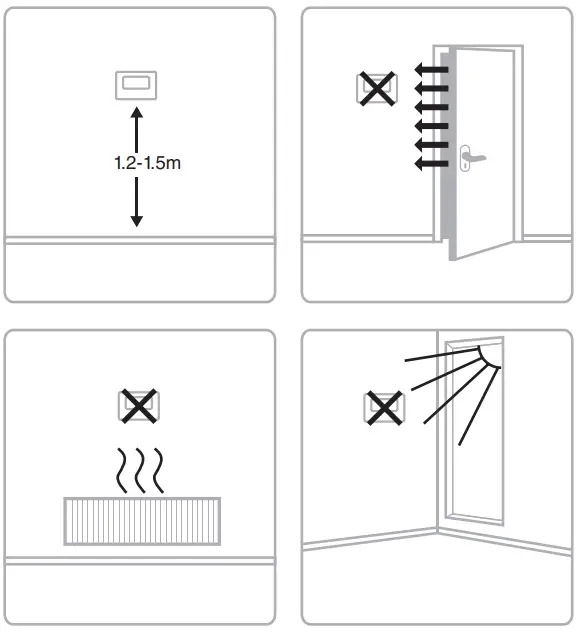

1 Choosing a suitable location for the Thermostat

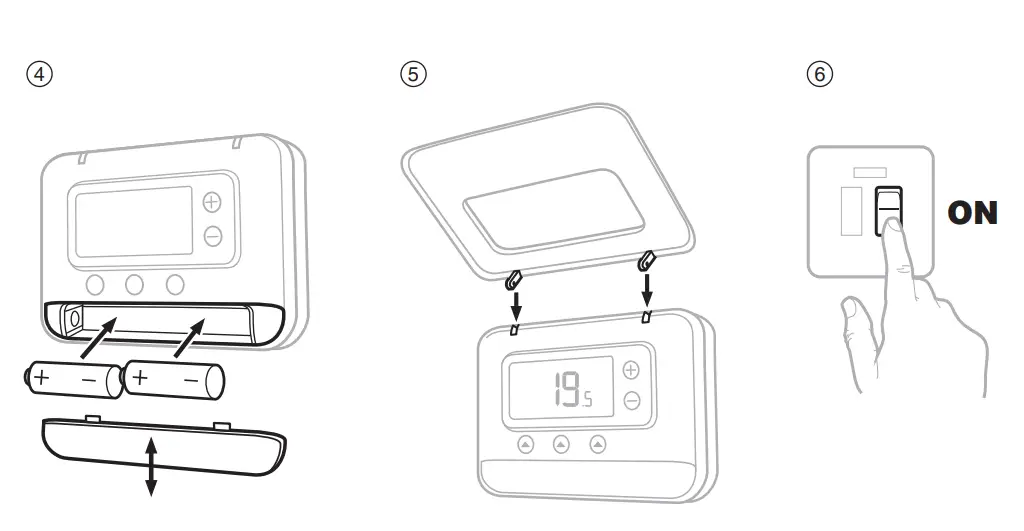

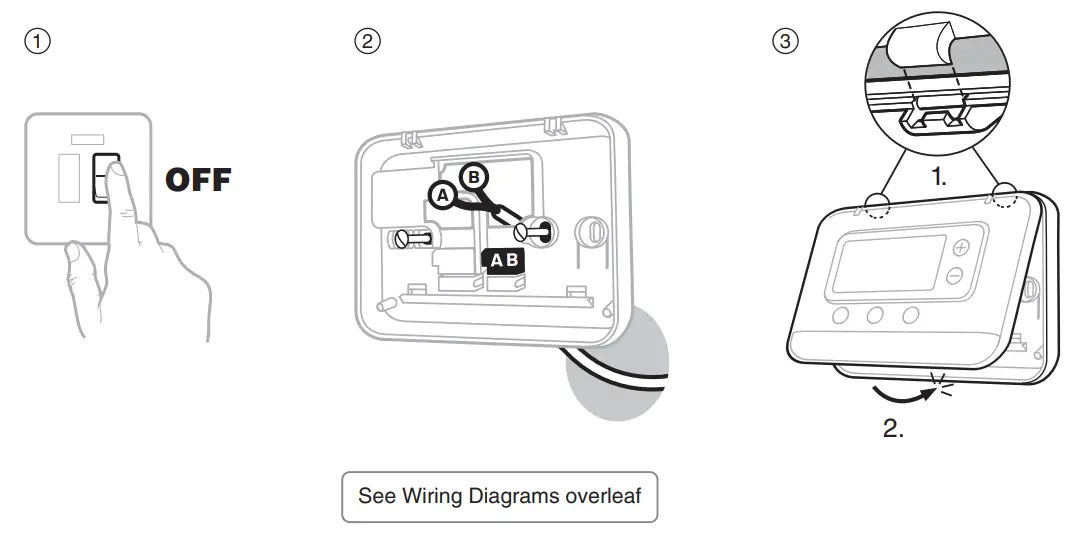

2 Installing the Thermostat

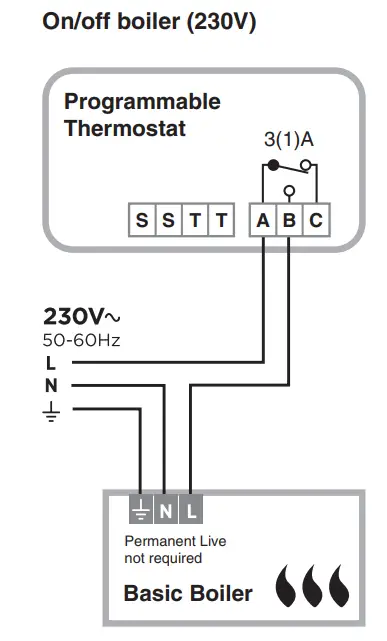

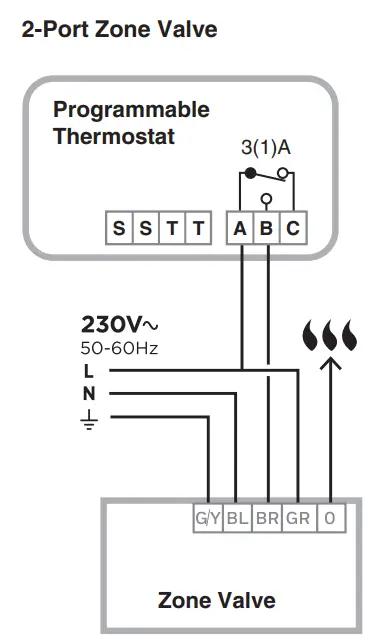

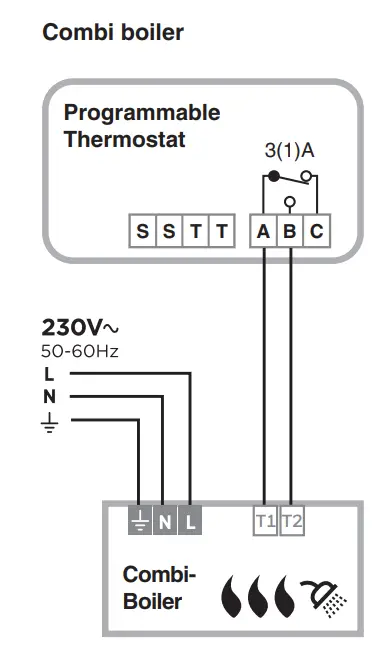

3 Wiring Diagrams

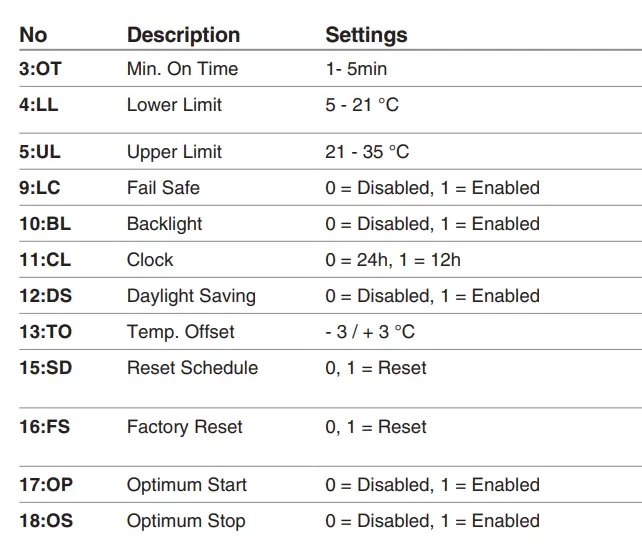

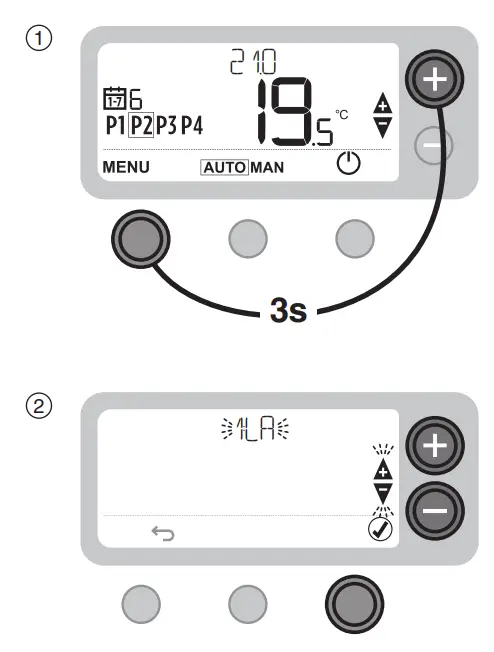

4 Adjusting the Thermostat Parameters
