VOLCANO 2000Pros
Car Jump Starter
User Manual
VOLCANO 2000Pros Car Jump Starter
Welcome
Thank you for purchasing TOPDON Jump Starter VOLCANO 2000 Pros. Please patiently read and understand this User Manual before operating this product. If any issues arise from the operation of this product,welcome to contact [email protected] for official technical support.
About
Designed for cars, trucks, boats, motorcycles, mowers, TOPDON VOLCANO 2000Pros is an easy-to-carry jump starter containing more power for your various demands in emergency during jump start, night illumination, outdoor activities, self-driving and natural disasters. Volcano 1200 is designed with multiple protections, thus extremely safe for users and the jump start process does no harm to your car battery.
Package list
- Lithium jump starter
- Smart battery clamps
- User manual
- Type-C cable
- DC to Cigarette Lighter Converter
Compatibility
This product is only compatible with 12-volt lead-acid batteries. Do not use this product with any other type of battery.
Battery charging
Charge this product via the USB type-C input from the wall socket or other 5V-8V output devices. When this product is being charged, its LCD will display “Charging” message. When it’s fully charged, the LCD will display a “100%” message. Please charge this product for at least 8 hours before the first use.

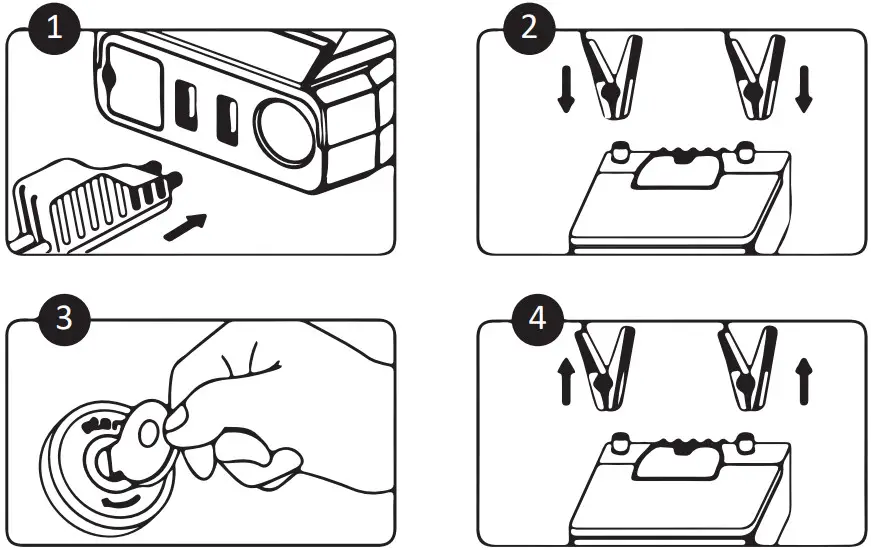

Jump start your vehicle battery
- Connect the smart battery clamp cable to the jump starter, the LED Indicator will flash alternately green and red indicating it is ready to use;
- Correctly clip the red and black clamps to the vehicle battery terminals (red to positive and black to negative); then the green light is always on, which means it is ready for jump starting.
- Start the vehicle;
- When your vehicle is started, disconnect the clamps from vehicle battery.
Charging other electronic device:
- Press “key switch” button
- Use USB cable to charge mobile devices including cellphone, tablet and other USB-devices
- Disconnect when charging is completed.
Use LED Light as Flashlight or SOS and strobe:
- Press “Power” button for 3 seconds to turn on LED flashlight;
- Press “Power” to cycle through LED modes, from steady light to “SOS” to strobe, to off
Warranty:
TOPDON Two Years Limited Warranty
The TOPDON Company warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 24 months from the date of purchase (Warranty Period). For the defects reported during the Warranty Period, TOPDON will, according to its technical support analysis and confirmation, either repair or replace the defective part or product. This limited warranty is void under the following conditions: Misused, disassembled, altered or repaired by a non-TOPDON technical repair specialist. Careless handling and violation of operation.
Notice: AII information in this manual is based on thelatest information available at the time of publication and no warranty can be made for its accuracy or completeness.Topdon reserves the right to make changes at any time without notice.
Warnings:
Use only the smart battery clamps supplied with this product.
DO NOT use this device if any cable, clamp or cord is damaged.
The battery jump start procedure is only for use on vehicles with 1 2 volt batteries.
Only jump start the vehicle when capacity is at least 50%.
Do not allow the battery clamps touching each other; Do not connect the clamps to the same piece of metal. If the engine does not start on the first try, disconnect this device from the vehicle battery and wait for at least 20 seconds before reconnecting, maximum three attempts in twominutes. Once the vehicle engine is successfully started, disconnect the clamps within 30 seconds.
Cautions:
DO NOT put the product under direct sunlight or hot areas.
DO NOT disassemble the equipment.
DO NOT use chemicals or detergents to clean the product
DO NOT place the products in high temperature environment for long, the operation temperature is -20°C~60°C.
Check the charge level of the device every two months and charge the product, if needed.
| LED Indicator | Tool Status |
| Red and green light flash | Ready to use |
| Green light on | Working status |
| Red light on | 1. Reverse Polarity Alert: battery clamps are connected to incorrect battery terminals. –double check; 2. Short Circuit Alert: battery clamps are connected to each other. –check whether two clamps are connected together; 3. Low Power Alert: device needs to be charged. –Charge the device in time; 4. Temperature Alert: battery temperature exceeds 149°F/65°C (+/-5°C). –Wait until the temperature is normal. |
| Red light flashes | Overload Alert: the current is reversing into the jump starter. |
Technical specifications
| Peak Current: 2000A Type-C: in 5V/3A Output 1: QC3.0 5V/3A, 9V/2A Output 2: USB2.0 5V/2.1A DC Output: 12V/10 A Wireless: 10W | Short Circuit Protection: Effective Reverse Protection: Effective The Operation Temperature: -20°C~70°C (-4 °F -158 °F) Over Discharge Protection: 13V+/-0.5V Dimensions: 206*95.5*42 mm (8.11*3.76*1.65 inches) Weight: 0,6kg |
FAQ
Q: How to turn off this product?
A: This product will automatically power off while not being used.
Q: How long time does it need to get fully charged?
A: Via the Type-C USB input, the device will need approximately four to five hours to get fully charged.
Q: How many times can this product jump start a vehicle battery on a single charge?
| NO. | Function | Operation |
| 1 | Power Button | Press to charge the external electronic devices as cellphones etc.; Press to check its remaining battery capacity; Hold to turn on/off the flashlight. |
| 2 | LED Display | Display the remaining power. |
| 3 | Auto Jump Starting Port | 12V, 1500A. |
| 4 | Output 5V/2.1 A | Charge mobile devices and cameras etc, 50% faster than a standard charger. |
| 5 | Output QC3.0 | Charge mobile devices and cameras etc, 75% faster than a standard charger. |
| 6 | Flashlight | Serve as Steady Light, or SOS, or Strobe. |
| 7 | Type-C Input | Input port to charge this product. |
| 8 | DC Output | Power DC-powered devices as air-compressor, GPS, Vehicle Fridge, Vehicle Vacuum Cleaner, and Vehicle Air Purifier, etc. |
| 9 | Smart Clamp Plug | Insert the plug fully into the jump starter. |
| 10 | Wireless Charging | Charge the Qi-certified cellphones. |
