Toro 08140 Side View Mirror Kit Instruction Manual

TORO 08140 Side View Mirror Kit

Installation

Preparing the Machine

1. Park the machine on a level surface.
2. Shift the transmission lever to the P (Park) position.
3. Shut off the engine and remove the key.

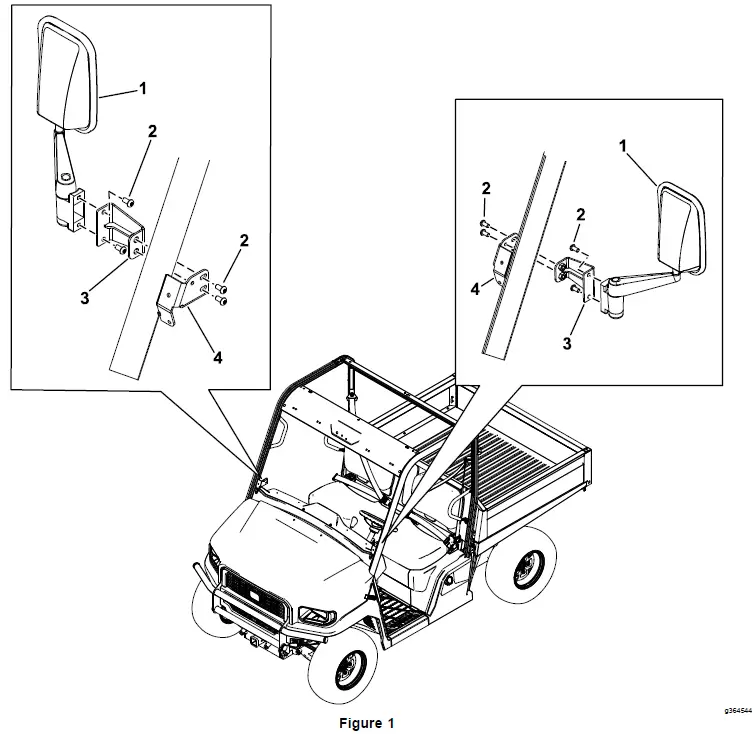

Installing the Mirror

1. Use 2 screws to secure the mirror to the mirror bracket.
2. Use 2 screws to secure the mirror bracket to the ROPS bracket.
3. Torque each screw to 26 N∙m (228 in-lb).

1. Mirror
2. Screw
3. Mirror bracket
4. ROPS bracket
