OFF-ROAD 4X4 DIY
ED0201R001
CARE AND USE INSTRUCTIONS
parts list
| A | under seat storage box | |
| B | ![]() | mini storage box |
| C | knob | |
| D | divider | |
| E | nut | |
| F | washer | |
| G | ![]() | self-tapping screw |
INSTALLATION STEPS

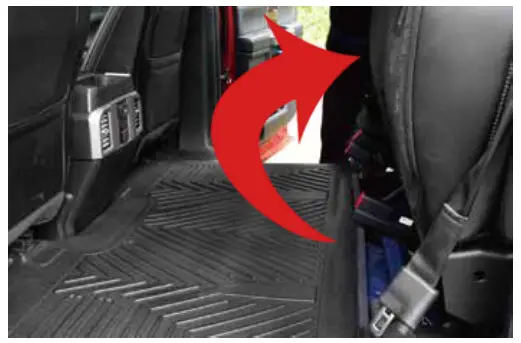

| STEP1: Flip-up rear seats. | ![]() |

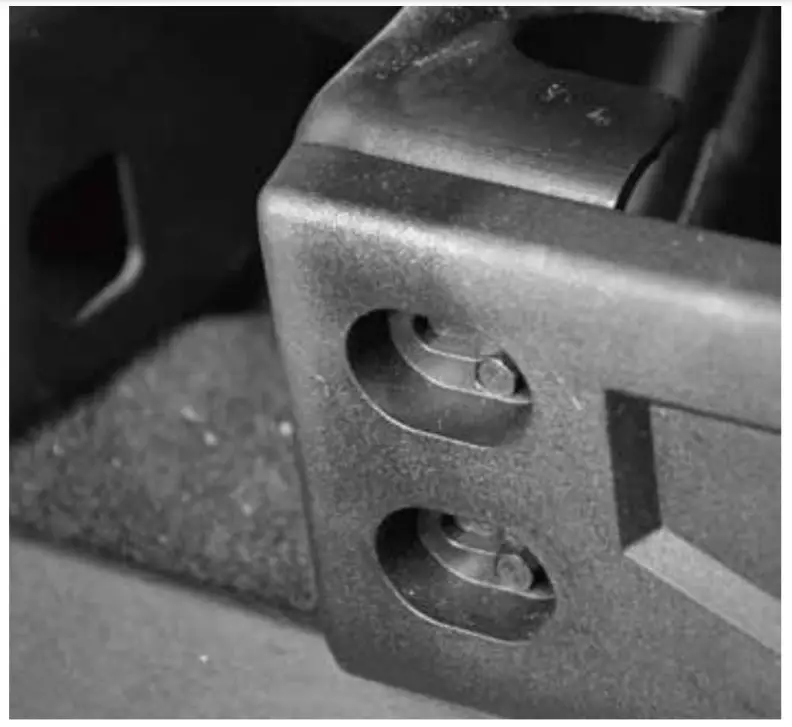

| STEP2: Remove factory hex bolt from rear seat hinge. If your vehicle did not equip this bolt, then use provided self-tapping screw drill mounting holes to fix storage case. | ![]() |

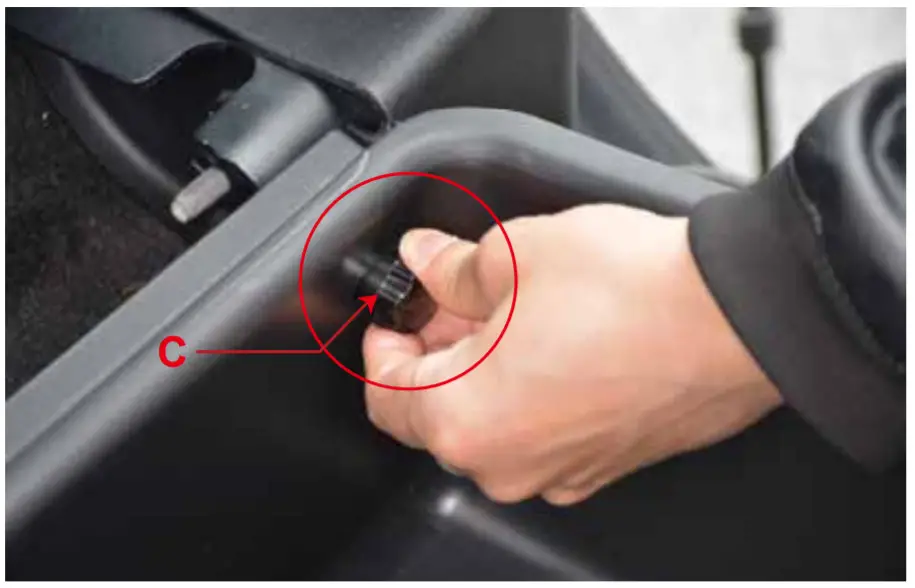

| STEP3: Threading the knobs into the mounting holes instead factory hex bolt. | ![]() |

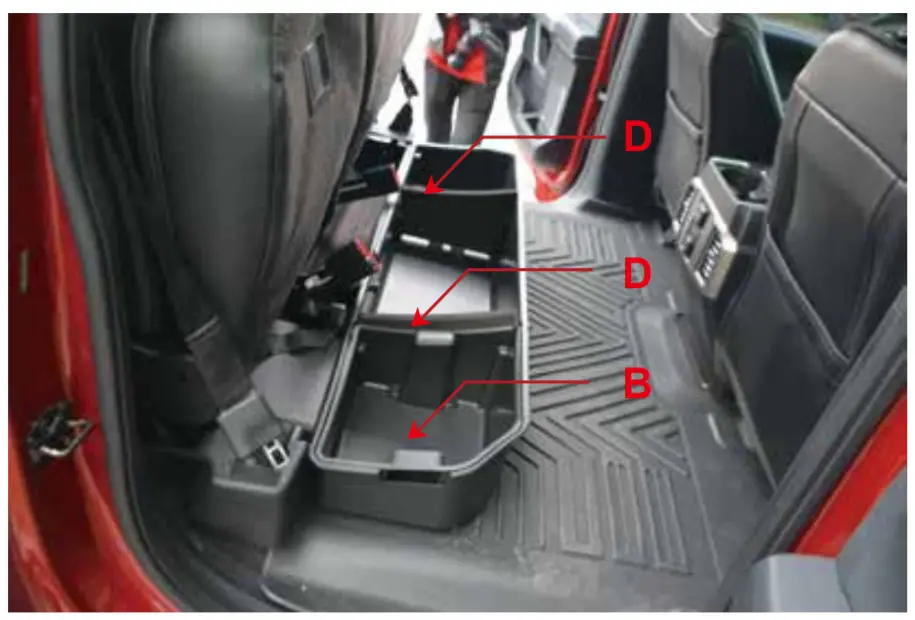

| STEP 4: Installing the two dividers and mini storage for your needs. | ![]() |
| STEP 5: Flip down rear seat. | ![]() |
