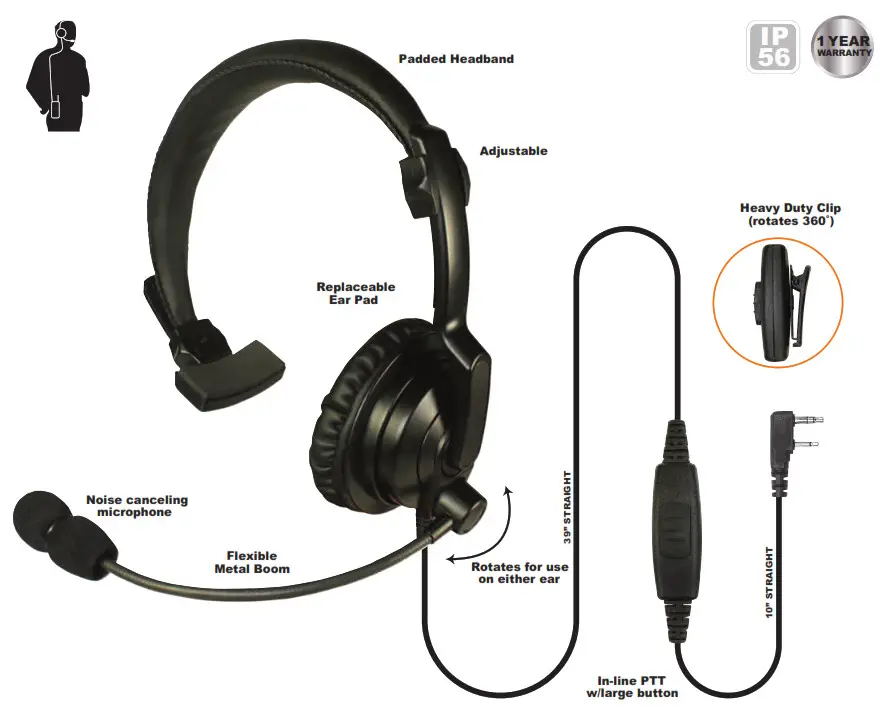

HP24SNL-P20 SERIES
Lightweight Padded Headset
A High-Performance padded headset with a noise-reducing boom microphone is lightweight and extremely comfortable to wear. Padded headband and speaker combined with rugged over-the-head design make the HP24SNL-P20 them perfect for users who have to wear headsets for long periods of time. Perfect for dispatch, retail, restaurant, movie/TV set, hospitality, entertainment and industrial users.
HEADSETS
FEATURES
- Lightweight over-the-head headset
- Padded, adjustable metal headband (replaceable padding)
- Adjustable padded T-Bar
- Adjustable speaker housing assembly
- Replaceable leather style speaker cushion
- Flexible metal boom microphone with replaceable windsock
- Noise reducing condenser microphone element
- Rugged in-line PTT switch
- Reinforced strain reliefs at all attachment points
- Large variety of different radio connectors available
SPECIFICATIONS
| MICROPHONE | |
| Type | Noise Canceling Condenser Mic |
| Sensitivity | -47±-3dB |
| Impedance | 680Ω Typ |
| Frequency | 500Hz˜8000Hz |
| Standard operation voltage | 10V |
| Current Consumption | Max. 0.4mA |
| Sensitivity reduction | -3dB at 1V |
| S/N ratio | > 60dB |
| SPEAKER | |
| Size | Outer Diameter 40mm |
| Impedance | 300Ω @ 1kHz |
| Power Rating | Nominal 30mW RMS, 50mW Max. |
| Output Sound Pressure Level | 118 ± 3dB / 1mW /1cm |
| Frequency Range | 130Hz˜5000kHz |
| Distortion | 2% Maximum at 1KHz / 1mW |
