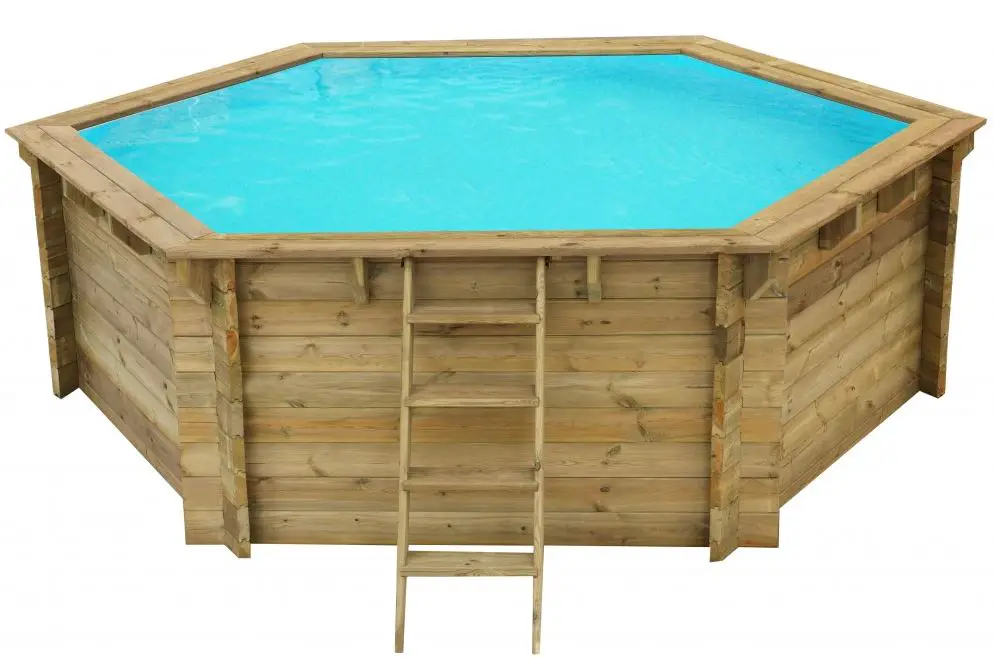

Karibu 38377 Summer Pool
Product Information
This product is manufactured by Karibu Holztechnik GmbH and is shipped with the product code 33103 27672 38377. The package contains different parts which are listed in detail in the user manual. The product is designed to be assembled into a swimming pool with the help of the provided materials list and instructions.
Product Usage Instructions
- Firstly, compare the list of materials with your package contents to ensure that everything is complete. Any complaints regarding missing parts can only be processed before the assembly process has begun.
- Determine and saw the length of certain pieces asrequired.
- Assemble the different parts according to the instructions provided in the manual.
- Some parts may need to be fixed temporarily until the assembly is complete.
- To prevent drowning, it is recommended to secure access to the swimming pool with a protective device.
Please refer to the manual for detailed instructions on assembling the different parts of the product. Keep in mind that certain parts may not be included in the package and may need to be purchased separately. If you have any further questions or concerns, please do not hesitate to contact us at [email protected].

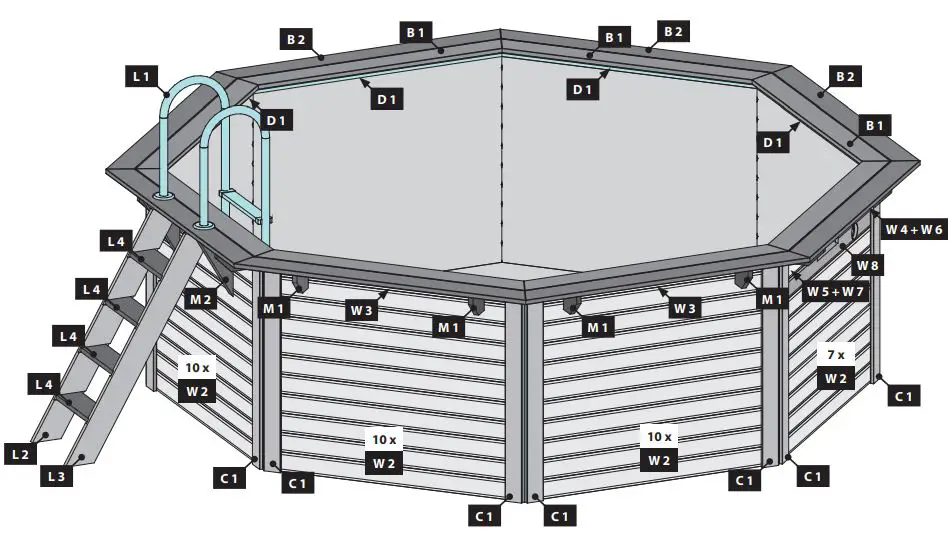

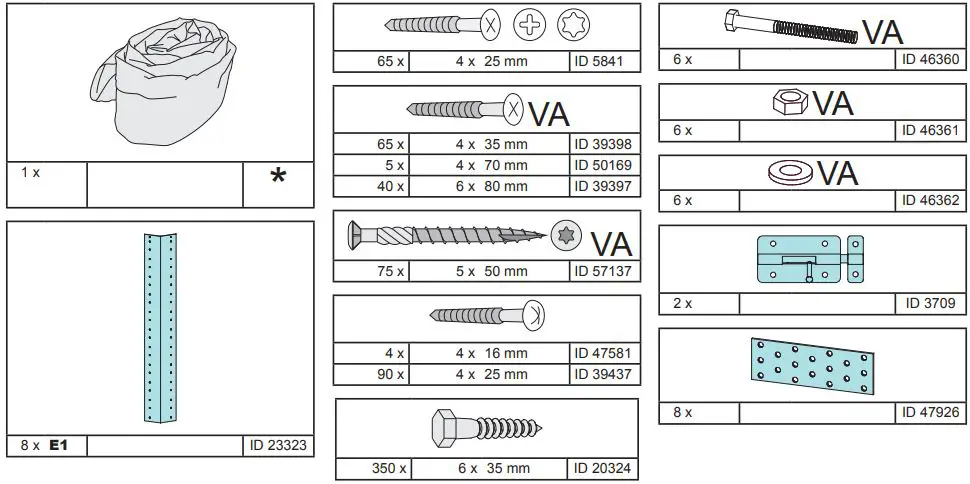

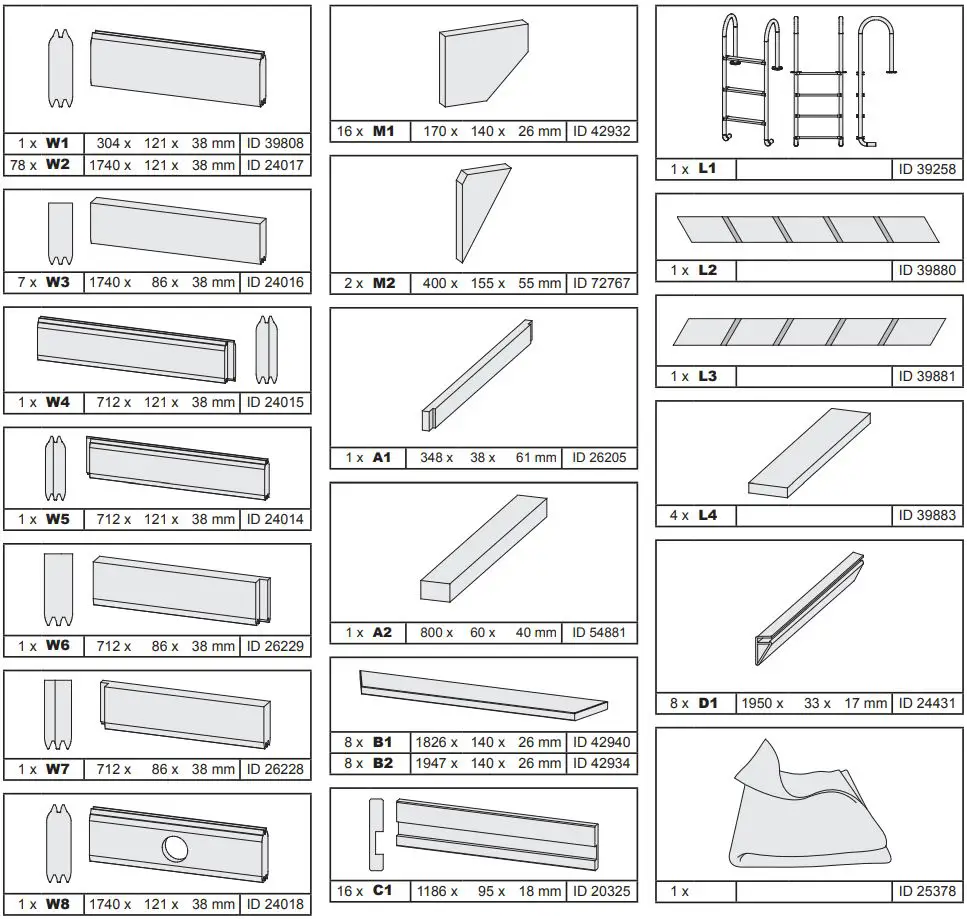

PARTS & TOOLS
First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only!
DIMENSION
Not included

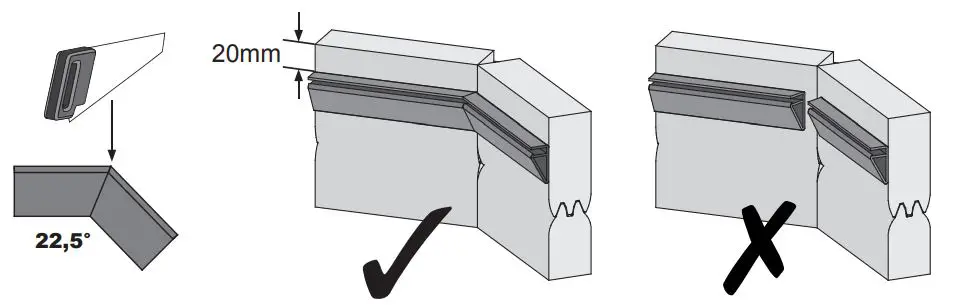

Length must be determined and sawn
Not needed
Fixed temporarily
To prevent the drowning of children, it is recommended to secure access to the swimming pool with a protective device!
Not included

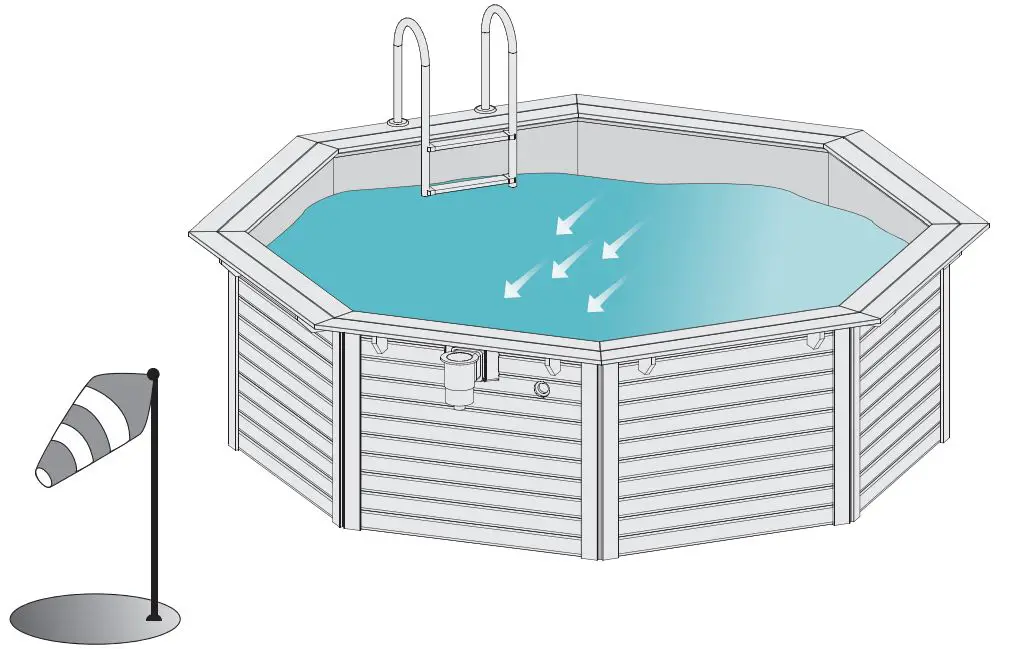

installing skimmers in the main wind direction

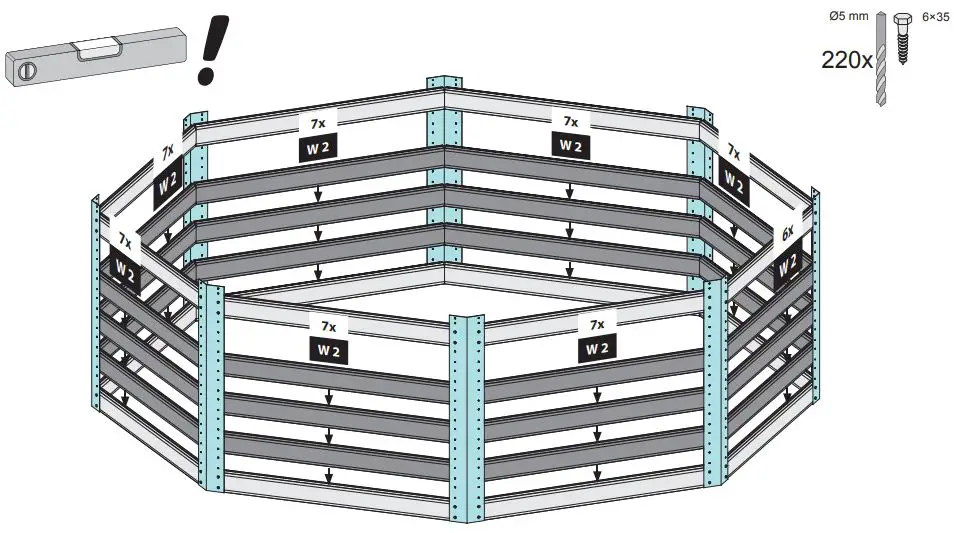

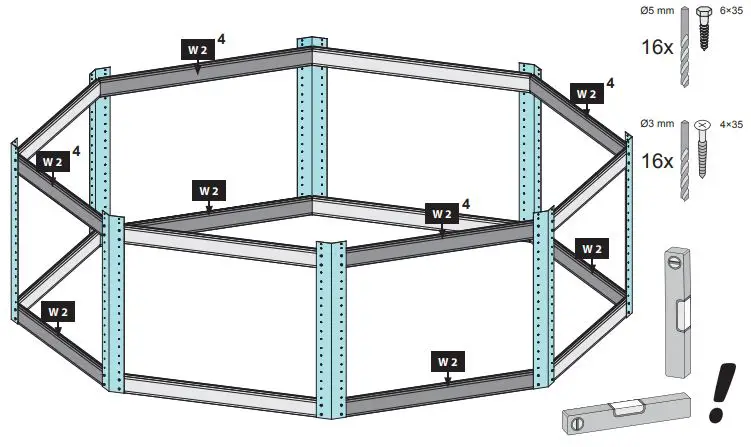

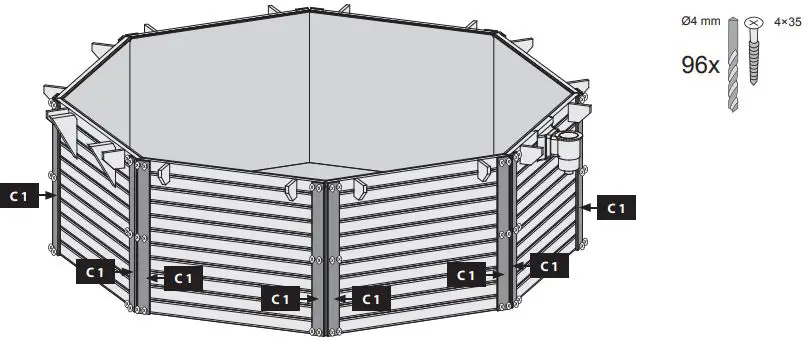

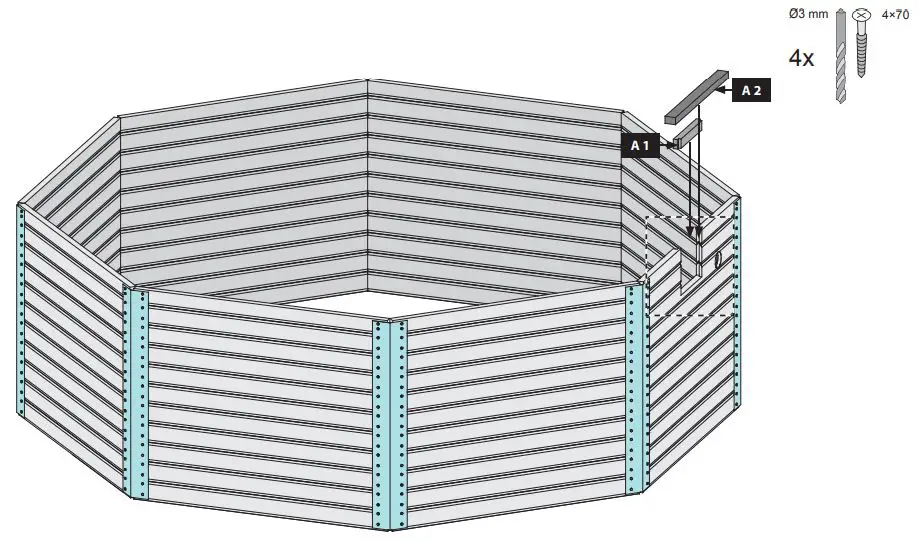

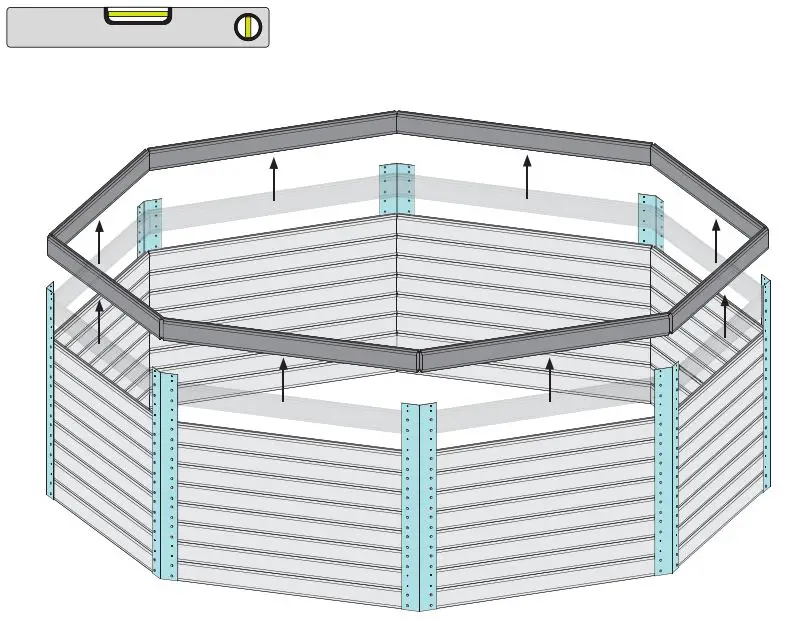

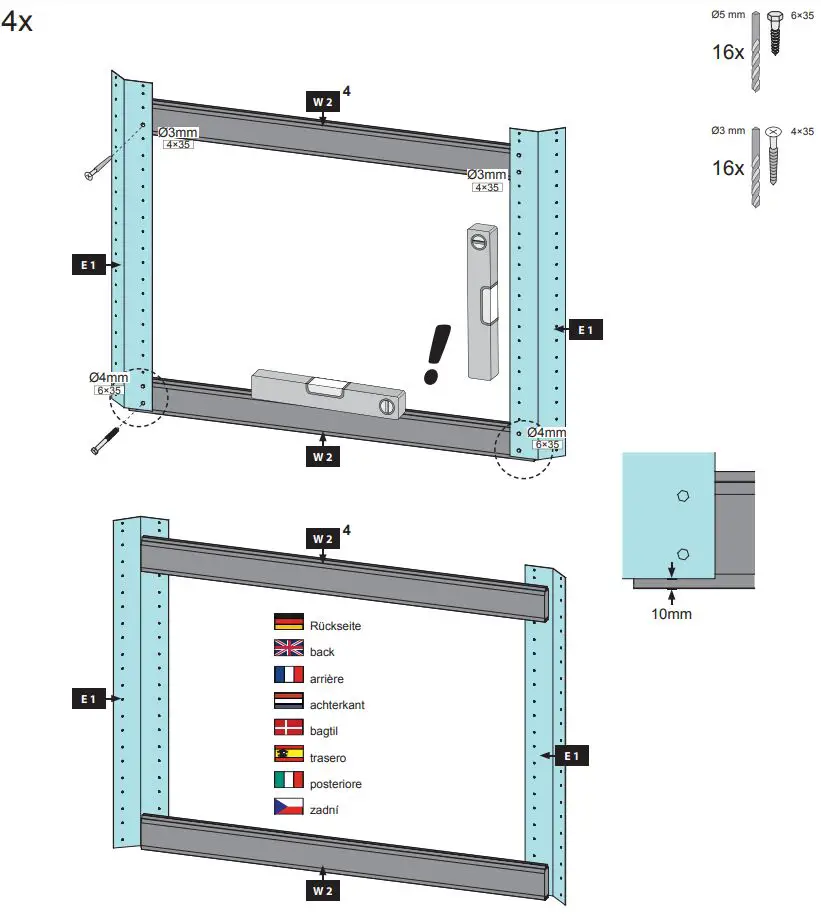

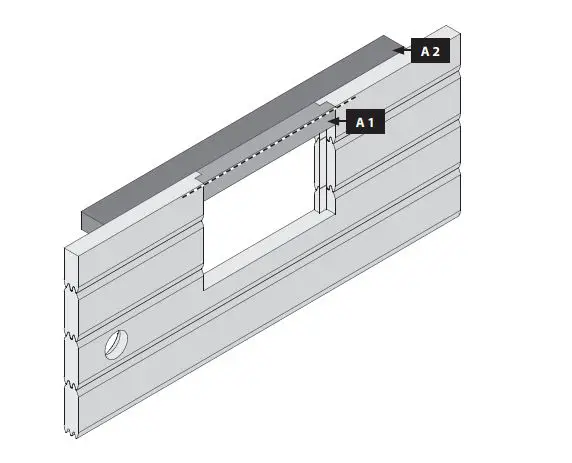

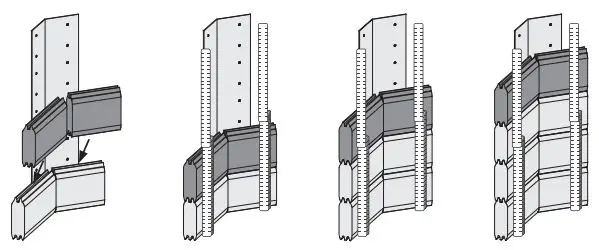

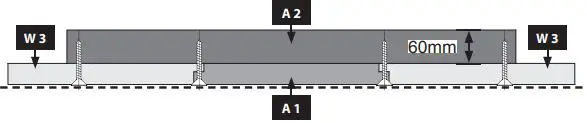

INSTALLATION

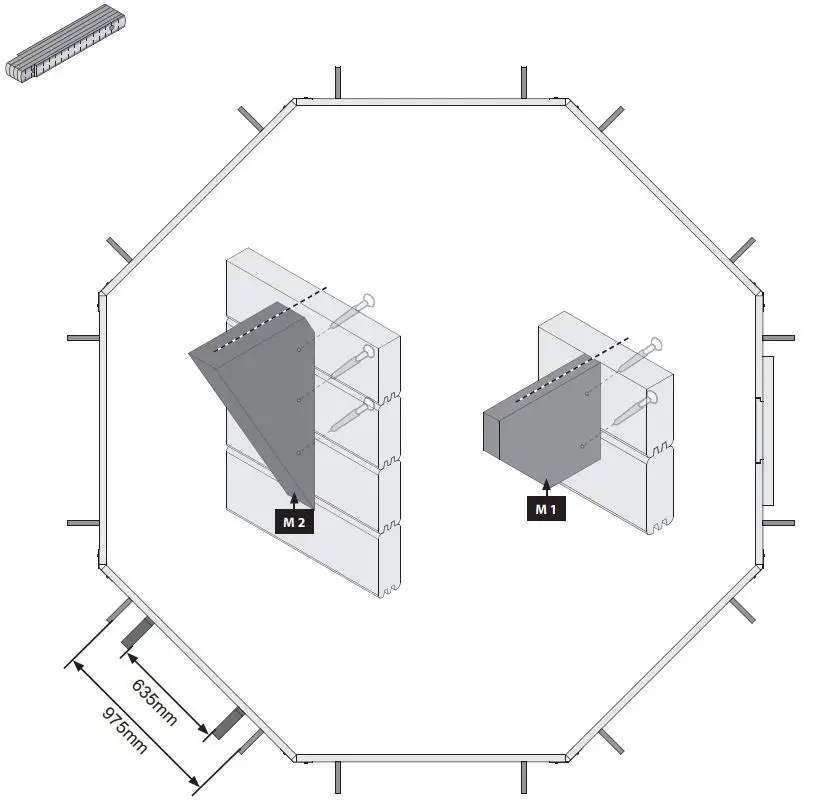

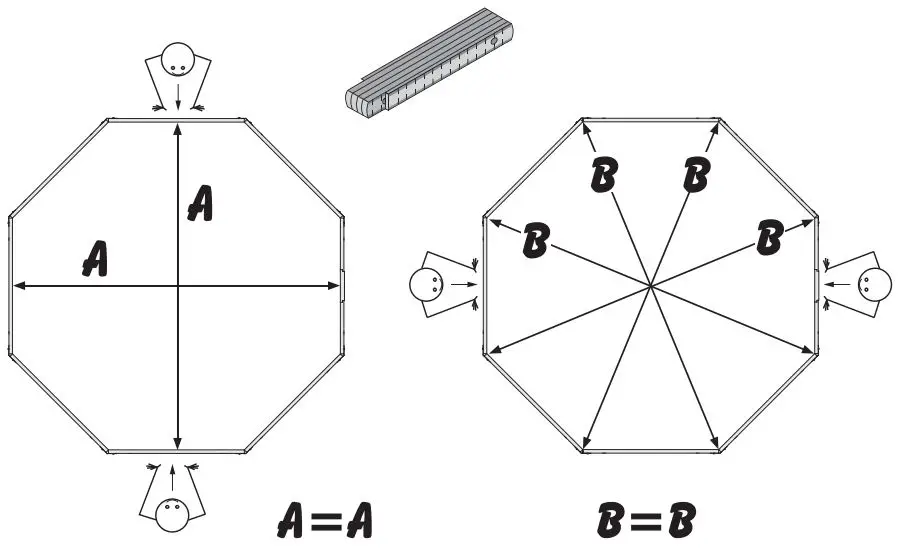

Top view

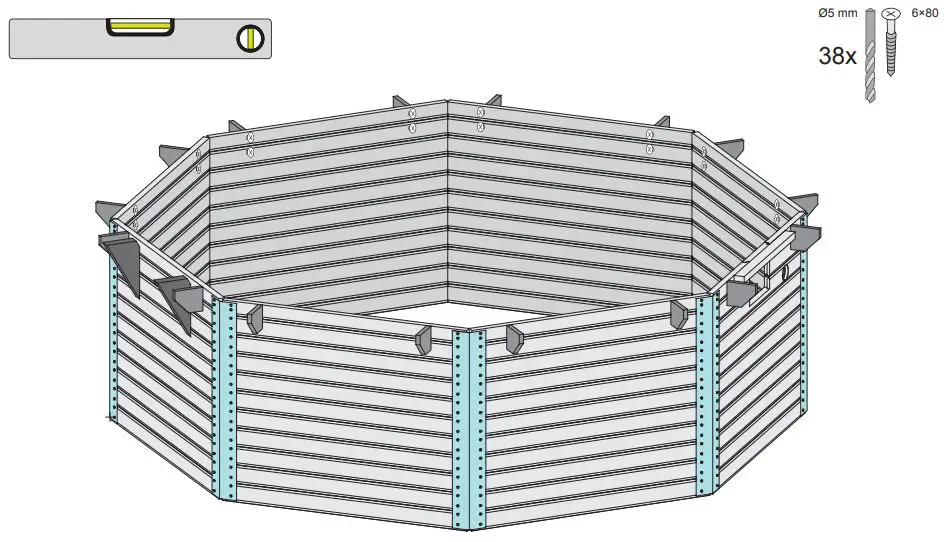

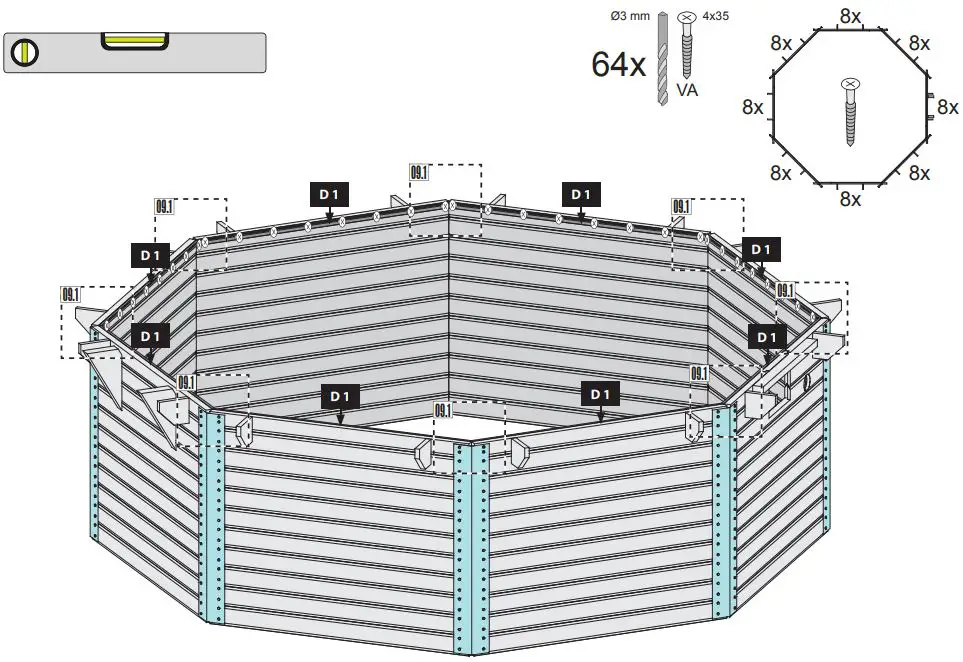

Look for the same height

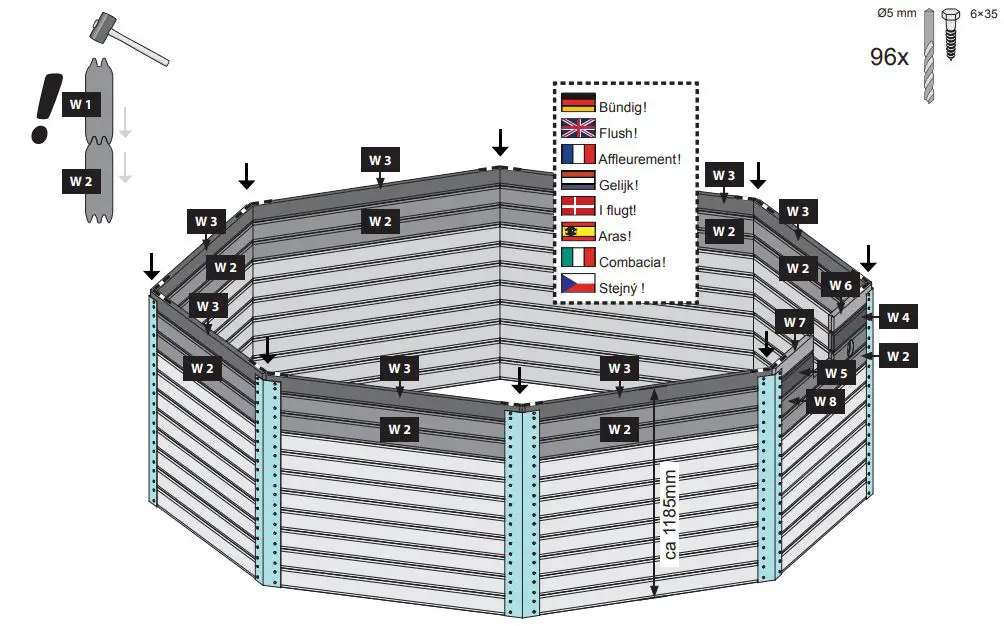

Flush!

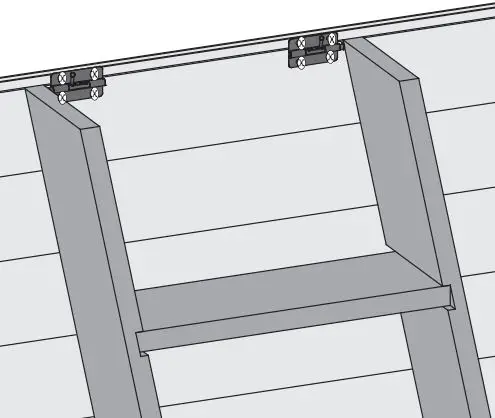

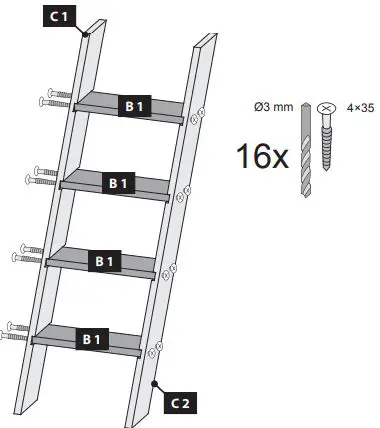

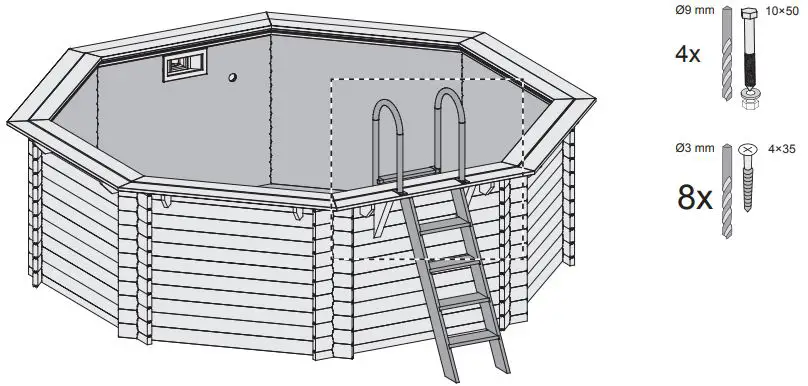

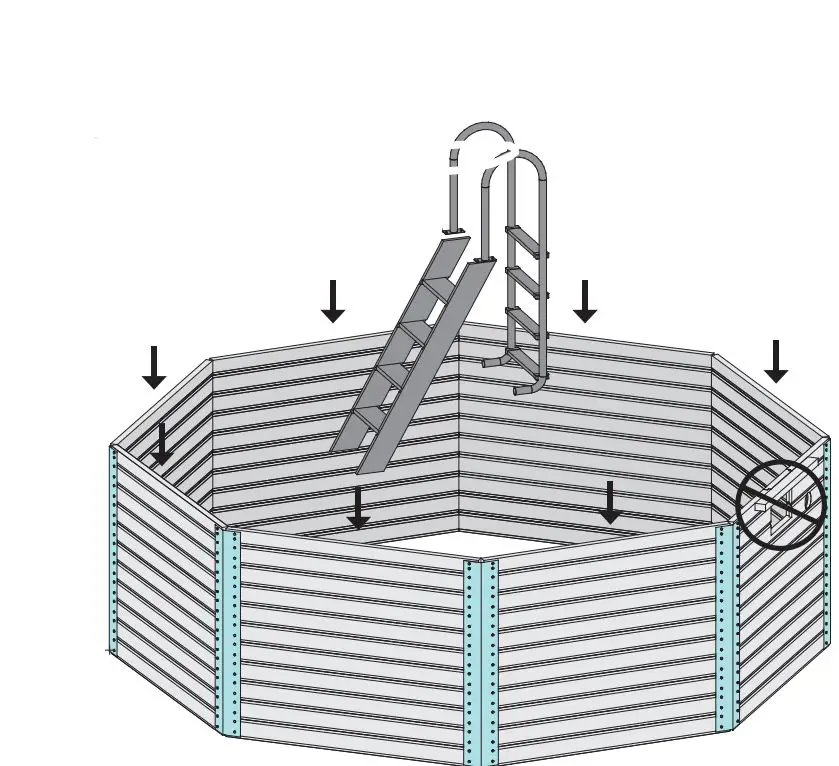

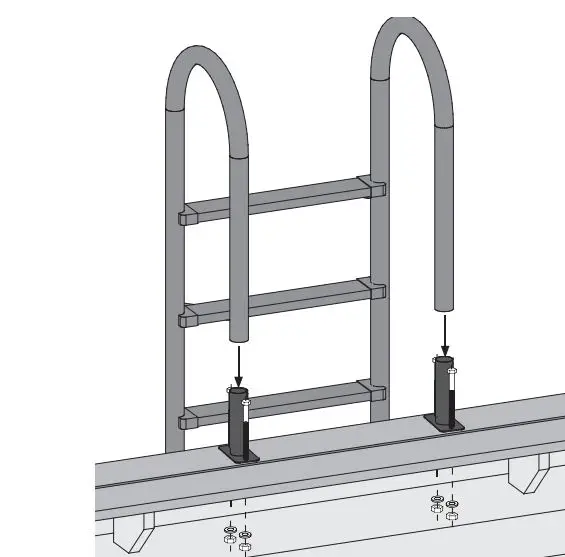

Select the position of the stairs
inside

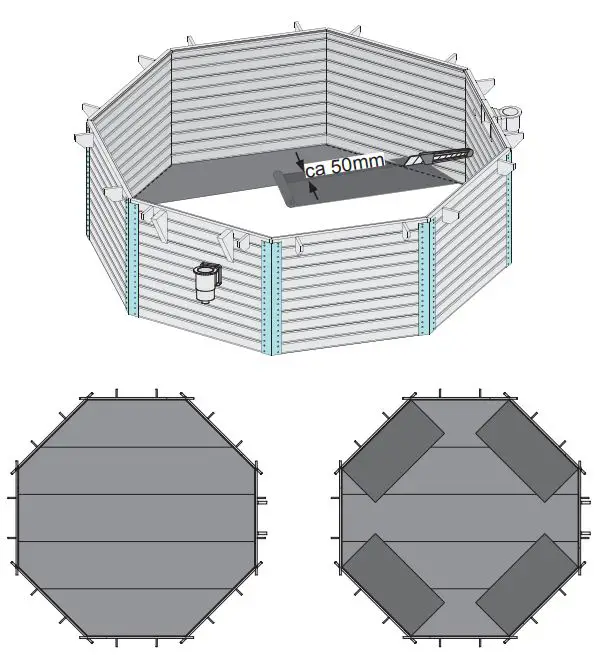

Fleece

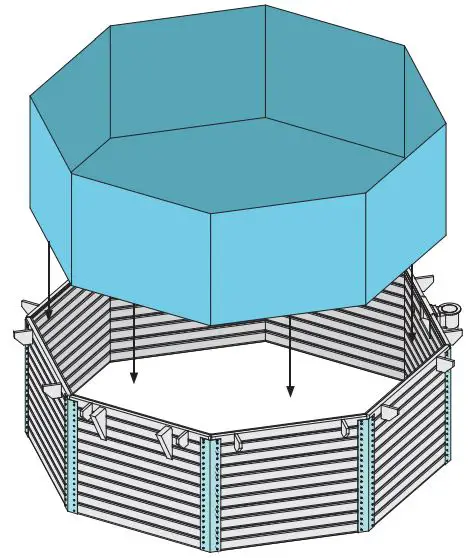

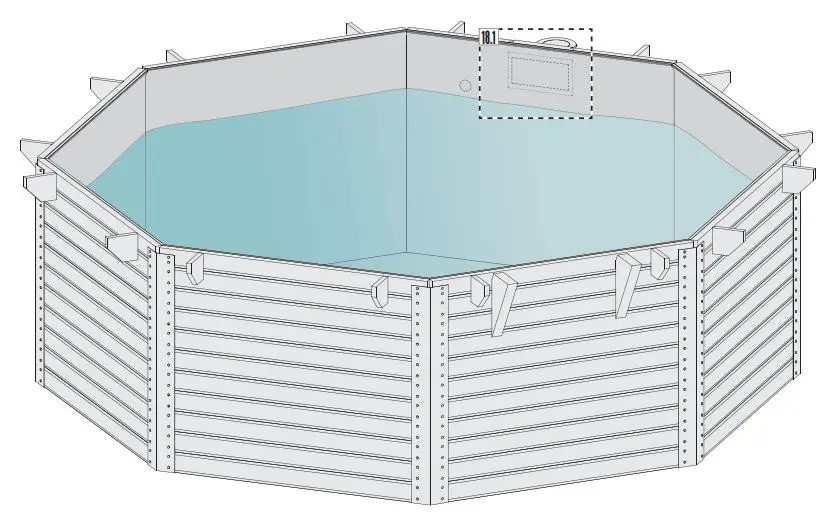

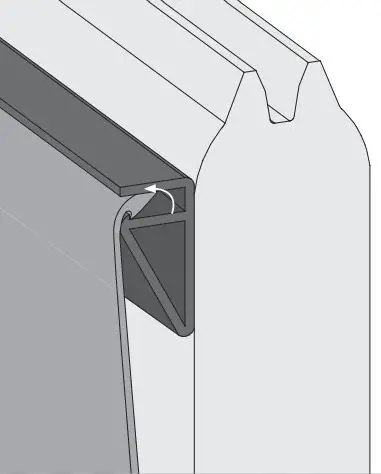

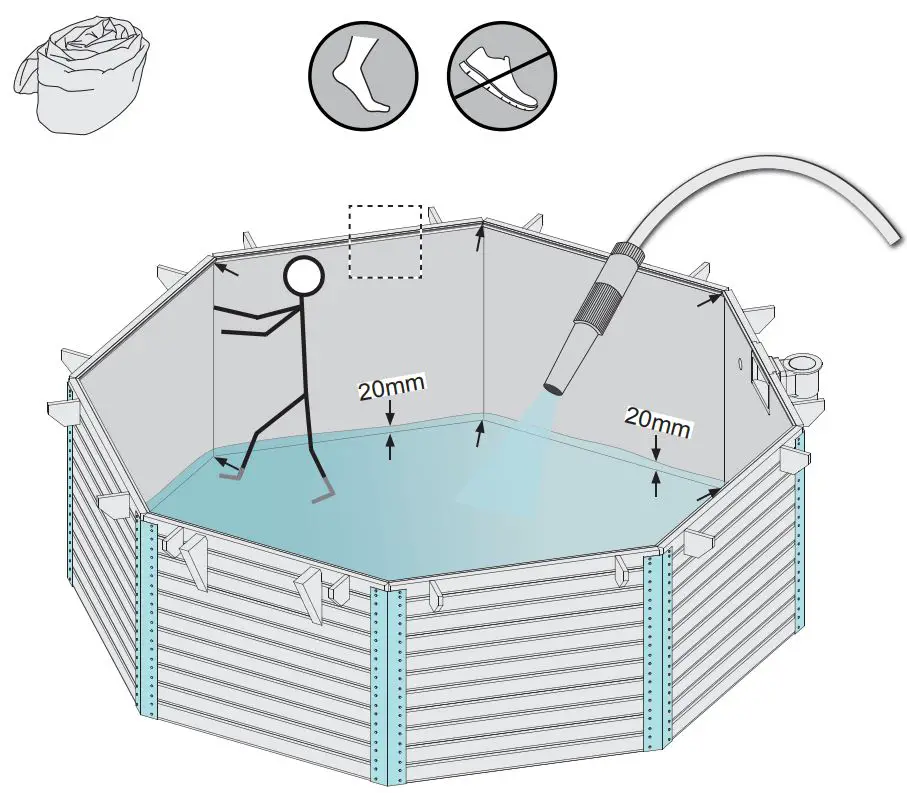

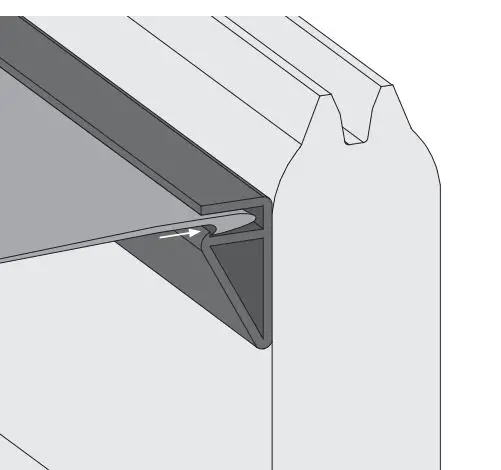

Pool liner

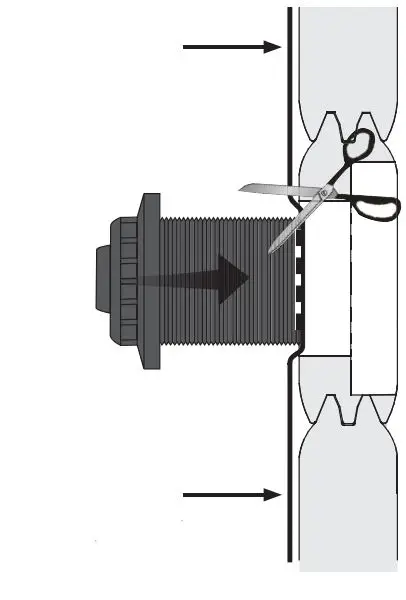

Thread sealing tape
Pool inset foil
bellmouth
rubber gasket ring
cork ring

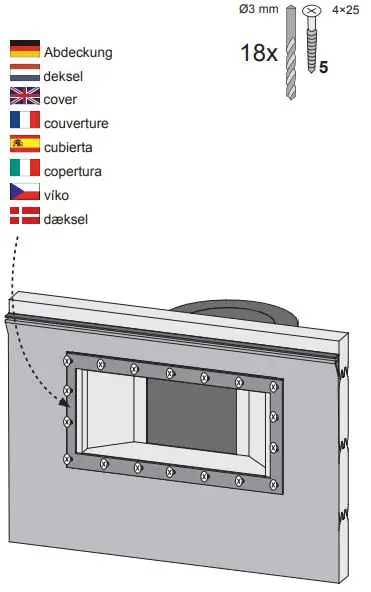

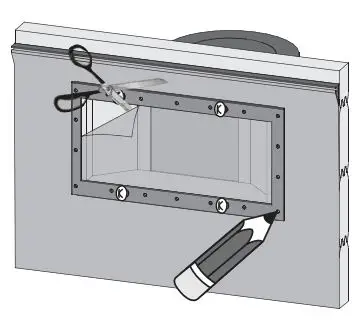

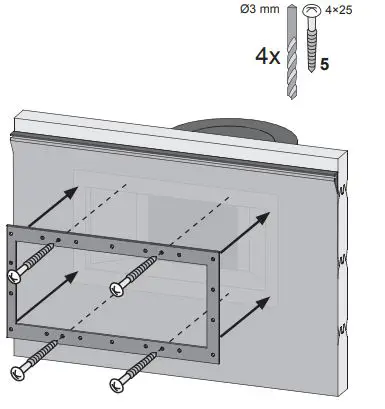

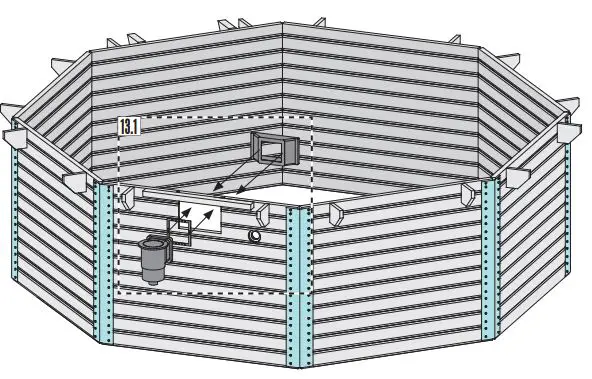

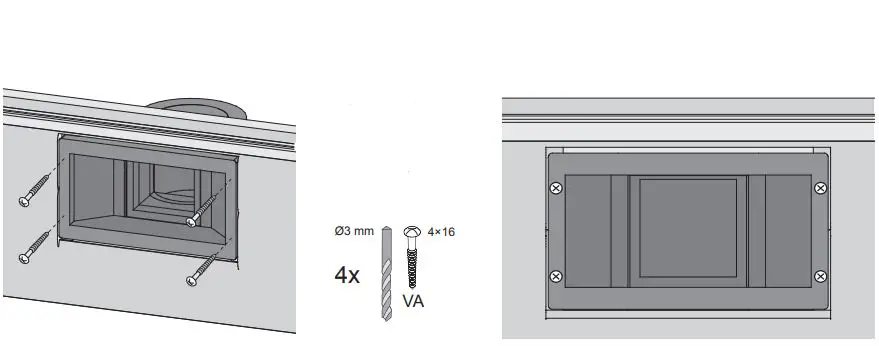

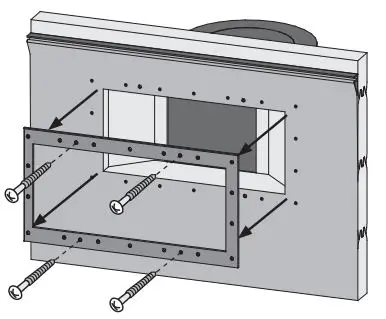

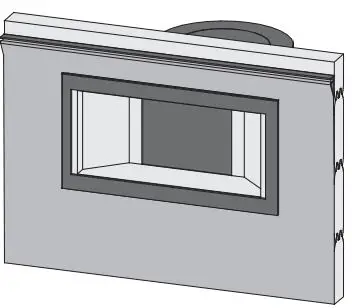

Inventory of the skimmer
Installation of the pool filter

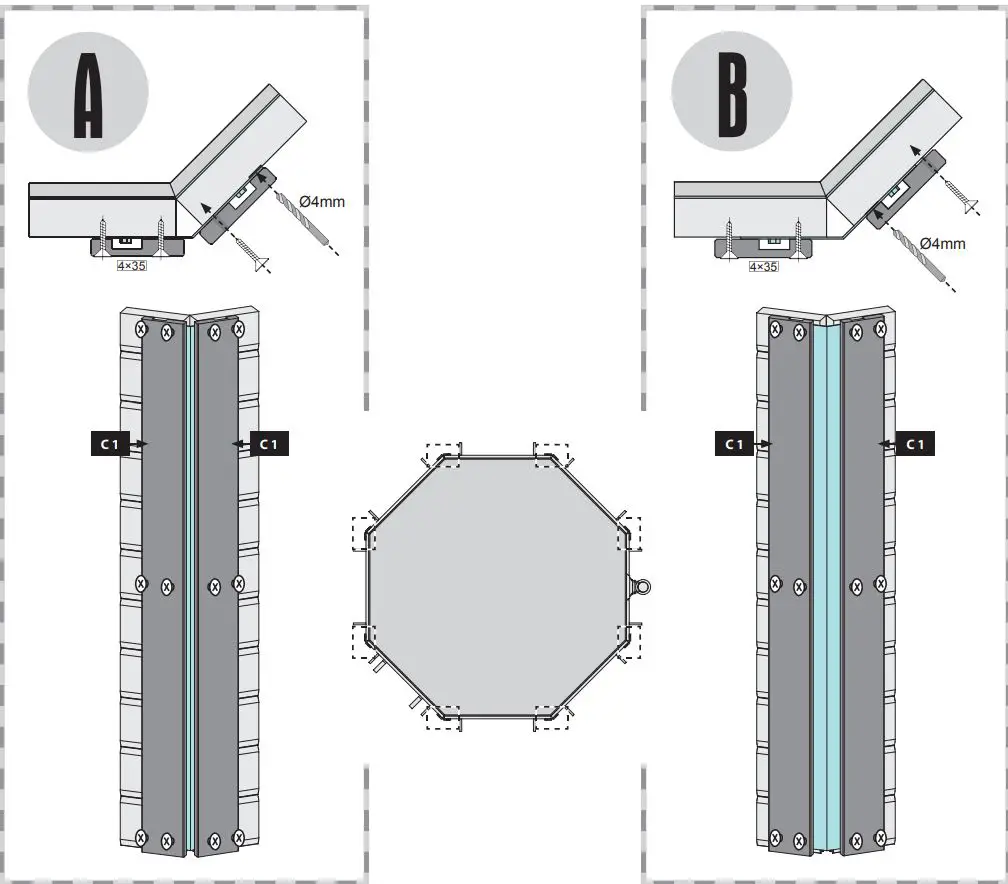

Dear customer, pay attention to the design variant!
product Note
maintenance

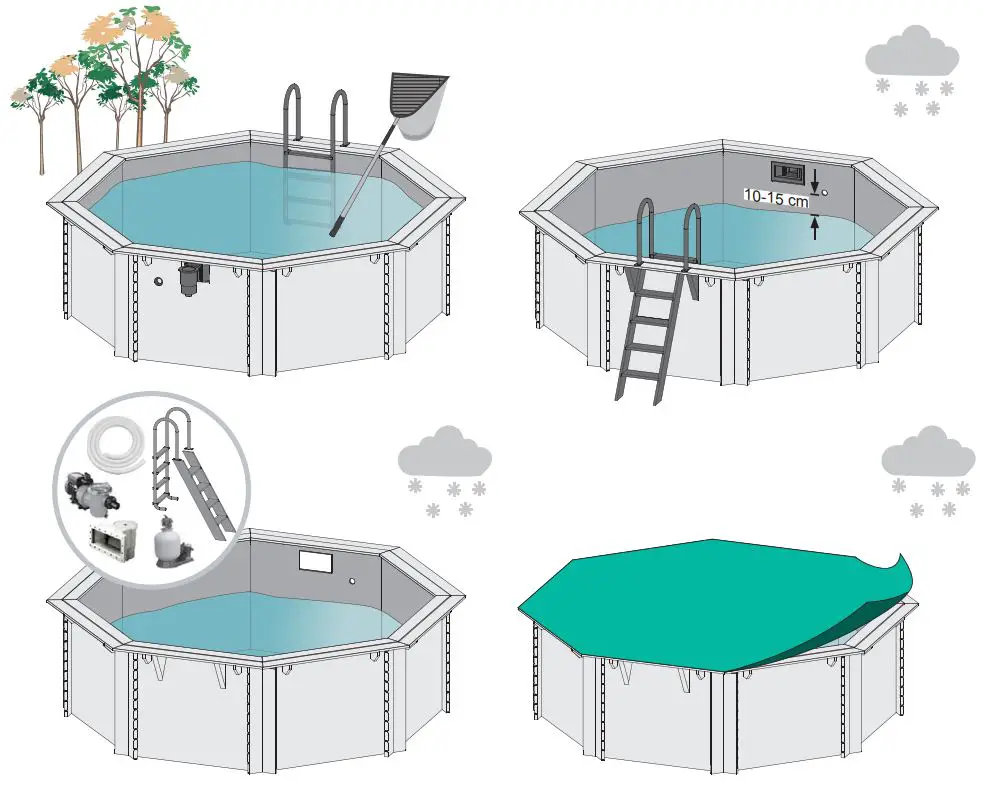

Pool maintenance in autumn and winter
- If the pool is surrounded by many plants and trees, it must be regularly removed from the leaves. nevertheless leaves are dropped to the ground, they must be removed
promptly due to sludge formation. For the appropriate protection, we recommend the cover from our range! - In winter, the pool should not be completely drained, because lateral ice pressure may arise. The water level should be lowered to below the upper enemas
(About 10-15 cm below the nozzle) and held constant at this level are! - Empty all frost exposed pipes and the fi lter system completely, clean and dry / store frost. This applies to all components of plastic and those which are immersed fi lters (The 6-way valve of the fi lter system to EMPTY. Next the sand fi lter cover should be opened to allow air into the system arrives. By opening the drain screw
on the fi lter vessel and the fi lter pump the water can run now.) - The preliminary fi lter, the fi lter pump and then clean sieve.
- Set all the power switch off and disconnect the mains cable. Remove the fuses.
