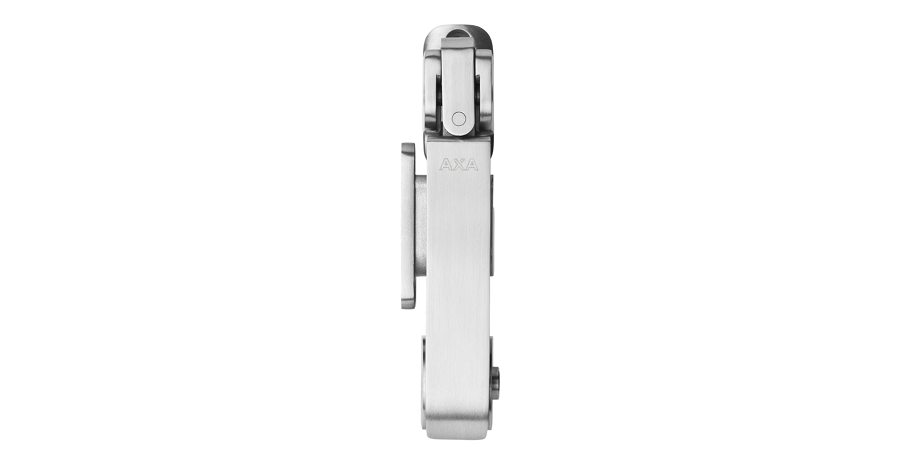

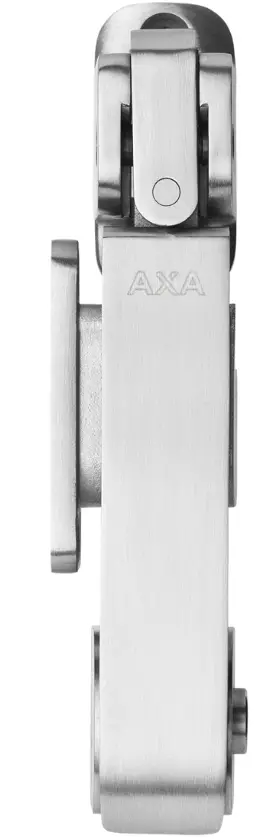

AXA Stainless Steel Restrictor
Information
You have just acquired a high quality AXA product. The instructions below must be followed closely in order to effectively install and operate this product.
Use
For outward opening doors

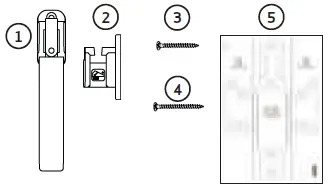

Package contents
- (1x) Window bracket
- (1x) Frame bracket
- (4x) 4.5 x 40 mm screws
- (4x) 4.5 x 50 mm screws
- (1x) Drill template
Installation tools (recommended):
(Battery) drill or screwing machine, flexible steel ruler, Ø 3 mm drill, adhesive tape, pencil or spike.
Installation position
Left or right
Minimum installation space required
Installation Steps
Take into account the installation depth of any presence of multi-point closure
- 1 Position the drill template 6 at the correct height with the fold line on the corner of the frame and the door. Tape the drilling template in place. Prick the drill markings (4x) using an awl or a pencil and then pre-drill them (Ø 3 mm).
See illustration of installation position for the correct height. - Fix door bracket 1 with screws 3 (4.5 x 40 mm).
- Fix frame bracket 2 with 2 screws 4 (4.5 x 50 mm ) on the back slot position.
Position the back of the frame bracket flush with the frame - Pre-drill the two foremost hole positions of the frame bracket. Secure the frame bracket with two screws 4 (4.5 x 50 mm).
See illustration of installation position for the correct height.
Position the back of the frame bracket flush with the frame
User manual
- Door open: fold door bracket upwards
- Door ajar: door bracket over frame bracket
