ET1181F
TRUCK SPRING PIN METAL BUSH REMOVAL /
INSTALLATION TOOL KIT (17 TONS HYDRAULIC CYLINDER)
http://www.hcb-autotools.com/content/view/216/70/

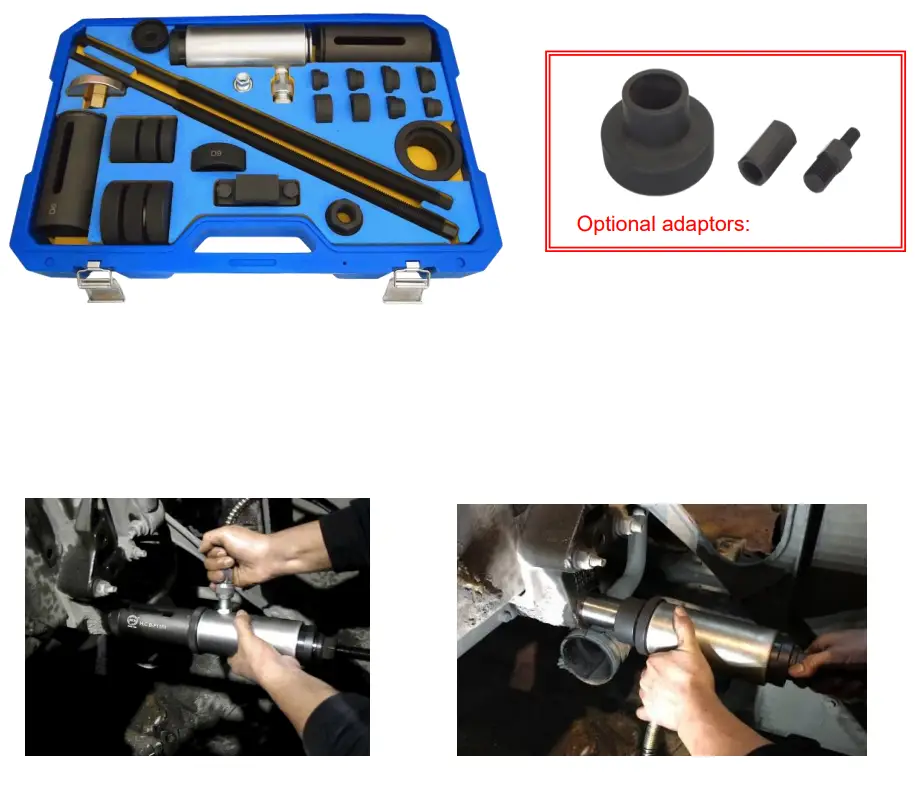

ET1181F Truck Spring Pin Bush Removal Tool
Caution: To avoid danger, DO NOT stand behind the hydraulic cylinder while operating.
- Powerful 17 tons hydraulic cylinder helps to remove the stuck spring pins easily.
- The hydraulic cylinder in this kit has a special non-threaded design which makes the operation easier because the screw can be quickly turned in and fixed on the cylinder.

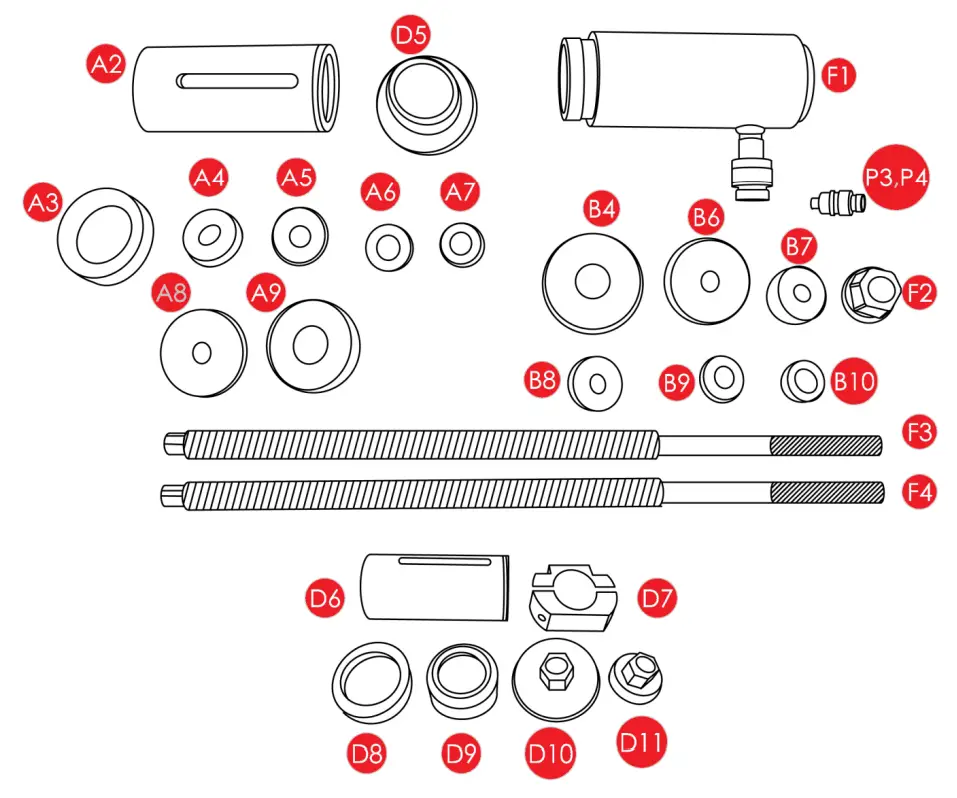

| No. | Description | Specification | Q’ty | Remark |
| A2 | Removing tube | D: Ø 67,d: Ø 48,L:145 | 1 | |
| A3 | Removing upper block | D: Ø 73,d: Ø 48,L:20 | 1 | |
| A4 | Removing block | D: Ø 44 , L:20 | 1 | M16xP2.0 |
| A5 | Removing block | D Ø 44, L:20 | 1 | M16xP2.0 |
| A6 | Removing block | D Ø 36, L:20 | 1 | M16xP2.0 |
| A7 | Removing block | D Ø 33.7, L:20 | 1 | M16xP2.0 |
| A8 | Installing block | D: Ø 65, L:13 | 1 | M16xP2.0 |
| A9 | Installing upper block | D: Ø 65,d: 0 26,L:30 | 1 | |
| D5 | Installing tube | D: Ø 80,d: 0 46,L:40 | 1 | |
| B4 | Installing upper block | D: Ø 73,d: 0 26,L:20 | 1 | |
| B6 | Installing block | D: Ø 65, L:20 | 1 | M14xP2.0 |
| B7 | Removing block | D: Ø 41.5, L:20 | 1 | M14xP2.0 |
| B8 | Removing block | D: Ø 39.5, L:20 | 1 | M14xP2.0 |
| B9 | Removing block | D: Ø 33.5, L:20 | 1 | M16xP2.0 |
| B10 | Removing block | D: Ø 29.5, L:20 | 1 | M16xP2.0 |
| F1 | Hydraulic | 17 tons | 1 | |
| F2 | Nut | D: Ø 42, H32, L:27 | 1 | M2OxP2.5 |
| F3 | Screw | H14, L:530 | 1 | M2OxP2.5, M16xP2.0 |
| F4 | Screw | H14, L:530 | 1 | M2OxP2.5, M14xP2.0 |
- Component No. 4~7, 9~11 is applicablefor SCANIA & VOLVO trucks.
- Component No. B4, B6~B14 is applicable for ISUZU, FUSO, TOYOTA, MEDIUM-SIZED WAGON & PICKUP.
- Common parts No. 1, 2, 3 and 8
- To replace spring pin more easily. Money and labour saver.
- Optional accessory: ET1129B HYDRAULIC HAND PUMP.
Remove the bush:

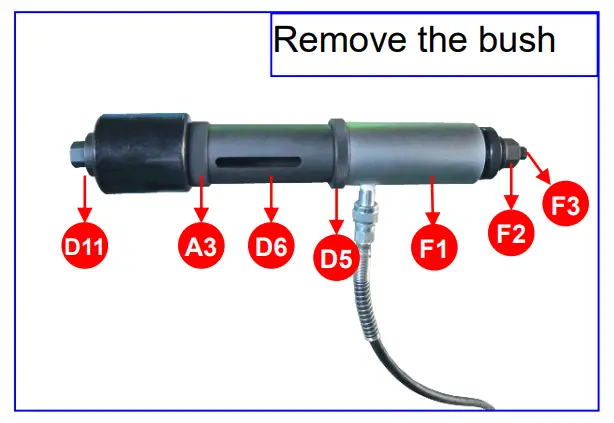

1-1.Reference Fig.1,pass F3 through the hydraulic. Install D5,A2, and A3, lock F2.
1-2.Pass screw through the bush, lock A5.
1-3.Use the pump. The bush will be removed easily.
Install the bush

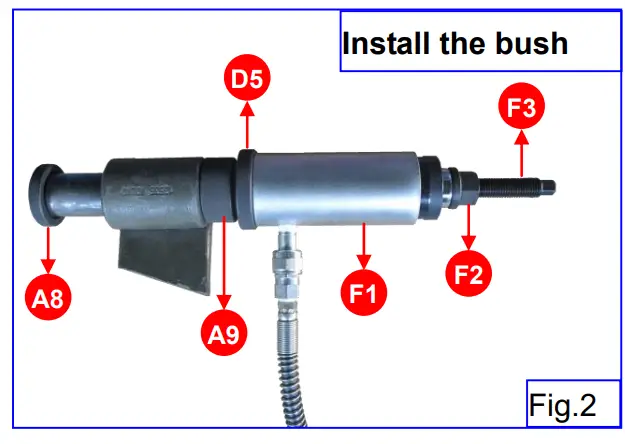

1-1.Reference Fig.2. PassF3 through the hydraulic. Install D5 andA9. Lock F2.
1-2.Pass the screw through the bush.LcokA8.
1-3.Use the pump. The bush will be installed easliy.
Remove / Install Volvo FM12 bush
1-1.PassF3throught the hydraulic. Install A5, D6 and A3. Lock D11.
1-2.Lock F2 on another side.
Step 1.

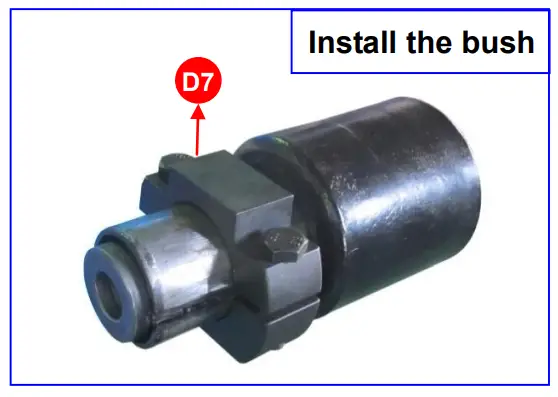

Please lock D7 on the bush. Let bush be closer.
Step 2.

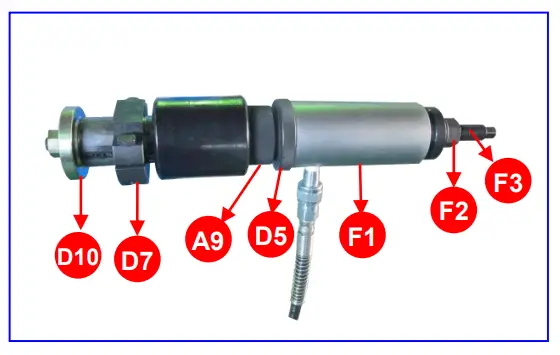

2-1.Put D5 and A9.
2-2.Pass F3 through the bush and lock D10.
2-3. Use the pump.
Step3.

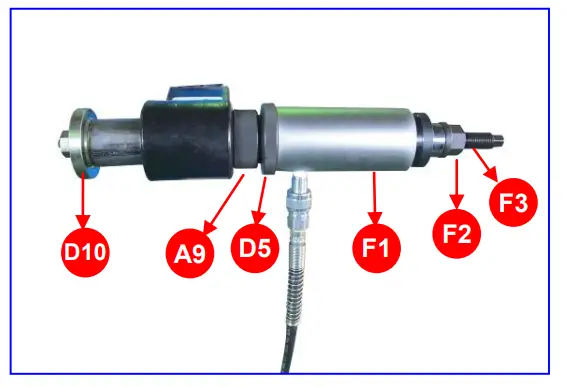

After you install a part of the bush in the sping, remove D7.
Keep using the pump until finish installing the bush.
