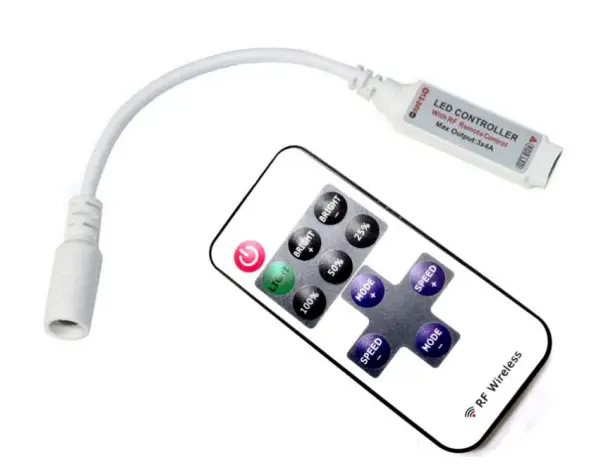

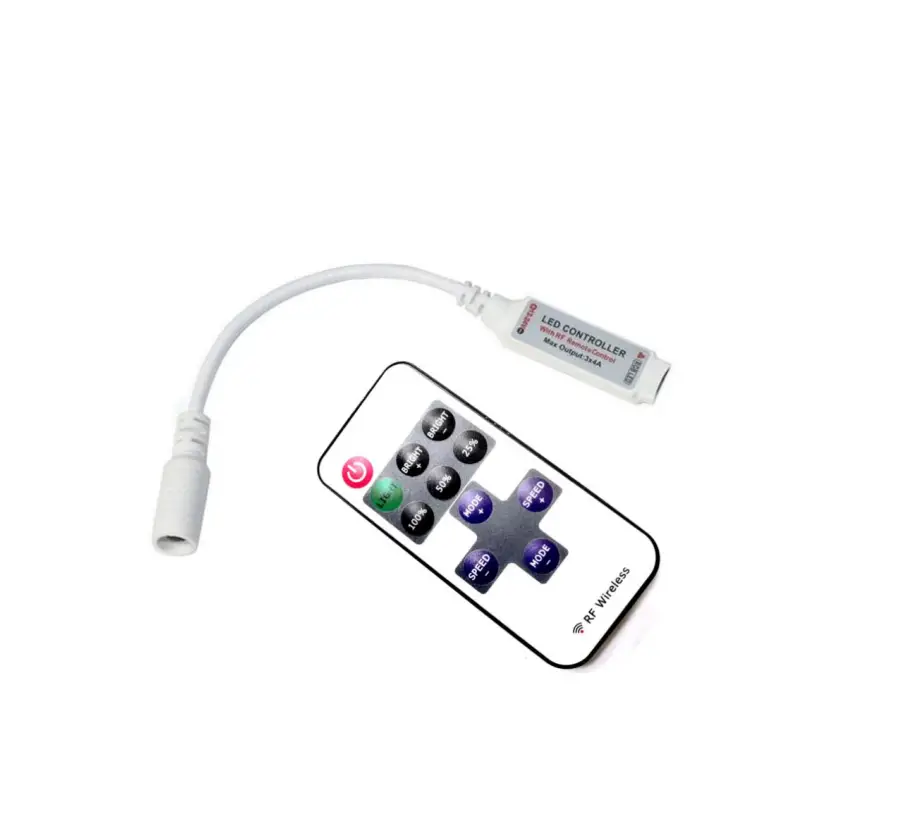

FEICAN COB-400L-WW COB LED Strip Light Remote Control
Product Specifications
Products nameCOB LED Strip Light Remote Control
Model numberCOB-400L-WW
Product Description
This RF Mini RGB controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote. Its mainly used to controlled all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer ,wall Glass curtain lights, etc. It integrated with low cost, easy connection, simple manipulation and others advantages. User can choose the mode of fade, strobe, Blasting flash, flicker, and other Static color model. What’s more, this controller have the characteristics of small volume, easy to carry, etc, its popular amount the many markets.
Technical Parameters
- Working temperature：-20-60℃
- Input voltage：DC5-24V
- Output：3 circuit
- Connection mode：Common anode
- controller size：L40.0×W12.0×H5mm
- controller size：L85.9×W39.6×H6.9mm
- Net weight: 35gweight：35g
- Gross weight：40g
- Static power consumption：<0.5W
- Output current：<2A*3CH(each circuit)
- Output power： 5V:<30W,

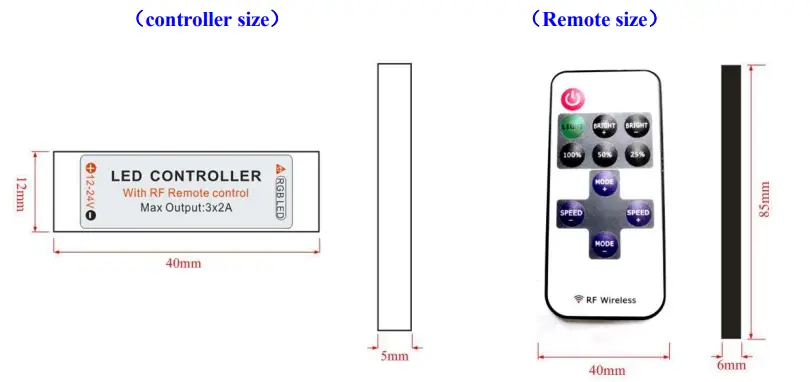

External dimension:
Connection description
Power input :5.5×2.1mm female DC connector
Signal output port:2.54mmfemale4pins
Direction for use
- The match code instructions:
Press the ON/OFF key
within 4 seconds when power the controller. Each time powered the controller, just can be match code for one time. If want to match code again, then need to cut off the power , connected to the power again. - Remote control function instructions: There are 10 buttons on the remote , the functions are as below:
Turn ON/OFF the controller. Press this key within 4 seconds to match code when powered the controller.
Auto play key. on any state to press this button , the controller will be take turns to play each dynamic mode by cycle for 3 times.
In dynamic mode, press this key switch to static mode for the first time,the color will backword/forward to the next color when press each time. In dynamic mode, press this key switch to static mode for the first time,the brightness will increase/decrease for one level when press each time,total 5 level. In static mode, press this key switch to dynamic mode for the first time,switch to the next backward/forward mode when press each time. In static mode, press this key switch to dynamic mode,the changing speed will increase/decrease for one level when press each time,total 10 level. - This controller’s sequence is +RGB order,in case of other sequence(+BRG/+GRB) will appear in the other effect. Based on sequence of + RGB, pattern are as follows:
within 4 seconds when power the controller. Each time powered the controller, just can be match code for one time. If want to match code again, then need to cut off the power , connected to the power again.
Auto play key. on any state to press this button , the controller will be take turns to play each dynamic mode by cycle for 3 times.

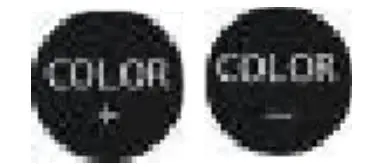

In dynamic mode, press this key switch to static mode for the first time,the color will backword/forward to the next color when press each time.
In dynamic mode, press this key switch to static mode for the first time,the brightness will increase/decrease for one level when press each time,total 5 level.
In static mode, press this key switch to dynamic mode for the first time,switch to the next backward/forward mode when press each time.

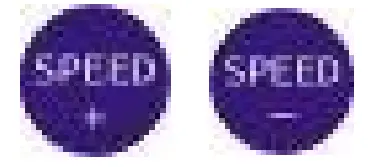

In static mode, press this key switch to dynamic mode,the changing speed will increase/decrease for one level when press each time,total 10 level.| Dynami c model | NO. | Mode | NO. | Mode | NO. | Mode |
| 1 | 7 color fade | 8 | Purple fade in and fade out | 15 | Blue blasting flash | |
| 2 | 3 color fade in and fade out | 9 | Blue fade in and fade out | 16 | Purple blasting flash | |
| 3 | 7 color fade in and fade out | 10 | 3 Color Jump | 17 | Yellow blasting flash | |
| 4 | White fade in and fade out | 11 | 6 color Jump | 18 | White blasting flash | |
| 5 | Green fade in and fade out | 12 | 3 color flash | 19 | 3 color blasting flash | |
| 6 | Yellow fade in and fade out | 13 | Red blasting flash |

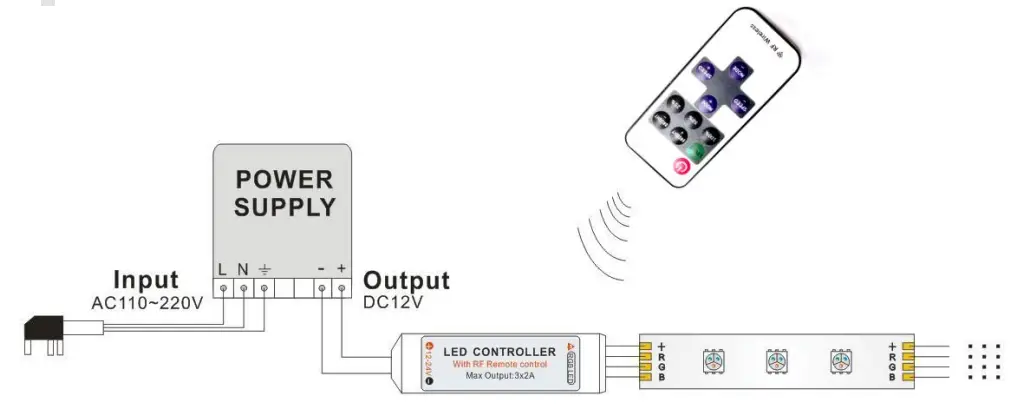

Typical Applications
cautions
- This products Input voltage is DC5-24V,other input voltage are not allowed.
- Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
- Overload are prohibited
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (
1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
