Date: 14.07.2022 >
QUICK REFERENCE GUIDE > RS7621FRJK1

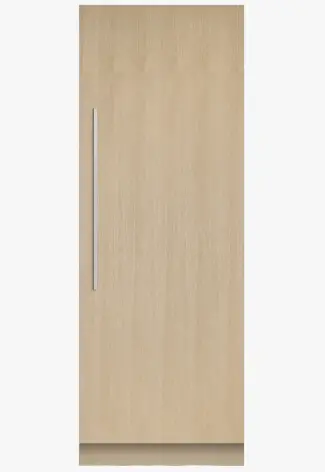

Integrated Column Freezer, 76cm, Ice
Series 11 | Integrated
Panel Ready | Right Hinge
Install it separately or pair with another Column for true design freedom this model is right hinge with stainless steel interior.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Variable Temperature Zone lets you change a compartment to Freeze, Soft Freeze or Deep Freeze for optimal storage
- Internal ice maker with boost for busy times
- Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory

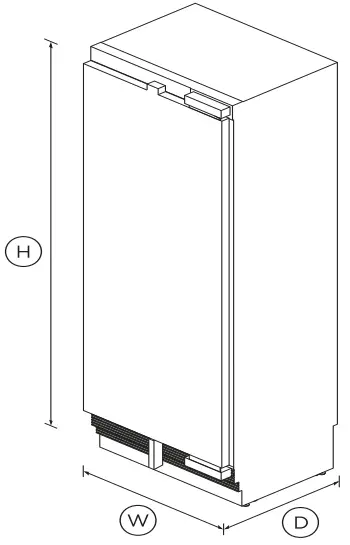

DIMENSIONS
Height 2134mm
Width 756mm
Depth 610mm
FEATURES & BENEFITS
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Refrigerators and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customise to match your own kitchen cabinetry.
Perfect fit
These models fit flush, with only 3mm gaps around them and no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
Clever energy
Our ActiveSmart™ Foodcare Refrigerator Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up each ceiling, shelves, bins and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish includes a stainless steel interior lining as well as full-extension metal shelf runners for easy access, and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable levelling feet and they’ve been designed to easily slide into place as separate units.
SPECIFICATIONS
Accessories
1372mm Stainless steel toe kick AKRS13710
1524mm Stainless steel toe AKRS15210
1981mm Stainless steel toe kick AKRS19810
2134mm Stainless steel toe AKRS21310
762mm Stainless steel toe kick AKRS7610
Contemporary round handle AHS-RD21
Contemporary square handle AHD3-RD21
Joiner kit AJ-RS21LR
Matching Replacement Water FWC3
Square fine aluminium handle AHD5RDSF
Square fine black handle kit AHD5RDSFB
Stainless steel door panel RD7621L10D
Stainless steel door panel RD7621R10D
Capacity
Total net volume 393L
Volume freezer 442L
Freezer Features
Automatic ice maker •
Bottle chill •
Door alarm •
Fast freeze •
Freezer bins 4
Ice Boost •
LED bin lighting •
LED ceiling lighting •
LED side lighting •
SmartTouch interface at •
Installation Dimensions
Cabinetry height with included 2134mm
Minimum inside width of 762mm
Minimum internal depth of 635mm
Minimum internal height of 2134mm
Performance
ActiveSmart™ Foodcare •
Adaptive defrost •
Dual evaporator •
Frost free •
Frost free freezer •
Inverter controlled compressor •
Noise emissions 42dBA
Noise emissions class D
Sabbath mode •
Variable food modes Soft freeze; Freeze; Deep
Variable temperature zones 2
Power requirements
Rated current 10A
Supply frequency 50Hz
Supply voltage 230V
Product dimensions
Depth 610mm
Height 2134mm
Width 756mm
Warranty
Parts and labour 2 years
Sealed system parts only additional 3 years
SKU 26144
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
