Fisher Paykel Rs1884flj1 Integrated Column Freezer 18 Inch Ice User Guide (+ PDF)

ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
Two separate Variable Temperature Zones: each with Freeze, Soft Freeze or Deep Freeze
Internal ice maker with boost for busy times
Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

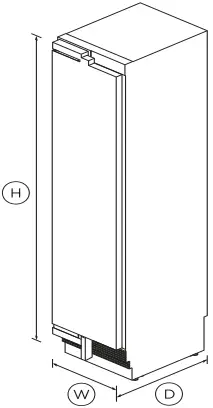

DIMENSIONS

Height 84″
Width 17 3/4″
Depth 24″

FISHER PAYKEL RS1884FLJ1 Integrated Column Freezer 18 Inch Ice B

FEATURES & BENEFITS

VARIABLE TEMPERATURE ZONES
Food is stored in two separate zones. You have the choice of three food modes: Freeze -7°F to 7°F, Soft Freeze 14°F to 18°F and Deep Freeze is fixed at -13°F.

MIX & MATCH
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customize to match your own kitchen cabinetry.

CLEVER ENERGY
Our Energy Star-certified ActiveSmart™ Refrigerators & Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.

APPEALING ILLUMINATION
Bright LEDs light up the ceiling, shelves, bins and tray in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.

DESIGN QUALITY
The premium design and quality finish includes a white or stainless steel interior lining, as well as full-extension metal shelf runners for easy access and robust glass shelving.

EASY INSTALL
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerator and freezers. All models come with front adjustable levelling feet and they’ve been designed to easily slide into place as separate units.

PERFECT FIT
These models fit flush and have only ” gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.

SPECIFICATIONS

Accessories
18″ Stainless steel toe kick AKRS1804
42″ Stainless steel toe kick AKRS4204
48″ Stainless steel toe kick AKRS4804
54″ Stainless steel toe kick AKRS5404
60″ Stainless steel toe kick AKRS6004
66″ Stainless steel toe kick AKRS6604
72″ Stainless steel toe kick AKRS7204
78″ Stainless steel toe kick AKRS7804
84″ Stainless steel toe kick AKRS8404
Contemporary round handle AHS-RD84
Contemporary square handle AHD3-RD84
Hinge change (from left hinge 848186
Hinge change (from right hinge 848185
Joiner kit AJ-RS84LR
Professional round flush handle AHP3RDSF
Professional round handle kit AHC-RD84
Professional square handle kit AHV2-RD84
Square fine aluminium handle AHD5RDSF
Square fine black handle kit AHD5RDSFB
Stainless steel door panel RD1884L4D

Capacity
Volume 7.8cu ft
Volume freezer 7.8cu ft

Consumption
Energy rating Energy star
Energy usage 415kWh/year

Features
Adjustable door shelves 4
Adjustable glass cantilevered •
Adjustable glass shelves 3

Freezer Features
Automatic ice maker •
Bottle chill •
Door alarm •
Fast freeze •
Freezer bins 4
Glass shelves 3
Ice Boost •
LED bin lighting •
LED ceiling lighting •
LED side lighting •
SmartTouch interface at •

Performance
ActiveSmart™ Foodcare •
Adaptive defrost •
Dual evaporator •
Frost free •
Inverter controlled compressor •
Sabbath mode •
Variable temperature zones 2

Power requirements
Rated current 10A
Supply frequency 60Hz
Supply voltage 115V

Product dimensions
Depth 24″
Height 84″
Width 17 3/4″

Safety and compliance
ADA compliant •

Warranty
Parts and labor 2 years
Sealed system parts only 5 years

SKU 26115

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
