QUICK REFERENCE GUIDE > RS4621FRJK1
Integrated Column Freezer,
45.7cm, Ice
Series 11 | Integrated
Panel Ready | Right Hinge

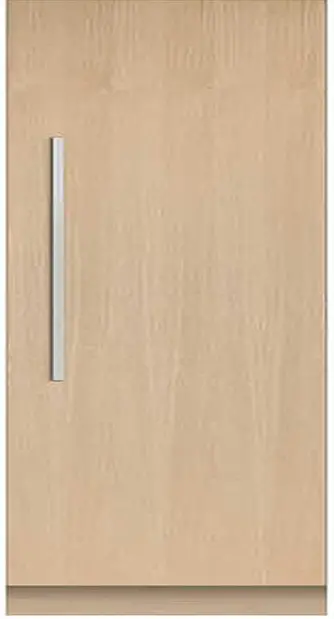

RS4621FRJK1 Integrated Column Freezer, 45.7cm, Ice
- Install it separately or pair with another Column for true design freedom – this model is right hinge with stainless steel interior.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Variable Temperature Zone lets you change a compartment to Freeze, Soft Freeze or Deep Freeze for optimal storage
- Internal ice maker with boost for busy times
- Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory

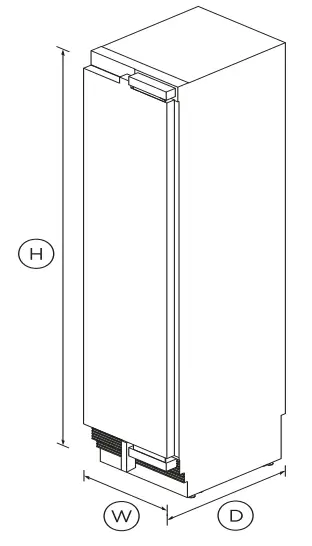

DIMENSIONS
| Height | 2134mm |
| Width | 451mm |
| Depth | 610mm |
FEATURES & BENEFITS
Variable temperature zones
There’s more than one way to freeze food, and different freezing temperatures and techniques affect food care – and your levels of convenience – in different ways. Optimal freezing is a question of what you’re storing, how fresh it is, and when you plan to consume it. Change a compartment to Soft Freeze to enjoy maximum everyday onvenience, or to Freeze Mode or Deep Freeze Mode to retain natural goodness for future use. Deep Freeze Mode
Deep freezing (-25°C) allows food to be stored for months or even years with temperatures that halt bacterial activity. Freezing food quickly is the key to protecting quality and retaining nutrients, so they are not lost when defrosting.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customise to match your own kitchen cabinetry.
Clever energy
Our ActiveSmart™ Foodcare Refrigerator Freezers adapt to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up each ceiling, shelves, bins and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish includes a steel interior lining as well as full-extension metal shelf runners for easy access, and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable levelling feet and they’ve been designed to easily slide into place as separate units.
SPECIFICATIONS
Accessories
| 1067mm Stainless steel toe | AKRS10710 |
| 1220mm Stainless steel toe | AKRS12210 |
| 1676mm Stainless steel toe | AKRS16810 |
| 1828mm Stainless steel toe kick | AKRS18310 |
| 457mm Stainless steel toe kick | AKRS04610 |
| Contemporary square handle | AHD3-RD21 |
| Joiner kit | AJ-RS21LR |
| Replacement water filter | FWC3 |
| Square fine black handle kit | AHD5RDSFB |
| Stainless steel door panel | RD4621L10D |
| Stainless steel door panel | RD4621R10D |
Capacity
| Volume | 220L |
| Volume freezer | 220L |
Consumption
| Energy rating | 2.5 star |
| Energy usage | 373kWh/year |
Features
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 3 |
| SmartTouch interface at | • |
| Water Filter | 847200 |
| Wi-Fi connectivity | • |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 4 |
| Ice Boost | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
Installation Dimensions
| Minimum inside width of | 457mm |
| Minimum internal depth of | 635mm |
| Minimum internal height of | 2134mm |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Dual evaporator | • |
| Frost free | • |
| Frost free freezer | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable food modes | Soft freeze; Freeze; Deep |
| Variable temperature zones | 2 |
Power requirements
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Depth | 610mm |
| Height | 2134mm |
| Width | 451mm |
Warranty
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26156 |
The product dimensions and specifications in this page apply to the specific product 0and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
