H-6618

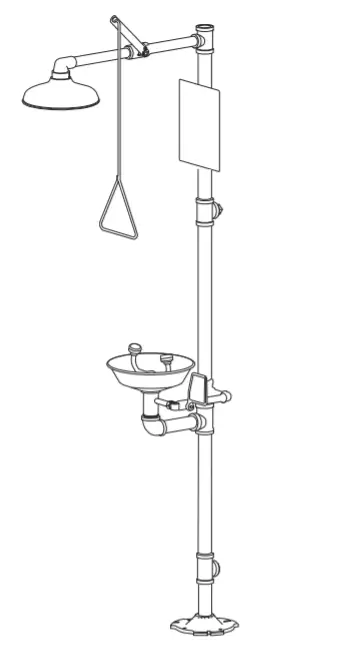

STAINLESS STEEL SHOWER EYEWASH STATION

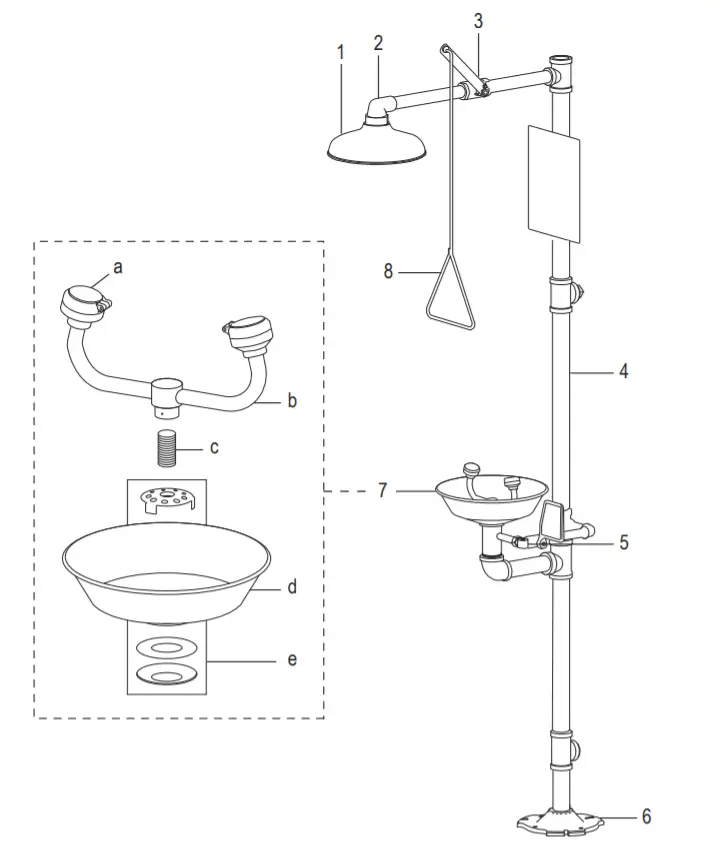

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Stainless Steel Showerhead | 1 | H-6618-1 | AP450-048 |
| 2 | Stainless Steel Elbow | 1 | — | 320-08E |
| 3 | 1″ IPS Stainless Steel Stay-Open Ball Valve | 1 | H-6618-VALVE | AP620-335H |
| 4 | Stainless Steel Pipe Pack | 1 | — | AP520-100 |
| 5 | 1/2″ IPS Stay-Open Stainless Steel Ball Valve with Flag Handle, Horizontal | 1 | — | AP620-101H |
| 6 | Stainless Steel Floor Flange, 11/4″ NPT Female Connection | 1 | — | 320-1 OF |
| 7a | Spray Head Assembly | 1 | H-5591 | AP470-001 |
| 7b | Spray Heads with Stainless Steel Fittings | 1 | — | AP470-100SS-R |
| 7c | 3/8″ IPS x 21/4″ Stainless Steel Shank | 1 | — | SI130-02-04 |
| 7d | Stainless Steel Bowl | 1 | — | 100-008R |
| 7e | Drain Plate Assembly for Stainless Steel Bowl | 1 | — | AP150-012B |
| 8 | 29″ Stainless Steel Pull Rod | 1 | H-5101-ROD | AP050-079 |
| Test Kit (Not Shown) | 1 | — | AP250-005 | |
| Tempering Valve, 44-Gallon Capacity (Not Shown) | 1 | H-5101-TEMP | G3800LF |
1-800-295-5510
uline.com
