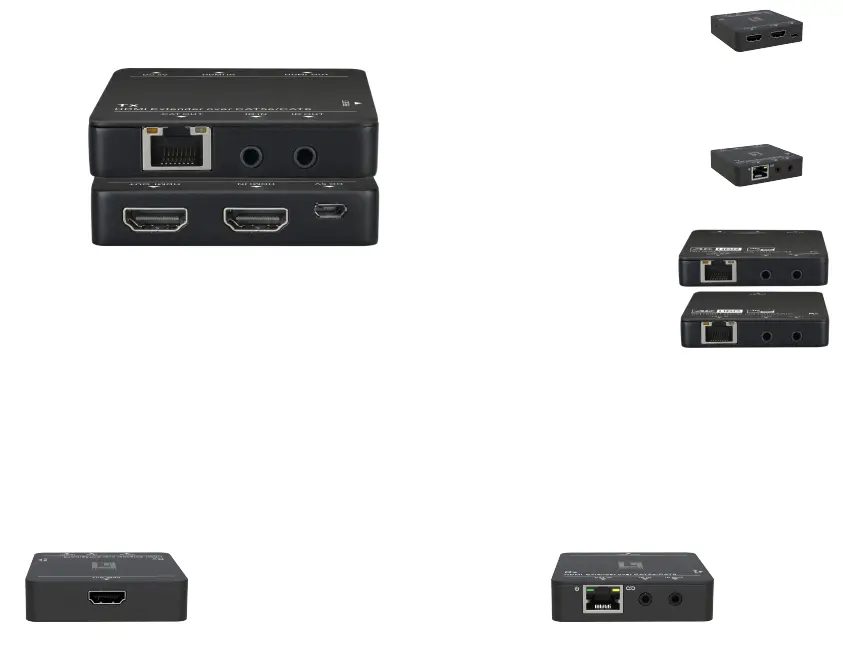

HVE-9006, HDMI over Cat.5/6
Extender kit 1080P, 50 Meter
Product Images
Short Description
- Transmission distance of up to 50m for 1080P resolution.
- Simple Plug and Play installation.
- Bi-Directional IR pass through.
- Support full frequency IR signal from 20KHz to 60KHz.
- Supports PoC, the Receiver can be powered via Transmitter.
- Supports built-in EDID to ensure HDMI signals transmission from source to display.
- Supports HDMI 1.3, HDCP 1.4 compliant.
Description
The LevelOne HDMI Extender offers a ground-breaking solution for long range HDMI deployments, extending the range of HD signal broadcasts up to 50 metres from the source. Featuring both a transmitter and a receiver, signals are distributed over Ethernet cables, providing a crystal-clear, high-definition signal without the expense of using optical fiber.LevelOne HDMI Extender also supports both HDCP 1.4 and 2.2 which is sufficient to cover majority of HDMI devices. (Source and devices are needs to be same HDCP version)
Additional Information
| Approval and compliance | CE/FCC |
| Max. operating humidity (%) | 90 |
| Max. operating temperature (°C) | 55 |
| Min. operating humidity (%) | 90 |
| Min. operating temperature (°C) | -10 |
| Resolution | 1920 x 1080 @60 Hz |
| Product weight (kg) | 0.074 |
| Product breadth (mm) | 66 |
| Product depth (mm) | 16.8 |
| Product height (mm) | 66 |
| Color | Black |
| EAN | 4.01587E+12 |
| Model number | HVE-9006 |
| Package contents | HVE-9006 Quick Installation Guide Power adapter IR Receiver/Emitter |
