FAIR-PLAY GL-7248-WRD Wired LED Goal Light
PART LIST
| 1 | TRANSCEIVER (NO RADIO) | 2 |
| 2 | 18” STRIP | 8 |
| 3 | 21” STRIP | 10 |
| 4 | 5-PIN CABLE, 8” | 2 |
| 5 | 24VDC POWER SUPPLY | 2 |
| 6 | 18” EXTENSION CABLE | 2 |
| 7 | SHORT STRIP CONNECTOR HARNESS | 16 |
| 8 | LONG STRIP CONNECTOR HARNESS | 2 |
| 9 | 4’ EXT POWER CABLE (CUT) | 2 |
| 10 | 1/2” STRAIN RELIEF | 2 |
TOOLS REQUIRED
- Rubbing Alcohol
- Cleaning Rags
- Screwdrivers

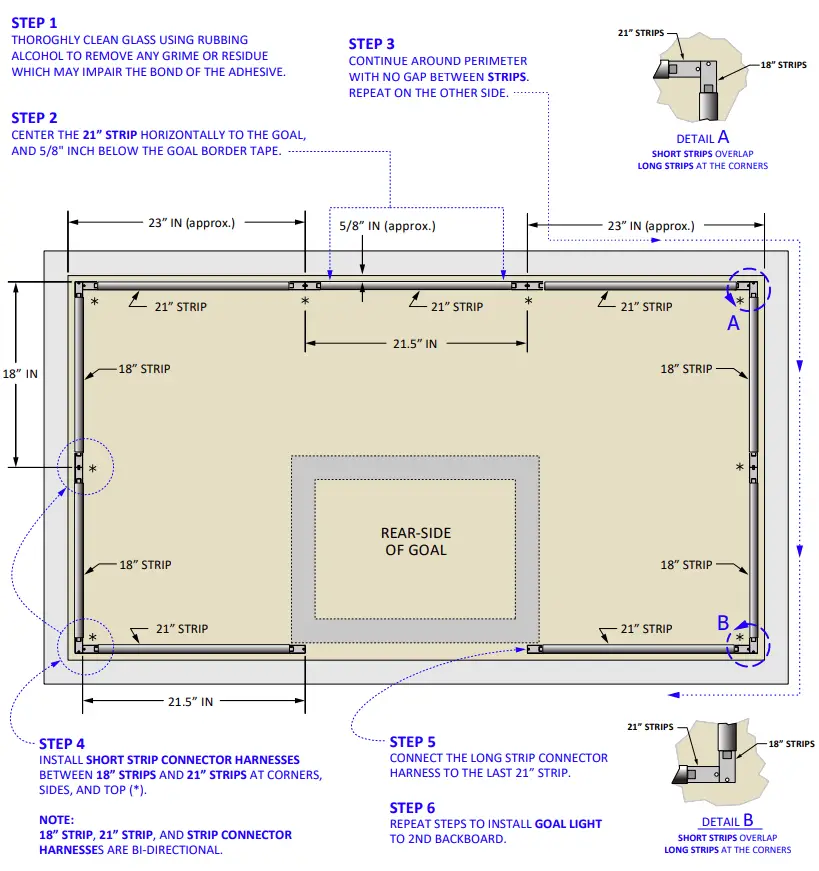

INSTALLATION INSTRUCTIONS

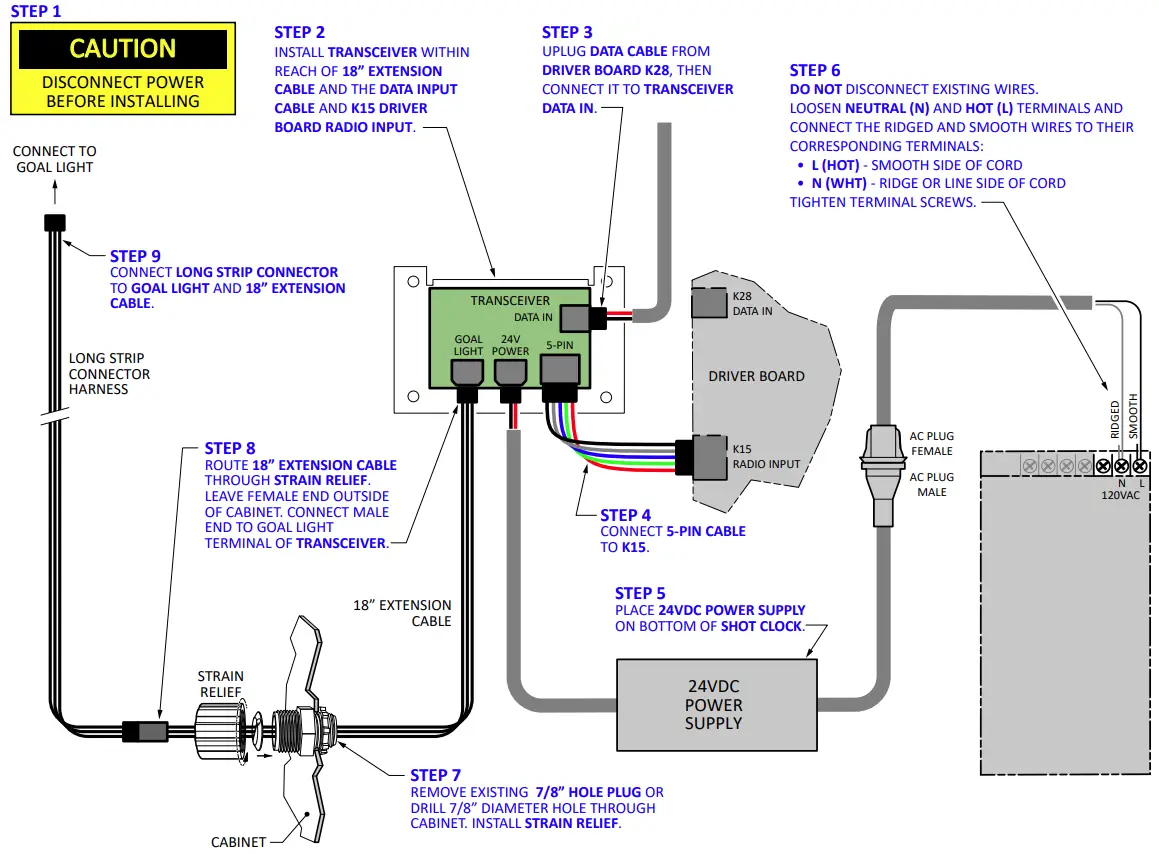

GOAL LIGHT WIRED TO SHOT CLOCK
GOAL LIGHT WIRED TO SCOREBOARD
POWER UP & OPERATION
- POWER UP THE GOAL LIGHTS IN THE FOLLOWING ORDER:
- POWER UP THE SCOREBOARD,
- POWER UP THE SHOT CLOCK,
- POWER UP THE MP-70 OR MP-80 CONTROLLER.
THE GOAL LIGHTS WILL TURN ON FOR A FEW SECONDS AND TURN OFF. THEN IT LOOKS FOR A DATA SIGNAL.
IF DATA SIGNAL IS FOUND, THEN THE GOAL LIGHTS WILL REMAIN OFF.
IF DATA SIGNAL IS NOT FOUND, THEN THE GOAL LIGHTS WILL FLASH CONTINUOUSLY AS FOLLOWS: THE TOP BAR, A SIDE BAR, OFF FOR SEVERAL SECONDS, THEN REPEAT.
- START A NEW GAME (ON THE CONTROLLER), THEN
- START THE GAME CLOCK SWITCH (MP-80) OR
- TIME IN (MP-70).
IF THE DATA SIGNAL IS LOST, THEN THE GOAL LIGHTS REMAIN OFF UNTIL DATA SIGNAL IS FOUND. CHECK POWER AND DATA FROM SCOREBOARD AND SHOT TIMER.
- WHEN GAME CLOCK REACHES ZERO, THE GOAL LIGHT TURNS ON.
TO TURN OFF THE GOAL LIGHTS:- PRESS STOP ON GAME CLOCK SWITCH (MP-80), OR
- PRESS TIME OUT (MP-70).
- GO TO STEP 2 ABOVE.
IF THE DATA SIGNAL IS LOST, THEN THE GOAL LIGHTS REMAIN ON EXCEPT FOR BOTTOM HORIZONTAL BAR UNTIL DATA SIGNAL IS FOUND. CHECK POWER AND DATA FROM SCOREBOARD AND SHOT TIMER.
6110 Aviator Drive, Hazelwood, MO 63042
Toll Free: (800) 462-2716
Email: [email protected]
