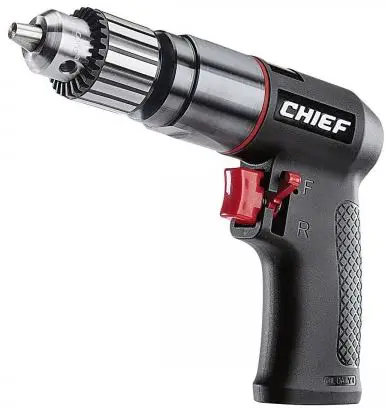

CHIEF 58613 Professional Reversible Air Angle Drill

CHIEF 58613 Professional Reversible Air Angle Drill

When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible. Copyright© 2021 by Harbor Freight Tools®. All rights reserved.

No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL

Important Safety Instructions

Warning: When using tools, basic precautions should always be followed, including the following:

General
to reduce the risks of electric shock, fire, and injury to persons, read all the instructions before using the tool.

Work area

  1. Keep the work area clean and well lighted. Cluttered benches and dark areas increase the risks of electric shock, fire, and injury to persons.
  2. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The tool is able to create sparks resulting in the ignition of the dust or fumes.
  3. Keep bystanders, children, and visitors away while operating the tool. Distractions are able to result in the loss of control of the tool.

Personal Safety

  1. Stay alert. Watch what you are doing and use common sense when operating the tool. Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool increases the risk of injury to persons.
  2. Dress properly. Do not wear loose clothing or jewelry. contain long hair. Keep hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of being caught in moving parts.
  3. Avoid unintentional starting. Be sure the trigger is off before connecting to the air supply. Do not carry the tool with your finger on the Trigger or connect the tool to the air supply with the Trigger on.
  4. remove adjusting keys and wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool increases the risk of personal injury.
  5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
  6. use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable conditions.
  7. always wear eye protection. Wear ANSI-approved safety goggles.
  8. always wear hearing protection when using the tool. Prolonged exposure to high intensity noise is able to cause hearing loss.
  9. risk of Electric Shock. this tool is not provided with an insulated gripping surface.
  10. avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
  11. Explore the workpiece to avoid contact with hidden wiring. Thoroughly investigate the workpiece for possible hidden wiring before performing work. Contact with live wiring will shock the operator.

Tool use and care

  1. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against the body is unstable and is able to lead to loss of control.
  2. Do not force the tool. Use the correct tool for the application. The correct tool will do the job better and safer at the rate for which the tool is designed.
  3. Do not use the tool if the trigger does not turn the tool on or off. Any tool that cannot be controlled with the Trigger is dangerous and must be repaired.
  4. Disconnect the tool from the air source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool unintentionally. Turn off and detach the air supply, safely discharge any residual air pressure, and release the Trigger before leaving the work area
  5. Store the tool when it is idle out of reach of children and other untrained persons. A tool is dangerous in the hands of untrained users.
  6. Maintain the tool with care. Keep a cutting tool sharp and clean. A properly maintained tool, with sharp cutting edges reduces the risk of binding and is easier to control.
  7. check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. There is a risk of bursting if the tool is damaged.
  8. use only accessories that are identified by the manufacturer for the specific tool model. Use of an accessory not intended for use with the specific tool model, increases the risk of injury to persons.
Service
  1. Tool service must be performed only by qualified repair personnel.
  2. When servicing a tool, use only identical replacement parts. use only authorized parts.
  3. use only the lubricants supplied with the tool or specified by the manufacturer.
Air Source
  1. Never connect to an air source that is capable of exceeding 200 psi. Over pressurizing the tool may cause bursting, abnormal operation, breakage of the tool or serious injury to persons. Use only clean, dry, regulated compressed air at the rated pressure or within the rated pressure range as marked on the tool. Always verify prior to using the tool that the air source has been adjusted to the rated air pressure or within the rated air-pressure range.
  2. Never use oxygen, carbon dioxide, combustible gases or any bottled gas as an air source for the tool. Such gases are capable of explosion and serious injury to persons.
Symbols and Specific Safety instructions

Symbol Definitions

Symbolproperty or statement
noNo-load speed
…/minRevolutions or reciprocation per minute
pSiPounds per square inch of pressure
ft-lbFoot-pounds of torque
BpMBlows per minute
cFMCubic Feet per Minute flow
ScFMCubic Feet per Minute flow at standard conditions
Symbolproperty or statement
nptNational pipe thread, tapered
npSNational pipe thread, straight
WARNING marking concerning Risk of Eye Injury.

Wear ANSI-approved eye protection.

WARNING marking concerning Risk of Hearing Loss. Wear hearing protection.
WARNING marking concerning Risk of Respiratory Injury. Wear

NIOSH-approved dust mask/respirator.

 WARNING marking concerning Risk of Explosion.

Specific Safety instructions

  1. The warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
  2. Only use with accessories rated to handle the forces exerted by this tool during operation. Other accessories not designed for the forces generated may break and forcefully launch pieces.
  3. Attach all accessories properly to the tool before connecting the air supply. A loose accessory may detach or break during operation.
  4. Obey the manual for the air compressor used to power this tool.
  5. Install an in-line shutoff valve to allow immediate control over the air supply in an emergency, even if a hose is ruptured.
  6. Use this tool with both hands only. Using tools with only one hand can result in loss of control.
  7. Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the tool out of your control.

Vibration precautions

This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury:

  1. Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused or worsened from use. Pregnant women or people who have impaired blood circulation to the hand, past hand injuries, nervous system disorders, diabetes, or Raynaud’s Disease should not use this tool. If you feel any symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible.
  2. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury.
  3. Wear suitable gloves to reduce the vibration effects on the user.
  4. Use tools with the lowest vibration when there is a choice.
  5. Include vibration-free periods each day of work.
  6. Grip tool as lightly as possible (while still keeping safe control of it). Let the tool do the work.
  7. To reduce vibration, maintain tool as explained in this manual. If abnormal vibration occurs, stop immediately.

Specifications

Maximum Air Pressure90 PSI
Air Inlet1/4″-18 NPT
Recommended Hose Size3/8″ ID
No Load Rated Speed*1800 RPM
Average Air Consumption4CFM @ 90 PSI
Chuck Capacity3/8″

Rated speed at stated maximum air pressure. Excess air pressure is hazardous and may cause the tool to exceed stated rated speed.

components and controlscomponents and control

Air Supply
Do not use oxygen, carbon dioxide, combustible gases, or any other bottled gas as a power source for this tool.

  1. Incorporate a filter, regulator with pressure gauge, oiler, in-line shutoff valve, and quick coupler for best service, as shown on Figure A on page 8 and Figure B on page 9. an in-line shutoff ball valve is an important safety device because it controls the air supply even if the air hose is ruptured. the shutoff valve should be a ball valve because it can be closed quickly. note: If an automatic oiler system is not used, add a few drops of Pneumatic Tool Oil to the airline connection before operation. Add a few more drops after each hour of continual use.
  2. Attach an air hose to the compressor’s air outlet. Connect the air hose to the air inlet of the tool. Other components, such as a coupler plug and quick coupler, will make operation more efficient, but are not required.
    WarninG! tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn: Do not install a female quick coupler on the tool. Such a coupler contains an air valve that will allow the air tool to retain pressure and operate accidentally after the air supply is disconnected.
    Note: Air flow, and therefore tool performance, can be hindered by undersized air supply components. The air hose must be long enough to reach the work area with enough extra length to allow free movement while working.
  3. Release the tool’s Trigger.
  4. Close the in-line shutoff valve between the compressor and the tool.
  5. Turn on the air compressor according to the manufacturer’s directions and allow it to build up pressure until it cycles off.
  6. Adjust the air compressor’s output regulator so that the air output is enough to properly power the tool, but the output will not exceed the tool’s maximum air pressure at any time. Adjust the pressure gradually, while checking the air output gauge to set the right pressure range.
  7. Inspect the air connections for leaks. Repair any leaks found.
  8. If the tool will not be used at this time, turn off and detach the air supply, safely discharge any residual air pressure, and release the Trigger to prevent accidental operation.
    Note: Residual air pressure should not be present after the tool is disconnected from the air supply. However, it is a good safety measure to attempt to discharge the tool in a safe fashion after disconnecting to ensure that the tool is disconnected and not powered.

Setup

set up 1

DescriptionFunction
AAir HoseConnects air to tool
BFilterPrevents dirt and condensation from damaging tool or workpiece
CRegulatorAdjusts air pressure to tool
DLubricator (optional)For air tool lubrication
ECoupler and PlugProvides quick connection and release
FLeader Hose (optional)Increases coupler life
GAir Cleaner / Dryer (optional)Prevents water vapor from damaging workpiece
HAir Adjusting Valve (optional)For fine tuning airflow at tool

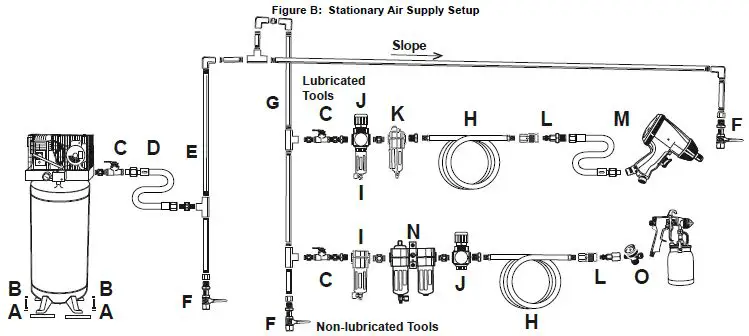

Figure B: Stationary air Supply Setupset up 2

DescriptionFunction
AVibration PadsFor noise and vibration reduction
BAnchor BoltsSecures air compressor in place
CBall ValveIsolates sections of system for maintenance
DIsolation HoseFor vibration reduction
EMain Air Line – 3/4″ minimum recommendedDistributes air to branch lines
FBall ValveTo drain moisture from system
GBranch Air Line -1/2″ minimum recommendedBrings air to point of use
HAir HoseConnects air to tool
IFilterPrevents dirt and condensation from damaging tool or workpiece
JRegulatorAdjusts air pressure to tool
KLubricator (optional)For air tool lubrication
LCoupler and PlugProvides quick connection and release
MLeader Hose (optional)Increases coupler life
NAir Cleaner / Dryer (optional)Prevents water vapor from damaging workpiece
OAir Adjusting Valve (optional)For fine tuning airflow at tool

Operating instructions

Read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. inspect tool before use, looking for damaged, loose, and missing parts. if any problems are found, do not use tool until repaired.

Tool Set up: Do not adjust or tamper with any control or component in a way not specifically explained within this manual. improper adjustment can result in tool failure or other serious hazards.

Drill Bit and accessory installation

Caution! Wear heavy-duty work gloves to provide protection when inserting and removing drill bits. Drill bits become very hot during use. Do not remove drill bits until the bit has cooled. caution! Disconnect air supply from Drill when changing or installing bit/accessories.

  1. Use the Chuck Key to loosen the jaws of the Drill until they are opened enough to fit the drill bit.
  2. Place the desired drill bit into the Drill between the Chuck jaws.
    Note: In addition to single or double-ended screwdriver bits, adapters with Hexal shafts with matching socket heads can also be used.
  3. Hand tighten the Chuck until the drill bit is held securely in place, centered in the Chuck jaws.
  4. Turn the Chuck Key to securely tighten the Chuck jaws to the drill bit.
  5. Remove the Chuck Key.
    Notice: use sharp bits. Dull, bent, or damaged bits will cause stress on the drill and/or break.

Workpiece and Work area Set up

  1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent distraction and injury.
  2. Route the air hose along a safe route to reach the work area without creating a tripping hazard or exposing the air hose to possible damage. The air hose must be long enough to reach the work area with enough extra length to allow free movement while working.
  3. Secure loose workpieces using a vise or clamps (not included) to prevent movement while working.
  4. There must not be hazardous objects (such as utility lines or foreign objects) nearby that will present a hazard while working.

General Operating instructions

  1. If an automatic oiler is not used, add a few drops of Pneumatic Tool Oil to the airline connection before use. Add a few drops more after each hour of continual use.
  2. Place the bit at the point to be drilled and select Drill direction using Direction Switch.
    cautiOn! Most drill bits are designed for use in the forward, clockwise direction. Do not use a drill bit in the opposite direction than it is designed for.
    note: If drilling metal or another hard, smooth surface, use a punch to mark the drill location.
    Metal Drilling:
    Using cutting oil with some metals will prolong the life of the drill bit and increase the drilling action.
    • Steel, tin, or sheet metal: Use a light machine oil.
    • Aluminum: Use paraffin.
    • Brass, copper, or cast iron: Do not use a lubricant.
  3. Grasp the Drill firmly with both hands while slowly squeezing the Trigger. Do not force the Drill. Only apply light pressure when drilling.
  4. If the tool requires more force to accomplish the task, verify that the tool receives sufficient, unobstructed airflow (CFM) and increase the pressure (PSI) output of the regulator up to the maximum air pressure rating of this tool.
    cautiOn! tO prEVEnt inJury FrOM tOOL Or accESSOry FaiLurE: Do not exceed the tool’s maximum air pressure rating. If the tool still does not have sufficient force at maximum pressure and sufficient airflow, then a larger tool may be required.
  5. After the Drill bit cuts through the workpiece, remove it while the Drill is still running. This prevents the Drill bit from binding.
  6.  If the Bit Starts to bind, release trigger immediately. Allow Drill to come to a full stop, then, using the Direction Switch, set Drill to Reverse direction and slowly reverse bit out of workpiece.
  7. To prevent accidents, release the Trigger, detach the air supply, and safely discharge any residual air pressure in the tool after use. Clean external surfaces of the tool with clean, dry cloth, and apply a thin coat of tool oil. Store the tool indoors out of children’s reach.

Cleaning, Maintenance, and Lubrication

Note: These procedures are in addition to the regular checks and maintenance explained as part of the regular operation of the air-operated tool.

  1. BEFOrE EacH uSE, inspect the general condition of the tool. Check for:
    • loose hardware or housing
    • misalignment or binding of moving parts
    • cracked or broken parts
    • any other condition that may affect its safe operation.
  2. Daily – air Supply Maintenance: Every day, maintain the air supply according to the component manufacturers’ instructions. Maintain the lubricator’s oil level. Drain the moisture filter regularly. Performing routine air supply maintenance will allow the tool to operate more safely and will also reduce wear on the tool.
  3. Quarterly (every 3 months) – tool Disassembly, cleaning, and inspection: Have the internal mechanism cleaned, inspected, and lubricated by a qualified technician. If the vanes need replacement, replace them all as a set.

Troubleshooting

problempossible causesLikely Solutions
Decreased output.1.    Not enough air pressure and/ or air flow.





2.    Obstructed Trigger.

3.    Incorrect lubrication or not enough lubrication.

4.    Blocked air inlet screen (if equipped).

5.    Air leaking from loose housing.

6.    Mechanism contaminated.





7.    Vane wear or damage.

1.    Check for loose connections and make sure that air supply is providing enough air flow (CFM)

at required pressure (PSI) to the tool’s air inlet.

Do not exceed maximum air pressure.

2.    Clean around Trigger to ensure free movement.

3.    Lubricate using air tool oil according to directions.



4.    Clean air inlet screen of buildup.



5.    Make sure housing is properly assembled and tight.

6.    Have qualified technician

clean and lubricate mechanism. Install in-line filter in air supply as stated in Setup: Air Supply.

7.    Replace all vanes as set.

Severe air leakage. (Slight air leakage is normal, especially on

older tools.)

1.    Cross-threaded housing components.



2.    Loose housing.







3.    Damaged valve or housing.

4.    Dirty, worn or damaged valve.

1.    Check for incorrect alignment and uneven gaps.

If cross-threaded, disassemble and replace damaged parts before use.

2.    Tighten housing assembly.

If housing cannot tighten properly,

internal parts may be misaligned. Technician needs to disassemble tool, align parts and reassemble.

3.    Replace damaged components.

4.    Clean or replace valve assembly.

Housing heats during use.1.    Incorrect lubrication or not enough lubrication.

2.    Worn parts.

1.    Lubricate using air tool oil according to directions.



2.    Have qualified technician inspect internal mechanism and replace parts as needed.

Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service.

Parts List and Diagram

pLEaSE rEaD tHE FOLLOWinG carEFuLLy

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

parts List

partDescriptionQty
1Motor Housing1
3Inlet Bushing1
4Deflector1
6Stop Ring1
7Housing Cap1
8Screw2
9Throttle1
10Pin1
11Housing Gasket1
12Valve Screw1
13O-Ring1
14Valve Spring1
15Throttle Valve1
16O-Ring1
18Valve Bushing1
20Retainer1
21Bushing1
23Directional Valve1
24Reverse Spring1
25Ball Bearing2
27Motor Gasket1
28Rear End Plate1
29Cylinder1
30Rotor1
31Rotor Blade5
partDescriptionQty
32Motor Pin1
33Front End Plate1
34Ball Bearing1
35Lock Ring1
36Internal Gear1
37Planet Gear3
39Cage1
39PPin3
40Spacer1
41Gear Spindle1
42Ball Bearing1
43Pinion1
44Gear1
45Angle Housing1
45PBall Cap1
47Retainer Ring1
48Spindle1
49Key1
50Ball Bearing1
51Bearing Case1
52Retainer Ring1
54Set Screw1
55Screw1
57Wave Washer1
58Chuck Key1
593/8″ Chuck1

Record product’s Serial number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175442369 when ordering parts.

Assembly Diagramassembly diagram

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS. To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
