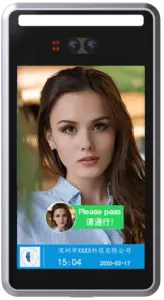

global sources D802 8-Inch Face Recognition Access Control Machine
Product type
D802
Applicable scenarios
Widely used in office buildings, conference rooms, communities, factory parks, construction sites, hospitals, underground stations and many other area
Key features
- Support binocular live detectio
- Support for tracking and exposure of people’s movement and face under strong backlight environment
- Unique face recognition algorithm, accurate face recognition, face recognition time is less than 0.5
- Built-in domestic CPU
- Using LINUX operating system, the system is stable
- H.265 encoding format video stream is directly connected to NVR and other storage devices through ONVIF protocol and GB28181 protocol
- Support TF card local storage, continuous storage of pictures for 1 year, continuous storage of videos for 1 month or longer (depending on the optional TF card capacity)
- Mean time between failures MTBF50000h Support 24000+ face comparison library and 160,000 recognition records
- Rich interface protocols, supporting TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocols under multiple platforms such as Windows/Linux
- Working temperature: -30-60
- IP66 waterproof and dustproof
- Rich hardware interfaces (I/O, WG26, WG34, RJ45, USB)
- 8-inch IPS full viewing angle high-definition display, no image smear, no delay
- Automatic gain and automatic white balance, so that the true color of the image can be restored naturally
- Built-in special black light sensor for video surveillance, low-light recognition is more accurate
- 3D noise reduction and fog penetration technology make the monitoring picture under low illumination more clear and delicate
- Support code stream and I frame interval setting ·Support partial shielding of video are
- Support ROI codin
- Automatic white balance, manual white balance ·Support the maximum exposure time setting
- Support mobile phone monitoring settings Support 2D noise reduction, 3D noise reduction
- Support recording plan time period and upload method setting Support video brightness, contrast, hue, saturation, gamma adjustment
- Support to set the longest automatic exposure time Supports intelligent face exposure and face intelligent enhancement settings
Specifications
| Product number | D802 | |
| Hardware | ||
| Processor | Dual-core Processor + 1G RAM + 16G EMMC | |
| Operating systems | Embedded Linux operating systems | |
| Storage | TF card storage support | |
| Perspectives | Vertical viewing angle: 30°; horizontal viewing angle: 30° | |
| Imaging devices | 1/2.8″ Progressive Scan CMOS | |
| Footage | 6mm | |
| 4G Module | Optional | |
| Wifi modules | Optional | |
| Bluetooth modules | Optional | |
| Speakers | Standard, voice playback content can be customised | |
| Performance | ||
| Recognition height | 1.2~2.2m, angle adjustable | |
| Identification distance | 0.5~1.5m, variable depending on lens | |
| Identification time | Less than 0.5 seconds | |
| Storage capacity | 160,000 records | |
| Face capacity | 24,000 sheets | |
| Screen brightness | ≥400 cd/m2 | |
| Interface | ||
| Switching outputs | 1 switch output, other GPIO ports can be custom wired | |
| Network Interface | 1 RJ45 10M / 100M adaptive Ethernet port, customisable Gigabit port | |
| Wegen Interface | 1 Weygand interface input, 1 Weygand interface output | |
| USB interface | 1 USB port for device | |
| Communication interface | 1 x RS485 interface | |
| Camera parameters | ||
| Cameras | Binocular camera, visible and NIR, supports in vivo detection | |
| Effective pixels | 2.1 effective megapixels, 1920*1080 | |
| Minimum Illumination | Colour 0.01Lux @F1.2 (ICR); B&W 0.001Lux @F1.2 (ICR) | |
| Signal-to-nois e ratio | ≥50db(AGC OFF) | |
| Wide Dynamic | 120db, isp algorithm face partial exposure | |
| Video Encoding | H.265 Main Profile encoding / H.264 BP/MP/HP encoding / MJPEG encoding | |
| Image resolution | Main Code Stream | 50Hz: 25fps (1920×1080,1280×720) |
| 60Hz: 30fps (1920×1080,1280×720) | ||
| Subcode stream | 720*576,1-25(30)fps / 640*480,1-25(30)fps /320*240,1-25(30)fps | |
| Function | ||
| Web-side configuration | Support | |
| Remote upgrade of equipment | Support | |
| Deployment method | Supports public network and LAN use | |
| General parameters | ||
| Operating temperature | -30℃ – +60℃ | |
| Working humidity | 0 to 90% relative humidity, non-condensing | |
| Salt spray grade | Rp6 or above | |
| Anti-static | Contact ±6KV, Air ±8KV | |
| Electricity supply | DC12V/2A | |
| Riot control level | IK06 | |
| Protection class | IP66 | |
| Equipment power | 20W(MAX) | |
| Equipment size | 252(length) * 136(width) *26(thickness)mm | |
| Screen specifications | 8 inch IPS HD screen | |
| Column aperture | 36mm | |
| equipment weight | 1.7kg | |

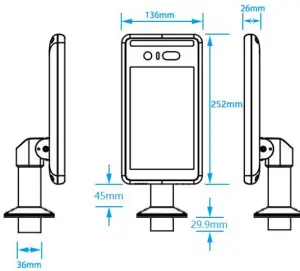

Product Size

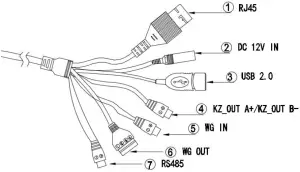

Interface definition
Serial number | name | Quantity | Remarks |
1 | Network port | 1 | RJ45 |
2 | power supply | 1 | DC12V IN |
3 | USB | 1 | USB 2.0 |
4 | Switch output | 1 | Switch output interface A+/B- |
5 | Wiegand protocol input interface | 1 | ① D0 |
6 | Wiegand protocol output interface | 1 | ① vcc12V |
7 | RS485 | 1 | ① 485- |
