Donning Poster Parat Soft Pack
InstructionsDr ger Donning Poster Parat Soft Pack

Donning Poster

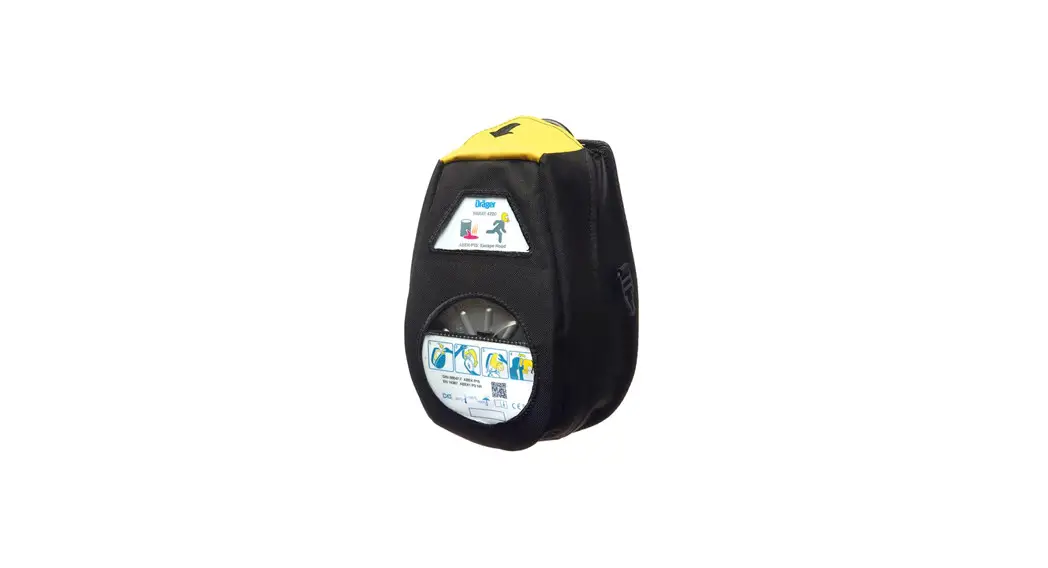

Dragger PARAT® Soft Pack

Donning Poster Parat Soft Pack

Dr ger Donning Poster Parat Soft Pack - figDr ger Donning Poster Parat Soft Pack - fig1

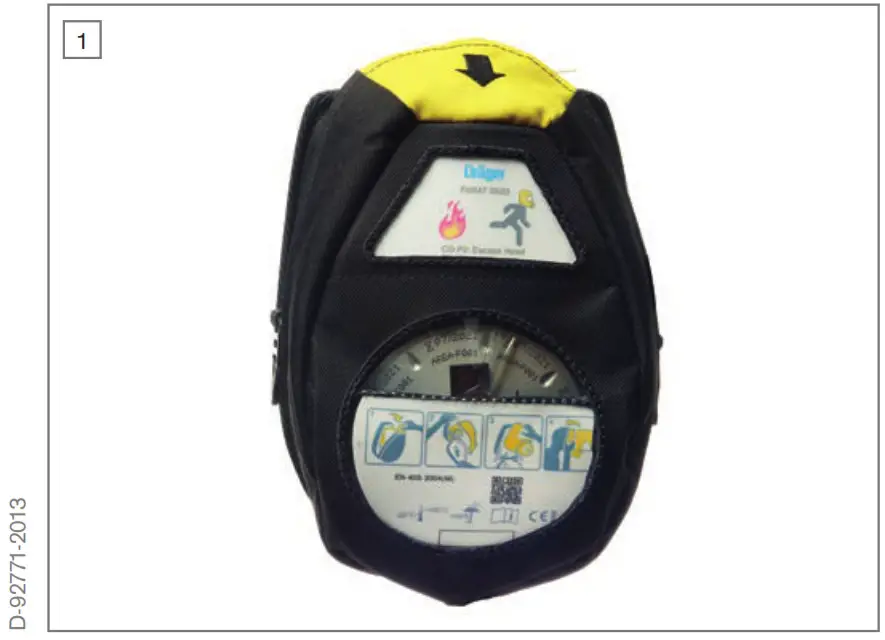

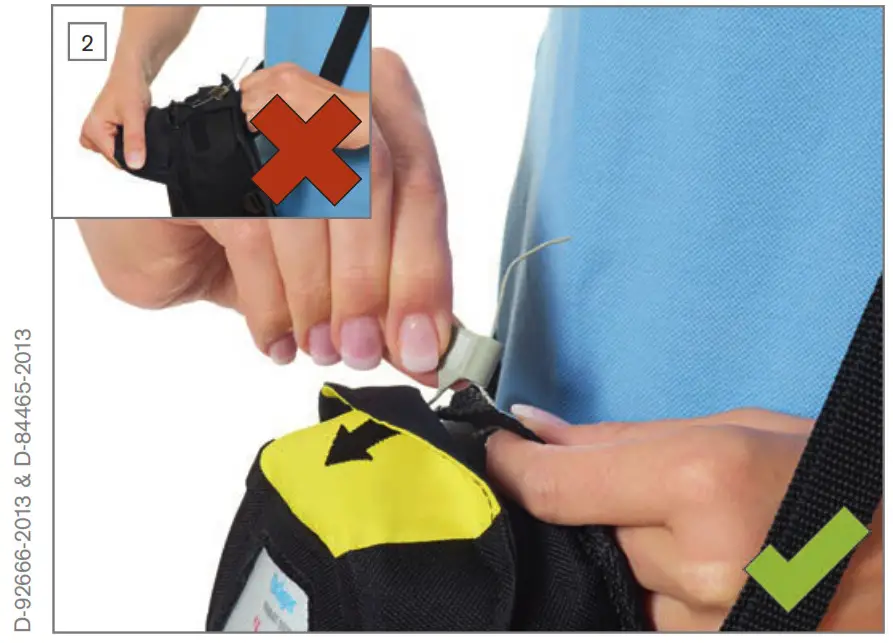

Dragger PARAT® Soft PackBreak the security seal.
Dr ger Donning Poster Parat Soft Pack - fig2Dr ger Donning Poster Parat Soft Pack - Soft Pack

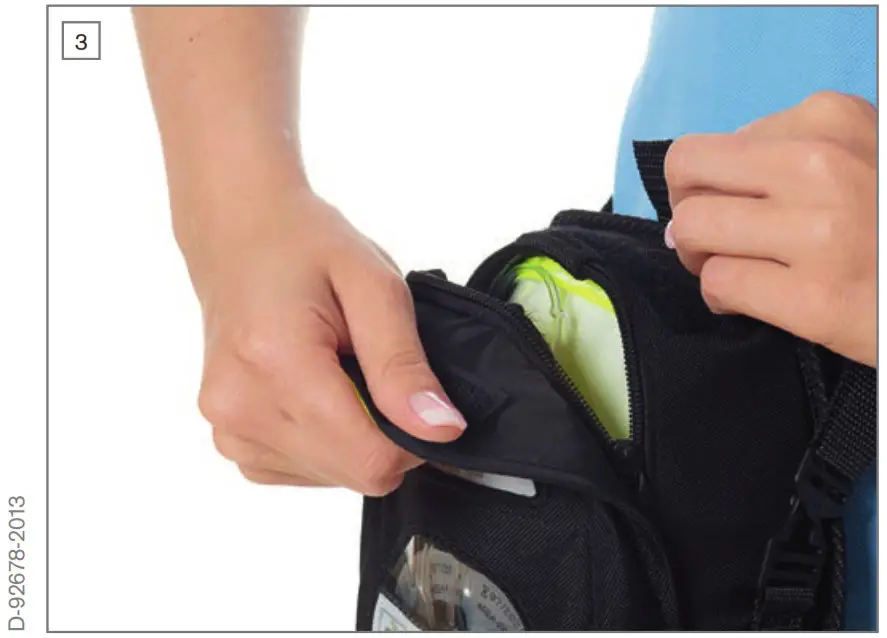

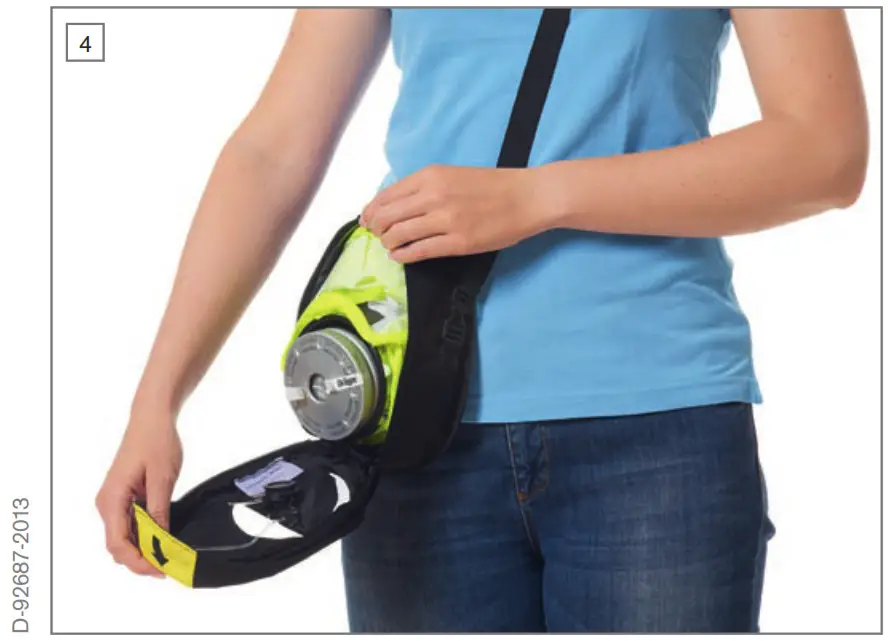

Pull the yellow fl ap downwards.Open the Soft Pack completely. The front filter sealing plug should be automatically removed.
Dr ger Donning Poster Parat Soft Pack - hoodDr ger Donning Poster Parat Soft Pack - hood over

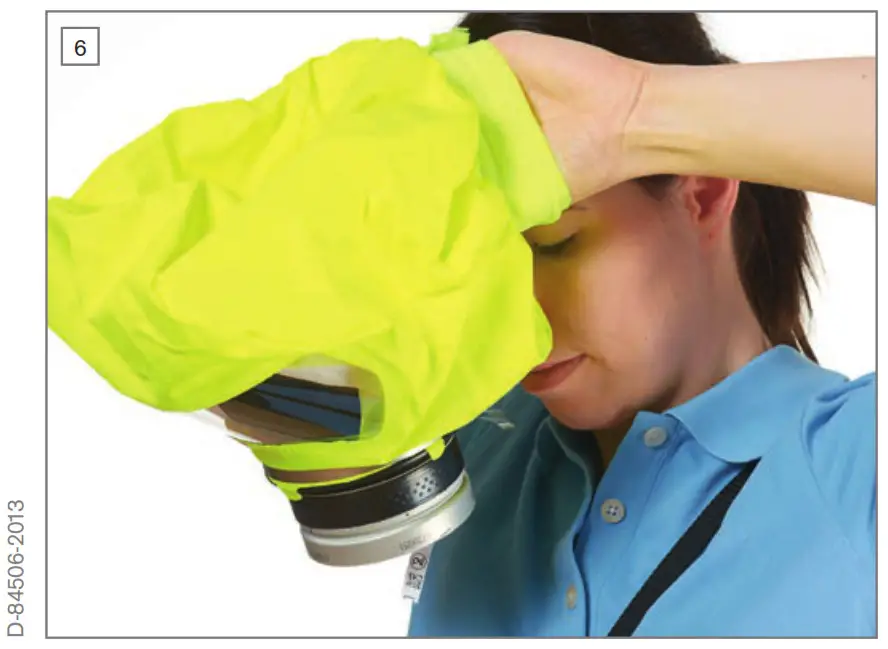

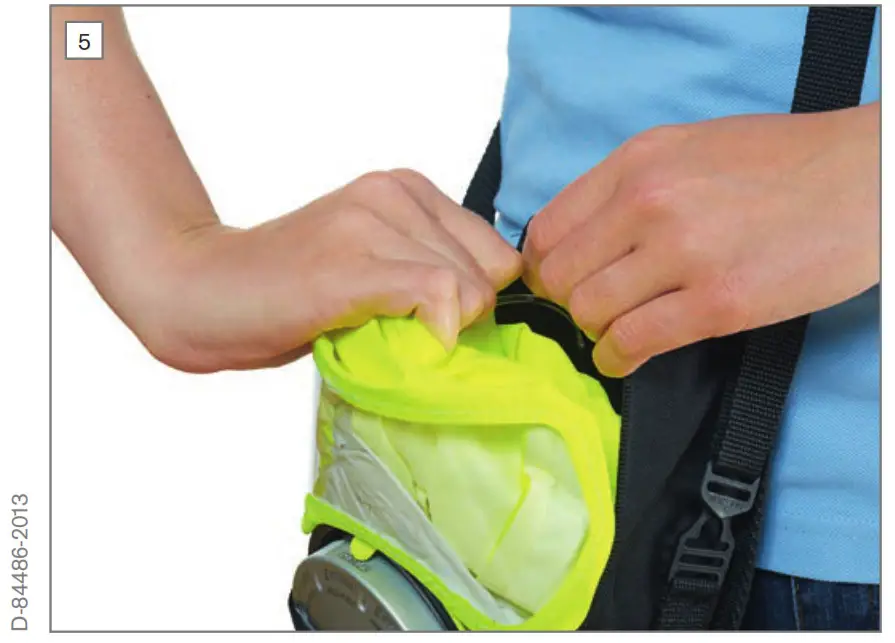

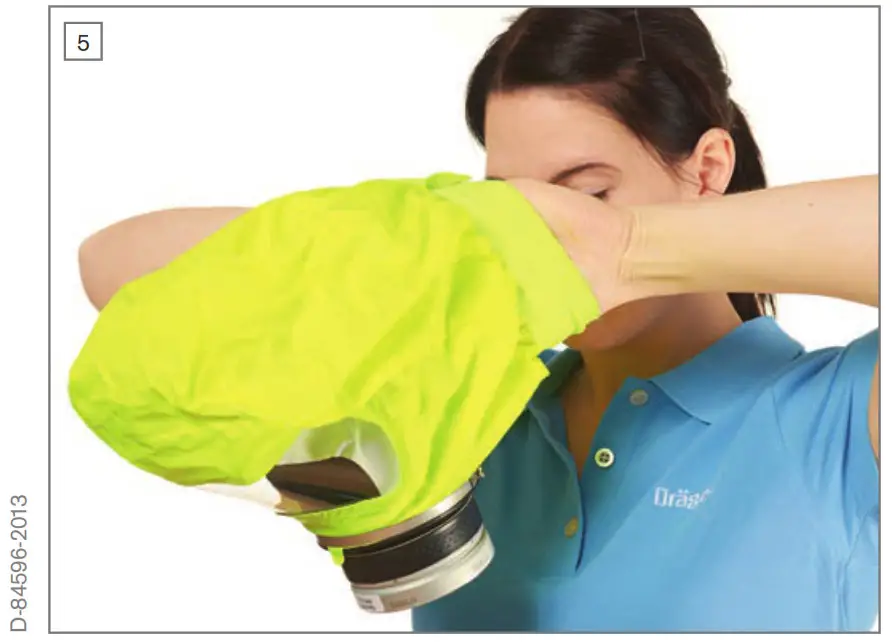

Remove the hood from the Soft Pack. Pull the hood against the fastening strap, it will automatically open. The  second filter sealing plug will automatically be detached when the hood is removed.Widen the neck seal and pull the hood over your head. The inner head harness automatically adjusts to your head.  Ensure that nose and chin sit comfortably in the half mask and that all hair is tucked into the hood.
Dr ger Donning Poster Parat Soft Pack - half maskDr ger Donning Poster Parat Soft Pack - half mask 1

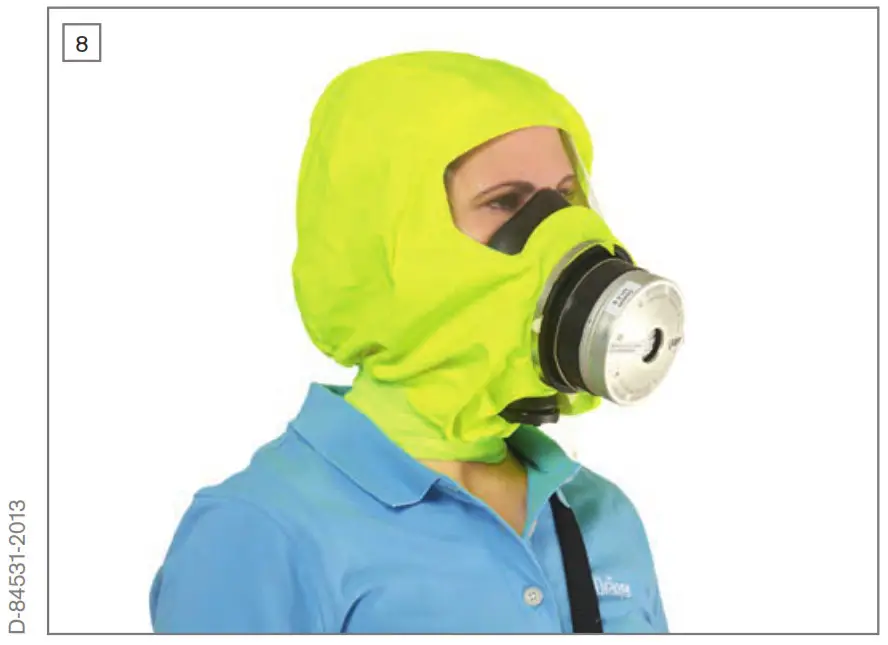

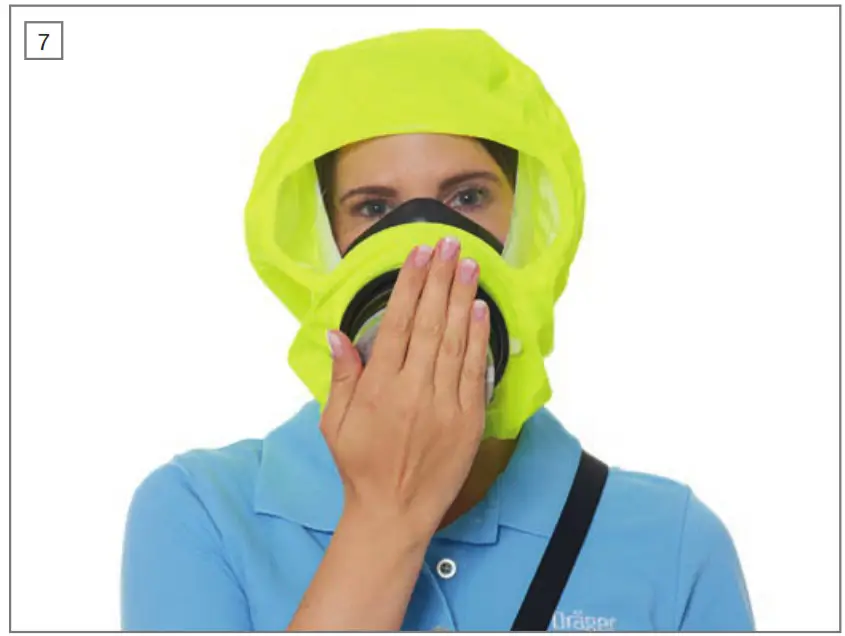

Check the fi t of the half mask by closing the front filtering opening with the palm of your hand. If negative  pressure is not generated readjust the half mask to ensure a close fi t over nose and mouth.Ready for use.
Dr ger Donning Poster Parat Soft Pack - Hard CaseDr ger Donning Poster Parat Soft Pack - security seal

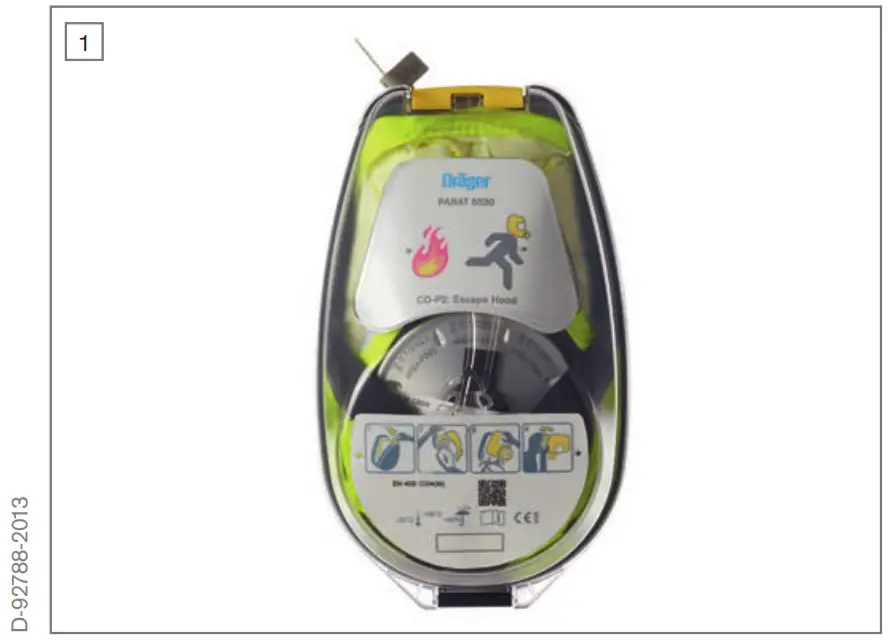

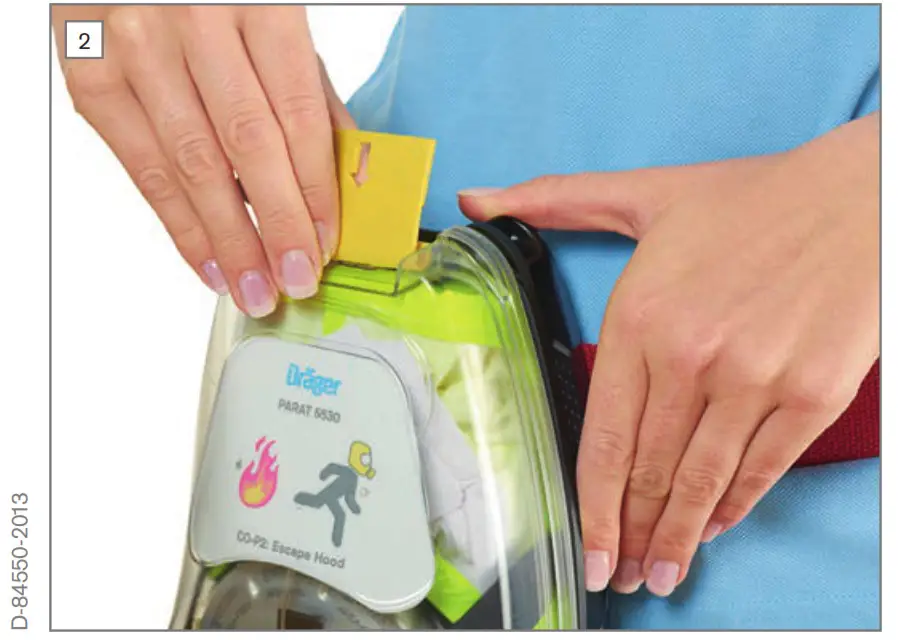

Dragger PARAT® Hard CaseOpen the yellow handle. When opening, the security seal should break.
Dr ger Donning Poster Parat Soft Pack - sealing plugDr ger Donning Poster Parat Soft Pack - Hard Case 1

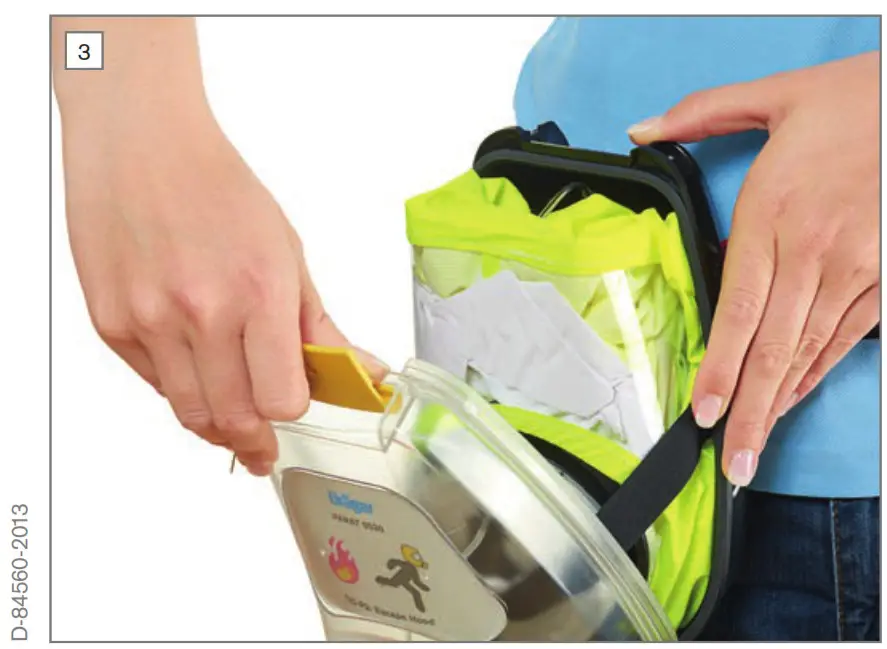

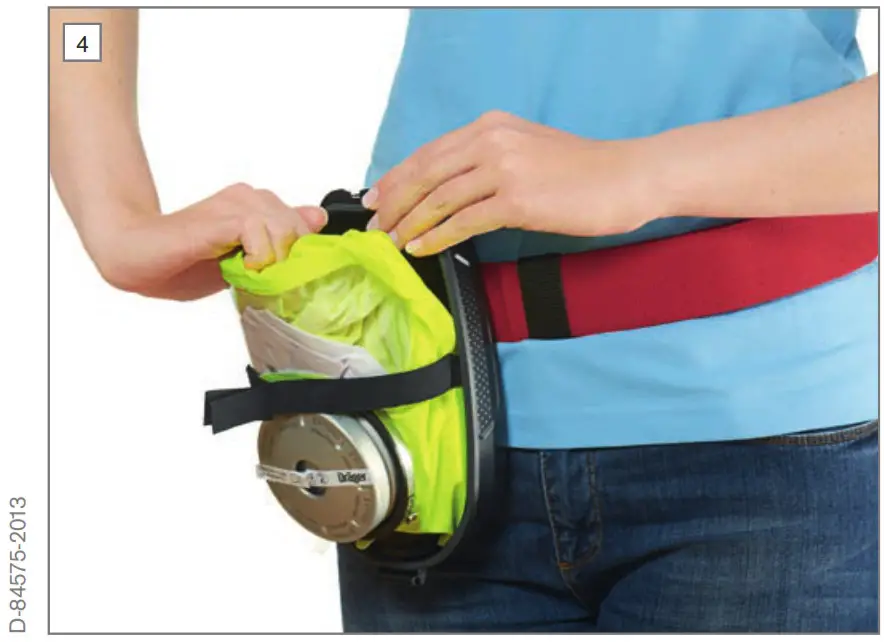

Open the Hard Case completely. The front filter sealing plug should be automatically removed.Remove the hood from the Hard Case. Pull the hood against the fastening strap, it will automatically open. The  second filter sealing plug will automatically be detached when the hood is removed.
Dr ger Donning Poster Parat Soft Pack - hood over 1Dr ger Donning Poster Parat Soft Pack - half mask1

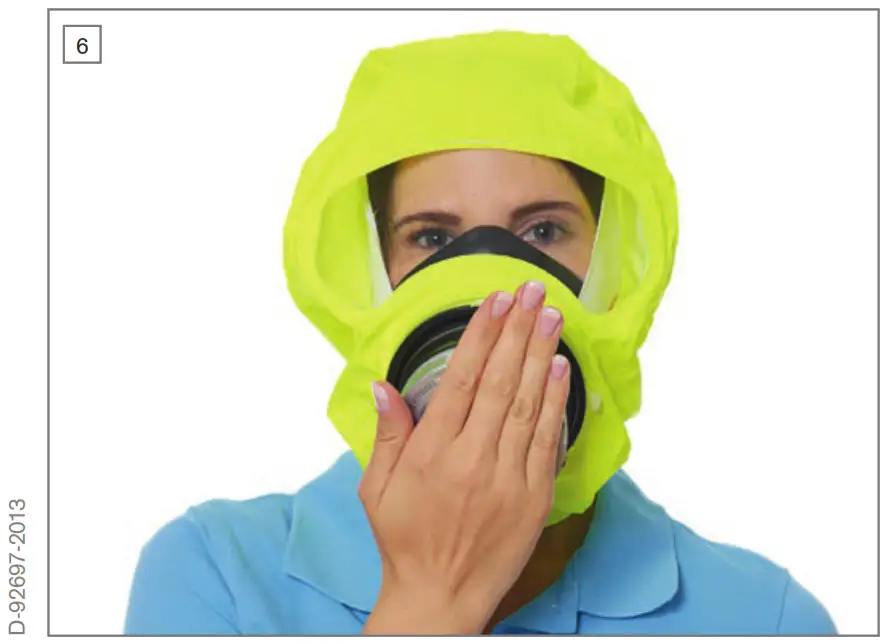

Widen the neck seal and pull the hood over your head. The inner head harness automatically adjusts to your head. Ensure that nose and chin sit comfortably in the half mask and that all hair is tucked into the hood.Check the fit of the half mask by closing the front filtering opening with the palm of your hand. If negative pressure is  not generated readjust the half mask to ensure a close fit over nose and mouth.

Dr ger Donning Poster Parat Soft Pack - half mask2

Ready for use.Dr ger Donning Poster Parat Soft Pack - iconDr ger - logo[email protected]
Always read and understand the instructions for use of the
Dragger PARAT® escape device prior to use!
www.draeger.com
Dragger. Technology for Life®
