SGMS Micro Water Feature
SGMS Micro Water Feature
Designed for lower cost and ease of installation, Waterway’s new Micro Water Feature offers 3 options for an amazing display.
Features:
- Micro sized (just 1 1/4″ in diameter)
- Ultra-easy to install (just drill hole, press in grommet, then jet)
- Micro fan feature
- Easy to plumb with 3/8″ tubing ·
- Multiple body options
- Available with stainless steel escutcheon
- LED versions optional
Patent #:
D0913414
D0930785

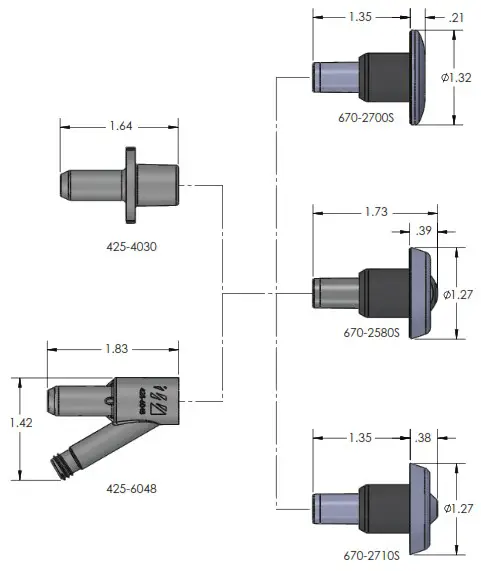

Choose from 2 Different Micro Body Styles and 3 Different Escutcheons
Multiple Bodies
| Part # | Description |
| 425-4030 | 38″ SB Straight Adaptor |
| 425-6048 | 1″ Micro Water Feature Wye. 30° LED Probe |
| 670-2700 | SGMS 1 1/4″ Micro Jet/ WF/Injector, Plastic Assy. |
| 670-2700S | SGMS 1 1/4″ Micro Jet/WF/Injector, Metal Assy. |
| 670-2710 | SGMS 1 1/4″ Micro Jet/WF/Injector, Small Nozzle, Plastic Assy. |
| 670-2710S | SGMS 1 1/4″ Micro Jet/WF/Injector, Small Nozzle, Metal Assy. |
| 670-2580 | SGMS 1 1/4″ Micro Jet/WF/Injector, Fan Spray, Plastic Assy. |
| 670-2580S | SGMS 1 1/4″ Micro Jet/WF/Injector, Fan Spray, Metal Assy. |
Specifications:
- Hole saw size: 43/64″
- EPDM grommet
- 316 stainless steel

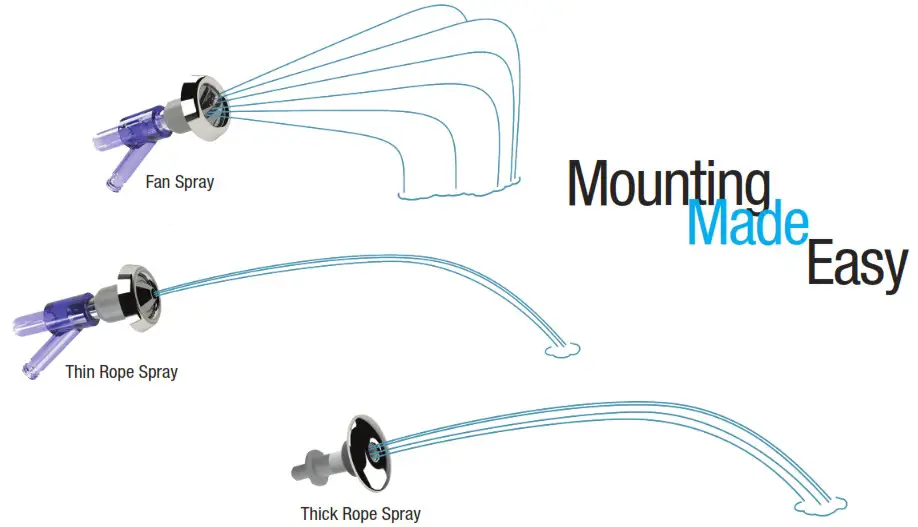

Micro Water Features:
- Thin Rope:
Flow = 1.5 GPM @3psi
Dia. of rope = 3/16” - Thick Rope:
Flow = 0.9 – 2.75 GPM @3psi
Dia. of rope = 1/4″ - Fan:
Flow = 1.2 – 1.8 GPM @3psi
Fan width = 12″ – 36″
Fan angle = 60° – 85°
Scan QR Code for more info
https://www.waterwayplastics.com/wp-content/uploads/000302.0322_SGMS_Suction%20Load%20Washer_Brochure_print_lowres.pdf
www.waterwayplastics.com
807-0343.0422
Designed, Engineered & Manufactured in the USA.
©2022 Waterway Plastics
003401
