Hutools Fingerprint Door Lock Installation Guide

PLEASE KEEP THIS GUIDE

This guide contains important information about your lock.

HuTools KS02
Installation Guide

Installation Guide

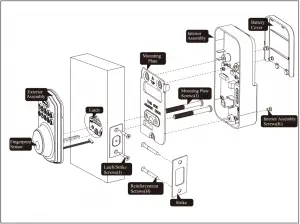

Parts List

Latch                          Drive-In Collar                 Strike

Exterior Assembly     Mounting Plate         Interior Assembly

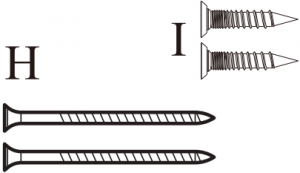

Battery Cover        Latch and Strike Screws     Mounting Plate Screws

Interior Assembly Screws

1 Prepare the door and check dimensions

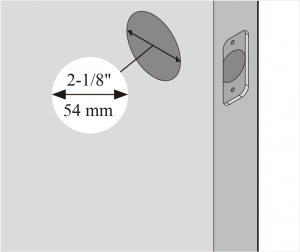

A Measure to confirm that the hole in the door is 2-1/8″ (54 mm)

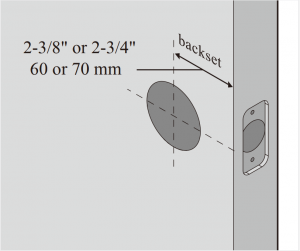

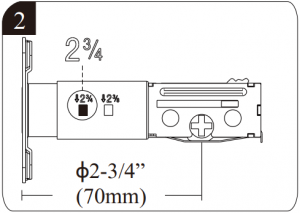

B Measure to confirm that the backset is either 2-3/8″ or 2-3/4″ (60 or 70 mm)

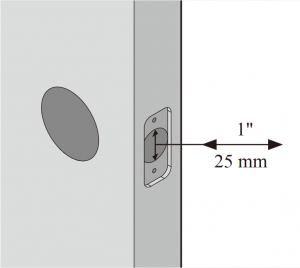

C Measure to confirm that the the hole in the door edge is 1″ (25 mm)

D Measure to confirm that the door is 1-3/8″ to 2″ (35 mm or 50 mm)thick

2  Install the latch and strike

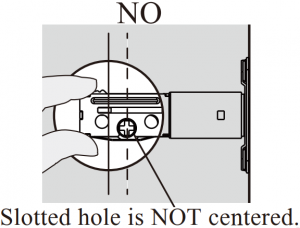

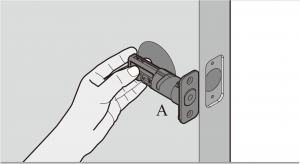

A Hold the latch in front of the door hole, with the latch face flush against the door edge.

Is the slotted hole centered in the door hole?

No adjustment is required. Proceed to next step.

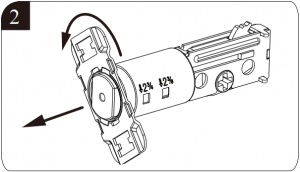

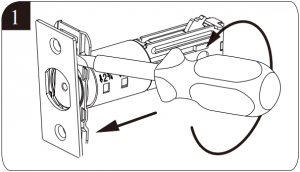

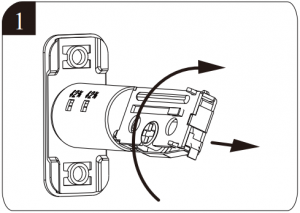

Rotate and pull the latch as shown to extend latch.

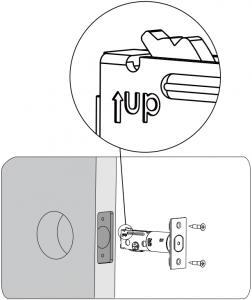

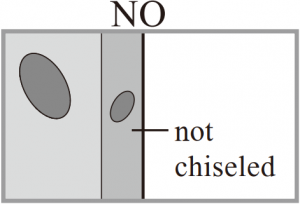

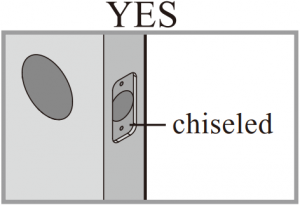

B Is the door edge chiseled?

Install latch in door with supplied screws.

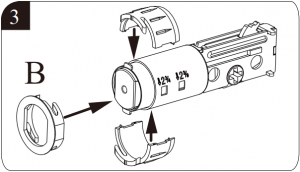

Use a flathead screwdriver to remove Rectangular face from latch and install drive-in collar.

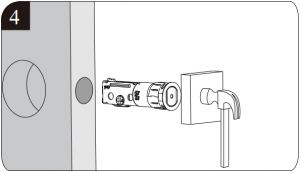

Install latch in door with wood block and hammer.

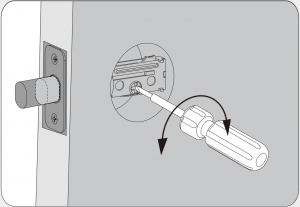

C Use a screwdirver to test if deadbolt works smoothy.

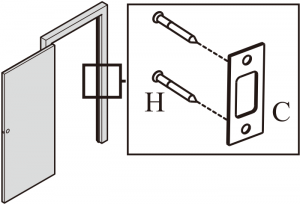

D Install strike on the door frame.

IMPORTANT: Make sure hole in door frame is drilled a minimum of 1″ (25 mm) deep.

1/6

3 Install exterior assembly

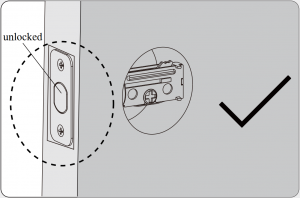

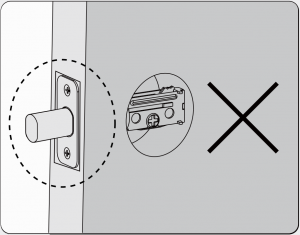

A  IMPORTANT: Before installation, make sure the latch is fully retracted (in the unlocked position) .

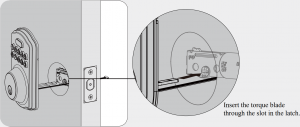

B Route the cable below the latch.

C Send the cable through the bottom horizontal slot in the mounting plate.

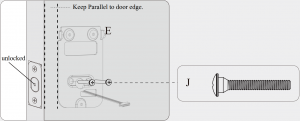

D Secure the mounting plate with the supplied screws.

4 Install interior assembly

IMPORTANT: Do not load batteries until lock is completely installed.

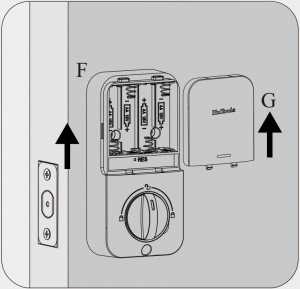

A Remove the battery cover.
Locate the slot at the bottom and use your fingernail or a flat head screwdriver to pry the cover up and pull it off.

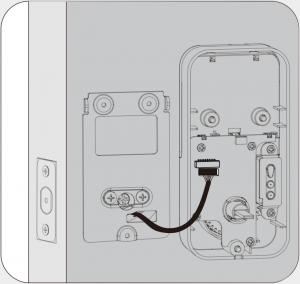

A Connect the cable and ensure tight cable connection.

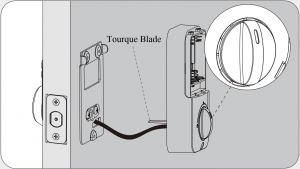

B Rotate the turnpiece in vertical position and make sure the latch is still fully retracted (in the unlocked position). Insert the torque blade through the center hole in the mounting plate.

C Test the turnpiece for smooth rotation. If turnpiece doesn’t rotate, repeat step 4C, making sure the turnpiece in vertical position.

D Secure the interior assembly with the supplied screws.

5 Detect left/ right hand door installation

Reset the lock to teach the lock the orientation of the door.
IMPORTANT: This step is required and crucial for the lock to operate properly.

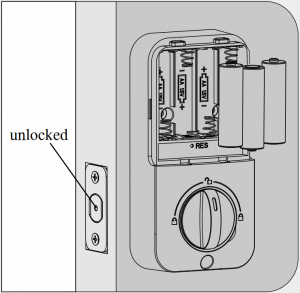

A While the door is OPEN and UNLOCK, load 3 AA batteries into the interior assembly.
IMPORTANT: For best results, use new, non-rechargeable Alkaline batteries only.

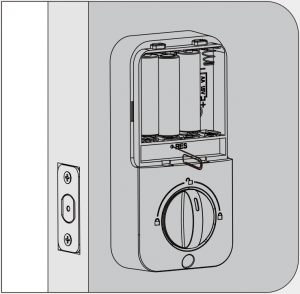

B Press and hold the Reset button on the interior assembly using a pen or a paper clip.

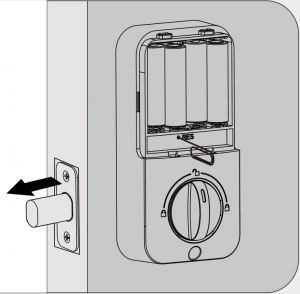

C Load the last battery and keep holding the reset button for 10 seconds, until you hear the sound of “beep”. The latch bolt will extend to learn the orientation of the door.

2 / 6

How To Use

UNLOCK the door from outside

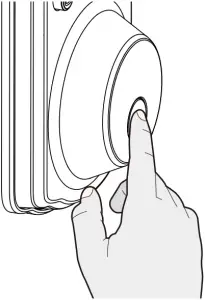

UNLOCK the door with fingerprint ID

Touch and hold the Sensor with your finger to unlock the lock.

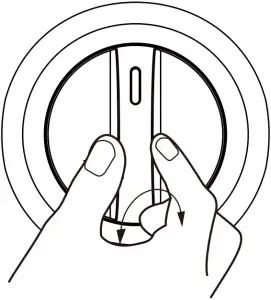

UNLOCK the door from inside

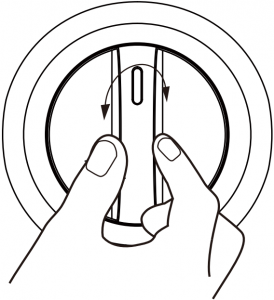

Rotate the thumb turn to Unlock position.

LOCK the door from outside

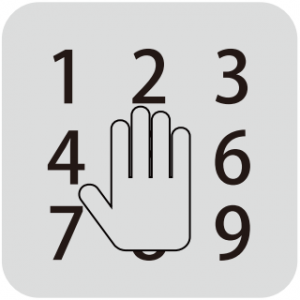

Manual Mode
Press any key on keypad for 2 seconds.

Auto Re-lock Mode
In Auto re-lock mode, the bolt will extend out automatically in 30 seconds after unlocking.

LOCK the door from inside

Manual Mode
Rotate the thumb turn to Lock position.

Auto Re-lock Mode
In Auto re-lock mode, the device will be locked automatically.

Programming Instructions

Information & Safety Warnings

• Protect your User Codes and Master Code.
• Restrict access to your lock’s interior assembly and routinely check your settings to ensure they have not been altered without your knowledge.
• This lockset is designed to provide the highest standard of product quality and performance. Care should be taken to ensure a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive cleaners or polishes could damage the coating and result in tarnishing.

IMPORTANT: Do not load batteries until lock is completely installed.

1. Master Code( 4 to 10 digits) : The default Master Code is 12345678. It is required that you change it to a code of your own before programming.

2. User Code(4 to 10 digits) : A total of 20 User Codes (and one temporary one-time User Code) may be programmed.

3. Both master and user pin codes don not support the following combination of numbers.

A.   Forward number sequence

B.  Backward number sequence

C.  Repeat number sequence

D. If

Then   Contain existing code sequence

and

3 / 6

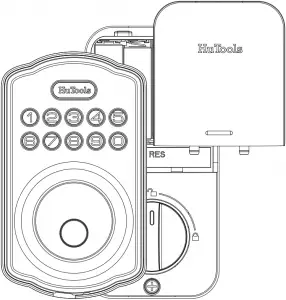

Parts Illustrations

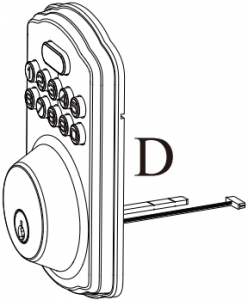

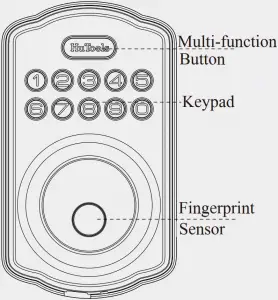

Exterior Assembly

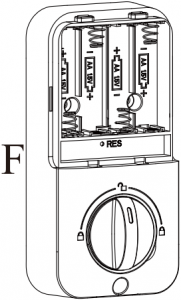

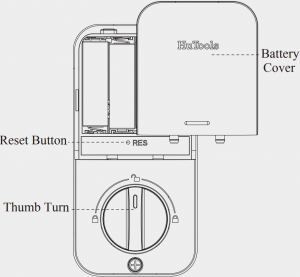

Interior Assembly

The default Master Code is 12345678. It is required that you change it to a code of your own before programming.

Definitions

Master Code
Required for programming and feature settings. Master code can be used to unlock the door under vacation mode. The default master code needs to be changed before programming. Property owner/ manager should keep this information confidential.

Auto Lock
Automatically locks the deadbolt 30 seconds after unlocking. This feature is off by default. You can set the Auto Lock time delay between 10 and 99 seconds.

Wrong Entry Limit
After 10 unsuccessful attempts at entering a valid PIN code, the unit will shut down for 3 minuets.

Silent Mode
The beep sounds when pressing keypad can be muted. But you will still hear low battery and system alerts.

Vacation Mode
This is a security feature for you when you are leaving your home for vacation or long trip. Enabling vacation mode will restrict all user codes until master code is entered on keypad. If the lock is unlocked by thumb turn, the lock will sound an alarm.

One Time User Code
This code can only be used once and is automatically deleted when used.

Unlock with Fake code
User can prevent pin code exposure from strangers by entering random digits before or after pin code.

4 / 6

Quick Set Up

IMPORTANT: The default Master Code is 12345678. It is required that you change it to a code of your own before programming.

Change Master Code ⇒+ Master Code  + Wait for Long Green Lights⇒Press 1 Wait for Green Light Flash ⇒ New Master Code + Wait for Green Light Flash⇒ New Master Code +Succeed Green Light Flash

Add User Code ⇒ + Master Code  +Wait for Long Green Lights ⇒ Press 2 Wait for Green Light Flash⇒ New User Code + Wait for Green Light Flash ⇒ New User Code + Succeed Green Light Flash

Delete User Code ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 3 Wait for Green Light Flash ⇒ Unwanted User Code + Succeed Green Light Flash

Add User Fingerprint ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 4 Wait for Green Light Flash ⇒Scan Fingerprint 8 Times Each Time Succeed With A Short Beep ; Succeed Green Light Flash + A Long Beep

Delete User Fingerprint ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 5 Wait for Green Light Flash ⇒Scan Unwanted Fingerprint 1 Time ; Succeed Green Light Flash + A Long Beep

Silent Mode ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 6 Wait for Green Light Flash ⇒ Press 1 + Silent Mode Disabled Green Light Flash ; Press 2 + Silent Mode Enabled Green Light Flash

Auto Lock ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 7 Wait for Green Light Flash ⇒ Press 1 + Auto Lock Enabled Green Light Flash ; Press 2 + Auto Lock Disabled Green Light Flash

Set Auto Lock Time Delay ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 0 Wait for Green Light Flash ⇒ Enter New Duration Time (10-99) + Succeed Green Light Flash

Add One-Time Code ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 9 Wait for Green Light Flash ⇒ New User Code + Wait for Green Light Flash ⇒ New User Code + Succeed Green Light Flash

Vacation Mode ⇒ + Master Code  + Wait for Long Green Lights ⇒ Press 8 Wait for Green Light Flash ⇒ Press Vacation Mode Enabled Green Light Flash

Notes:
When setting is unsuccessful, the indicator light will flash red.

5 / 6

Factory Default Settings

Settings                                  Factory Defaut
Master Code                          12345678
Auto Lock                              Disabled
Silent Mode                            Disabled
Wrong Code Entry Limit       10 times
Shutdown Time                      3 mins
Vacation Mode                       Disabled

Restore To Factory Default Settings
This procedure will delete all User Codes associated with the lock.

1. Keep the door open and unlock.
2. Press and hold the Reset button, at the same time take out one battery and then place it back.
3. Keep holding the Reset button for 3 seconds, until you hear the sound of beep.

How to set up fingerprint ID

1. Make sure that the Sensor and your finger are clean and dry;
2. Touch and hold the Sensor with your finger until you hear a short beep;
3. Lift and rest your finger, making small adjustments to the position of your finger each time;
4. The Sensor needs to scan your fingerprint 8 times and storages all the information locally and safely.

Troubleshooting

The turnpiece cannot rotate or operate the lock.
Remove and re-install the lock, making sure that the turnpiece is in vertical position.

The lock cannot be locked or unlocked by the keypad.
Make sure that the codes are not disabled. If needed, restore the lock’s default settings.

The keypad doesn’t respond when touched ( no lights are visible and no beeping is heard) .
Make sure the cables are properly connected, and make sure the batteries are new and installed correctly.

After the installation of the batteries, there is no response when you press any button and no beeps are heard.
Check the cable connection and the polarity of the batteries. Also make sure the batteries are not dead.

I forgot my Master Codes.
Perform a reset in order to erase all passcodes. Once the reset is complete, all passcodes will be erased and the Master code will return to the default value ( 12345678) .

* If none of the above resolves your issue, check out our updated user manual on our HuTools website.

6 / 6
