00
305098
CATV Amplifier,adjustable 25 dB
BK-CATV-Verstärker,regulierbar
Operating Instructions

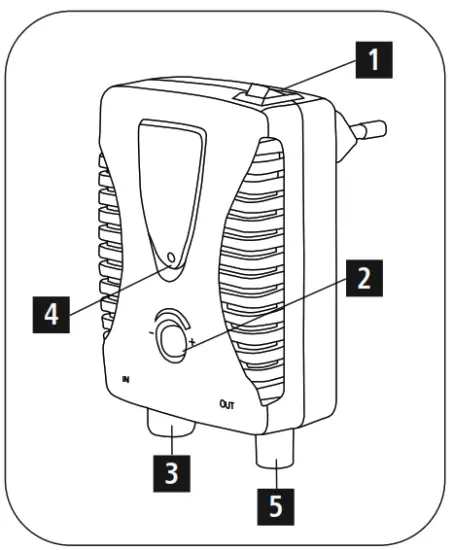

Controls and Displays
- On /Off
- Attenuator
- Input
- Power LED
- TV
Safety Notes
- Use the product for its intended purpose only.
- Do not operate the product outside the power limits given in the specifications.
- Protect the product from dirt, moisture, and overheating, and only use it in adry environment.
- Do not use the product in moist environments and avoid splashes.
- Only connect the product to a socket that has been approved for the device. The socket must be installed close to the product and easily accessible.
- Do not continue to operate the device if it becomes visibly damaged.
- Do not drop the product and do not expose it to any major shocks.
- Keep this product, as all electrical products, out of the reach of children!
- Dispose of packaging material immediately according to locally applicable regulations.
- Do not modify the product in any way. Doing so voids the warranty.
Notes![]()
Turn after using the product of.
Technical Data
| Cable fit | |
| Amplification | 25 dB |
| max. permissible input level | 75 dBµV |
| frequency range | 40 –862 MHz |
| integrated power supply | 230 V~ /50Hz/3W |
| Built attenuator to adjust the amplification | |
| with on /off switch | |
Recycling Information
Note on environmental protection:
After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices, as well as batteries, must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country.This symbol on the product, the instruction manual or the package indicates that aproduct is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices/batteries, you are making an important contribution to protecting our environment.
Hama GmbH &CoKG
86652 /Germany
Service &Support
www.hama.com
+49 9091 502-0
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes.
Our general terms of delivery and payment are applied.
