CAMDEN DOOR CONTROLS CX-DESPK Remote Speaker Station
Product Information
Door Activation Devices CX-DESPK Remote
Speaker Station
General Description
The Camden Door Controls CX-DESPK Speaker station is designed for industrial and commercial applications where both audio and visual indication is required. The RGB LED is capable of visually displaying three distinct colors for designated states: red, green, and yellow. The 8-ohm speaker can provide audio messages remotely. The faceplate is Stainless Steel with a 1-3/8 Square Lens. This unit requires 12/24V AC/DC to operate.
CAMDEN DOOR CONTROLS CX-DESPK Speaker station is designed for industrial and commercial applications, where both audio and visual indication is required. The RGB LED is capable of visually displaying three distinct colors for designated states: red, green, and yellow. The 8-ohm speaker can provide audio messages remotely. The faceplate is Stainless Steel with a 1-3/8” Square Lens. This unit requires 12/24V AC/DC to operate.
Application
The Camden remote speaker station is ideal for applications that require visual and audio capabilities such as a remote speaker station for delayed egress locks, emergency call, or intercom systems. It can be surface or flush mounted. The Camden remote speaker station is designed to be wired to delayed egress maglocks, emergency call systems, and other low voltage systems.
Parts Information
- Reset Key Switch (1)
- 12 Volt Tri-Color LED (1)
- Stainless Steel Single Gang Faceplate (1)
- 8-Ohm, 1.5 Watts Speaker (1)
- Parts Kit:
- Key for Tamper Proof Screws (Snake Eye) w/Camden Logo (1)
- Snake Eye Tamper Proof Screw 6-32 x 3/4 (1)
- 6-32 x 3/4 Phil Oval HD S/S Screw (1)
- Grey Plastic Wire Nut C/W Spring (1)
Compatible Mounting Boxes
- Surface Mount Box with Extra Depth Heavy Duty Grey Polymer 4 1/2”H x 2 3/4”W x 1 3/4”D [114MM x 70MM x 44MM]
- Single Gang Black ABS Box, Surface Mount 4 5/8H x 2 7/8 W x 1 3/4D (117MM x 73MM x 44MM)
- Surface Mount Box with Standard Depth and Threaded Conduit Entry. Heavy Duty Cast Aluminum 2-3/4H x 4-1/2W x 1-3/4D [70MM x 144MM x 44MM]
Installation Instructions
- Mount the stainless-steel faceplate to a single gang electrical box using two #6-32 tamperproof screws and one foam gasket.
- Wire the CX-DESPK to delayed egress maglocks, emergency call systems, or other low voltage systems as per the wiring diagram provided in the user manual.
- Connect the power supply of 12/24V AC/DC to the CX-DESPK.
- The Camden remote speaker station can be surface or flush mounted.
THIS PACKAGE INCLUDES
- (1) Foam Gasket
- (2) #6-32 Tamperproof screws
- (2) #6-32 1” SS FLT HD screws
- (1) Tamper proof driver

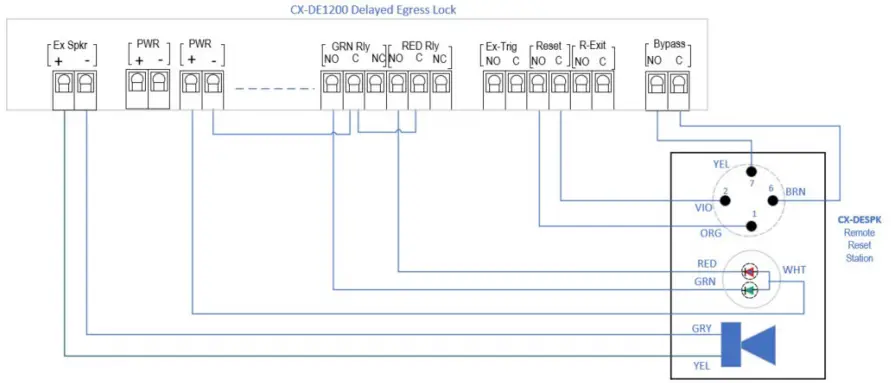

WIRING
| Device | Wire Color | Connection |
| RGB LED | Red | + 12 VDC |
| Green | +12 VDC | |
| Black | Negative | |
| Speaker | Red | + audio |
| Black | – audio | |
| Key Switch | Yellow | Normally Open |
| White | Common | |
| Blue | Normally Closed |

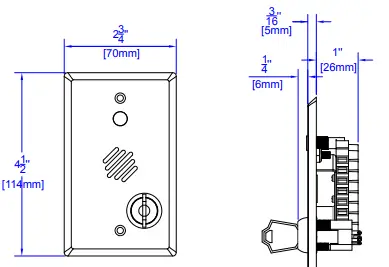

FRONT AND SIDE VIEW – CX-DESPK

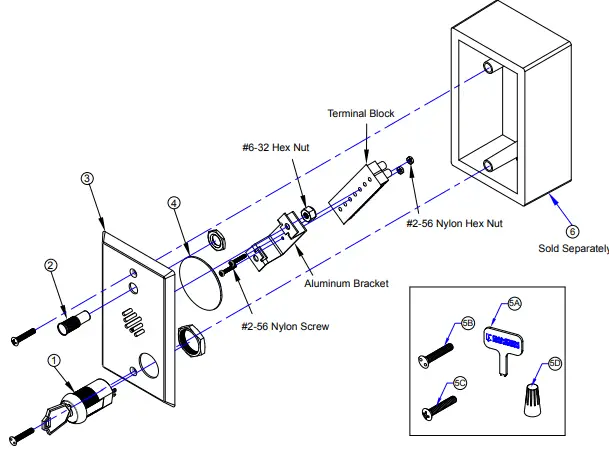

PARTS INFORMATION
| MODEL NUMBERS | |||
| ITEM NUMBER | MODEL NUMBER | QTY | DESCRIPTION |
| 1 | 60-68G005 | 1 | RESET KEY SWITCH |
| 2 | 60-73C019 | 1 | 12 VOLT TRI COLOR LED |
| 3 | 60-49H037 | 1 | STAINLESS STEEL SINGLE GANG FACEPLATE |
| 4 | 60-64B000 | 1 | 8-OHM, 1.5 WATTS SPEAKER |
| PARTS KIT | |||
| ITEM NUMBER | PART NUMBER | QTY | DESCRIPTION |
| 5. | 60-34B074 | 1 | (A) KEY FOR TAMPER PROOF SCREWS (SNAKE EYE) W/CAMDEN LOGO (B) SNAKE EYE TAMPER PROOF SCREW 6-32 X 3/4” (C) 6-32 X 3/4 PHIL OVAL HD S/S SCREW (D) GREY PLASTIC WIRE NUT C/W SPRING |
| COMPATIBLE MOUNTING BOXES | |||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | |
|
6. | CM-34D | SURFACE MOUNT BOX WITH EXTRA DEPTH HEAVY DUTY GREY POLYMER 4 1/2’’H X 2 3/4’’W X 1 3/4’’D [114MM X 70MM X 44MM] | |
| CM-34BL | SINGLE GANG BLACK ABS BOX, SURFACE MOUNT 4 5/8”H X 2 7/8” W X 1 3/4”D (117MM X 73MM X 44MM | ||
| CM-34AL | SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST ALUMI- NUM 2-3/4”H X 4-1/2”W X 1-3/4”D [70MM X 144MM X 44MM] | ||
CONTACT
- Call: 1.877.226.3369 / 905.366.3377
- Visit: www.camdencontrols.com
- File: CX-DESPK_Manual.indd
- Revision: September 16th 2021
- Part No: # 40-82B273
