RITELITE MIDCO20C4.5 Midi Cobra Rodding System

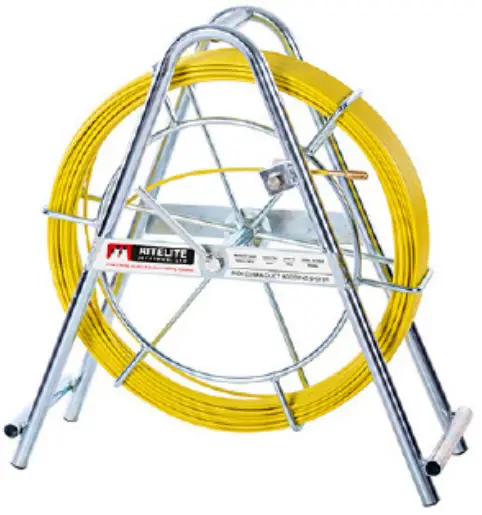

Midi Cobra Rodding System
The Midi Cobra Rodding System is a compact and labor-savin solution for installing cables in ducts, threading draw ropes through pipes, or surveying drains with CCTV cameras. It is available in standard lengths but can also be customized based on request.
Key Features
- Rugged construction
- Robust, zinc-plated steel frames
- Reliable with top-quality, durable components used throughout
- A range of end fittings available including brass guide tip, spring, and roller
- Safety brake – Integral fully adjustable brake system fitted as standard
The Midi Cobra Rodding System comes in two different product codes depending on the rod diameter and length needed:
| Product Code | Rod Diameter | Rod Length |
|---|---|---|
| MIDCO20C4.5 | 4.5mm | 20m |
| MIDCO30C4.5 | 4.5mm | 30m |
| MIDCO40C4.5 | 4.5mm | 40m |
| MIDCO50C4.5 | 4.5mm | 50m |
| MIDCO60C4.5 | 4.5mm | 60m |
| MIDCO80C4.5 | 4.5mm | 80m |
| MIDCO100C4.5 | 4.5mm | 100m |
| MIDCO120C4.5 | 4.5mm | 120m |
| MIDCO150C4.5 | 4.5mm | 150m |
| MIDCO20C6 | 6mm | 20m |
| MIDCO30C6 | 6mm | 30m |
| MIDCO40C6 | 6mm | 40m |
| MIDCO50C6 | 6mm | 50m |
| MIDCO60C6 | 6mm | 60m |
| MIDCO80C6 | 6mm | 80m |
| MIDCO100C6 | 6mm | 100m |
| MIDCO120C6 | 6mm | 120m |
| MIDCO150C6 | 6mm | 150m |
Ritelite offers a full range of accessories, spares, and repair kits for all Cobra Duct Rodding Systems. For further details, please visit their website at www.ritelite.co.uk/cobra-rodding.
Product Usage Instructions
- Select the appropriate Midi Cobra Rodding System based on the required diameter and length of the rod.
- Attach the desired end fitting to the rod, choosing from brass guide tip, spring, or roller.
- Insert the rod into the duct, pipe, or drain that needs to be surveyed or have cables installed.
- Use the safety brake to control the speed and prevent the rod from running away.
- When finished, remove the rod and end fitting and store them in a safe place.
- If any components require maintenance or repair, refer to the user manual or contact Ritelite for assistance.
The ‘Midi Cobra’ Rodding System gives a compact and labour saving solution whether installing cables in ducts, threading draw ropes through pipes or surveying drains with CCTV cameras.
Key Features
- Fast easy Cable Installation
- Rod available in 2 diameters
- Light weight for easy transportation
- Integral fully adjustable brake system fitted as standard
- Wide range of Spares and Accessories available
- Replacement Rod available
- Cage easily separates from frame

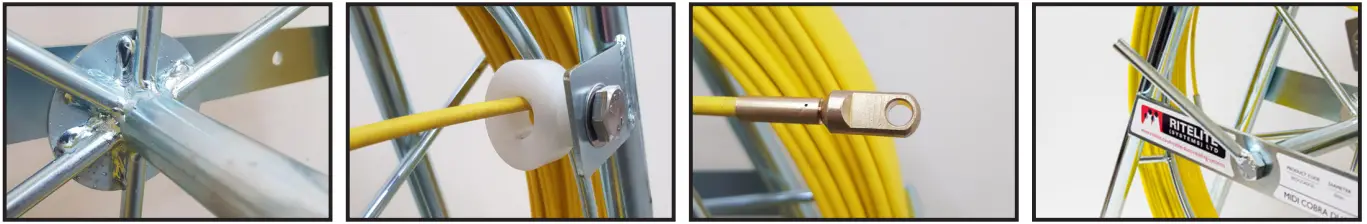

Construction
- Rugged
Robust, zinc plated steel frames - Reliable
Top quality, durable components used throughout - Fittings
A range of end fittings available including brass guide tip, spring and roller - Safety Brake
Integral fully adjustable brake system fitted as standard
Standard length Midi Cobra Rodding Systems. Other lengths are available on request.
| PRODUCT CODE | ROD DIAMETER | ROD LENGTH |
| MIDCO20C4.5 | 4.5mm | 20m |
| MIDCO30C4.5 | 4.5mm | 30m |
| MIDCO40C4.5 | 4.5mm | 40m |
| MIDCO50C4.5 | 4.5mm | 50m |
| MIDCO60C4.5 | 4.5mm | 60m |
| MIDCO80C4.5 | 4.5mm | 80m |
| MIDCO100C4.5 | 4.5mm | 100m |
| MIDCO120C4.5 | 4.5mm | 120m |
| MIDCO150C4.5 | 4.5mm | 150m |
| PRODUCT CODE | ROD DIAMETER | ROD LENGTH |
| MIDCO20C6 | 6mm | 20m |
| MIDCO30C6 | 6mm | 30m |
| MIDCO40C6 | 6mm | 40m |
| MIDCO50C6 | 6mm | 50m |
| MIDCO60C6 | 6mm | 60m |
| MIDCO80C6 | 6mm | 80m |
| MIDCO100C6 | 6mm | 100m |
| MIDCO120C6 | 6mm | 120m |
| MIDCO150C6 | 6mm | 150m |
Ritelite offers a full range of accessories, spares and repair kits for all Cobra Duct Rodding Systems. Please visit www.ritelite.co.uk/cobra-rodding for further details.
Ritelite (Systems) Ltd, Meadow Park, Bourne Road, Essendine, Stamford, Lincolnshire, PE9 4LT
- Tel. 01780 758585
- Fax. 01780 765700
- E-Mail. [email protected]
- Web. www.ritelite.co.uk
