Hard Head 006259 Roofing Scraper Instruction
Operating instructions
(Translation of the original instructions) Important I Read the user instructions carefully before use. Save them for future reference.
SAFETY INSTRUCTIONS
SYMBOLS

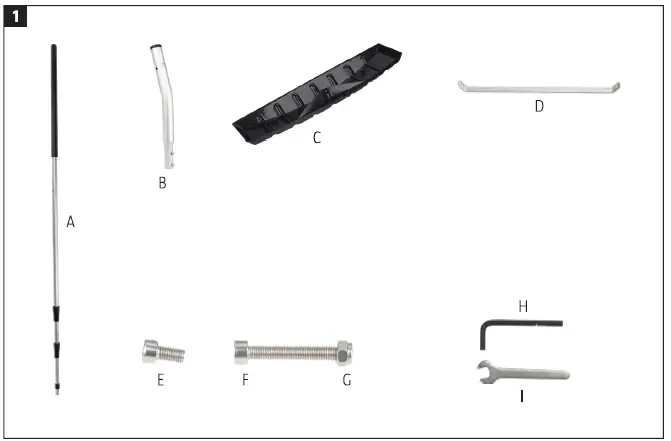

DESCRIPTION
- Handle x 1
- Connector x 1
- Scraper x 1
- Brace x 2
- Screw x 2
- Screw x 1
- Locknut x 1
- Hexkey xl
- Hex spanner x 1
ASSEMBLY

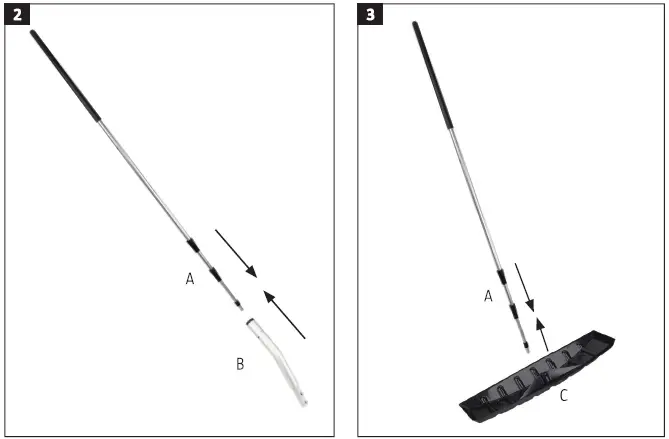

- Connect the connector (B) to the handle (A).
- Align the quick-connector to the hole and connect the handle to the scraper.

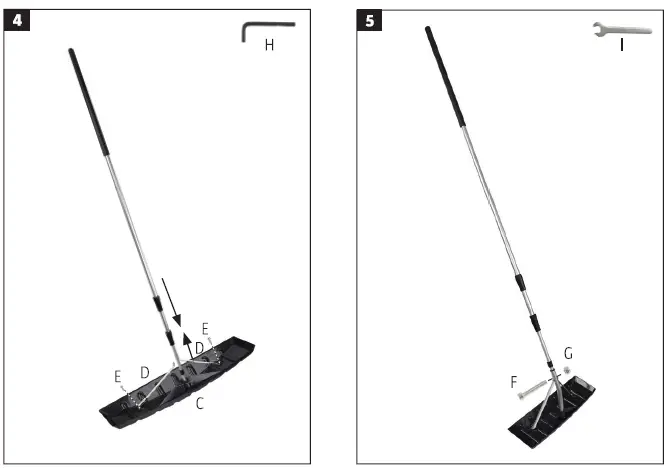

- Use the hex key (H) to screw the braces (D) on the scraper (C) with the screws (E).
- Use the hex spanner (I) to screw the other ends of the brace a on the handle with the screw (F) and lock nut (G).
