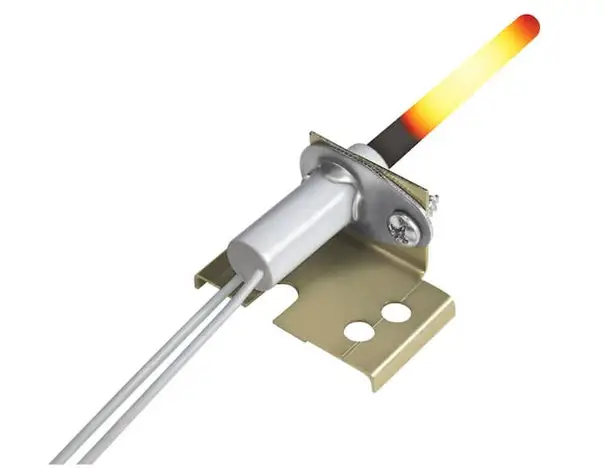

21D64-2 HotRod Hot Surface Igniter Nitride Upgrade Kit
Instruction Manual
White-Rodgers
21D64-2 HotRod Hot Surface Igniter Nitride Upgrade Kit
WARNING
We strongly recommend that the installation is carried out by a qualified gas appliance service provider.
Warning
Follow the recommended installation instructions carefully. Failure to do so will void the warranty and may lead to injury or property damage.
Shock Hazard
- Always turn off electric power before working on any appliance.
- Ensure proper connection to all wires.
Explosion Hazard
- Shut off gas to appliance before installation begins, and do not reconnect until installation is complete.
Fire Hazard
Under no circumstances exceed the specified voltage of 120 volts.
- Ensure that components do not come into direct contact with water (for example, spray, dripping water or rain).
The improper and dangerous operation can result from wiring errors - Ensure that wiring is routed securely, and away from any flame.
Because of continuous improvement to the product, White-Rodgers reserves the right to alter specifications.
ignitor Specifications
| Time to 1200C | < 6 seconds @ 120 volt |
| Cold Resistance | 8-15 ohms @ 25C |
| Operating Voltage | 120 volts + 10%-15% |
| Power Rating | 100-160 watts |
| Temperature Rating | 250C |

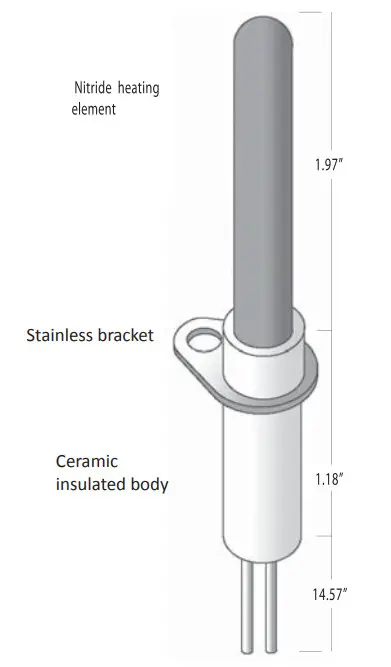

Ignitor Dimensions
Installation Instructions
Please read all these instructions to the end carefully before beginning installation.
- Turn off the gas and electrical supply and then identify which type of ignitor is inside your appliance. See pages 6-Inside back cover.
- Unplug your existing ignitor retaining all fittings, and match it up with the diagrams.
- Compare the position of the alignment tag on your existing ignitor carefully to the top view diagrams. Ensure that you have the correct ignitor type.
- Fit the universal adaptor bracket to the appliance using existing screws. Screw the ignitor into the adaptor, using the screw provided.
- Attach the wires from the appliance onto the ignitor, by twisting the stripped ends together, matching one wire from the ignitor to one wire from the appliance.
- Take the wire nuts provided and screw down tight over the joined stripped wires, ensuring that no wires are showing.
- Check installation is secure and safe, routing leads away from the burner.
Check Out Instructions
- Turn on the gas and electrical supply to the appliance.
- Turn the room thermostat to call for heat.
- Test appliance for proper ignition and operation.
- Verify that the Power-On LED is on during the warm-up.
- During warm-up, use a voltmeter and measure the voltage across the ignitor leads. The voltage should be between 100 VAC and 120 VAC.
- Make sure the Nitride ignitor does not remain on for no more than a few seconds after the gas ignites.
- Replace the burner compartment door and secure the wiring.
- Place the universal upgrade label on the front of the appliance with the date of installation and your contact information.
- Turn the room thermostat to its normal setting.

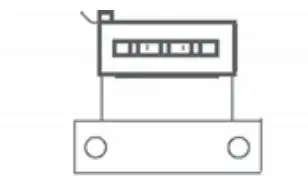

ignitor Assembly 1
Ensure that you have this ignitor base

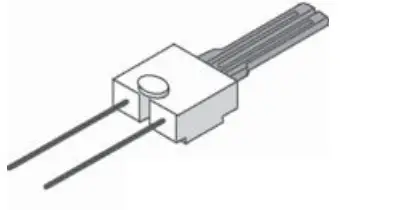

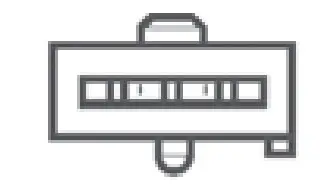

Original Silicon Carbide ignitor viewed from the top. Note the position of the alignment tab bottom left.

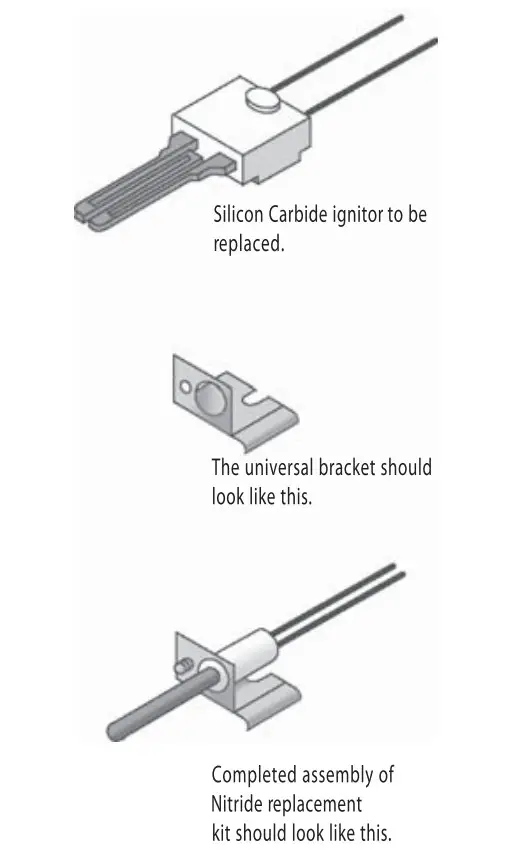

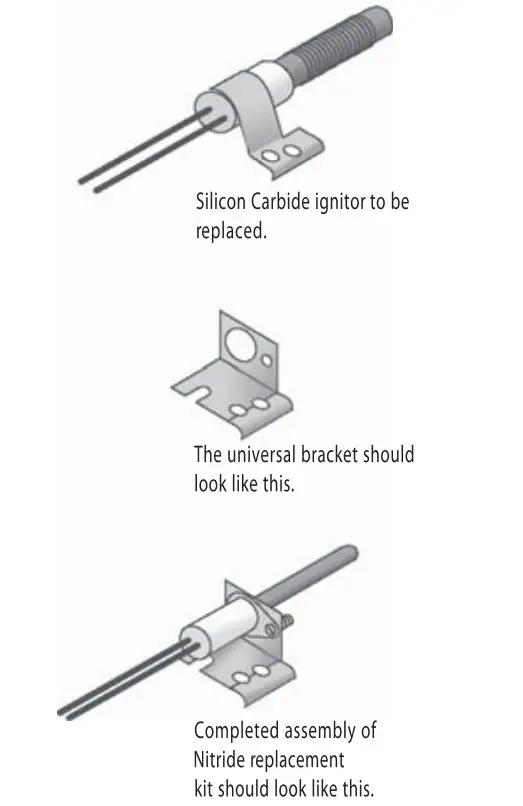

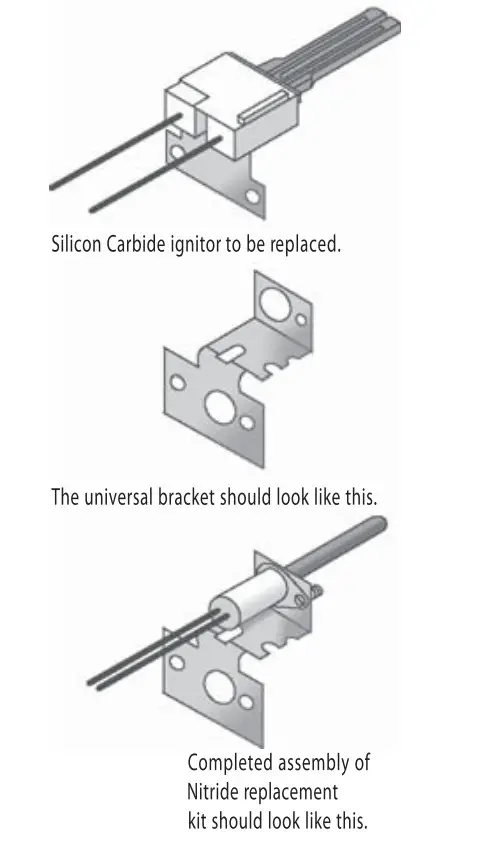

Silicon Carbide ignitor to be replaced

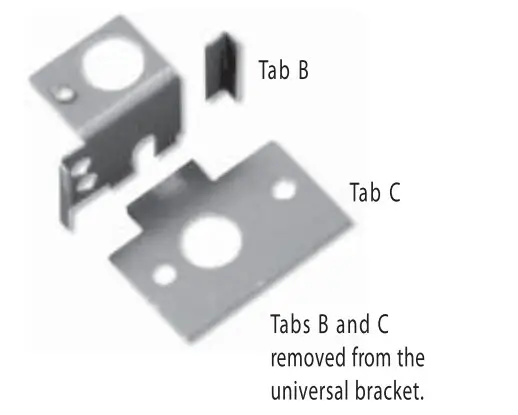

The universal braket should look lile this,
Completed assembly of Nitride replacement it should look like this
ignitor Assembly 2
Ensure that you have this ignitor Base.
Original Silicon Carbide ignitor viewed from the top. Note the position of the alignment tab bottom right.

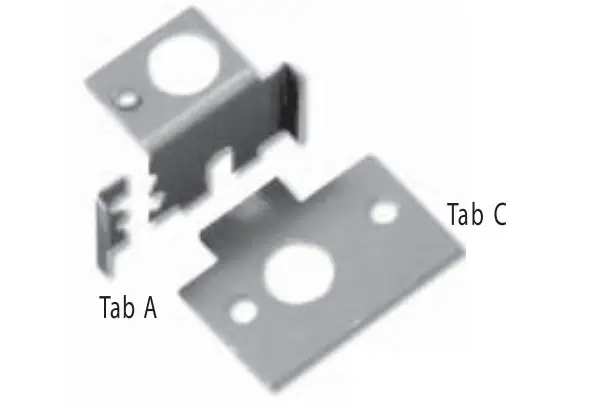

Tabs A and C removed from the universal bracket
ignitor Assembly 3
Ensure that you have this ignitor Base
Original Silicon Carbide ignitor viewed from the top. Note the position of the alignment tab top left.

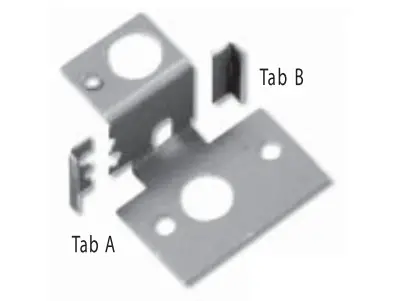

abs A and B removed from the universal bracket

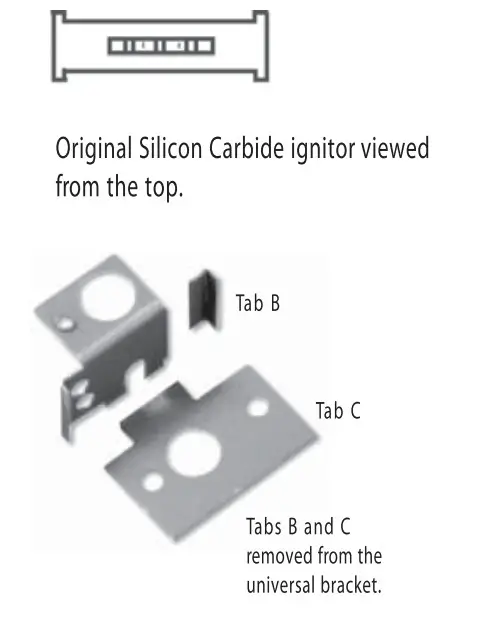

lgnilor Assembly 4
Ensure that you have this ignitor Base.
lgnitor Assembly 4
lgnitor Assembly 5
Ensure that you have this ignitor base. [(See note on Assembly 6)
lgnitor Assembly 5

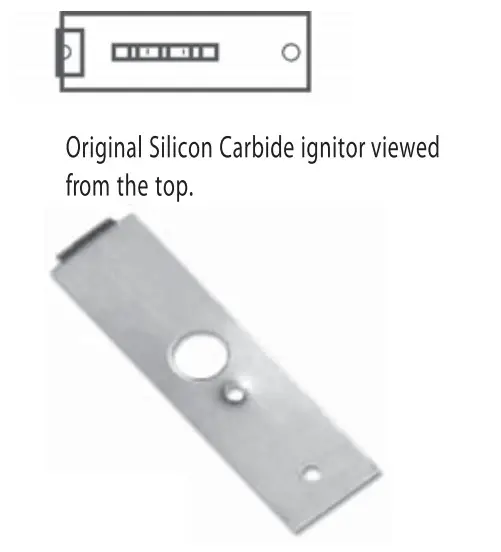

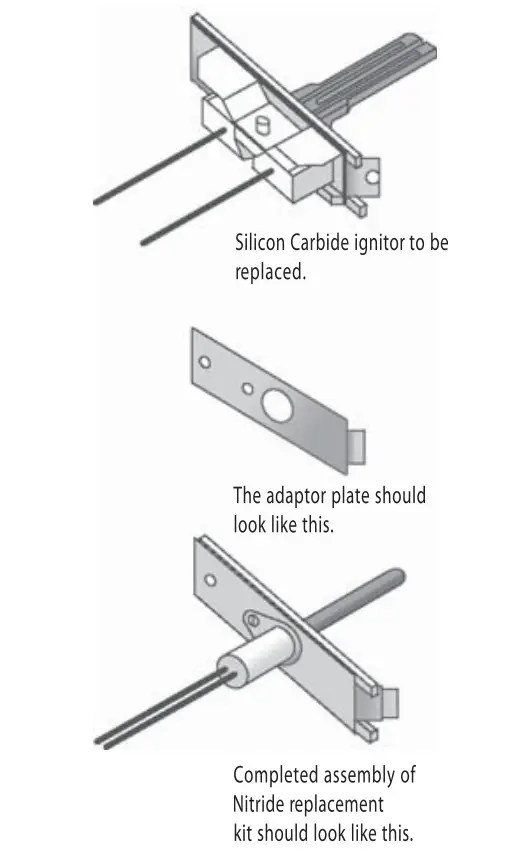

lgnitor Assembly 6
Ensure that you have this ignitor base.
Adaptor plate
t Depending on ignitor type, some Sand 6 assemblies might 1be sem. bled using either bracket Sor plate 6, 0r 2 require combining with some original feting.
lgnitor Assembly 6
Technical Support
1-888-725-9797
