RUSTA 624300130101 Magma Ø62 cm Fire Pit Instruction Manual
Thank you for choosing to purchase a product from Rusta!
Read through the entire manual before installation and use!

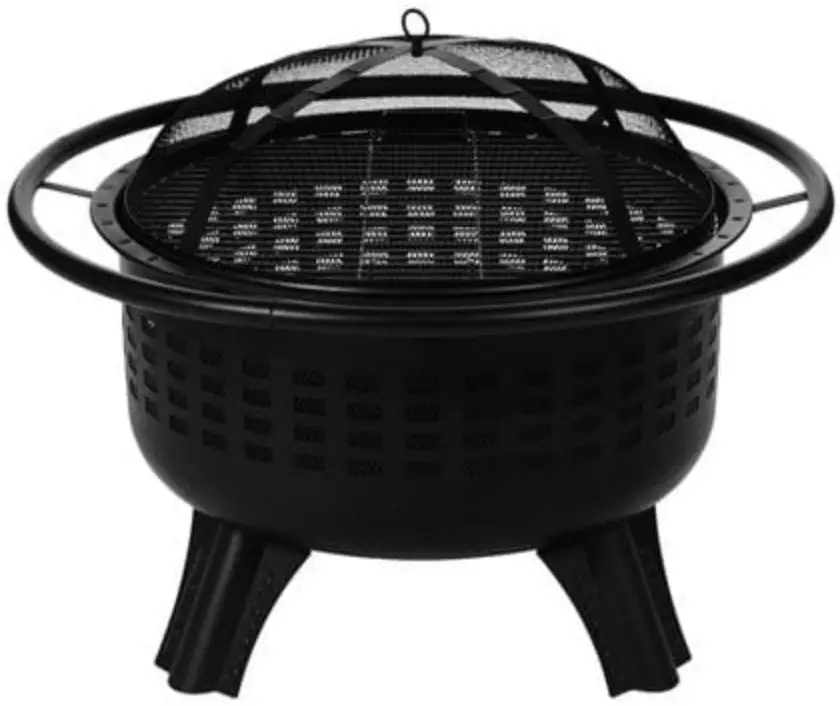

Fire pit, Magma Ø 62 cm
Read the user manual carefully to make sure that the product is assembled, used and maintained correctly, as described in the instructions in this user manual. Keep the user manual for future reference.
USE
- Do not use indoors. For outdoor use only!
- The maximum amount of charcoal or wood clog to be used should not exceed 3 kg.
- Do not cook before the fuel has a coating of ash.
- The item shall be heated up and the fuel kept red hot for at least 30 min proir to the first cooking.
SAFETY INSTRUCTIONS
| ||||
|
|
|
|
|
| Do not use the fire pit in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality. | ||||
WARNING! If used incorrectly, there is a risk of burns. WARNING! Keep children and pets away. WARNING! Never leave unattended
- The fire pit must be placed on a flat, stable surface when it is being used.
- Position the fire pit at a safe distance from trees, bushes, walls and other combustible objects.
WARNING! This fire pit will become very hot. Do not move it during operation. WARNING! Do not use spirit or petrol for lighting or re-lighting.
Use only firelighters complying to EN 1860-3. - Keep flammable gases and liquids, such as petrol or alcohol and other flammable materials, at a safe distance from the fire pit.
- Never use water to control flames or to extinguish the fire pit.
- The fire pit must have cooled down completely before cleaning.
WARNING!
If these instructions are not followed, an accident may lead to serious personal injury or property damage.
LIGHTING INSTRUCTIONS
Never use petrol or white spirit for ignition, as this can cause heat to spread uncontrollably due to explosions. Use one of the lighting methods described below instead.

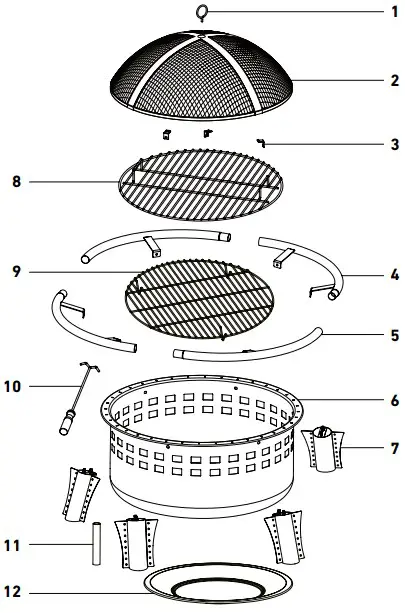

OVERVIEW
PACKAGE CONTENTS
| 1 | Mesh cover handle ring | x 1 |
| 2 | Mesh cover / Näthuv | x 1 |
| 3 | Cooking grid supporter | x 3 |
| 4 | Outer tube ring (with two welded supporter) | x 2 |
| 5 | Outer tube ring (with two welded supporter) | x 2 |
| 6 | Firebowl | x 1 |
| 7 | Legs | x 4 |
| 8 | Cooking grid | x 1 |
| 9 | Charcoal grid | x 1 |
| 10 | Poker | x 1 |
| 11 | Connecting pipe | x 1 |
| 12 | Thermal plate | x 1 |
PARTS
| A |
| Nut | x 8 |
| B |
| Nut | x 8 |
| C |
| Screw | x 6 |
| D |
| Screw | x 1 |
ASSEMBLY
TIPS FOR SUCCESSFUL ASSEMBLY
Read through all the assembly instructions before starting assembly.
- Assemble the fire pit on a clean and even surface where there is no risk of parts coming off.
- Before starting assembly: Remove all parts from the packaging and sort them using the assembly instructions. If the fire pit is not complete after careful checking, please contact Rusta’s Customer Service.
- Get the tools out you need for assembly
- see the table of contents.
- Do not tighten all the screws until all the parts are fully assembled. This makes assembly easier and will keep the fire pit stable.

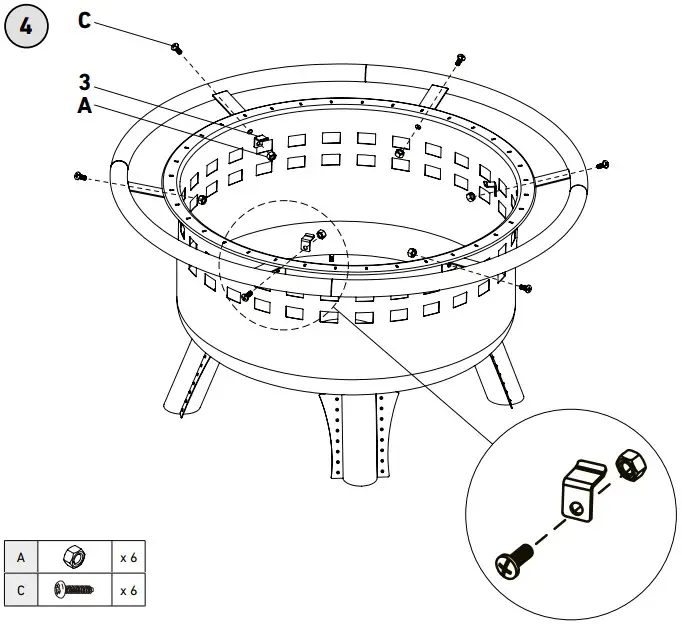

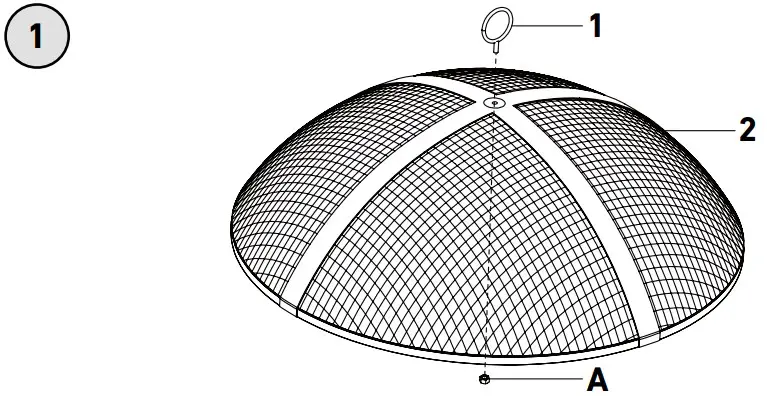

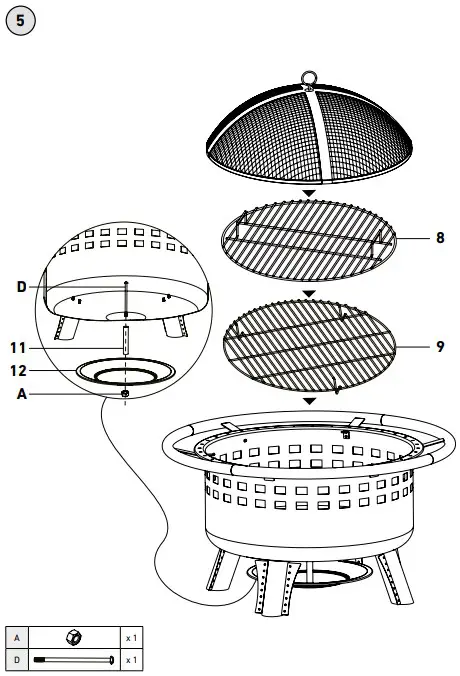

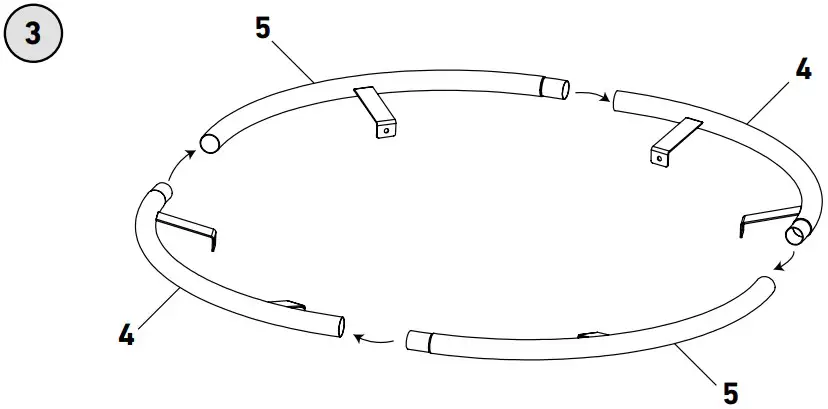

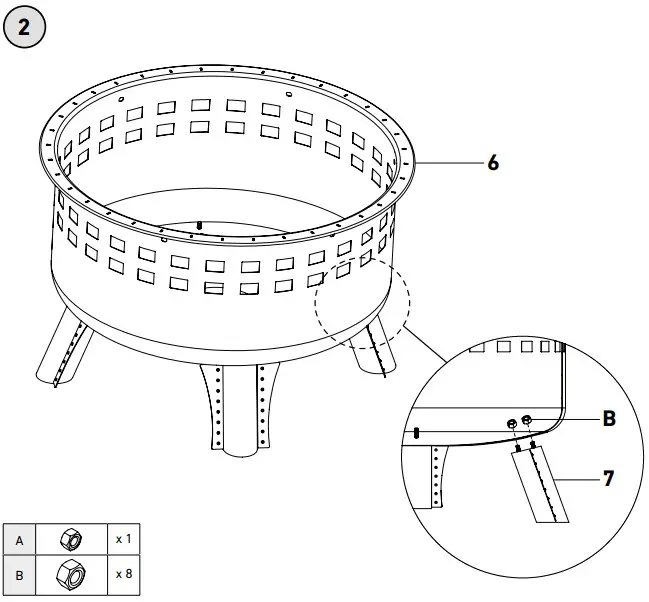

Installation Instruction
RIGHT OF COMPLAINT
By law the product must be returned to the place of purchase along with the original receipt in the event of a complaint. The user is liable for any damage to the product that is caused by not using the product for its intended purpose or by not following this user manual correctly. The right of complaint will not apply in these instances.
CARE AND CLEANING
- Allow the fire pit to cool completely before cleaning.
- When cleaning, do not use polish.
- Remove the barbecue grille and ash.
- Clean the fire pit with a dishcloth, lukewarm water and a mild detergent. Rinse with clean water and let it dry.
- Do not use sharp objects to clean the barbecue grille. They may damage the surface.
- It is not necessary to clean the barbecue grille after each use. Only remove residues with a brush and then wipe with a paper towel.
- Before barbecuing, oil the grille with a little cooking oil to avoid food sticking to it.
MAINTENANCE
- If the fire pit is used in especially corrosive environments, for example, by the sea, it is even more important to clean it often. Salt and moisture will break down the protective outer layer, which can result in surface rust.
- When the fire pit is not in use, protect it from rain and contaminants in a protected dry and dust-free environment. This stops it from getting dirty and protects it from rust.
- For long-term storage, the fire pit first needs to be thoroughly cleaned, dried and then stored in a dry and dust-free environment.
Customer Service
Consumer contact: Rusta Customer Service, Box 5064, 194 05 Upplands Väsby, SWEDEN
Website: www.rusta.com
E-mail: [email protected]
