Extol Light 43050 Led Fluorescent Lamp User Manual

43050 LED Fluorescent Lamp
User Manual
43050 43051 43052

Introduction

Dear customer,
Thank you for the confidence you have shown in the Extol® brand by purchasing this product.
This product has been tested for reliability, safety, and quality according to the prescribed norms and regulations of the European Union.
Contact our customer and consulting center for any questions at:
www.extol.eu [email protected]
Manufacturer: Madal Bal a. s., Průmyslová zóna Příluky 244, 76001 Zlín, Czech Republic
Date of issue: 20/03/2019

Description – The purpose of use

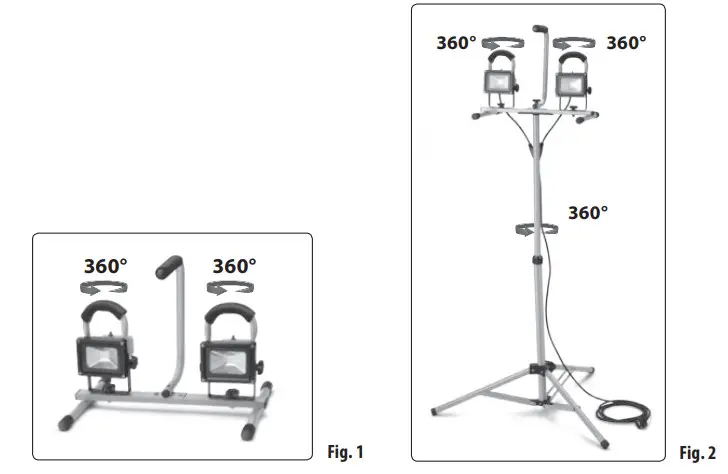

• Double LED floodlights Extol® Light 43281 (2 x 800 lm) and Extol® Light 43283 (2 x 2400 lm) with a single common power cord are intended for installation on a portable stand with a carry handle (fig. 1), which can, likewise, be installed on a telescopic tripod with adjustable height and arbitrary swivel around their 360° turning axes (fig. 2). The floodlights can be swiveled individually on the portable stand as required for illuminating a specific area (fig. 1). Each floodlight is equipped with an independent power switch, so one can use either just a single floodlight or both at the same time. As they are both waterproof and dust-proof, they can be used outdoors (however, the power connection must be protected).
• The Extol® Light 43283 LED floodlight is a 3× stronger source of light (2× 2400 lm) than model Extol® Light 43281 (2× 800 lm).


Technical specifications

*) The IP65 protection of the floodlight provides dust resistance and protection against rain and snow. For the safe operation of the floodlight, it is essential to provide the same level of protection for the floodlight‘s connection to the power source.
DIMENSIONS OF THE EXTOL® LIGHT 43281 AND EXTOL® LIGHT 43283 FLOODLIGHTS

Installation of an LED tube

LIGHT FIXTURES WITH A CHOKE COIL AND STARTER
INSTALLATION OF AN LED TUBE WITHOUT THE REMOVAL OF THE CHOKE COIL

• On these types of light fixtures, it is possible to directly replace a standard fluorescent light tube with an LED tube. Simply remove the fluorescent tube starter with the electrical power disconnected and replace it with the supplied „LED driver“ according to the steps described in steps 1 to 8 in fig. 1. This replacement may be performed by a  person without the respective electrical qualifications.

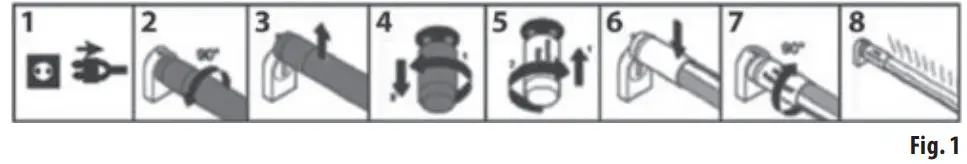

Description of steps 1-8 in fig. 1
Step 1: turn off (disconnect) the power supply to the light fixture
Step 2: Turn the tube by  90° to the left
Step 3: pull the tube out of the light fixture
Step 4: Turn the starter to the left and take it out of the light fixture
Step 5: Insert the „LED driver“ into the light fixture and secure it in place by turning it to the right
Step 6: Insert the LED tube into the light fixture
Step 7: Secure the LED tube in the light fixture by turning it 90° to the right
Step 8: turn on the power supply to light up the LED tube
To replace the LED tube, proceed according to steps 2, 3; 6, 7, and 8.

LIGHT FIXTURES WITH A CHOKE COIL AND STARTER
INSTALLATION OF AN LED TUBE
WITH THE REMOVAL OF THE CHOKE COIL

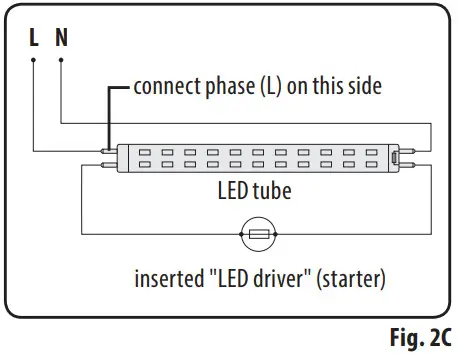

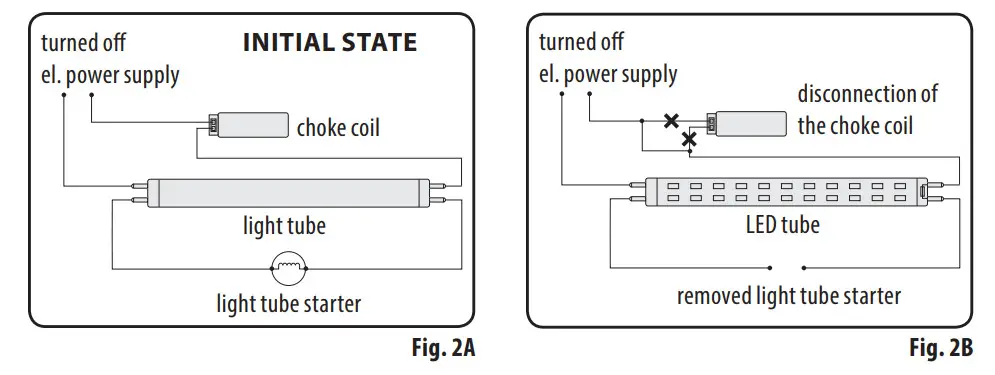

• When the tube starter and fluorescent light tube is replaced with an LED tube and LED driver then the choke coil remains installed in the light fixture, which may result in higher power consumption and may have an effect on effectiveness, and it can also be disconnected as shown in figure 2A to 2C. However, the choke coil may only be removed by an electrician with the necessary electrical qualifications since this constitutes an alteration to the electrical part of the light fixture.
• In this case, it is a double-sided LED tube connection.


LIGHT FIXTURES WITH AN ELECTRONIC BALLAST
INSTALLATION OF AN LED TUBE WITH THE REMOVAL OF THE ELECTRONIC BALLAST

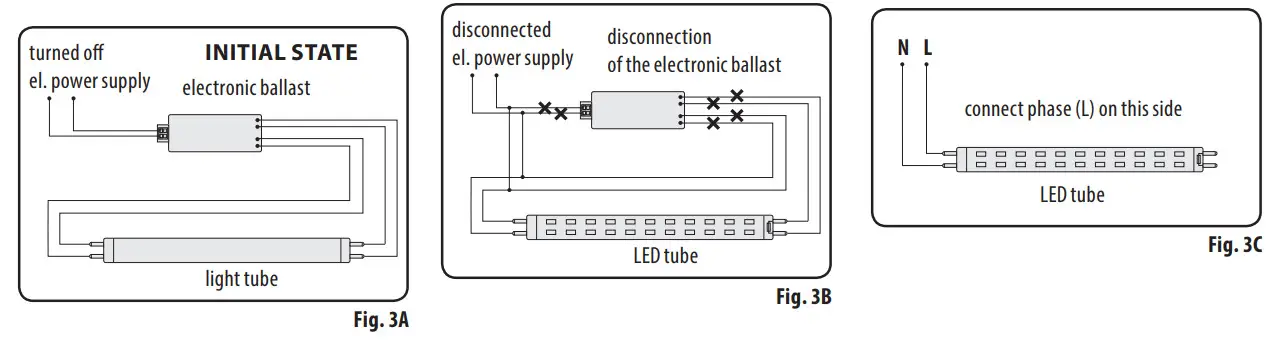

• In the case of light fixtures that contain an electronic ballast, it is necessary to remove the electronic ballast prior to using the LED tube according to figure 3A to 3C (this task may, however, only be performed by a person with the necessary electrical qualifications. After removing the electronic ballast, it is no longer possible to replace the  LED tube with a fluorescent light tube.
  Upon disconnection of the electronic ballast, the LED tube is connected single-sided.

Parameters of the light source according to Directive (EU) 1194/2012

Floodlight parameters	43281	43283
Power efficiency class of the light source	A+ 2x 10.02 kWh/1000h	A+ 2x 30.01 kWh/1000h
Light source socket	X	X
Power input, power voltage, and frequency	2x 10W 85-240 V/50-60 Hz	2x 30W 85-240 V/50-60 Hz
Equivalent to power draw of a standard light bulb	2x 60 W	2x 150 W
Rated luminous flux:	2x 8001m	2x 24001m
Luminosity	2x —120 cd	2× ~300 cd
Rated lifespan of the light source	> 30 000 hours	> 30 000 hours
Power factor of the light source	0.8	≥ 0.9
Aging factor of the light source at 6000 h	0.80	≥ 0.80
Start-up time	0.1 s	0.1 s
Warm-up time for 60% of full luminous flux	0.1 s	0.1 s

Color rendering Ra	?. 65	> 65
Colour chromaticity (color temperature)	6300 K	6300 K
Colour retention	< 6	< 6
Wavelength	500-600 nm	500-600 nm
The angle of light emission into space	> 120°	> 120°
Highlighting light source	X	X
Dimmability of the light source	X	X
Number of switch cycles to malfunction	15000x	15000x
For outdoor use	✓IP 65	✓IP 65
Dimensions of the floodlight	85 x 265 x 115 mm	222 x 182 x 11 mm
Mercury content in the light source	0.0 mg	0.0 mg

Energy labels

1. This lighting device contains a built-in LED light source.
2. The light source in this lighting device cannot be replaced.

Connection and installation of the floodlight

ATTENTION

• Carefully read the entire user‘s manual before first use and keep it with the product so that the user can become acquainted with it. If you lend or sell the product to somebody, include this user‘s manual with it. Prevent this user‘s manual from being damaged. The manufacturer takes no responsibility for damages or injuries arising from the use of the device that is in contradiction to this user‘s manual. Acquaint yourself with all the control elements and parts of the floodlight before using it. Check that all parts are firmly attached before use, also check that no part of the floodlight is damaged, namely the protective front cover and the insulation on the power cord. A degraded power cord is also considered to constitute damage. Do not use a floodlight with damaged parts and have it repaired at an authorized service center for the Extol® brand.

References to the label and pictograms

	Meets respective EU requirements.
	The minimum clearance between the lighting device and the illuminated item must be 0.5 m.
	Only use the floodlight with the undamaged front cover installed.
	Do not use a floodlight with a damaged front cover, and replace it with a new one.
	Highest nominal ambient temperature.
	Do not place the lighting device in the vicinity of easily flammable materials and on easily flammable materials. Do not use in an environment where there is a risk of explosion or fire.
	Non-dimming light source.
	Read the user’s manual before use.
	Do not dispose of unserviceable commodities in household waste, but dispose of/recycle them in an environmentally safe manner.

Waste disposal

• Throw packaging materials into a container for the respective sorted waste.
• The product contains electronic components that constitute a hazardous waste. According to European Directive No. 2012/19 EU, electric appliances must not be thrown out with household waste and must be handed over for ecological disposal at specified collection points. You can find information about these collection points at your local town council office.

EU Declaration of Conformity
Subjects of declaration – models, product identification:
Extol ® Light 43283
Extol ® Light 43281
LED floodlights on a tripod
Manufacturer Madal Bal a.s. • Bartošova 40/3, CZ-760 01 Zlín • Company ID No.: 49433717 hereby declares that the described products listed above are in conformity with  relevant harmonization legal regulations of the European Union: (EU) 2011/65; (EU) 2014/30; (EU) 2014/35; (EU) 1194/2012
This declaration is issued under the exclusive responsibility of the manufacturer.
Harmonization norms (including their amendments, if any exist), which were used in the assessment of conformity and on the basis of which the Declaration of conformity is  issued:
EN 60598-1:2015; EN 60598-2-5:2015; EN 60598-2-4:1997; EN 62493:2015;
EN 62471:2008; EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50581:2012
Place and date of issue of EU Declaration of Conformity: Zlín 20.3.2019
On behalf of Madal Bal, a.s.

Martin Šenkýř
Member of the Board of Directors
