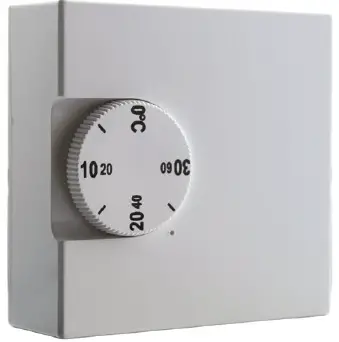

HAVACO HTS Electronic Room Thermostat
DESCRIPTION
- Electronic room thermostat is used to control heating or cooling.
- Temperature setpoint can be by internal or external sensor.
- Setpoint range and hysteresis can be selected.
- External sensor is not included.
TECHNICAL DATA
- Power supply:230 VAC
- Relay output:6A / 230 VAC
- Cycles :60 000
- Hysteresis: 1…3°C
- Setpoint range :0…30°C lub/or 0…60°C
- External temperature sensor :TJK10K NTC10K 10 kΩ 25°C
- Isolation class: II
- Protection class :IP20
- Pollution degree: 3
- Casing: IIIa material group
- Dimensions (HxWxD) :71 x 71 x 25 mm
TRANSPORTING
- All products are packed by producer for normal transporting conditions.
- For unloading and storing use proper lifter to prevent product damage.
- Do not lift product by power supply cable, connection box.
- Avoid impacts and impact loads.
- Until installation store products in dry place: Humidity 70% (20°C), temperature 5-40°C.
- Avoid long term storing. It is not recommended to store products more than 1 year.

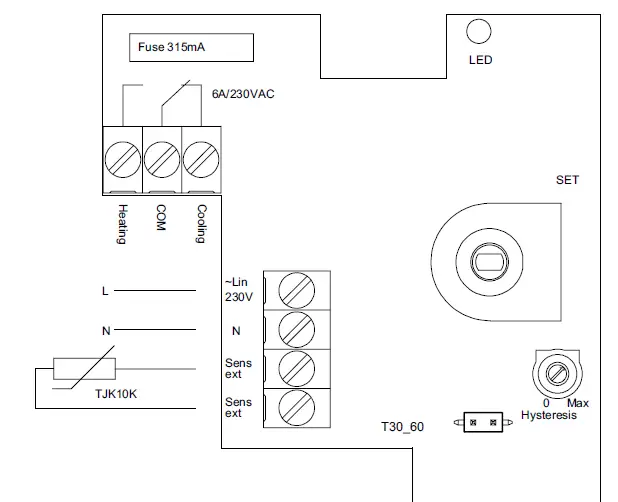

WIRING DIAGRAM
INSTALLATION
- Switch off voltage supply before making any terminals available.
- Electrical connection and service can be made only by qualified electrician according to legal international and national electrical installation standards.
- Electrical connection must be done according to connection diagram.
- Power supply source must conform with data on device label.
- Jumper TR30 60 on – setpoint range 0…30°C, removed – 0…60°C.
- Avoid installation in dump rooms >85%
LIGHT INDICATION
- Flashing 1 timer per 4 s internal sensor.
- Flashing 2 times per 4 s external sensor.
- Flashing continuously fault.
