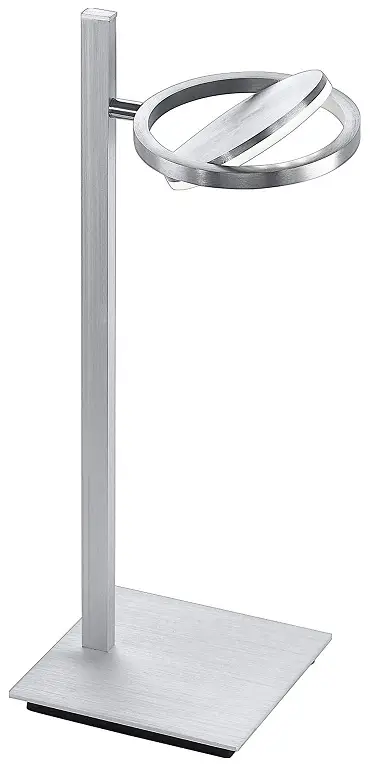

Paul Neuhaus Q-ORBIT LED Floor Standing Light

Paul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-product

Specification

  • 829089
  • 230V 50 Hz
  • 1x 6.8W LED-Board
  • nicht wechselbar/not changeable

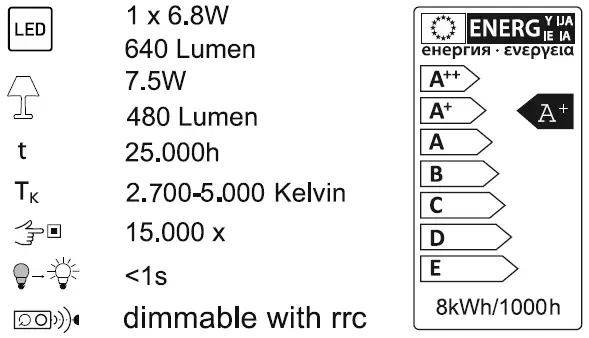

Functions

Paul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-fig-1

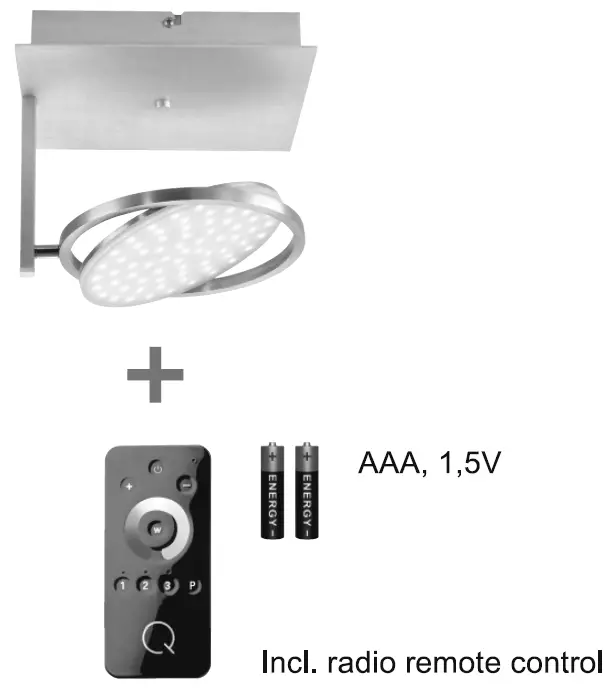

What’s Include

Paul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-fig-2

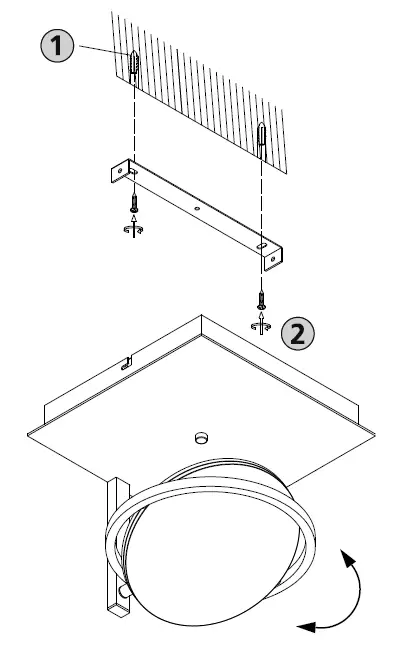

Fitting

as ceiling lightPaul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-fig-3

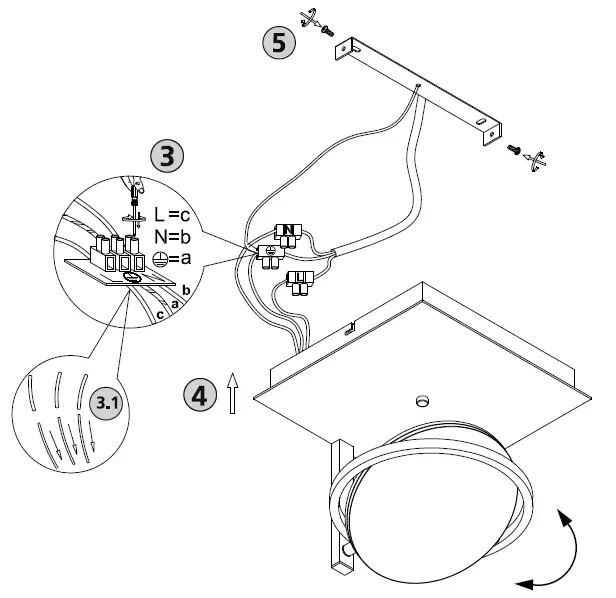

Electrical connection

230 Voltage /50Hz connectionPaul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-fig-4

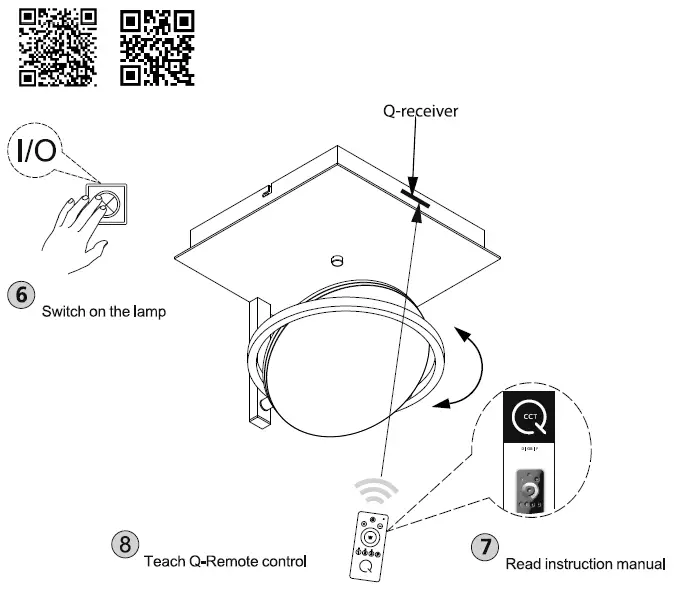

Teach remote control

See Q-remote control manualPaul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-fig-5

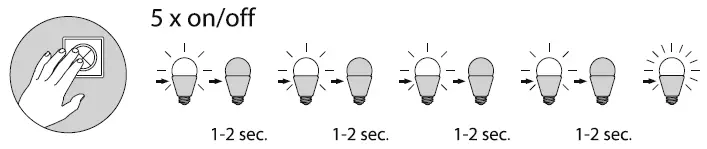

Reset

Reset the lamp, factory newPaul-Neuhaus-Q-ORBIT-LED-Floor-Standing-Light-fig-6

This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment and the mutual recognition of their conformity The full declaration of conformity can be requested from the address given below. When raising any technical questions, please cite the batch number (XXXX-XX-XX-XXXXX-XXX). You will find it on the Q light fhttings type plate.

Paul Neuhaus GmbH
Olakenweg 36 D-59457 Werl

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
