Outdoor Tech Chips Ultra 2.0 True Wireless Helmet Audio Instruction Manual

OUTDOOR TECH Chips Ultra 2.0 True Wireless Helmet Audio

Hi, Good call on picking up the Outdoor Tech® Chips® Ultra 2.0 true wireless helmet audio. Your experience of the universe will soon be enhanced. This manual exists to help make sure that you use them correctly, so you’re definitely going to want to relax for a hot second and look through this. Kisses,

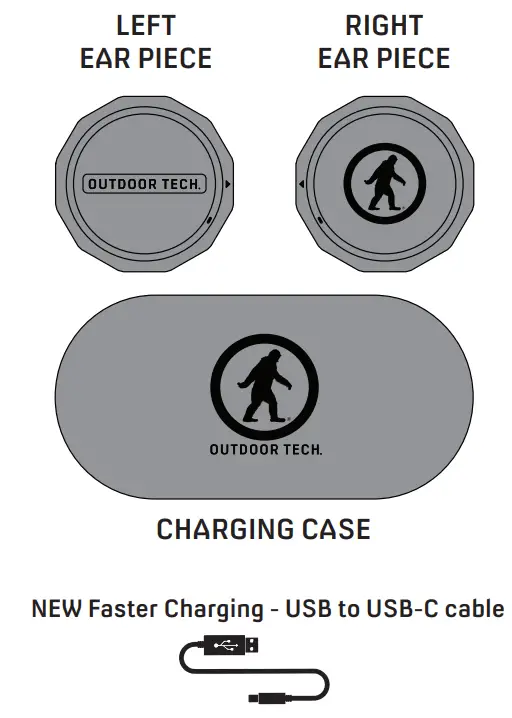

WHAT’S INSIDE

• Left and right helmet audio
• Charging case
• USB-C charging cable
• Instruction manual
• One ODT sticker

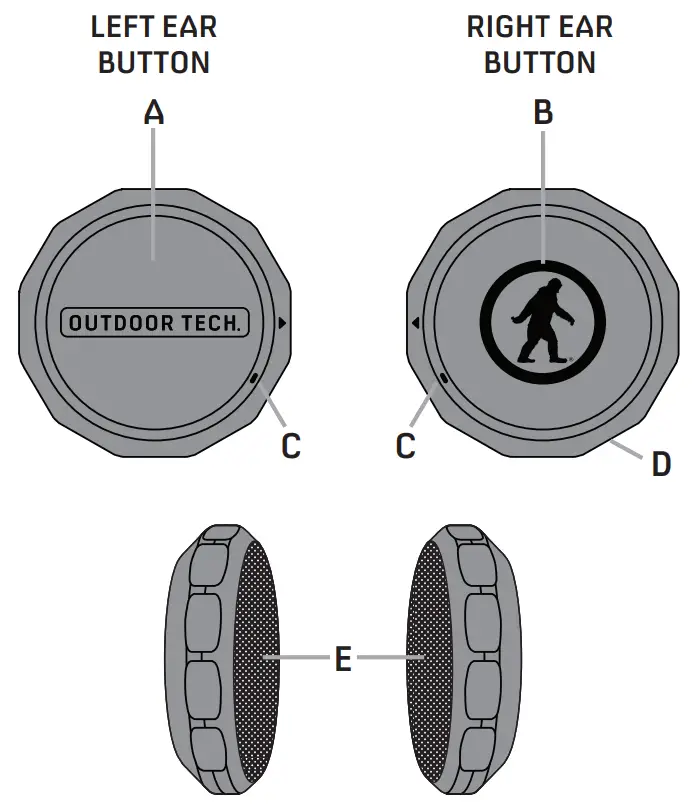

ANATOMY

• A. Left ear button
• B. Right ear button
• C. LED light
• D. Microphone
• E. Hi-Fi Speakers

FUNCTIONS

CHARGING-THE CASE

Charge up the case so you always have power for your Chips ® Ultra 2.0 on the go. Fast charging with the new USB-C cable. Once the charging case is plugged in the indicator light on the front will turn RED- (CHARGING). It will turn GREEN once the case is completely charged. Case total charging time: 1.5 hours to fully charge the case.

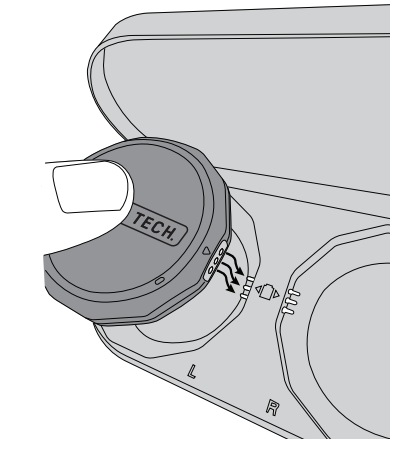

CHARGING-THE CHIPS

Charge your Chips® Ultra 2.0 on the way to the hill, instead of having to plug them in the night before. Gently plug the three holes on the side of the Chips® Ultra 2.0 into the three prongs in the charging case. Be sure to put the Left Chip in the Left side and the Right Chip in the Right side in the charging case. The LED lights on both Chips will be RED – (CHARGING). Once both LEDs go off the Chips are fully charged. Chips® Ultra 2.0 total charging time: About 2 hours

PAIRING

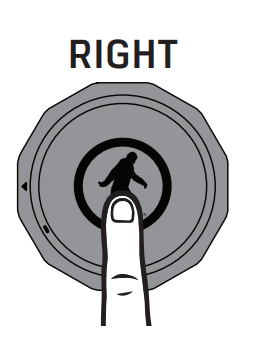

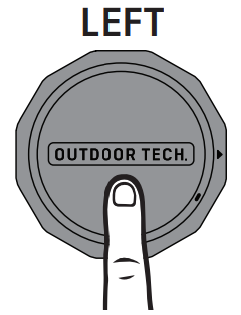

MUSIC FUNCTIONS

PHONE FUNCTIONS

VOLUME CONTROLS

PUT THE CHIPS ULTRA 2.0 IN YOUR HELMET

1. Drop the CHIPS® Ultra 2.0 into the slots -Do not scratch the surface with sharp things. inside your helmet liner.
2. Rock out, make calls, and, you know, ski and snowboard and whatnot.

SPECIFICATION

• Bluetooth version: Bluetooth 5.0+ EDR
• Bluetooth profiles: A2DP, AVRCP, HSP, HFP
• Driver units: 40mm Neodymium magnet
• Frequency Response: 20~20,000 Hz
• Impedance: 32 + 32 ohms
• Sensitivity (1kHz): 110 dB
• Range: Up to 10m/33ft
• Microphone: Built-in microphone
• Battery: 3.7V, 250 mAh
• Chips Charging time: About 2 hours
• Play / Talk time: Up to 14 hours

CHARGING CASE

• Charging time: 1.5 hours (DC 5V 2A)
• Battery: 3.7V 2000 mAh

CARE & MAINTENANCE

• Keep the Chips® Ultra 2.0 away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.
• Do not try to disassemble the CHIPS® Ultra 2.0.
• Do not let the Chips® Ultra 2.0 fall onto the floor or other hard surfaces. The internal circuit board may get damaged.
• Do not use intensive chemical products or detergents to clean the product.
• Do not scratch the surface with sharp things.

WARNING: For safety reasons, some state and local laws prohibit the use of headsets when operating a bicycle. Use Chips” only for off-highway activities. Do not use Chips” at excessive volumes because it may cause permanent hearing damage.
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Statement

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC& IC Radiation Exposure Statement:
This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

DON’T BE SO ANTISOCIAL

Facebook.com/outdoortechnology
Twitter & Instagram: @outdoortech
Questions, comments, complaints, secret desires, or just to say what’s up: email [email protected] K bye.
