Gilson F110744 Safe Aspiration Station User Guide

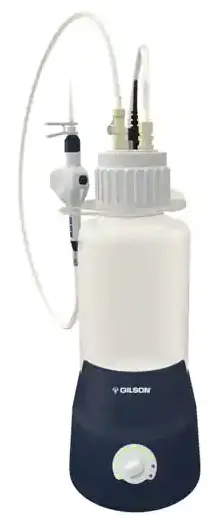

GILSON F110744 Safe Aspiration Station

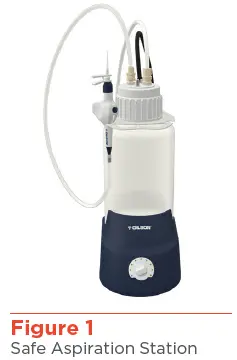

INTRODU CTION

The Safe Aspiration Station is a stand–alone motorized vacuum unit, ideal for ELISA tests, cell culture, and liquid waste disposal. The compact design makes it easy to use on a bench or in laminar flow cabinets and guarantees a safe and contamination–free environment. Associated with the Safe Aspiration Kit, which offers various accessories, the station ensures an adjustable aspiration level to quickly collect and dispose contaminated or hazardous liquids.
The closed, stand-alone unit is designed to prevent contamination hazards.
All parts in contact with liquids are fully autoclavable. The station is equipped with a 4–liter Polypropylene (PP) bottle, a level detection with sensors to prevent liquid overflow, and an in-line hydrophobic filter that traps aerosols for a safe disposal of contaminated liquids. Different adapters can be fitted to the handle provided with the Safe Aspiration Kit, to ensure quick and accurate aspiration of liquids from a variety of vessels.

The unit is always ready to use, just press the handle button to aspirate.

Ordering Information

Specifications

Description

Table 1

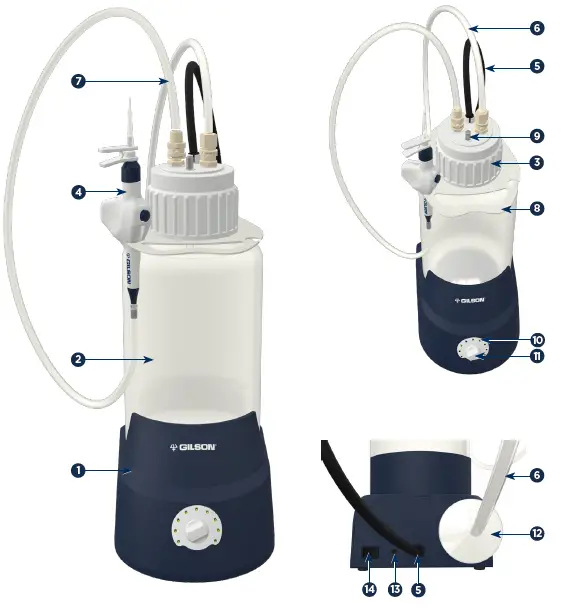

Safe Aspiration Station Parts Description

SAFETY & USER PRECAUTIONS

General Safety Precautions
Read the User’s Guide carefully before operating the instrument and follow all safety norms.

NOTE
Train the user before operating the instrument.
Unplug the instrument to fully power down the aspiration station.

NOTICE
Be sure the power outlet is properly grounded before powering on the instrument.
Ensure the power supply voltage is consistent with the requirements on the label, and the instrument and its accessories are not damaged.
Before running the instrument each time, verify the accessories listed in
Safe Aspiration Station Parts Description Table 1 on page 5, and install them in accordance with the Installing description on page 7.
Accessories must firmly be connected to the instrument and avoid any detachment.

CAUTION
When running the instrument, wear suitable protective garments to ensure personal safety.

WARNING
Put the instrument on a wide and flat surface. Ensure that the surface is clean, non-slip, dry, and fireproof.
Do not operate the instrument outdoors, or near hazardous substances or water.
Avoid using unsafe containers.

Safe Detection Level System
If the liquids reach the level detection sensors inside the bottle during the aspiration procedure, the Safe Aspiration Station will automatically stop.
The LEDs will blink, and the station will alarm the user by repeated sound beeps.
Switch off the station, remove the filled bottle, and replace it with an empty one while following the installation and operation guidelines.
The pump will not start again if the station has not been switched off.

OPERATION

Operating Conditions
Before operating the station, ensure that the following conditions are respected:

• Temperature from 0°C to 40°C.
• Maximum permissible relative humidity: 80%.
• Installation type: the product is designed to connect to an indoor outlet, with voltage fluctuations not exceeding ± 10% of normal voltage.
• Inter–instrument, the minimum distance to the wall is 100 mm.

NOTICE When the Safe Aspiration Station is not in use, ensure that the power is switched off, that the station is unplugged, and store it in a dry, clean, and stable environment at room temperature.

CAUTION
Do not use at a higher altitude than 2000 meters above sea level. It may cause vaccuum issues and damage the station.
Do not connect the instrument if there is any visible damage. It may damage the station.

Installing

Assemble the accessories and the tubings:

1. Firmly screw the lid 3 on the bottle 2 and place it on the base unit 1 of the Safe Aspiration Station.
2. Connect the 800 mm tubing 6 to the lid of the bottle and to the membrane filter 12 at the back of the station.
3. Connect the 1500 mm tubing 7 to the lid of the bottle and insert the aspiration hand operator 4 on the other end of the tubing.
4. Connect the sensor cable 5 to the lid of the bottle and the back of the aspiration station.

At the end of the installation, ensure that:

• the bottle lid 3 is firmly screwed on,
• the release valve 9 is closed,
• the hand operator 4 is fully inserted in the tubing 7 ,
• the tubings 6 7 and the sensor cable 5 are correctly connected.

Turning On

1. Insert the AC adapter in the power interface at the back of the aspiration station and connect the plug to the power source.
   NOTICE Only use the AC adapter provided with this product.
2. Turn the power switch on. The LEDs of the vacuum level indicator 10 will light on, and the pump will automatically start and work until the desired vacuumlevel is reached in the bottle.
3. Use the knob to adjust the desired degree of vacuum in the bottle:
   1. flashing light means that the setting vacuum level has not been reached yet,
   2. steady light means that the set vacuum volume has been reached.

Starting and Ending Operation

1. Press on the button of the aspiration hand operator 4 to aspirate the liquid in the vessel.
   NOTE
   For an aspiration adapted to different vessels, the various adapters of the hand operator can be changed, and the vacuum level can be adjusted.
   If the vacuum level has to be decreased during the procedure, turn the knob on the left and push the button of the hand operator to lower the vacuum level inside the bottle.
   NOTICE During running, avoid touching valves, injection pumps, tubings, and other components.
2. At the end of the aspiration, switch off the system 14 .

Removing the Filled Bottle

1. Turn the valve 9 of the lid in order to decrease the vacuum level inside the bottle and to balance the air pressure level inside and outside the bottle.
2. Remove the bottle from the station and disconnect the tubings 6 7 and the sensor cable 5 from the lid.
   NOTE
   All the wetted parts (parts in contact with the wasted liquids) can be autoclaved, and the filled bottle can be carried using the bottle handle screwed under the lid.
   In order to carry the bottle with the handle, ensure that the lid is firmly screwed.

MAINTENANCE & CLEANING

Maintenance
No specific maintenance or service is necessary. Nevertheless, a regular check of the station and the accessories can keep instruments working properly and prolong their lifetime.

CAUTION
Do not spray cleanser into the instrument when cleaning. It may damage the station.
Wear proper protective gloves during cleaning of the instrument.

Cleaning
Each part of the Safe Aspiration Station and Kit in contact with liquids is fully autoclavable and can be cleaned with the recommended cleansers below.

• Clean by immersing all pieces in a solution of water and mild laboratory detergent.

CAUTION Do not use abrasives, as this may affect operation of the control valve. Rinse with distilled water.
Autoclave the aspiration hand operator prior to disassembly for cleaning after working with biohazardous materials.

• Immediately flush the aspiration hand operator with ethanol after working with organic solvents.
• To avoid build–up of deposits, immediately flush the aspiration hand operator with distilled water after working with salt–rich solutions.
• Apply a thin coat of silicon grease as needed to the control valve.

Recommended Cleansers

TROUBLESHOOTING

Troubleshooting Table

Return for Repair

If any problem persists, please contact your Local Gilson Service Center.
Forced opening of the instrument invalidates any warranty claim. Enclose with the returned instrument a description of the trouble that has occurred and specify how the instrument was used (duration, aspiration level, nature of the liquids aspirated, etc.)

CAUTION
Returned instruments can only be checked and repaired if they have been carefully cleaned and decontaminated by the customer.
Please clean the instrument carefully before returning it.
Never send in instruments filled with reagents.

Accessories

DECLARATION OF CONFORM ITY

Related Standards
The Safe Aspiration Station structure conforms to the following safety standards:

EU Directives
Low voltage equipment: 2014/35/EU
Electromagnetic compatibility: 2014/30/EU
Restriction of hazardous substances: 2011/65/EU

Standards for EU
Safety requirements for electrical equipment for measurement, control, and laboratory use — General requirements: EN61010-1: 2010
Electrical equipment for measurement, control, and laboratory use —
EMC requirements: EN61326-1: 2013

Standard for Canada and USA
Safety requirements for electrical equipment for measurement, control, and laboratory use — General requirements: CAN/CSA-C22.2 (1010-1)
Safety requirements for electrical equipment for measurement, control, and laboratory use — General requirements: UL 3101-1

WARRANTY

Gilson warrants this Safe Aspiration Station against defects in material under normal use and service for 12 months from the date of purchase. This warranty is valid only if the station and its components are used in the manner described in this guide and for the purpose for which it is designed.
Gilson is not responsible for consequential damages resulting from the misuse, bad cleaning, or decontamination of this instrument.
Forced opening of the instrument invalidates any warranty claim. Enclose with the returned instrument a description of the trouble that has occurred and specify which reagents were used.

Specifications subject to change without notification — errors excepted.
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under copyright laws.

www.gilson.com/contactus
LT801607/A | ©2019 Gilson, Inc. All rights reserved.
