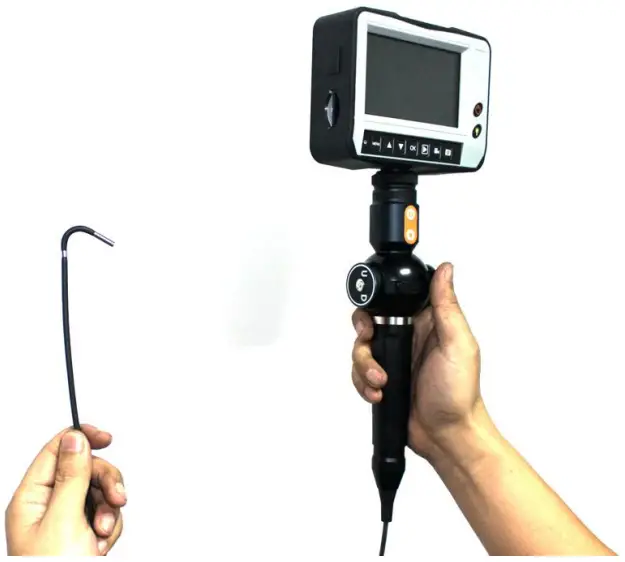

Oasis Scientific UV-4-6010 6mm 4ways UV Articulating Video Borescopes User Manual
Features

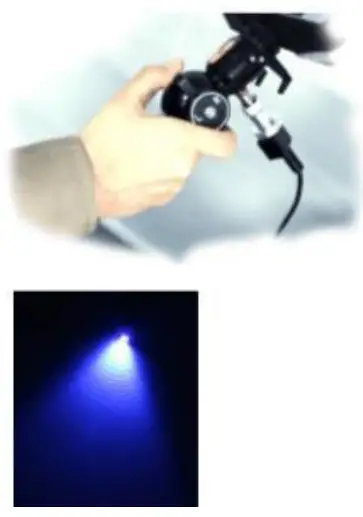

6mm Diameter 365nm wavelength Input light source 10W/cm^2 Fiber glass built-in UV and white light exchangeable
Blck Light For NDT NDI
Specification: Camera
| Camera OD | 6mm | FOV | 110 |
| Resolution | 350,000pixels | Camera case | Alloy steel |
| DOV | 5~50mm | Lighting type | UV and white light LED |
Probe
| Articulation | 2ways/4ways | Control way | Internal mechanism of internal resistance |
| Bend angle | >120° | Probe length | 1.2m-1.5m |
| Axial control | 360°rotation | Insert tube | Stainless steel braid (four layer structure) |
Display and system
| Weight | 3.4KG for whole equipment | Size | 14.5cm X 10.5cm X 4.5cm |
| Power supply | Lithium battery: 2000maH, 3.7V | Structure material | PC shell |
| LCD screen | Highlight 4.5 inch monitor | Brightness adjustment | Manual adjustment |
| Data I/O port | USB2.0 port, Tvout video signal output | Memory | 8G high speed SD card (maximum support 32G) |
| Key function | Menu operation, video, photo | White balance | Automatic white balance |
| Image function | Image image, zoom, preview | Language support | Supporting 7 countries |
Working environment
| Display temperature | Operating | -10℃~50℃ | Relative humidity | Maximum condensation | 90%, | no |
| Video probe temperature | operating | -20℃~60℃ | Waterproof | IP67 | ||
| Storage temperature | -20℃~60℃ | |||||
Applications
- Aerospace industry: used in aircraft structure, engine, blade inspection products
- Automobile production, maintenance: for automobile parts, engine inspection products
- Power production, construction units: for wind power plant, hydroelectric power plant, thermal power plant and electric power construction units to detect the product endoscope detection
- Precision casting and mechanical manufacturing: for the production of machinery parts, casting unit inspection products
- Petroleum, chemical, pressure vessel industry: used in the petroleum, chemical, and pressure vessel industry’s inspection products
- Railway, ship, construction engineering, research units: for the locomotive, turbine, engineering, pharmaceutical, food pipeline inspection products
- Defense and military security, security: for weapons and equipment, public safety inspection
