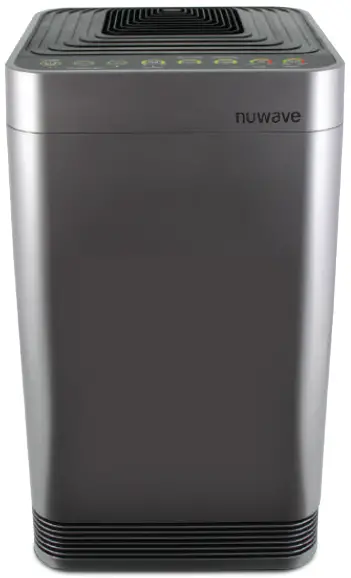

NuWave-LOGONuWave 47002 OxyPure Air Purifier

NuWave ‎47002 OxyPure Air Purifier-PRODUCTREGISTER NOW

As a special thank-you for registering your NuWave unit, you’ll automatically receive an additional 6 months added to your limited manufacturer’s warranty!*
All you have to do is follow these simple steps.NuWave ‎47002 OxyPure Air Purifier-1

  1. Using your smartphone or smart device, scan the QR code located on the unit label on the back of the unit.
  2. You will be directed to NuWave’s product registration page with your unit’s unique serial number automatically entered in the appropriate field.
    NOTE: If you do not have a web-enabled smart device, simply visit nuwavenow.com/QR and manually enter in your unit’s serial number.
  3. Fill out the remaining information and complete the optional survey.
  4. Once you submit your information, you will receive a confirmation email containing your extended warranty details.
    *Register your product within 1 year of date of purchase for a free 6-month extension of your limited warranty.

DOWNLOAD THE QR CODE APP TO YOUR MOBILE DEVICE

  1. Open your mobile app store (App Store, Google Play).NuWave ‎47002 OxyPure Air Purifier-2
  2. Search for “QR code readers.”NuWave ‎47002 OxyPure Air Purifier-3
  3. Simply download the QR code reader to your phone, open it, scan the code and you are ready to go.
    NOTE: You may need to open your downloaded QR code reader each time you want to scan a QR code.NuWave ‎47002 OxyPure Air Purifier-4

NuWave Brio® 6Qt Digital Air Fryer
Digital Pressure Cooker Super-heated air cooks your food to crispy, tender perfection. The digital touch screen gives you precise temperature control.NuWave ‎47002 OxyPure Air Purifier-5NuWave Nutri-Pot® 6Q Digital Pressure Cooker

Easily cook rice, poultry, vegetables and more all with the press of a button! The Nutri-Pot’s safety release valve and hinged lid make for convenient and safe operation.

NuWave Primo™ Combo Grill
With the NuWave Primo™, there’s no need to worry about hot spots or dried-out leftovers. The intuitive controls of this countertop smart oven make it incredibly easy to cook like a professional chef. Everything from large family meals to frozen foods cook with ease, without preheating or defrosting.NuWave ‎47002 OxyPure Air Purifier-6NuWave PIC® (Precision Induction Cooktop)
Cook faster, safer, and more efficiently than you ever could on your gas or electric stovetop.

www.nuwavenow.com

NuWave BruHub® Coffee Maker
Quality and convenience at your fingertips. The NuWave BruHub accommodates virtually all of your favorite single-serve pods, but with more flavor. Makes an 8- or 12-ounce cup and full carafe. The thermal stainless steel carafe keeps coffee hot for hours.NuWave ‎47002 OxyPure Air Purifier-7NuWave Moxie® High-Performance Vacuum Blender
With the simple press of a button, the NuWave Moxie can remove all the excess air from the blender. By vacuuming the air out of the blender, you can ensure no air is being mixed with your ingredients during the blending process,  maximizing the nutritional value and ensuring your blender creations will  remain fresher longer.

NuWave Duralon® Healthy
Ceramic
Non-Stick Cookware Coated with Duralon Healthy Ceramic  Non-Stick coating for easy cleanup, this versatile cookware is perfect for use in ovens or on gas, electric, and even induction cooktops.NuWave ‎47002 OxyPure Air Purifier-8

NuWave Bravo™ XL
The NuWave Bravo™ XL Smart Oven is an air fryer, toaster, and convection oven all in one! The Bravo features an extra-large, 1-cubic-foot capacity. Includes 12 convenient, one-touch preprogrammed presets. Set precise temperatures from 100˚F to 450˚F.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS
WARNING: When using the OxyPure, basic safety precautions should always be followed:

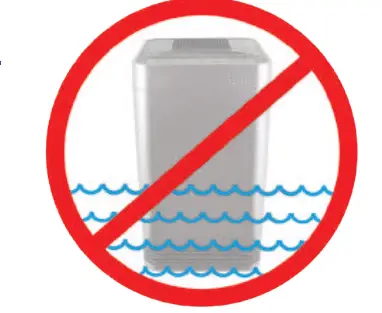

  1. To protect against risk of electrical shock, DO NOT immerse cord, plug, or any part of the OxyPure unit in water or any other liquids.
  2. Close supervision is necessary when the OxyPure is used by or near children. The unit is not intended for use by children, persons with reduced physical, sensory, or mental capabilities, or those with lack of expertise or knowledge of this unit.
  3. Do not operate OxyPure with a damaged cord, plug, after unit malfunctions, is dropped, or damaged in any manner. Contact Customer Service
    at 1-877-689-2838 or email [email protected] for information.
  4. Do not run cord under carpeting. DO NOT cover cord with throw rugs, runners, or other coverings.
  5. Do not route cord under furniture or appliances. Arrange cord away from high-traffic areas where it will not be tripped over.
  6. Do not plug OxyPure in outlet or power strip that is being used by other appliances.
  7. Remove any dust or water from the plug, if needed.
  8. Set up the OxyPure on flat, stable ground.
  9. Do not set up where the OxyPure could be pushed, kicked, or tripped over.
  10. Leave at least 2-3 feet of space between the unit’s vents and any walls.
  11. Do not install the unit near a heating device.
  12. Do not use in locations exposed to moisture or water.
  13. Do not use unit near flammable or combustible gases or vapors.
  14. Do not operate the OxyPure on its side.
  15. NOT INTENDED FOR OUTDOOR USE.
  16. Do not place objects on top of the unit.
  17. Do not sit or stand on or lean against the unit.
  18. Alteration or modification of any part of the OxyPure or the use of attachments not recommended by the manufacturer may cause fire, injury, or damage to property.
  19. As with most electrical units, electrical parts are live even when the OxyPure is off. Be sure the unit is unplugged when assembling.
  20. Do not use the OxyPure in a factory or industrial setting where machine oil may be present in the air.
  21. Turn the power OFF on the OxyPure before unplugging the unit.
  22. Turn OFF and unplug the OxyPure from outlet when not in use, before putting on or taking off parts, when removing or replacing the filters, and before cleaning.
  23. Turn the power OFF and unplug when the unit is unattended for extended periods.
  24. FOR HOUSEHOLD USE ONLY.
  25. Keep manual handy for future reference.

Warning: To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet. Do not alter the plug in any way.
WARNING! RISK OF ELECTRIC SHOCK:
These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that is contained in the Operating Instructions unless you are qualified to do so.

ADDITIONAL SAFEGUARDS

SEE CARE AND MAINTENANCE BEFORE USE

Electrical Information
A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a longer detachable power-supply cord or extension cord is used:

  1. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
  2. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it could be pulled on or tripped over unintentionally. The OxyPure should be operated on a separate electrical outlet from other operating appliances due to wattage limitations. The appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
  3. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

SAVE THESE INSTRUCTIONS
Read and understand the entire manual before using OxyPure.

  1. Do not operate the unit if abnormal sounds or motion is detected.
  2. If a hard or foreign object comes into contact with fan, do not operate. Turn off and unplug unit.
  3. Inspect for any loose or missing parts before and after each use. If parts are loose, damaged, or missing, contact Customer Service at 1-877-689-2838 or email [email protected].
  4. Always use extreme caution when operating OxyPure or any machinery.
  5. Children should be supervised to ensure that they do not play with the appliance.
  6. Do not pull, lift, drag, pick up, or carry the unit by its cord.
  7. Do not block air inlet or outlet vents.
  8. Do not operate the OxyPure without a filter.

DO NOT USE THE UNIT FOR OTHER THAN INTENDED USE.
Note: Put the OxyPure on a surface that is horizontal, even, and stable. This appliance is intended for normal household use. It is not intended to be used in environments such as a kitchen staff of shops, offices, farms, or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts, and non-residential environments.
NOTICE: THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS, ADDITIONAL SAFEGUARDS, OR THE INSTRUCTIONS FOR SAFE USE IS A MISUSE OF THE OXYPURE THAT CAN VOID YOUR WARRANTY AND CREATE THE RISK OF SERIOUS INJURY.

PARTS DESCRIPTIONNuWave ‎47002 OxyPure Air Purifier-9

  1. Top Vent
    Part #: 47101
  2. Front Display Touchpad Panel Part #: 47102
  3. Handles
  4. Odor Sensor
  5. Base
    Part #: 47104
  6. In Flow Vent
  7. Filter Slot Cover Part#: 47105
  8. Wheels

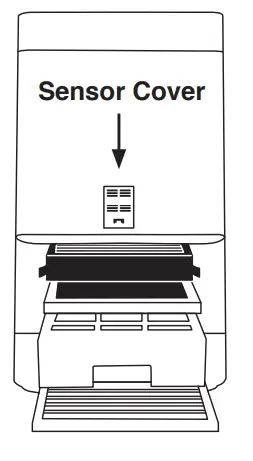

  9. Sensor Cover Part #: 47106
    Filter Sensor Part #: 47107
  10. HEPA/Activated Carbon Combo Filter Part #: 47108
  11. Ozone Emission Removal Filter
    Part #: 47109
  12. Bio-Guard™ Filter
    Part #: 47110
  13. Stainless Steel Pre-Filter Part #: 47111

ASSEMBLY GUIDE

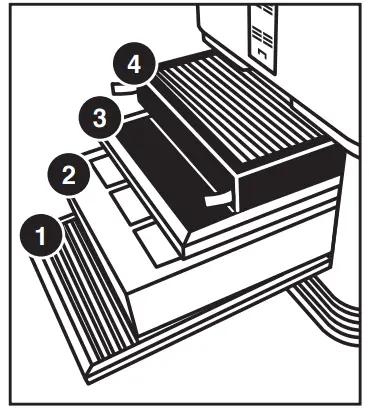

Air Filter AssemblyNuWave ‎47002 OxyPure Air Purifier-10
The OxyPure comes with four different preassembled filters inside the unit. When filters require replacement or cleaning, follow all directions when assembling. See Care & Maintenance.

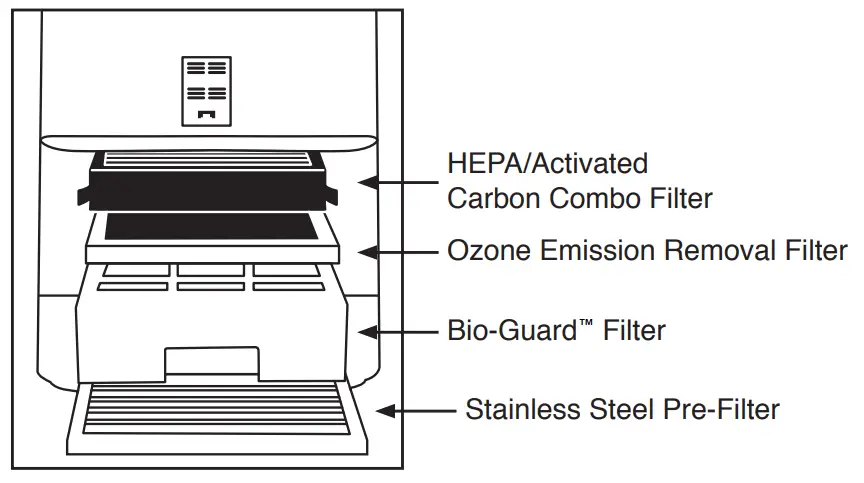

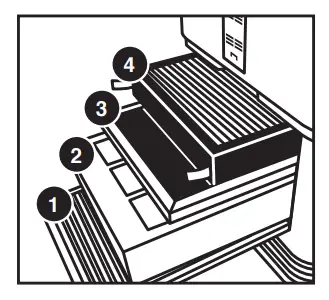

The order of the filters inside the OxyPure is as follows:NuWave ‎47002 OxyPure Air Purifier-11

  1. Stainless Steel Pre-Filter
  2. Bio-Guard™ Filter
  3. Ozone Emission Removal Filter
  4. HEPA/Activated Carbon Combo Filter

Filter Functions:
Air purifiers are more effective in operation when all windows and doors are closed. Purifies extra-large rooms up to 1,200 sq. ft.
Stainless Steel Pre-Filter
Washable and reusable for up to 20 years.
Captures and collects large particles, pollutants, and allergens including pet hair, dander, and pollen.
Bio-Guard™ Filter
Washable and reusable for up to 20 years. 8,000V, positive and negative charges capture and trap pollutants as small as 0.09 microns, including bacteria, mold, viruses, smoke, pollen, and allergens.
Ozone Emission Removal Filter
Reusable for up to 20 years. Not Washable. Eliminates ozone emissions and other harmful airborne chemicals.
HEPA/Activated Carbon Combo Filter
Lifespan, up to 5 years. Not Washable.
Captures and traps pollen, allergens, industrial emissions, VOCs including formaldehydes, household fumes, odors and nitrogen dioxides from gas stoves and car exhausts.

WIFI CONNECTION

The OxyPure is equipped with WIFI to operate the unit from any location. To set up and activate the WIFI:

  1. Download the NuWave Connect app via the Apple Store or Google Play on your smartphone or device and open the app.
  2. Make sure your phone is connected to your network. Open the app and follow the instructions for the verification process. Once verification is complete, begin adding devices. To add a device tap “+” then, select “OxyPure.”
  3. Next, plug the OxyPure into a compatible power outlet. To activate Wi-Fi Pairing Mode, press and hold the power button on the OxyPure for 2 seconds until the Wi-Fi light begins to rapidly blink at a rate of about 2 blinks per second. Once the Wi-Fi light is rapidly blinking, in the app, tap the Finish Network Configuration button on the bottom of the Add Device page.
  4. Next, you will be prompted to either connect to your network or confirm your existing network password.
    Note: To either connect to or change networks, depending on your phone, you may be removed from the app to complete the network connection. Return back to the NuWave Connect app and continue with the setup process.
  5. When the OxyPure is connected to the WIFI, the “WIFI” light will stop flashing and stay continuously lit.
    • If the OxyPure did not connect to your network, the WIFI light will turn off. Follow steps 3-4. Make sure to select the proper WIFI network and type the correct password.
      WIFI LED Status



      Pairing Mode & Standby Mode

      Solid LightThe OxyPure is paired with the WIFI and ready to be used.




      Rapid Blinking Light

      The OxyPure is in Pairing Mode. The OxyPure will remain in Pairing Mode for up to 3 minutes, or until your device is paired.
      Slow Blinking LightThe OxyPure is in Standby Mode.
      No LightThe OxyPure’s WIFI is off.

      Note: If the light on your unit is blinking slower, the unit is in WIFI Standby Mode. To exit Standby Mode and initiate the Pairing Mode, press and hold power for 2 seconds until the WIFI light begins blinking rapidly.
      Note: The OxyPure, as with most IoT devices, will only connect to a 2.4GHz* network.

    • To reset the OxyPure WIFI, press and hold down “Power” for 3 seconds. Follow step 4. The OxyPure can now be operated from any location.
      *Most routers will broadcast in 2.4GHz. If you need help activating 2.4GHz, contact your ISP (Internet Service Provider).

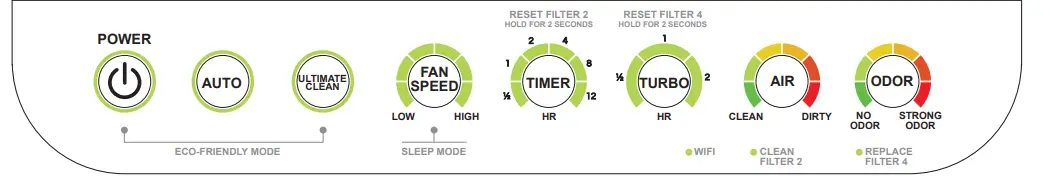

OPERATING INSTRUCTIONSNuWave ‎47002 OxyPure Air Purifier-12

NuWave ‎47002 OxyPure Air Purifier-13Power ON/OFF

  1. Plug in unit into an outlet. “Power” will be lit in red and unit will be in standby mode.
  2. Press “Power”. Unit will turn on and “Power” will be lit green.
    • Press “AUTO”. “AUTO” will illuminate.
    • Bars next to “AIR” and “ODOR” will illuminate, measuring current air quality.
    • The fan will start.
  3. Press “Power” again to turn unit off.
    • When selecting a different mode other than the default “AUTO” before turning off, the unit will run the previously selected mode when it is powered back on.

NuWave ‎47002 OxyPure Air Purifier-14AUTO
When AUTO function is used, the unit will adjust the fan speed automatically (no time limit).

  1. Press “AUTO”. “AUTO” will be lit.

ECO-FRIENDLY MODE
OxyPure will turn on automatically once it detects poor air quality.
The fan speed will adjust based on the quality of air.

  1. Press “POWER” and “ULTIMATE CLEAN” at the same time.
    POWER will be backlit yellow.
  2. Press “POWER” and “ULTIMATE CLEAN” again to turn off the
    Eco-Friendly Mode. “POWER” will no longer be yellow.

NuWave ‎47002 OxyPure Air Purifier-15ULTIMATE CLEAN
When in ULTIMATE CLEAN mode, the unit will automatically adjust to the highest or lowest fan speed based on air quality (no time limit).

  1. Press “ULTIMATE CLEAN”. ULTIMATE CLEAN will be lit green.
  2. Press “ULTIMATE CLEAN” to turn off.

ULTIMATE CLEAN with TURBO
Cleans at the highest fan speed for ½ hour and will switch to “ULTIMATE CLEAN” mode.

  1. Press “ULTIMATE CLEAN”. ULTIMATE CLEAN will be lit green.
  2. Press “TURBO”. Default is ½ hour and can adjust from 1 to 2 hours.
  3. Press “TURBO” a fourth time to turn off.

FAN SPEED
Adjust from 6 speeds (LOW to HIGH).

  1. Press “FAN SPEED” to adjust.
  2. To go back to the lowest level of fan speed, continue to press “FAN SPEED” until the first bar is lit.

SLEEP MODE
When in Sleep Mode the LED lights will be off but the fan will still be active. Adjust the fan speed prior to going into Sleep Mode.

  1. Manually adjust FAN SPEED.
  2. Press and hold “FAN SPEED” for 2 seconds to activate the SLEEP MODE.
    • Unit will run under the fan speed that was previously selected.
  3. To turn off Sleep Mode, press any button.
    Note: ULTIMATE CLEAN and TURBO will work during Sleep Mode.

NuWave ‎47002 OxyPure Air Purifier-17TIMER
Use the TIMER function to choose the duration of the operation.

  1. Press “TIMER”. The bar next to ½ hour will be lit.
    • There are 6 preset times to choose from.
  2. Press “TIMER” to increase the time.
    • Choose from ½ hour, 1, 2, 4, 8, or 12 hours.
    • After pressing “TIMER” six times, all bars will be lit.
  3. Press “TIMER” once more to turn the TIMER off.

NuWave ‎47002 OxyPure Air Purifier-18TURBO
The TURBO function cleans the air using the highest fan speed at selected times.

  1. Press “TURBO” to adjust from ½ hour, 1, or 2 hours.
    • When the selected time has finished, TURBO will shut off automatically.
  2. To go back to the lowest level, continue to press “TURBO” until bar next to ½ is lit.
    TURBO with TIMER
    When using TURBO with TIMER the default time is set to 2 hours.
  3. Press “TIMER” to increase or decrease the time.
    • Choose from ½ hour, 1, 2, 4, 8, or 12 hours.

TURBO with AUTO
Use the TURBO function to select desired time limit. Once time is up, the unit will switch to “AUTO.”

  1. Press “TURBO” to adjust from ½ hour, 1, or 2 hours.
  2. Press “AUTO”.

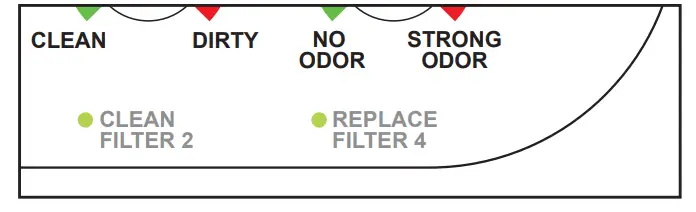

NuWave ‎47002 OxyPure Air Purifier-19AIR QUALITY INDICATOR
NuWave ‎47002 OxyPure Air Purifier-20The OxyPure will automatically measure and display the current air quality in the room.

  • The bars will illuminate around “AIR” and “ODOR”, indicating the current air quality. Bars will increase and decrease, and are color coded, according to air quality.NuWave ‎47002 OxyPure Air Purifier-21

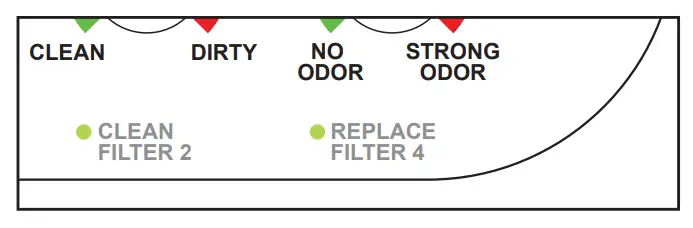

CLEAN AND REPLACE FILTER INDICATORS

  • The lights next to CLEAN FILTER 2 and REPLACE FILTER 4 will illuminate, indicating that the filters will need to be cleaned or replaced.
  • To reset Indicators, see “Resetting the Filter and Air Quality Indicators” in Care & Maintenance.

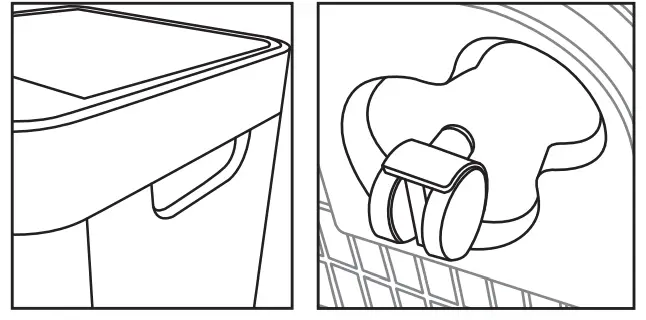

The OxyPure can easily be moved from one location to another. Just hold the OxyPure by the handles on each side and roll the unit to the ch osen location.
The wheels underneath provide extra maneuverability and mobility whenever it’s needed.NuWave ‎47002 OxyPure Air Purifier-22

CARE & MAINTENANCE

Before First Use
Wipe Top Vent and In Flow Vent with a slightly damp cloth or paper towel. Dry thoroughly before use.
After Use
The OxyPure should be cleaned periodically and after excessive use to ensure proper performance and function. To clean the outsides of the OxyPure, use a
cloth or paper towel to remove dust and other particles. For tougher buildup, use a damp cloth or paper towel and dry thoroughly.
Cleaning the Top Vent and In Flow Vent

  1. Use a soft brush to remove dust and debris.
  2. If needed, use a slightly wet paper towel or damp cloth to remove larger buildup. Do not use any harsh abrasives or cleaning pads on the Top Vent or any part of the unit.

Cleaning the Odor Sensor Opening
The Odor Sensor is located on the side corner of the OxyPure toward the top, under the small grill opening.NuWave ‎47002 OxyPure Air Purifier-23

  • Keep Odor Sensor clear of dust and debris using a soft cloth to maintain accurate odor readings.
  • DO NOT tamper with Odor Sensor or opening over Sensor. Do not spray inside or near a small grill opening over the Odor Sensor. Doing so may cause the Sensor to malfunction and can void your warranty.

CAUTION
DO NOT drop any dust or residue into the OxyPure when cleaning.

The order of the filters inside the OxyPure is as follows (bottom to top):NuWave ‎47002 OxyPure Air Purifier-24

  1. Stainless Steel Pre-Filter (washable)
  2. Bio-Guard™ Filter (washable)
  3. Ozone Emission Removal Filter (not washable)
  4. HEPA/Activated Carbon Combo Filter (not washable)
    • The OxyPure should be placed on the floor when assembling the filters.NuWave ‎47002 OxyPure Air Purifier-25

The CLEAN FILTER 2 indicator will turn blue after 3 to 6 months, indicating the filter should be cleaned for optimal results (Bio-Guard™ Filter).
The CLEAN FILTER 2 indicator will turn red after 6 months of use, indicating the filter needs to be cleaned.
The REPLACE FILTER 4 indicator will turn red when the filter (HEPA/ Activated Carbon Combo Filter) needs to be replaced. The filter will last up to 5 years depending on how often the unit is running in its environment.

Changing the Filters

The filters inside the filter slot need to be changed or cleaned on schedule to help OxyPure maintain optimum, efficient performance.

  1. Remove Filter Slot Cover in the back rear of the OxyPure using its built-in handle.
  2. Slide out filters that need cleaning or replacement.
  3. Allow washable filters to dry completely before reinstalling into unit.
    • Never place a wet filter into the OxyPure.
    • Filter Slot Cover must be secure or the unit will not work.

DO NOT WASH Ozone Emission Removal Filter or HEPA/Activated CarbonCombo Filter. The ozone Emission Removal Filter should be replaced every 20 years. The HEPA/Activated Carbon Combo Filter should be replaced every 5 years, depending on how often the unit is running in its environment.
CAUTION
Unplug the OxyPure from the power source before inserting or removing any parts or attachments and before cleaning.NuWave ‎47002 OxyPure Air Purifier-26

Cleaning the Filters
To clean the Bio-Guard™ Filter:

  1. Remove filter.
  2. Spray mild degreaser, let sit for 2-3 minutes.
  3. Submerge in warm water, shake, remove.
  4. Repeat process until clean.
  5. Rinse with warm water.
  6. Dry completely before use.

The Pre-Filter collects large particles and will need to be cleaned at least once every two months depending on use.

  1. Use a vacuum or paper towel to remove any dust or lint.
  2. Clean with warm soapy water.
  3. Rinse thoroughly and remove any soap particles on the filter.
  4. Allow filter to dry completely BEFORE placing back into OxyPure (up to 12-24 hours to dry).

Resetting the Filter and Air Quality Indicators

  1. To reset the Air Quality Indicator for AIR, press and hold down “TIMER” for 2 seconds until a beep is heard.
    • After a filter is cleaned or replaced and the indicator is reset, the first green bar around AIR will be lit.
  2. To reset the Air Quality Indicator for ODOR, press and hold down “TURBO” for 2 seconds until a beep is heard.
    • After a filter is cleaned or replaced and the indicator is reset, the first green bar around ODOR will be lit.

Cleaning the Filter Sensor
The Filter Sensor is located on the back, above the Filter Slot Cover.NuWave ‎47002 OxyPure Air Purifier-27

  1. Open the panel (Sensor Cover).
  2. Using a dry cotton swab or small, soft brush, gently remove any dirt or dust from the Sensor.
  3. For more buildup on Sensor, wipe with a slightly wet cotton swab.
  4. Remove any moisture with a dry cotton swab.
    • The Filter Sensor requires regular cleaning (approx. every 3 months) for the unit to operate efficiently.
    • If the OxyPure is set up in an area with high dust accumulation, more frequent cleaning of the Filter Sensor is needed.
    • Do not use the cotton swab on any part or area other than the Filter Sensor.

Cleaning Underneath Top Vent
The Top Vent of the OxyPure can be removed to clean the surface underneath the Top Vent and the inner vent screen.
To clean the surface underneath and inner vent screen:

  1. Turn the OxyPure off and unplug the unit.
  2. Lift the Top Vent using the built-in tab.
  3. Using a dry or slightly wet paper towel, wipe up any dust or accumulated particles off surface and inner vent screen.

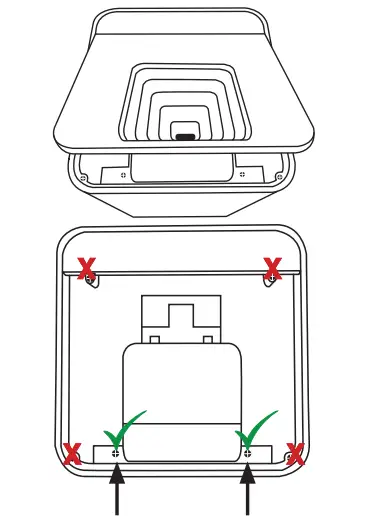

To clean the inner wall opposite of the fan or to remove an object that has fallen through the inner vent:NuWave ‎47002 OxyPure Air Purifier-28

  1. After removing Top Vent, locate the two screws closest to the end on the inner vent near the grill opening, underneath the main Top Vent. DO NOT unscrew the four outer screws.
  2. Use a Phillips screwdriver to loosen the two screws (only).
  3. Lift up the inner vent.
    • Only a portion of the inner vent will lift up.
  4. After cleaning the inner wall with a soft cloth or paper towel, reassemble the inner vent, retighten the two screws, and replace Top Vent.
  5. Make sure all parts are secure before plugging OxyPure back in and turning on again.
    Note: DO NOT unscrew the four outer screws located toward the corners. Doing so will void your warranty.

Do not immerse the OxyPure in water. Clean with a damp sponge or cloth and wipe dry. Make sure all parts and covers are securely attached.NuWave ‎47002 OxyPure Air Purifier-29

TROUBLESHOOTING

Problem:Solution(s):




Unit does not turn on.

1.     The plug is not in the wall outlet. Plug into wall outlet.



2.     “Power” on touchpad panel is not on. Press “Power”.

3.     The Filter Slot Cover in the back rear is off or loose. Make sure Filter Slot Cover is on securely.

TIMER does not work when pressed.The unit is not reading the function selected.



Press “FAN SPEED” or “AUTO”, then press “TIMER”.





The fans are not blowing.

1.     An appropriate outlet is not being used. Make sure outlet has appropriate voltage for use.



2.     The Filter Slot Cover in back rear is not properly in

place. Make sure Filter Slot Cover is on securely.

Speed of the airflow is not changing



when “FAN SPEED”

is pressed.

Unit may be in manual AUTO mode. Set the OxyPure to other operating mode on the touchpad then press “FAN SPEED”.
Airflow out of Top Vent is weak.Air filter(s) are dirty. Change or clean the air filters.
Unit is producing smoke or odor.Air filter(s) are dirty. Change or clean the air filters. If problem continues, contact Customer Service at 1-877-689-2838 or email [email protected].




CLEAN and REPLACE FILTER

Indicators have not reset after filter(s) has been cleaned

or changed.

1.     The Filter Sensor is not reading the new filter installed. Turn unit off then turn on. Press and hold down “TIMER” for 2 seconds until a beep is heard.



2.     Turn unit off, unplug and adjust filter(s). Plug in and turn the unit ON again.

3.     The Filter Slot Cover in back rear is not securely in place. Make sure Filter Slot Cover is on securely.

4.     The Filter Sensor is dirty. Clean the Filter Sensor.

Problem:Solution(s):
ULTIMATE CLEAN



does not come on when pressed.

The unit is not reading the function selected. Turn the unit ON/OFF by pressing “POWER” twice.










POWER is

blinking red.

1.     Filters are not properly installed or are loose. Turn off unit and unplug. Check that filters are properly installed and not loose. Plug unit in and press POWER to turn ON.



2.     When the Filter Slot Cover is removed, “Power” will be backlit solid red. Pressing “Power” will make it blink; however, as a safety measure, the unit will not be operational when the Filter Slot Cover is removed. Ensure that Filter Slot Cover is installed securely.

Odor Sensor is not resetting itself and not clearing all bars.



All bars are flashing.





Contact Customer Service at 1-877-689-2838 or email [email protected].

LIMITED WARRANTY

The NuWave OxyPure® Air Purifier
THE MANUFACTURER WARRANTS
NuWave warrants that the OxyPure Air Purifier (except for the filters) will be free from manufacturer defects under normal household use for 3 years from the date of purchase. This Warranty covers original owner of this Air Purifier for personal household use only and when operated in accordance with the Manufacturer’s written instructions. This Warranty does not apply to products used for commercial, rental or resale purposes. The Manufacturer will provide the necessary parts and labor to repair any part of the NuWave OxyPure Air Purifier at NuWave, LLC Service Department. After the expiration of the warranty, the cost of the labor and parts will be the responsibility of the owner.

THE WARRANTY DOES NOT COVER
The Limited Warranty is voided if repairs are made by an unauthorized dealer and/or the serial number data plate is removed and/or defaced. Normal
deterioration of finish due to use or exposure is not covered by this Warranty. This Limited Warranty does not cover failure, damages or inadequate performance due to accident, acts of God (such as lightning), fluctuations in electric power, alterations, abuse, misuse, misapplications, corrosive-type atmospheres, improper installation, failure to operate in accordance with the Manufacturer’s written instructions, abnormal use or commercial use. NuWave, LLC reserves the right to void the Limited Warranty, where allowable by law, for products purchased from an unauthorized dealer.

TO OBTAIN SERVICE
The owner shall have the obligation and responsibility to: pay for all services and parts not covered by the warranty; prepay the freight to and from Service
Department for any part or system returned under this warranty; and carefully package the product using adequate padding material to prevent damage in
transit. The original container is ideal for this purpose. Include in the package the owner’s name, address, daytime telephone number, a detailed description
of the problem, and your “RGA number.” Call 1-877-689-2838 or email [email protected] to obtain the RGA number (Return Goods
Authorization number). Provide the model & serial number and proof of date of purchase (a copy of the receipt) when making claims under this warranty.

MANUFACTURER’S OBLIGATION
The Manufacturer’s obligation under this Limited Warranty is limited, to the extent allowable by law, to repairing or replacing any part covered by this
Limited Warranty which upon examination is found to be defective under normal use. The Limited Warranty is applicable only within the continental United States and only to the original purchaser of the manufacturers authorized channels of distribution. THE LIMITED WARRANTY MAY NOT BE ALTERED, VARIED OR EXTENDED EXCEPT BY A WRITTEN INSTRUMENT EXECUTED BY THE MANUFACTURER. THE REMEDY OF REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT OCCASIONED BY NEGLIGENCE OF THE MANUFACTURER, INCLUDING WITHOUT LIMITATION, DAMAGES FOR LOSS OF USE, COSTS OF SUBSTITUTION, PROPERTY DAMAGE, OR OTHER MONEY LOSS. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation exclusions may not apply. This Limited Warranty gives specific legal rights, and there may also be other rights that vary from state to state. EXCEPT AS OTHERWISE, EXPRESS PROVIDED ABOVE, THE MANUFACTURER MAKES NO WARRANTIES EXPRESSED OR IMPLIED ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO ANY OTHER PERSON. READ YOUR OWNER’S MANUAL. IF YOU STILL HAVE ANY QUESTIONS ABOUT THE OPERATION OR WARRANTY OF THE PRODUCT, PLEASE
CONTACT NUWAVE, LLC.
READ YOUR OWNER’S MANUAL
If you still have any questions about the operation or warranty of the product, please contact NuWave, LLC at: 1-877-689-2838 or email [email protected].

FAQS

What is the CFM?

The CFM rating for Fan Level 6 will be 350 CFM.

how to stop Nuwave Air Purifier from connecting to the internet?

You may remove the NuWave OxyPure App from your mobile.

where is this unit made?

The Oxypure Air Purifier is designed in France and engineered and developed in the U.S.A. and manufactured in China.

So what you’re describing as far as particle size it won’t kill viruses like covid 19 then now illl it?

This unit has four filters, one of them is the HEPA filter which from what I under doesn’t let the covid particuli
back out into the room. Air purifiers, dust, odors, pollen, I live on a sailboat and it hates co2. Whenever another boat comes close this unit goes into high gear

The headline says cleans 2671 ft.² then over 1000 ft.² another 1200 ft.² then 515 ft.² which is it? don’t feel confident ordering.

It explains how quickly it does all of those with the slower being 2671ft² per hour

How big of a room does this filter?

Instruction booklet says purifies extra-large rooms up to 1,200 sq.ft.

May I use this on a Tabletop?

You may but it’s a little too big for table top use and it has rollers. Unless you have a way to lock the rollers and keep it from rolling off the table I would recommend setting it on the floor.

Why is it that the air fryer is only 100 bucks meanwhile this thing is almost 600?

one cooks your food. The other purifies the air you breath

Is this air purifier noisy?

No.

How much are the filters? Do they come as a set or individually

From my readings, there are not filters available yet. You do get 3 filters with this . 3 of the filters are washable and could last up to 20 years as long as you properly clean them. The 4th filter is not washable and depending on how often you use this item, it should last a few years.

Does the wave use led technology?

The Nuwave allows for Wi-Fi LED pairing.

Will the app manage multiple air purifiers?

Yes, you may add multiple NuWave Air Purifiers to the mobile app.

Does this work with google assistant or if?

there is an app you can download through google that will allow you to remotely monitor the unit

Does the oxypure have a filter replacement indicator to alert you when filters need replacement?

there is a light indicator when the first filter in the system needs to be cleaned. The others are on a manufacturer-recommended schedule. Getting the filters in and out, and cleaning is easy.

Unit clicking at contact points on filter. Any idea on how to temedy? CS not responding.

Dissemble and clean contact point.

VIDEO

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
