H-7670

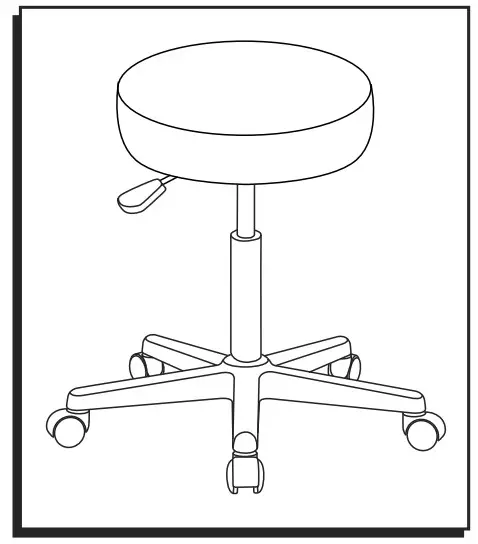

VINYL PADDED MOBILE SHOP STOOL
1-800-295-5510
uline.com
TOOL INCLUDED

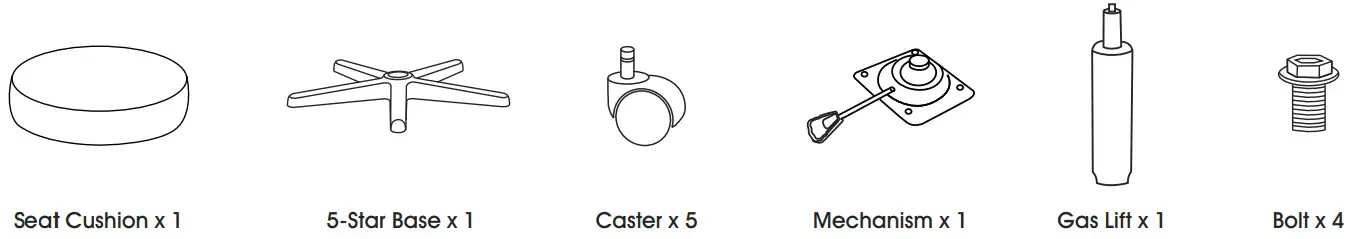

PARTS LIST
ASSEMBLY

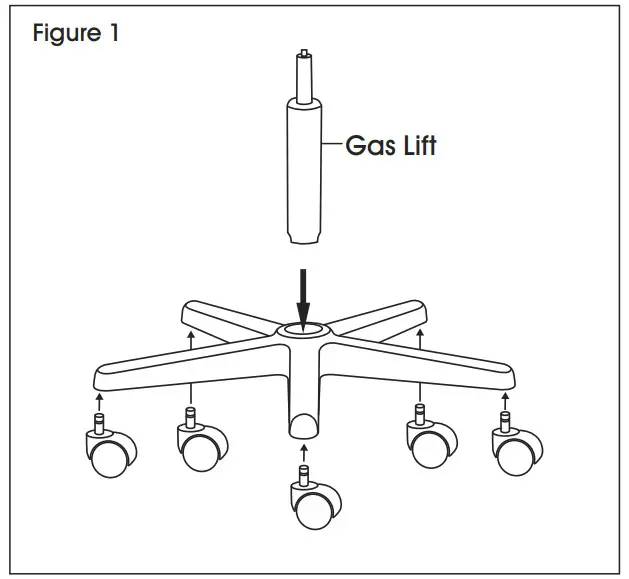

- Insert casters into the legs of the five-star base. Turn base upright. Insert gas lift into the center of the base. (See Figure 1)

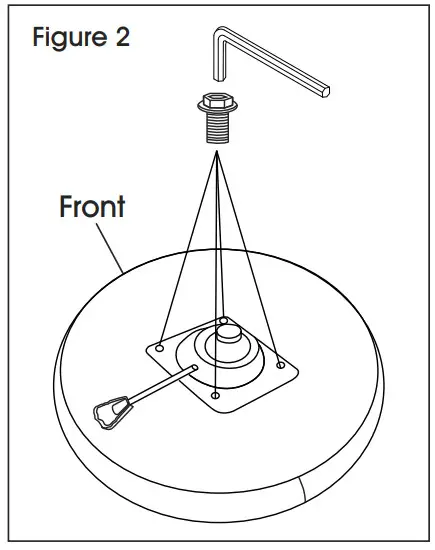

- Align mechanism with holes on the bottom of the seat cushion. Use four bolts to secure. (See Figure 2)

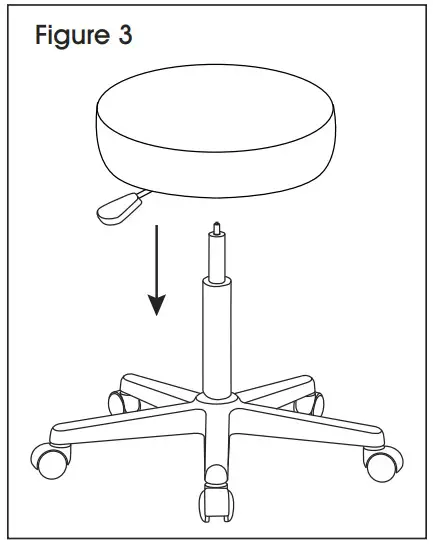

NOTE: Use an Allen wrench to tighten bolts. - Slowly lower seat assembly onto the gas lift. Press down on the seat cushion to secure. (See Figure 3)
NOTE: Use an Allen wrench to tighten bolts.

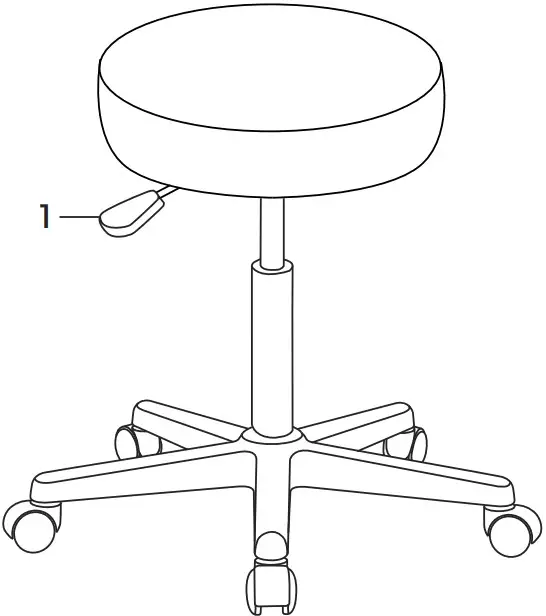

STOOL ADJUSTMENT
- Seat Height Adjustment To raise seat height, lift the lever up with little to no weight on the seat. To lower seat height, lift the lever up while sitting.
