mercury 2WDP064 Two Station Telephone System
Features
- Perfect for private conversations
- Delightful 1-melody signal sound
- Easy wiring wi1h 21ines of non-polarity
- 2Stations full direct
- Range: 0.65mmwire, 300m line
- Easily mounted on wall,desk
- Power: DC 6V (LR6-M 1.5V ><4)
Precautions for Operation
As this device consists of precise electronic components, and high voltage is generated internally, do not attempt to disassemble.
Do not drop Indoor station, and avoid strong impact.
Keep away from humidifier and stove. High temperature and humidity can cause malfunction
When cleaning, never use wet hands, volatile benzene or paint thinner.
Maintain the product clear by frequently cleaning with soft cloths

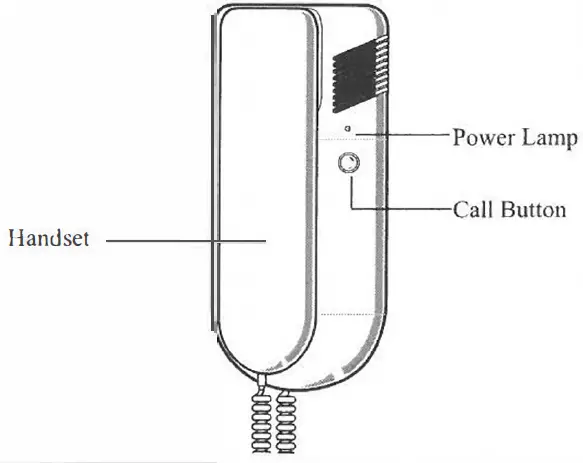

Name of Each Part
How to operate (Instruction for operating)

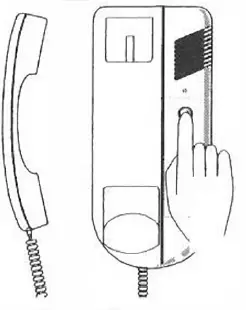

When a visitor pushes the maindoor station bell,

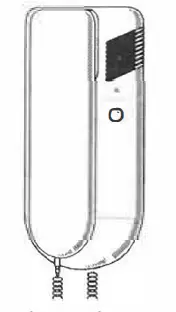

The subdoor station is ringing.

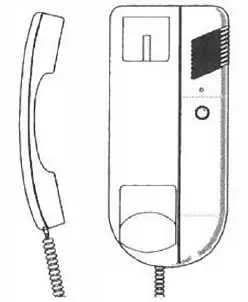

Pick up the handset and communicate with a visitor. After end of communication, return the handset where it is locked

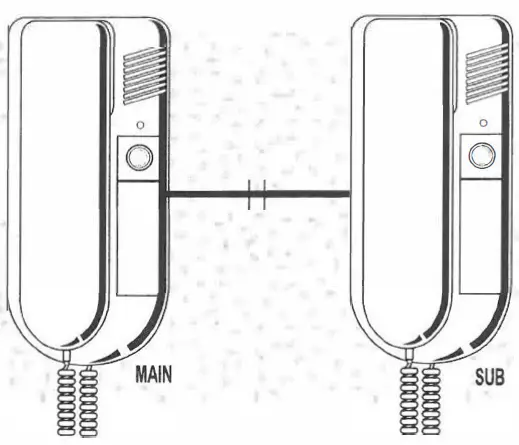

Wring Diagram

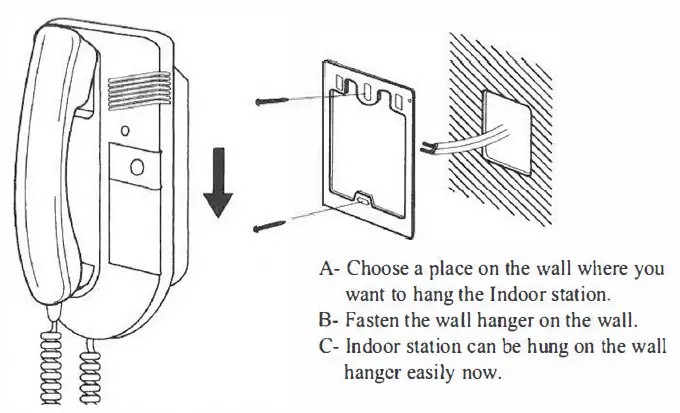

Installation
Specifications
| Electric source | DC 6V (LR6-AA 1.5V x 4) AC ADAPTOR DC 6V 0-( —- | |
| Consumption Signal Sound | In use 30mA,Signal I 50mA Electronic Chime | |
| Wiring Range | 2Wired non-polarity 300m( 9 0.65mm) | |
Component
- Master station for Ma indoor-use
- Substation for Subdoor-use
- Wall hanger for the master station
Warranty
To receive after-sales service, have the following ready when you contact our branches
- Name of the product
- Model number of the product
- The area of problem
- Phone number and address at which you can be contacted.
Warranty Card
PRODUCT
MODEL
DATE PURCHASED WARRANTY PERIOD AGENCY
AGENCY ADDRESS
Errors and omissions excepted.
