Tripp-lite B122-000 Hdmi Signal Booster And Extender Owner's Manual

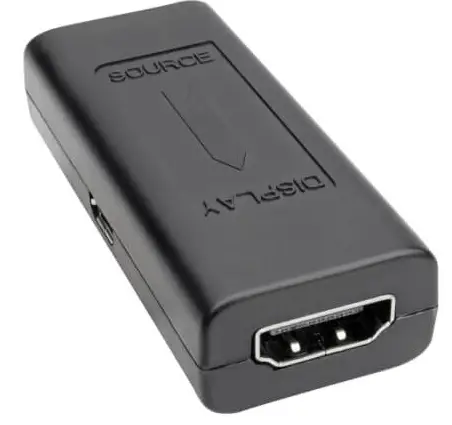

TRIPP-LITE B122-000 HDMI Signal Booster and Extender

Although most installations will not require power, a Micro USB port is provided in the event power is needed. Using a Micro USB cable(such as Tripp Lite’s UR05C-Series), connect the Micro USB port to a USB wall charger, the USB port on your monitor, or the USB port on a computer. HDMI Signal Booster / Extender, 1920 x 1200 (1080p) 24Hz, Up to 150 ft. (45 m), (HDMI F/F),TAA

MODEL NUMBER

B122-000

Description

Tripp Lite’s B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16-ft. (4.88 m). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 150-ft. (45.72 m) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000, and the shorter cable (16-ft. (4.88 m) or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150-ft. (45.72 m) from the source
• Use P568-Series HDMI cables in most applications
• When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft. (22.86 m), use cable made with 24Awg wirings, such as the P568-100-HD. (Lengths over 100 ft. (30.5 m) are available from Tripp Lite as a custom order)
• 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable
  Supports DTS-HD, Dolby True HD, and 7.1 Channel Surround Sound Audio
• HDCP compliant
• No software or drivers required
• No external power required in most installations
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Highlights

• Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150-ft. (45.72 m) from the source
• When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD
• No external power is required in most installations
• 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable
  Supports DTS-HD, Dolby True HD, and 7.1 Channel Surround Sound Audio Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

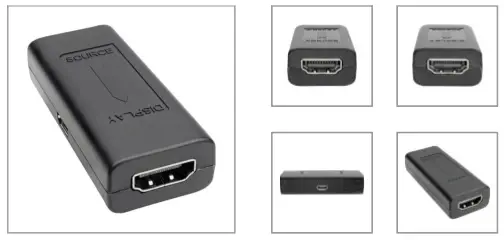

• B122-000 HDMI Signal Extender
• Owner’s Manual

Specifications
