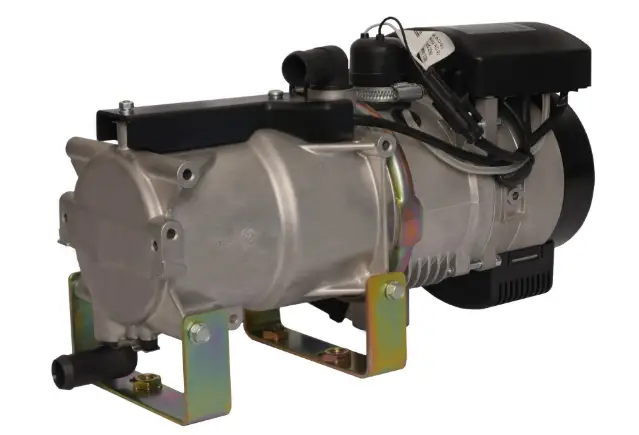

autoterm Flow 14D Hydronic Heater
Manufacturer: ADVERS LLC Representative office: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167
Warranty Department [email protected]
Technical Support [email protected] www.autoterm.com
This spare parts catalogue is intended for companies and individuals involved in installing, repairing, and maintaining liquid heaters AUTOTERM FLOW 14D.
This catalogue consists of two sections:

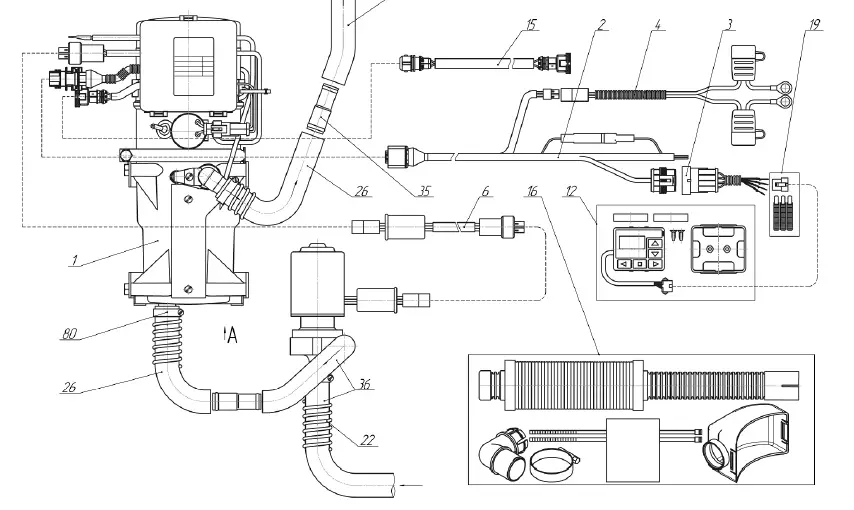

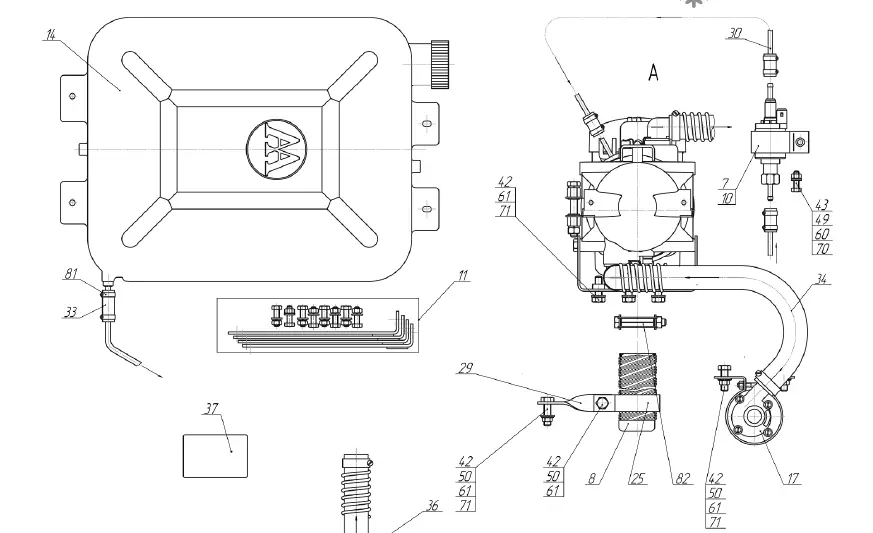

- Contents of the installation kit of the heater (Figure 1, Table 1)
- Schematic of the heater’s spare parts (Figure 2, Table 2)
If a part fails during use of the heater, look for its designation in this catalogue to order a replacement form the manufacturer.
To facilitate ordering, use the manufacturer’s spare parts numbers in the tables below.
Contents of the installation kit
| № | Part/assembly description and designation | Notes | Flow 14D ASSY 4810 | Flow 14D ASSY4815 | Flow 14D ASSY5255 | Flow 5D ASSY 5260 |
| Pre-heater number | 1 | 2 | 3 | 4 | ||
| 1 | Heater | |||||
| ASSY 4811 | 24V | 1 | 1 | |||
| ASSY 4816 | 12V | 1 | 1 | |||
| 2 | Wiring harness | |||||
| ASSY 4393 | 1 | 1 | 1 | 1 | ||
| 3 | Control panel harness | |||||
| ASSY 4394 | l=1,8m | 1 | 1 | 1 | 1 | |
| 4 | Power supply harness | |||||
| ASSY 73-01 | 24V | 1 | 1 | |||
| ASSY 1002 | 12V | 1 | 1 | |||
| 6 | Liquid pump harness | |||||
| ASSY 76 | 1 | 1 | 1 | 1 | ||
| 7 | Fuel pump | |||||
| Dosing fuel pump P0636 24V | 1 | |||||
| Dosing fuel pump P0630 12V | 1 | |||||
| ASSY 5032 | ТН11-6,8ml-24V | 1 | ||||
| ASSY 5030 | ТН11-6,8ml-12V | 1 | ||||
| 8 | Exhaust pipe | |||||
| ASSY 2321 | 1 | 1 | 1 | 1 | ||
| 10 | Clamp for fuel pump | |||||
| ASSY 1467 | 1 | 1 | 1 | 1 | ||
| 12 | Control panel PU-27TM2 | |||||
| ASSY 4725 | 1 | 1 | 1 | 1 | ||
| 14 | Fuel tank БТ13 | |||||
| ASSY 1065 | 13l | 1 | 1 | 1 | 1 | |
| 15 | Fuel pump harness | |||||
| ASSY 4071 | 1 | 1 | 1 | 1 | ||
| 16 | Air intake with silencer | |||||
| ASSY 3043 | 1 | 1 | 1 | 1 | ||
| 17 | Liquid pump | |||||
| ASSY 2175 | П6.24V | 1 | 1 | |||
| ASSY 2760 | П6.12V | 1 | 1 | |||
| 18 | Fuel tank БТ13 installation kit | |||||
| ASSY 9032 | 1 | 1 | 1 | 1 | ||
| 19 | Wiring harnesses mounting kit | |||||
| ASSY 9041 | 1 | 1 | 1 | 1 | ||
| 22 | Protective spring | |||||
| p.4903 | 1 | 1 | 1 | 1 | ||
| 25 | Clamp | |||||
| p.2206 | 1 | 1 | 1 | 1 | ||
| 26 | Coolant hose Ø20 | |||||
| p.2777 | l=1000mm | 1 | 1 | 1 | 1 | |
| 29 | Holder | |||||
| p.132 | 1 | 1 | 1 | 1 | ||
| 30 | Fuel supply line | |||||
| p.73 | l=5000mm | 1 | 1 | 1 | 1 | |
| 33 | Sleeve | |||||
| p.5147 | l=250mm | 1 | 1 | 1 | 1 | |
| 34 | Corner pipe | |||||
| p.202 | 1 | 1 | 1 | 1 | ||
| № | Part/assembly description and designation | Notes | Flow 14D ASSY 4810 | Flow 14D ASSY4815 | Flow 14D ASSY5255 | Flow 5D ASSY 5260 |
| Pre-heater number | 1 | 2 | 3 | 4 | ||
| 35 | Pipe reducer 18×20 | |||||
| p.4957 | 2 | 2 | 2 | 2 | ||
| 36 | Coolant hose Ø18 | |||||
| p.8 | l=3000mm | 1 | 1 | 1 | 1 | |
| 37 | Duplicate of label | |||||
| p.5150 | 1 | 1 | ||||
| p.5151 | 1 | 1 | ||||
| 41 | Bolt M6x25 | 1 | 1 | 1 | 1 | |
| 42 | Bolt M8x25 | 7 | 7 | 7 | 7 | |
| 49 | Nut M6 | 1 | 1 | 1 | 1 | |
| 50 | Nut M8 | 4 | 4 | 4 | 4 | |
| 60 | Washer 6 | 1 | 1 | 1 | 1 | |
| 61 | Washer 8 | 7 | 7 | 7 | 7 | |
| 70 | Lock washer 6 | 1 | 1 | 1 | 1 | |
| 71 | Lock washer 8 | 6 | 6 | 6 | 6 | |
| 80 | Clamp Mikalor 20×32 | 10 | 10 | 10 | 10 | |
| 81 | Clamp Mikalor mini 10 | 10 | 10 | 10 | 10 | |
| 82 | Clamp Bosal 250-945 | 1 | 1 | 1 | 1 | |

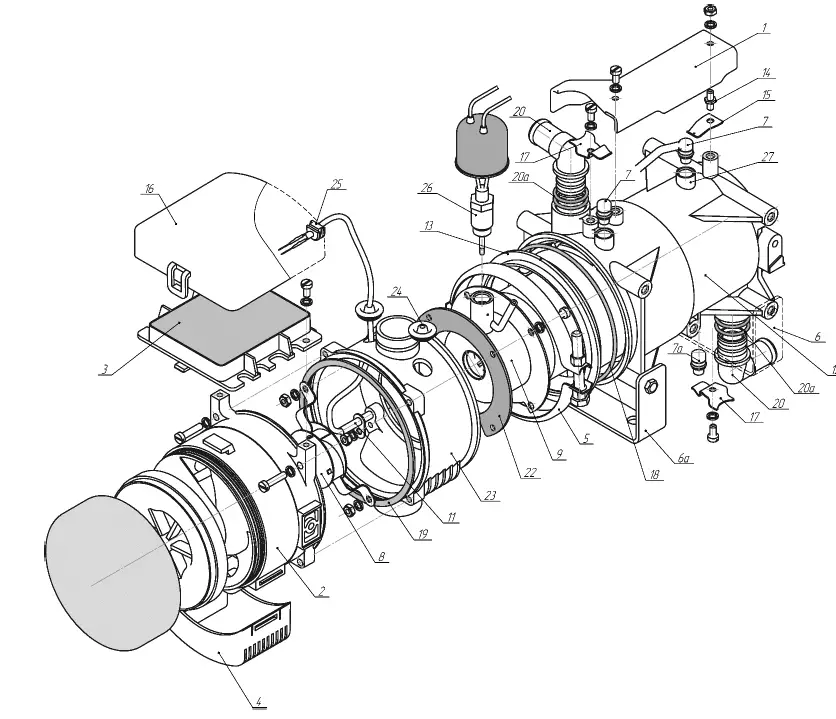

Schematic of spare parts for the heater
|
№ |
Part/assembly description and designation |
Notes |
ASSY 4811 |
ASSY 4816 |
| Heater number | 1 | 2 | ||
| 1 | Cover for wires and sensors | |||
| p.2308 | 1 | 1 | ||
| Screw M5x10 | 1 | 1 | ||
| Nut M5 | 1 | 1 | ||
| Washer 5 | 2 | 2 | ||
| 2 | Air pump | |||
| ASSY 2356 | 24V | 1 | ||
| ASSY 2633 | 12V | 1 | ||
| p.2821 | Ring | 1 | ||
| Screw M5x25 | 4 | |||
| Screw M5x35 | 4 | |||
| Lock washer 5 | 4 | 4 | ||
| 3 | Control unit | |||
| ASSY 4077 | 24V | 1 | ||
| ASSY 4084 | 12V | 1 | ||
| 4 | Air intake | |||
| p.2394 | 1 | 1 | ||
| 5 | Clamp | |||
| ASSY 14 | 1 | 1 | ||
| Bolt M8x70 | 1 | 1 | ||
| Nut M8 | 1 | 1 | ||
| Lock washer | 2 | 2 | ||
| 6 | Mounting bracket 1 | |||
| ASSY 2352 | 1 | 1 | ||
| Screw 6×16 | 2 | 2 | ||
| 6a | Mounting bracket 2 | |||
| ASSY 2353 | 1 | 1 | ||
| Screw 6×16 | 2 | 2 | ||
| 7 | Temperature sensor set | |||
| ASSY 3470 | 1 | 1 | ||
| 7a | Dummy sensor | |||
| ASSY 3388 | ||||
| 8 | Swirler | |||
| ASSY 65 | 1 | 1 | ||
| 9 | Combustion chamber | |||
| ASSY 2354 | 1 | 1 | ||
| Bolt M5x20 | 1 | 1 | ||
| Bolt M5x25 | 3 | 3 | ||
| Lock washer 5 | 4 | 4 | ||
| Washer 5 | 4 | 4 | ||
| Nut M5 | 3 | 3 | ||
| 11 | Flame indicator | |||
| ASSY 1914 | 1 | 1 | ||
|
№ |
Part/assembly description and designation |
Notes |
ASSY 4811 |
ASSY 4816 |
| Heater number | 1 | 2 | ||
| p.2065 | Flame indicator seal | 1 | 1 | |
| 12 | Casing | |||
| p.2301 | 1 | 1 | ||
| 13 | Heat exchanger | |||
| p.2302 | 1 | 1 | ||
| 14 | Bushing | |||
| p.3563 | 1 | 1 | ||
| 15 | Clamp | |||
| p.18 | 1 | 1 | ||
| 16 | Control unit cover | |||
| p.230 | ||||
| 17 | Clamp | |||
| p.2393 | 1 | 1 | ||
| Screw M5x10 DIN 7500 | 1 | 1 | ||
| Lock washer 5 | 1 | 1 | ||
| 18 | O-ring | |||
| p.59 | 1 | 1 | ||
| 19 | Gasket | |||
| p.2397 | 1 | 1 | ||
| 20 | Elbow | |||
| p.149 | 2 | 2 | ||
| 20a | O-Ring | |||
| p.64 | 4 | 4 | ||
| 22 | Gasket | |||
| p.2396 | 1 | 1 | ||
| 23 | Adapter | |||
| p.2303 | 1 | 1 | ||
| 24 | Sealing | |||
| p.21 | 1 | 1 | ||
| 25 | Rubber seal | |||
| p.2066 | 1 | 1 | ||
| 26 | Glow plug | |||
| ASSY 3000 | AD-12V | 1 | 1 | |
| p.198 | Plug washer | 1 | 1 | |
| Clamp Mikalor 25×40 | 1 | 1 | ||
| 27 | Bushing and ring | |||
| p.3561 | Bushing | 1 | 1 | |
| p.3562 | Ring | 1 | 1 | |
