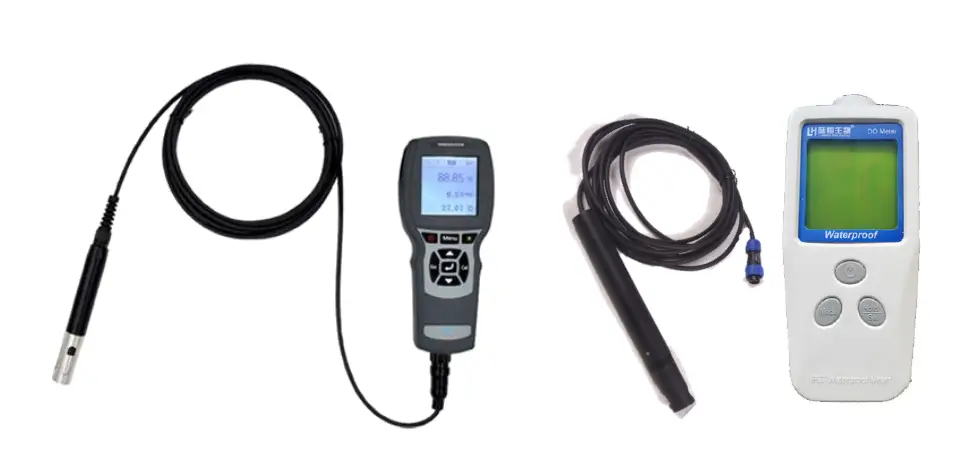

YOSEMITE TECHNOLOGIES Y600-A Portable Dissolved Oxygen Meters
| ¨ Water Quality Testing ¨ Aquaculture ¨ Wastewater ¨ Environment ¨ Groundwater ¨ Surface Water ¨ Food and Beverage ¨ Process Control ¨ Oceans etc.
Advantages of Optical: No oxygen consumption No flow rate limitations No H2S interference No membrane No electrolyte No electrodes Low maintenance Fast response Better stability Low drift | Y600-A Optical Dissolved Oxygen Meter | M1500K Galvanic Dissolved Oxygen Meter |
| Model | Y600-A | M1500K |
| Probe Type | Y506-A IP68 Optical dissolved oxygen sensor Probe size: 180mm x 16mmØ on 5m cable Supplied with sensor protection shield Quick and easy sensor cap replacement | M9501-3 IP68 Galvanic type probe Probe size: 165mm x 24mmØ on 3m cable Requires regular calibration to correct drift Frequent servicing of probe and electrolyte |
| Meter | IP67 Waterproof multi-function meter (can be used with other optional probes) | IP67 Waterproof, rugged and shock resistant |
| DO Range | 0.00~199.99% and 0.00~19.99mg/L | 0.0~199.9% or 0.0~19.99mg/L |
| Temperature | 0 ~ 50°C (automatic compensation) | |
| Accuracy | ±1% of FS / ±0.2°C | ±1.5% of FS / ±0.5°C |
| Pressure | Built-in sensor (50~115kPa) Automatic pressure correction | Manual pressure correction |
| Salinity | Manual Salinity compensation | |
| Calibration | One or two points (100.0%SAT and 0%SAT) | |
| Data Logger | Memory for 5000 data sets USB transfer as CSV file | û |
| Power Supply | 2 x 18650 rechargeable batteries (charger not included, use any USB type) | 2 x AAA alkaline batteries |
| Weight | approx. 450g | approx. 260g |
| Dimensions (mm) | 220 x 96 x 44mm | 160 x 70 x 36mm |
| Accessories | c/w carry strap, Y506-A Optical probe with cap, protection shield, 2 x 18650 rechargeable batteries, USB cable and manual | c/w carry case, M9501-3 Galvanic probe, spare membrane, 30ml electrolyte, 2 a AAA batteries and manual |
| Model | Y600-A | M1500K |
| Probe Type | Y506-A IP68 Optical dissolved oxygen sensor Probe size: 180mm x 16mmØ on 5m cable Supplied with sensor protection shield Quick and easy sensor cap replacement | M9501-3 IP68 Galvanic type probe Probe size: 165mm x 24mmØ on 3m cable Requires regular calibration to correct drift Frequent servicing of probe and electrolyte |
| Meter | IP67 Waterproof multi-function meter (can be used with other optional probes) | IP67 Waterproof, rugged and shock resistant |
| DO Range | 0.00~199.99% and 0.00~19.99mg/L | 0.0~199.9% or 0.0~19.99mg/L |
| Temperature | 0 ~ 50°C (automatic compensation) | |
| Accuracy | ±1% of FS / ±0.2°C | ±1.5% of FS / ±0.5°C |
| Pressure | Built-in sensor (50~115kPa) Automatic pressure correction | Manual pressure correction |
| Salinity | Manual Salinity compensation | |
| Calibration | One or two points (100.0%SAT and 0%SAT) | |
| Data Logger | Memory for 5000 data sets USB transfer as CSV file | û |
| Power Supply | 2 x 18650 rechargeable batteries (charger not included, use any USB type) | 2 x AAA alkaline batteries |
| Weight | approx. 450g | approx. 260g |
| Dimensions (mm) | 220 x 96 x 44mm | 160 x 70 x 36mm |
| Accessories | c/w carry strap, Y506-A Optical probe with cap, protection shield, 2 x 18650 rechargeable batteries, USB cable and manual | c/w carry case, M9501-3 Galvanic probe, spare membrane, 30ml electrolyte, 2 AAA batteries and manual |
| Distributor: | A Smith Process Instrumentation cc PO Box 449 Pinegowrie 2123 Tel: 011 782 7279 / 888 7144 WhatsApp: 087 255 6713 e-mail: [email protected] website: www.instruments.co.za |
