User’s Guide
Neo-Flex Dual Display
Wall Mount

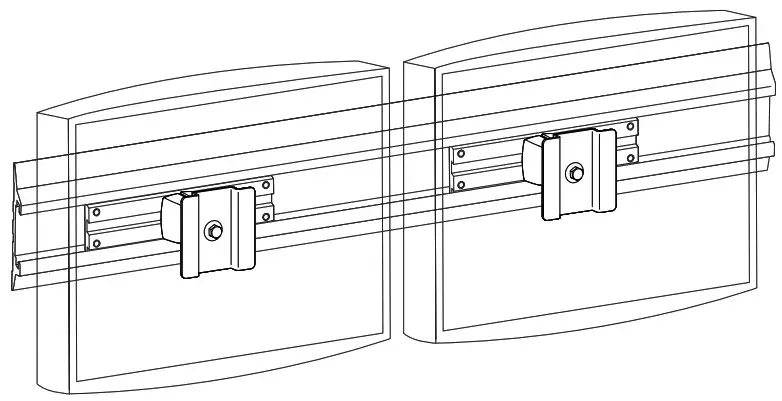

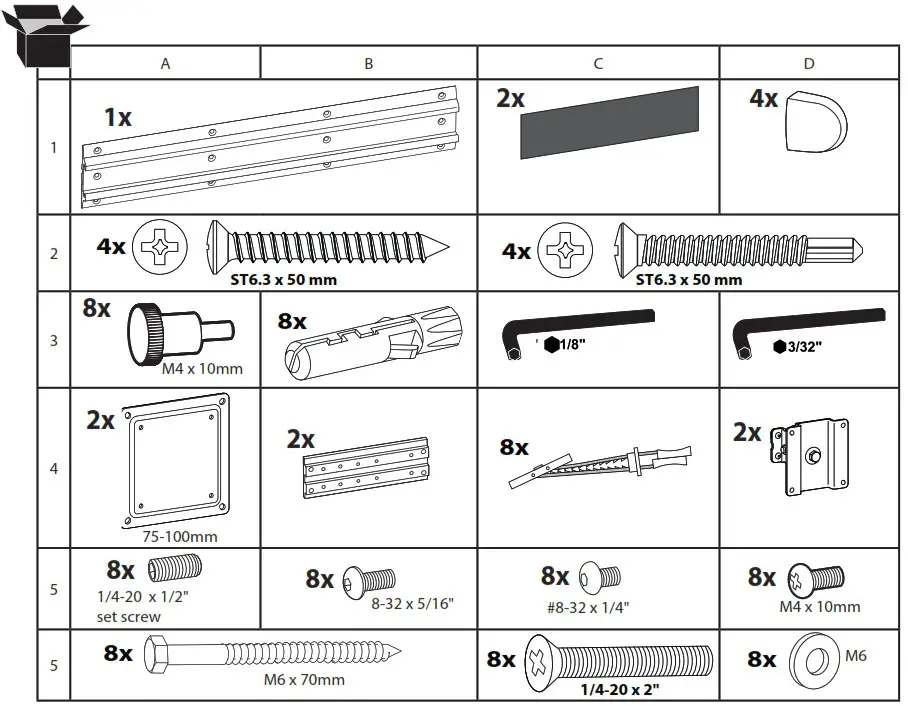

Components

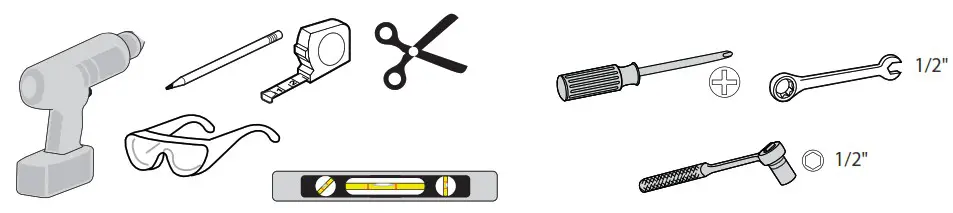

Tools Needed

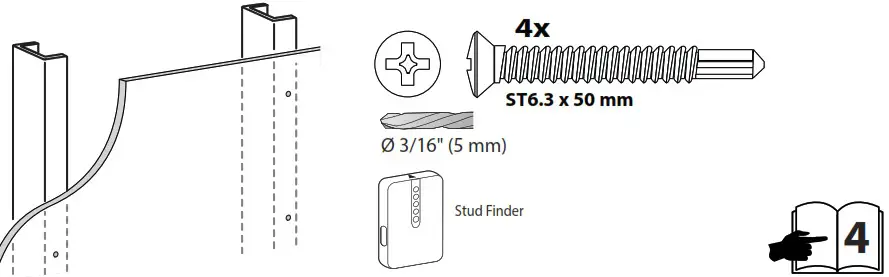

See Wall Mounting Options for additional tools needed for your type of wall installation.

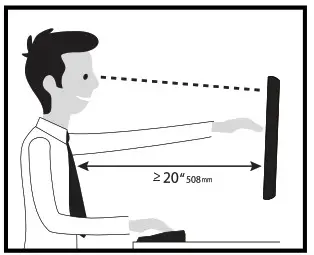

Determine Ergonomic Mounting Height
Learn more about ergonomic computer use at: www.ergotron.com/ergonomics

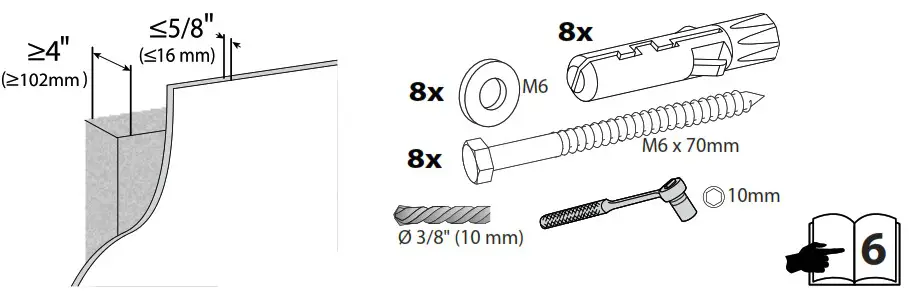

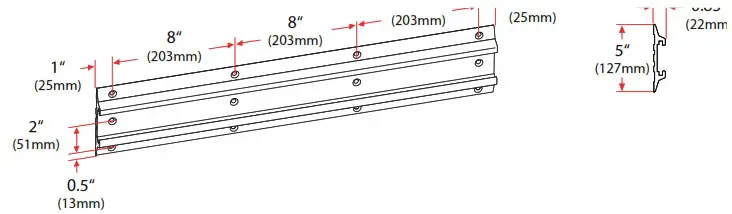

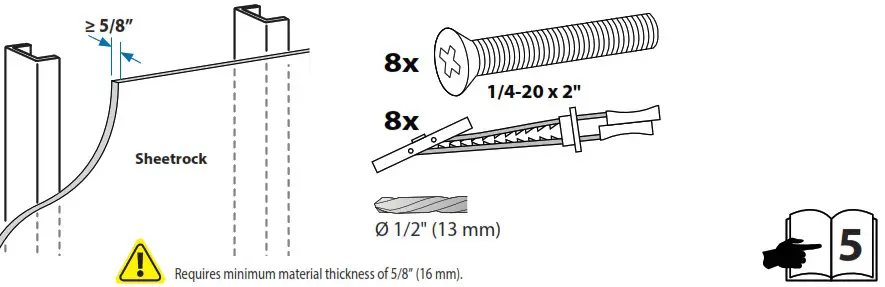

Wall Mounting Options
WARNING:
Ensure that the wall structure is capable of supporting four times the total weight of mounted equipment. Mounting to wall surfaces that do not meet this criteria may result in an unstable, unsafe condition which could lead to personal injury and/or property damage. Consult a construction professional if you have any doubt about what this means in regard to your particular application.

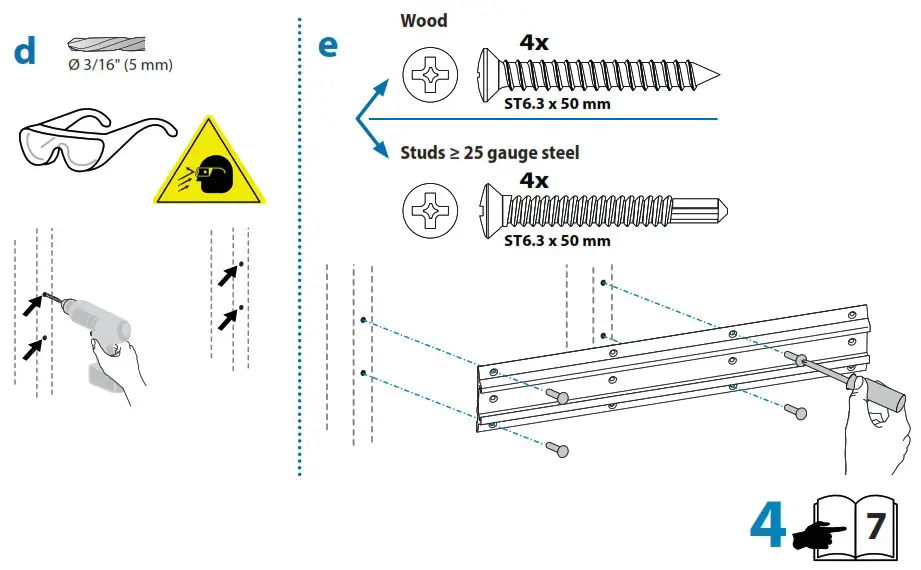

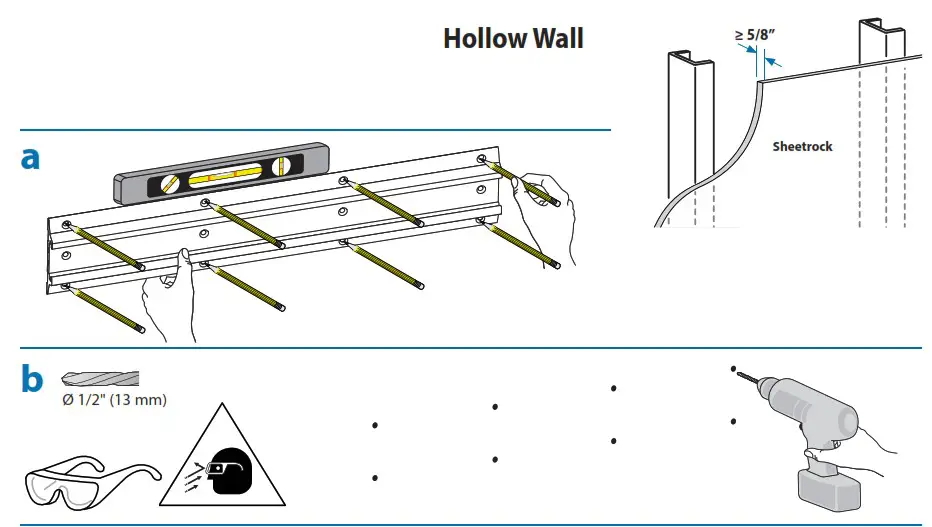

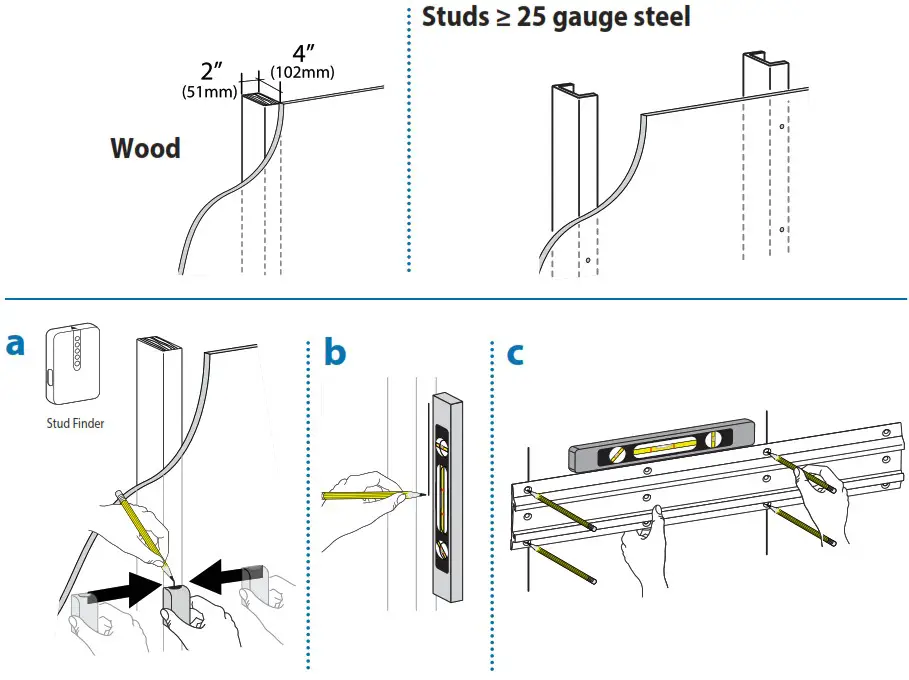

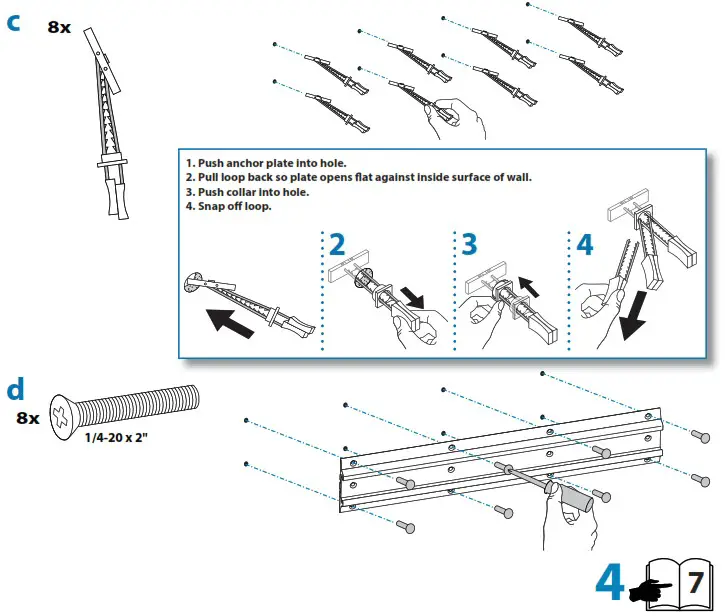

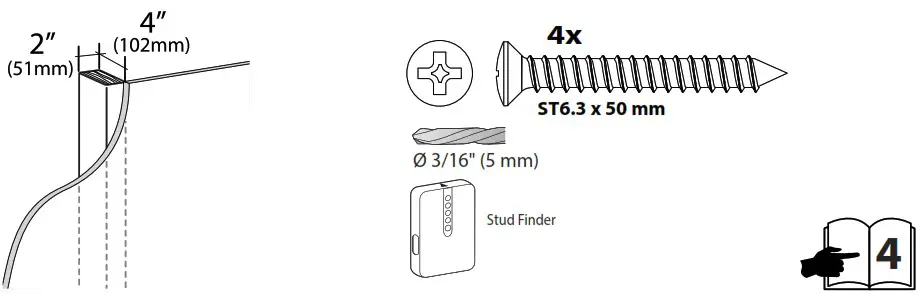

Attach to Wall
NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before installation to prevent back-out.
NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before installation to prevent back-out.
WARNING:

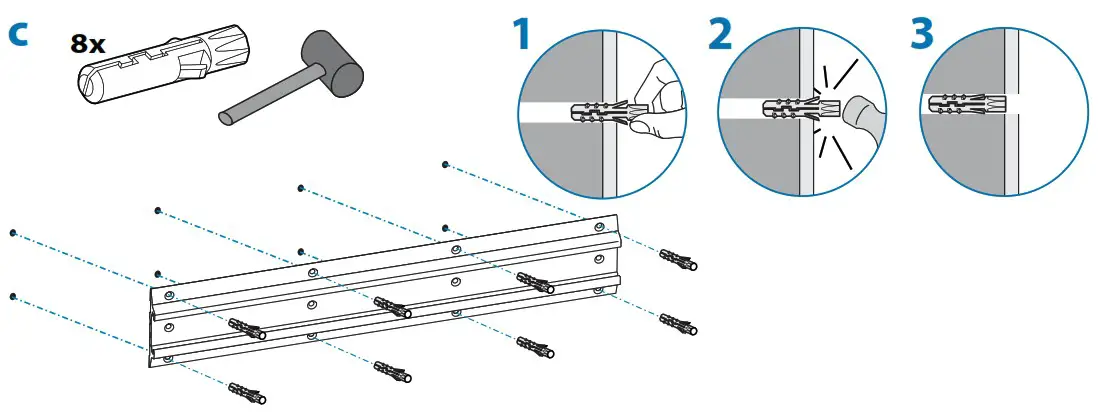

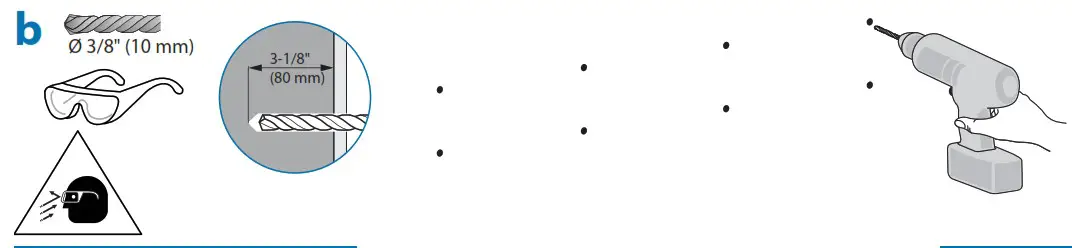

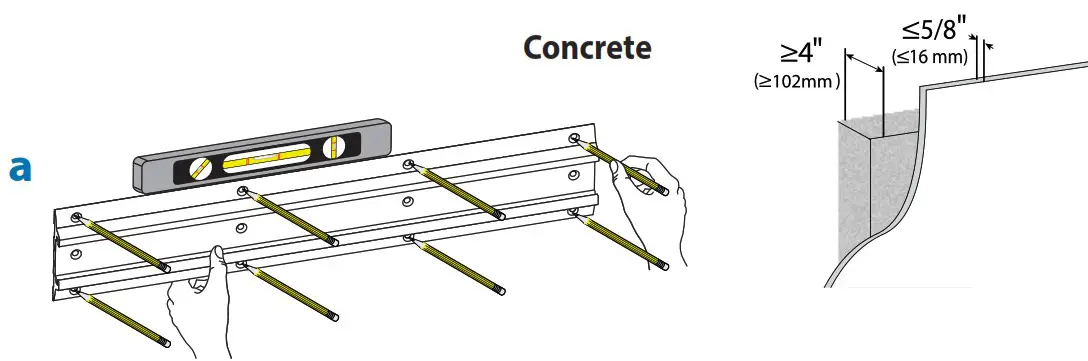

Mounting holes must be at least 3-1/8” (80mm) deep and must be located within solid concrete, not mortar or covering material. If you drill into an
area of concrete that is not solid, reposition mounting holes until both anchors can be fully inserted into solid concrete!
WARNING:
Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition which could lead to personal injury and/or property damage. Consult a construction professional if you have any doubt about what this means in regard to your particular situation.
NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before installation to prevent back-out.

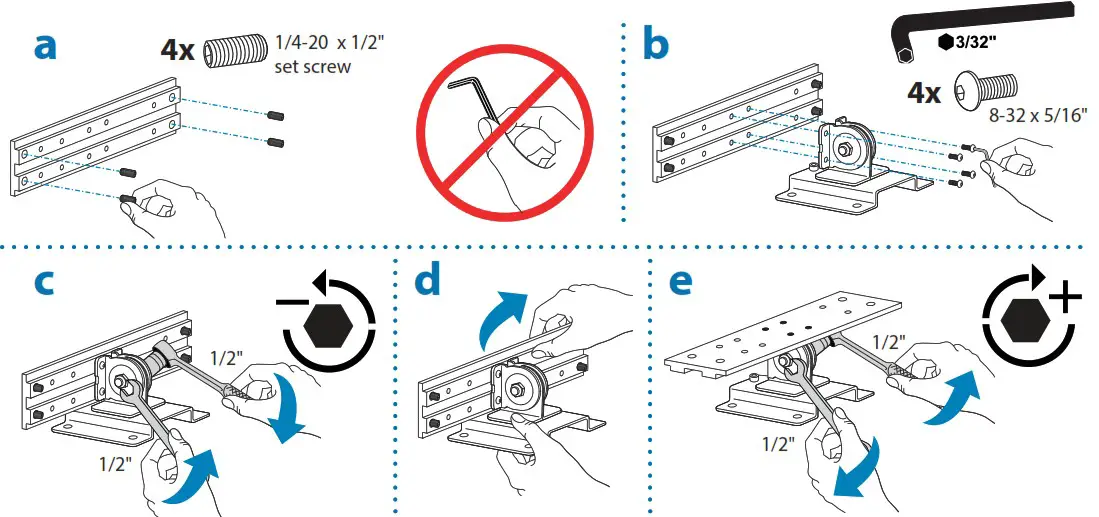

Attach Pivots to Brackets

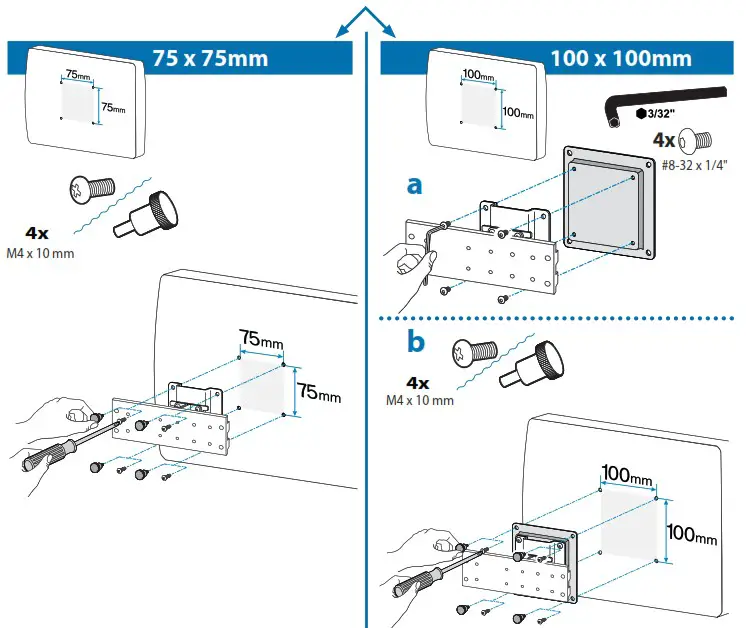

Attach Displays

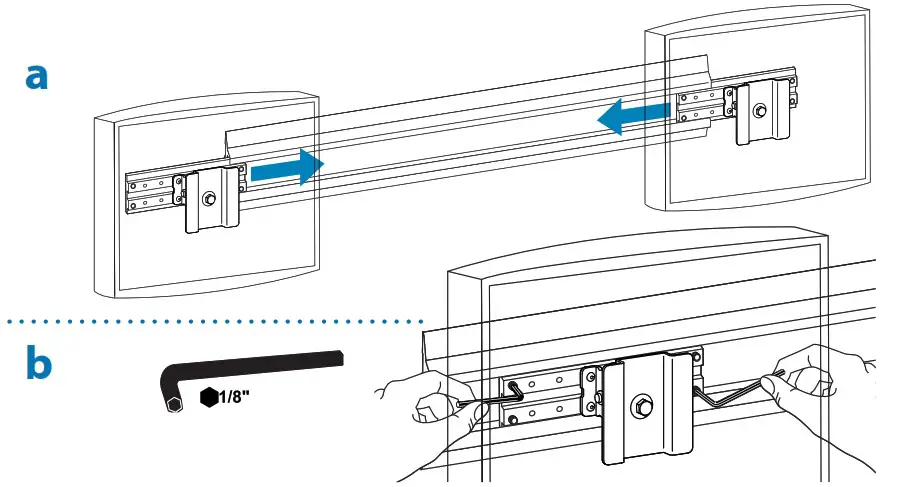

Attach Displays to Wall Bracket
Range of Motion
This product is designed to adjust quickly and easily according to your needs – refer to following steps for adjustment.

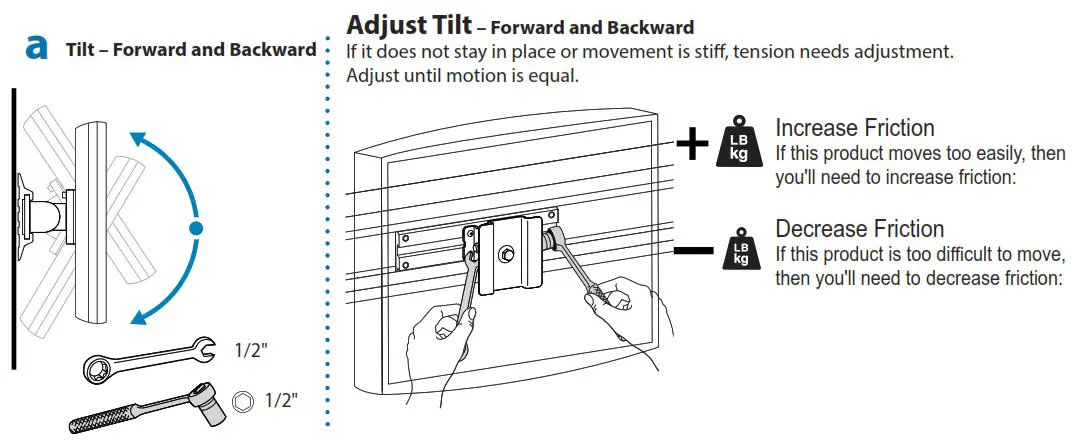

Adjust Tilt – Forward and Backward
If it does not stay in place or movement is stiff , tension needs adjustment.
Adjust until motion is equal.

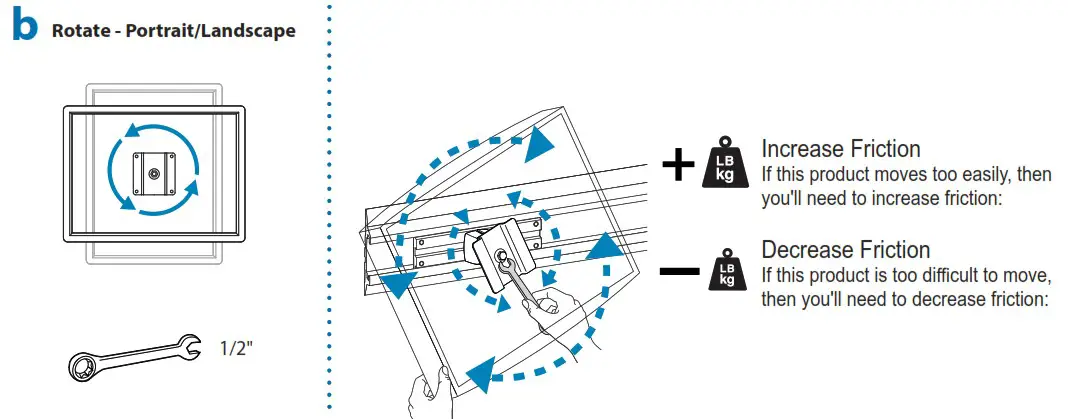

Adjust Rotate – Portrait/Landscape
If it does not stay in place or movement is stiff , tension needs adjustment.
Adjust until motion is equal.
Attach Pivot Covers

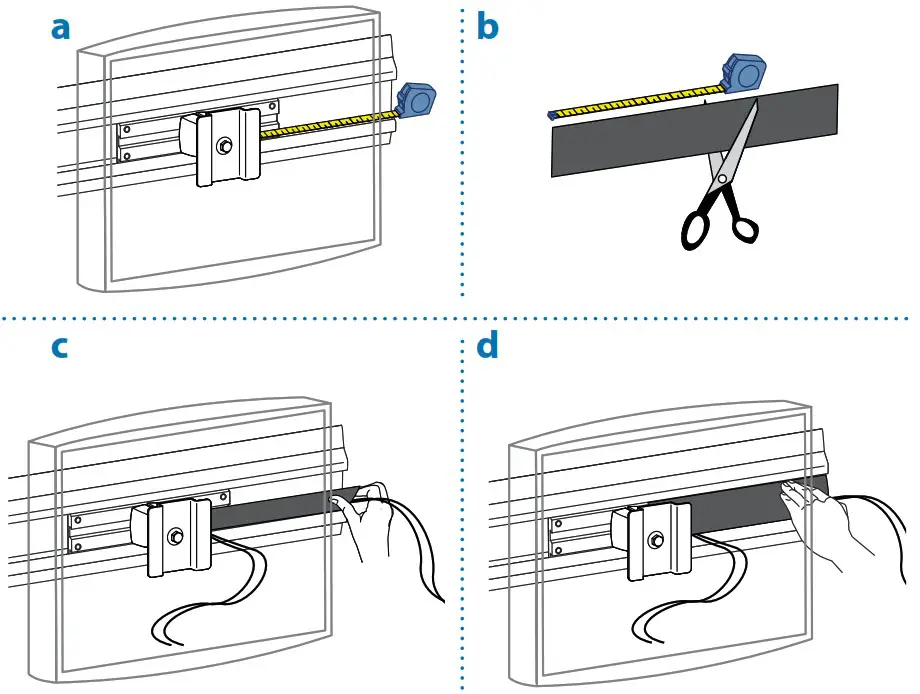

Attach Cable Management
For Warranty visit: www.ergotron.com/warranty
For Service visit: www.ergotron.com
For local customer care phone numbers visit: http://contact.ergotron.com
NOTE: When contacting customer service, reference the serial number.
