Inbay 241023-55-1, 241023-55-2 Wireless Charging Tray Installation Guide

241023-55-1, 241023-55-2 Wireless Charging Tray
Installation Guide

241023-55-1, 241023-55-2 Wireless Charging Tray

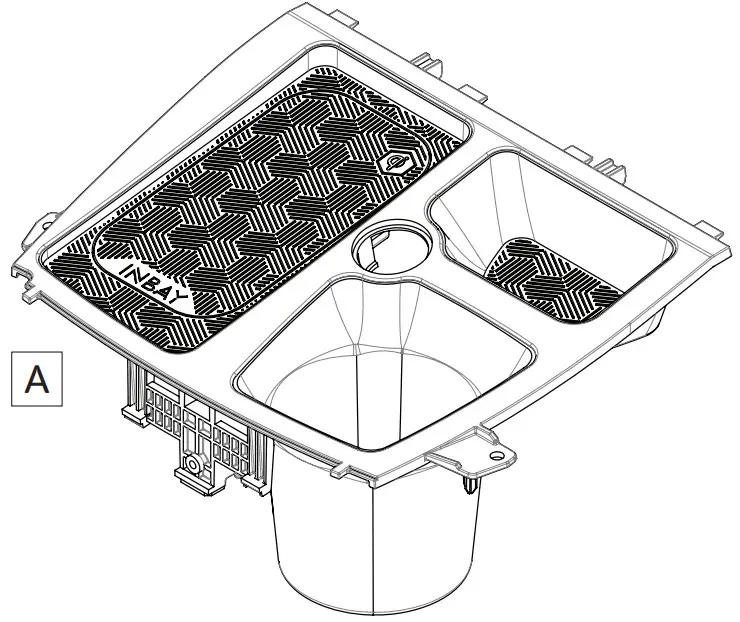

Wireless Charging Tray :
Power: 10W 241023-55-1
Power: 15W 241023-55-2
BMW 1 Series (F20) 08/2011 – 07/2017
BMW 1 Series (F21) 08/2012 – 07/2017

INSTALLATION GUIDE

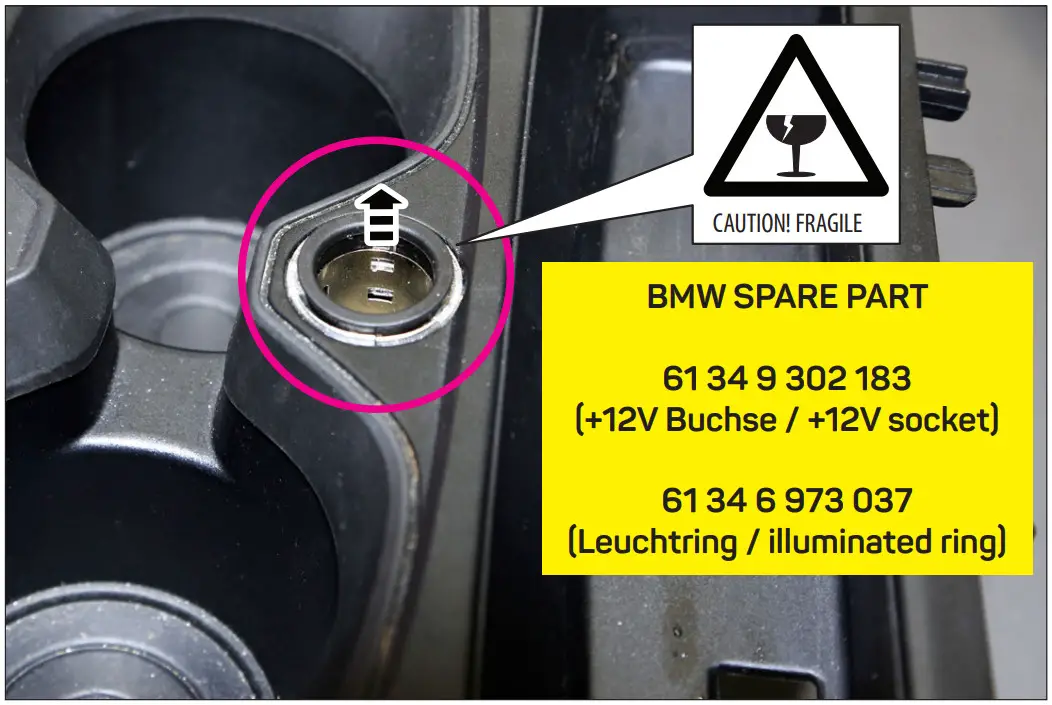

If necessary, the following BMW spare parts might be required (see page 12)

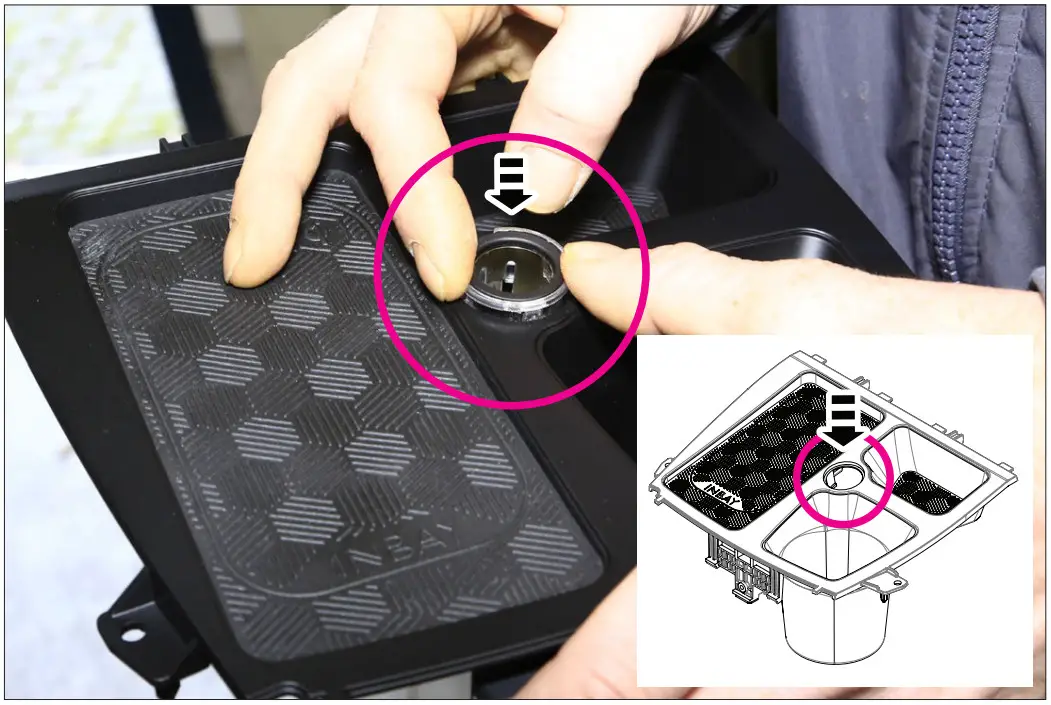

61 34 6 973 037
(Leuchtring / illuminated ring)
An appropriate installation in observance of these operating instructions is necessary. Please make sure the wiring is arranged so it is not bended or crimped due to the risk of cable break. Make sure that all connections are correct. Route the cable away from moving parts, do not allow the cable to be entangled, pinched or damaged in any way.
We will not be liable for damage due to improper installation or utilization.
Use the specified accessory parts to prevent product failure.
Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
The “Qi” symbol is a trademark of the “Wireless Power Consortium”
© 2021 · acv GmbH · Straßburger Allee 10-12 · 41812 Erkelenz www.inbay.systems
2021-08-04

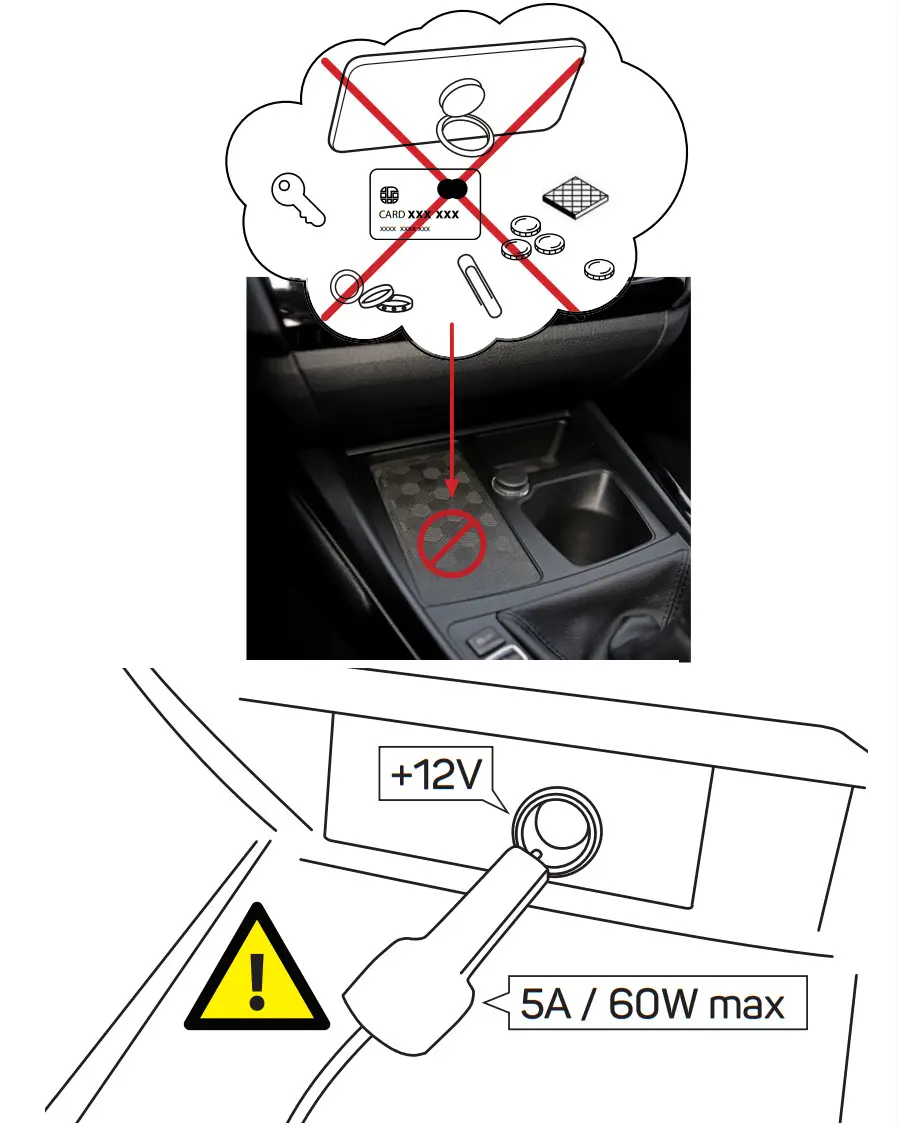

INTEGRATED FOREIGN OBJECT DETECTION (FOD)

IMPORTANT INFORMATION:
Please don‘t place any other objects such as coins, credit cards etc. onto the INBAY surface. Especially smartphones with attached ring stand holder must not be used! – otherwise the integrated Foreign Object Detection (FOD) will interrupt wireless charging for safetey reasons. ATTENTION! After installation, devices/consumers with more than 5A / 60W shall not be operated on the +12V socket. Otherwise a risk of overvoltage can occur! 241023-55-1

241023-55-2

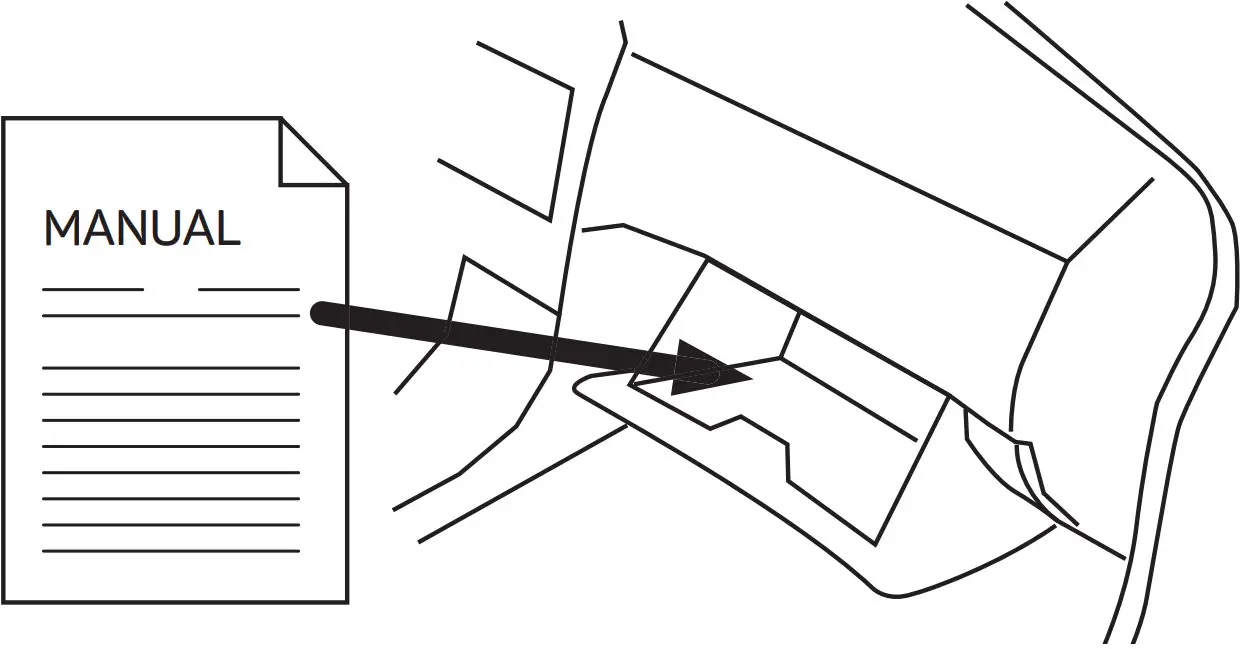

IMPORTANT! AFTER INSTALLATION THE MANUAL HAS TO BE PLACED INTO THE DASH BOARD OF THE CUSTOMER‘S CAR.
