INBAY 241200501 Mitsubishi Outlander 2014-2018 Wireless Charging Tray
TOOLS

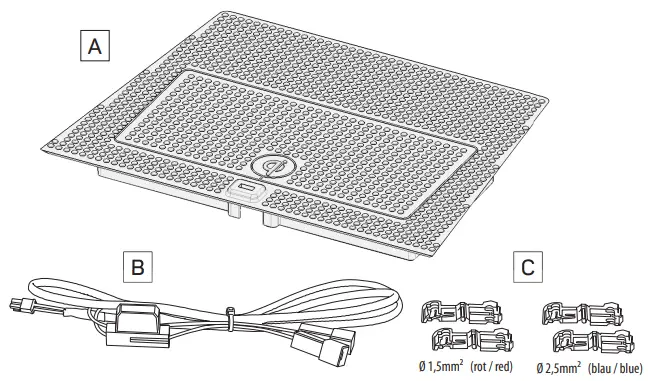

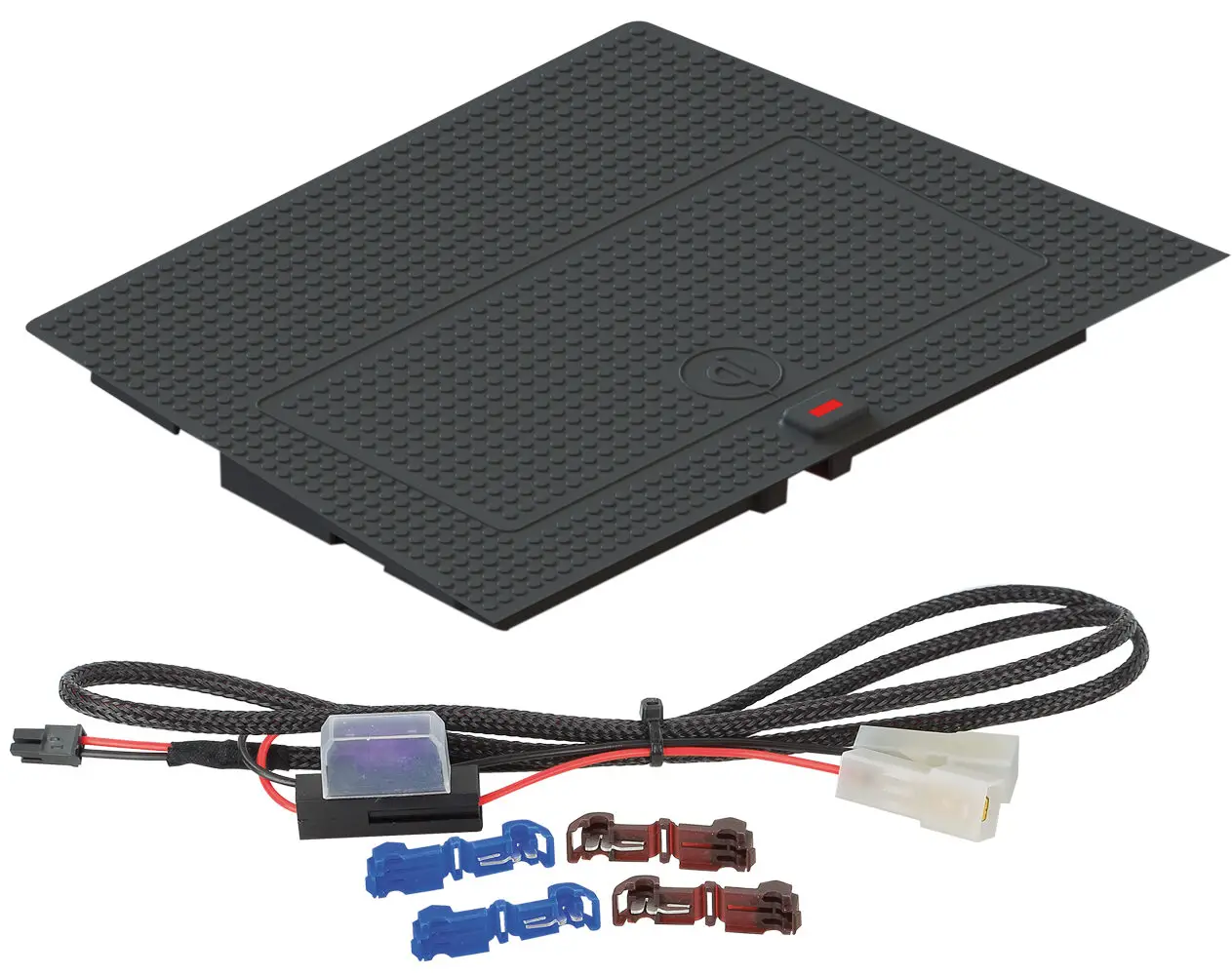

OVERVIEW
An appropriate installation in observance of these operating instructions is necessary. Please make sure the wiring is arranged so it is not bended or crimped due to the risk of cable break. Make sure that all connections are correct. Route the cable away from moving parts, do not allow the cable to be entangled, pinched or damaged in any way.
We will not be liable for damage due to improper installation or utilization. Use the specified accessory parts to prevent product failure. Subject to technical modifications; no responsibility is accepted for the accuracy of this information. The “Qi” symbol is a trademark of the “Wireless Power Consortium”

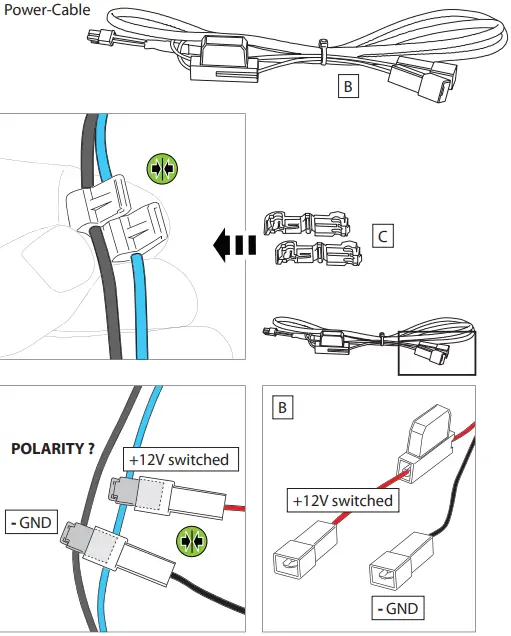

Power-Cable

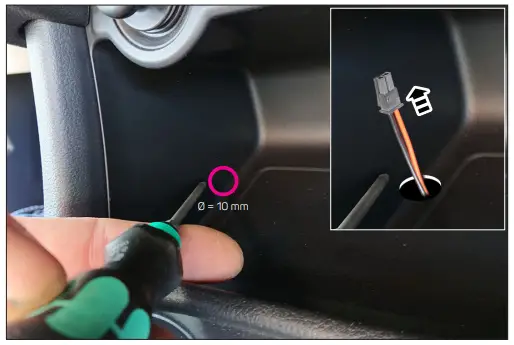

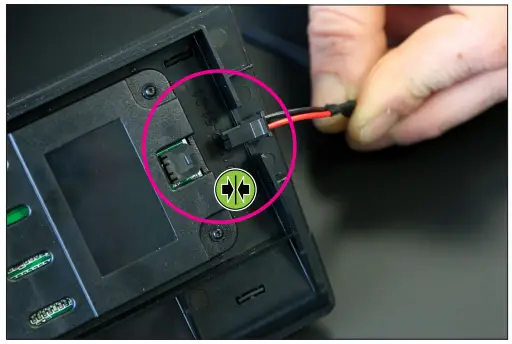

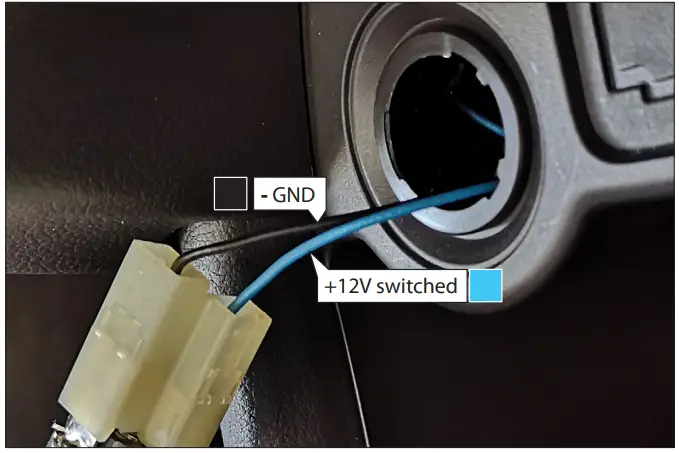

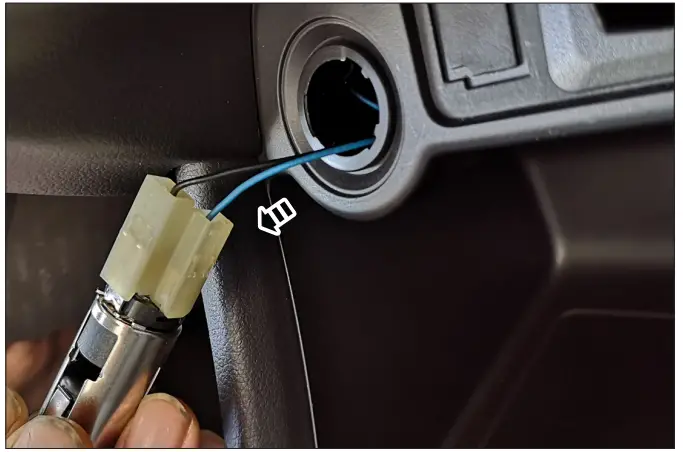

INSTALLATION
INTEGRATED FOREIGN OBJECT DETECTION (FOD)
WICHTIGE NFORMATION:
Bitte legen Sie keine anderen Gegenstände
wie z.B. Münzen, Kreditkarten etc. in die INBAY Ablage. Insbesondere Smartphones mit angebrachtem Ring Ständer dürfen nicht verwendet werden – da ansonsten aus Sicherheitsgründen der Ladevorgang durch die integrierte Fremdteileerkennung (FOD) gestoppt wird.
IMPORTANT INFORMATION:
Please don‘t place any other objects such as coins, credit cards etc. onto the INBAY surface. Especially smartphones with attached ring stand holder must not be used! – otherwise the integrated Foreign Object Detection (FOD) will interrupt wireless charging for safetey reasons.

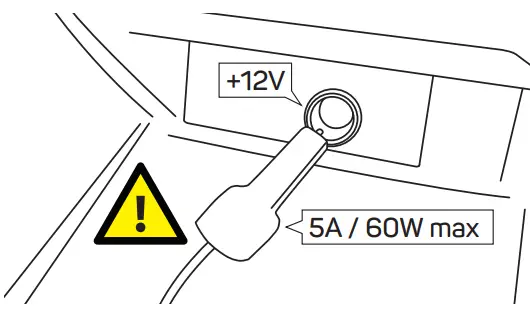

ATTENTION! After installation, devices/consumers with more than 5A / 60W shall not be operated on the +12V socket. Otherwise a risk of overvoltage can occur!

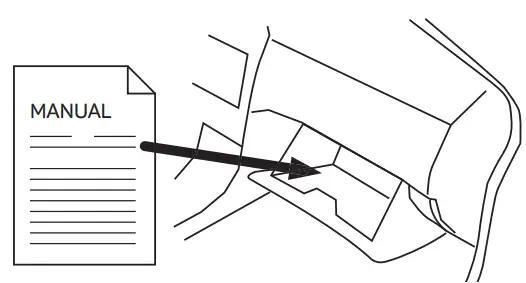

IMPORTANT! AFTER INSTALLATION THE MANUAL HAS TO BE PLACED INTO THE DASH BOARD OF THE CUSTOMER‘S CAR.
