Metrovac Qd-1 Air Force Quick Draw Portable Pet Dryer Instruction Manual

METROVAC QD-1 Air Force Quick Draw Portable Pet Dryer

Congratulations! You now own the most powerful compact forced air, high velocity dog dryer ever created.
The AIR FORCE QUICJK DRAW is designed to cut drying time by as much as 75%.
The AIR FORCE QUICK DRAW dryer provides “Gentle Heat” and dramatic air velocity to dry pets quickly and thoroughly.

DELIBERATELY MADE BETTER IN THE U.S.A®

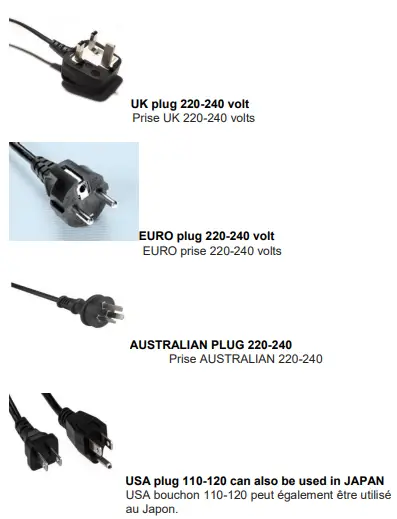

Before using, check your plug to make sure it is the proper voltage for your country.

AIR FORCE QUICK DRAW

1. A. 1.3 HP Motor (MVC-308)
2. B. Handle (MVC-49A)
3. C. On/Off Switch (MVC-74E)
4. D. 12 ft. Power Cord (MVC-292A)
5. E. Air Concentrator (MVC-196A)
6. F. 6 ft. Flexible Hose with Air Flow Control (MVC-179C)
7. G. Air Flare (MVC-195AB)
8. H. Shoulder Strap (MVC-204A)
9. I. Table Mount Hook (MVC-392)

AIR FORCE QUICK DRAW

Model QD-1
The Air Force Quick Draw is designed to cut drying time by as much as 75%. It provides Gentle Heat and dramatic air velocity to dry pets quickly and thoroughly.

1. Insert the grounded Power Supply Cord (D) into a grounded three conductor outlet.
   IMPORTANT: PRODUCT MUST BE GROUNDED.
   WARNING: IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTRIC SHOCK!
2. Start your Quick Draw by pushing the toggle On/Off Switch (C) UP FOR On and down for Off.
   HOLD THE DRYER BY THE HANDLE
3. This machine can be used with or without the 6 ft. Hose (F). The hose is friction fit at the end of the protruding steel tube.
4.  The Air Concentrator (C) and the Air Flare (G) also fit directly at the end of the steel tube to use without the hose to control the air velocity.
5. To use the Shoulder Strap (H), loop through the Handle (B), and join the clips together.
6. To mount the Quick Draw under a grooming table or on a wall, screw the supplied hook into the desired location, and hang the dryer Handle over the hook.

PLEASE NOTE

DUE TO THE TREMENDOUS VELOCITY OF AIR PRODUCED BY THE AIR FORCE QUICK DRAW, YOU MAY EXPERIENCE SOME AIR VENTING BY THE SEAMS, THIS IS COMPLETELY NORMAL AND HELPS KEEP THE UNIT RUNNING EFFICIENTLY.

FILTER LIFE IS DEPENDENT ON USAGE. CHECK AND REPLACE WHEN REQUIRED.
CAUTION: DO NOT SROP THIS APPLIANCE. MOTOR MALFUNCTION CAUSED BY PRODUCT BEING DROPPED IS NOT COVERED UNDER WARRANTY.
