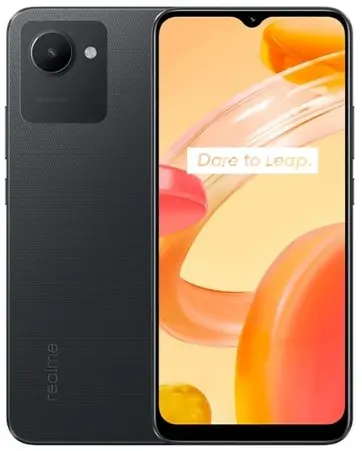

realme RMX3623 Smart Phone
Greetings from realme mobile
This guide briefly show you how to use the phone and its important functions.
For more and detailed information of the phone and user guidance, please visit: www.realme.com/eu/support.
Warning
- Do not place the phone or battery near or inside heating equipment, cooking equipment’s, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion.
- The original charger, data cable and battery shall be used. Unapproved chargers, data cables, or batteries that are not certified by the manufacturer may result in electric shock, fire, explosion, or other hazards.
- Back cover can’t be removed.
- When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5°C~35°C.
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone.
Standard accessories
1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool.
Specification
| Product | RMX3623 | |
| Main screen parament’s | 16.Scm(6.5″), | |
| Dimension | 164.1×75.6×8.S(mm} | |
| BaU@ry | 4890mAh/18.92Wh{Min) S000mAh/19.35Wh(Typ) | |
| Camera | Mega pixels Hear SM elapine ls Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CESAR | 0.790W/kg(Head) 0.900W/kg(Body) |
Note: The SAR values above are the Mghest values reported for this device
Radio Waves Specifications
| Radio | Frequency | Max.. Output Power |
| GSM | 850MHz | 33.SdlBm |
| 900MHz | 33.SdBm | |
| 1800MHz | 30.SdBm | |
| 1900MHz | 30.SdBrn | |
| WCDMA | Band 1 | 24.SdBm |
| Bands 5/8 | 24.SdBrn | |
| LTEFDD | Bands 1/3 | 24dBm |
| !Bands 5/8/20/28 | 24.5dBm | |
| Band 7 | 23.Sd Bm | |
| LTETDD | Bands 38/40/41 | 24dBm |
| Blu etooth | 2.4-2.4835GHz | 12.SdB m(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 19.SdBm (EIRP) |
