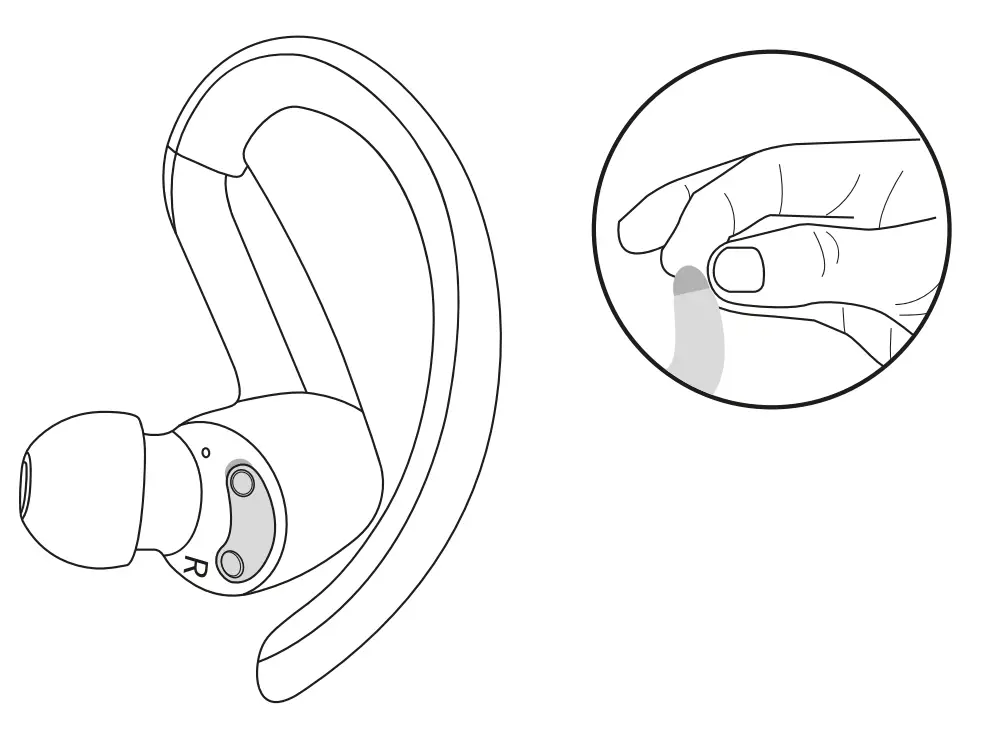

BEFORE USE

Please take out the earbuds from the charging case
Remove the charging pad protection film
Put the earbuds back into the charging case

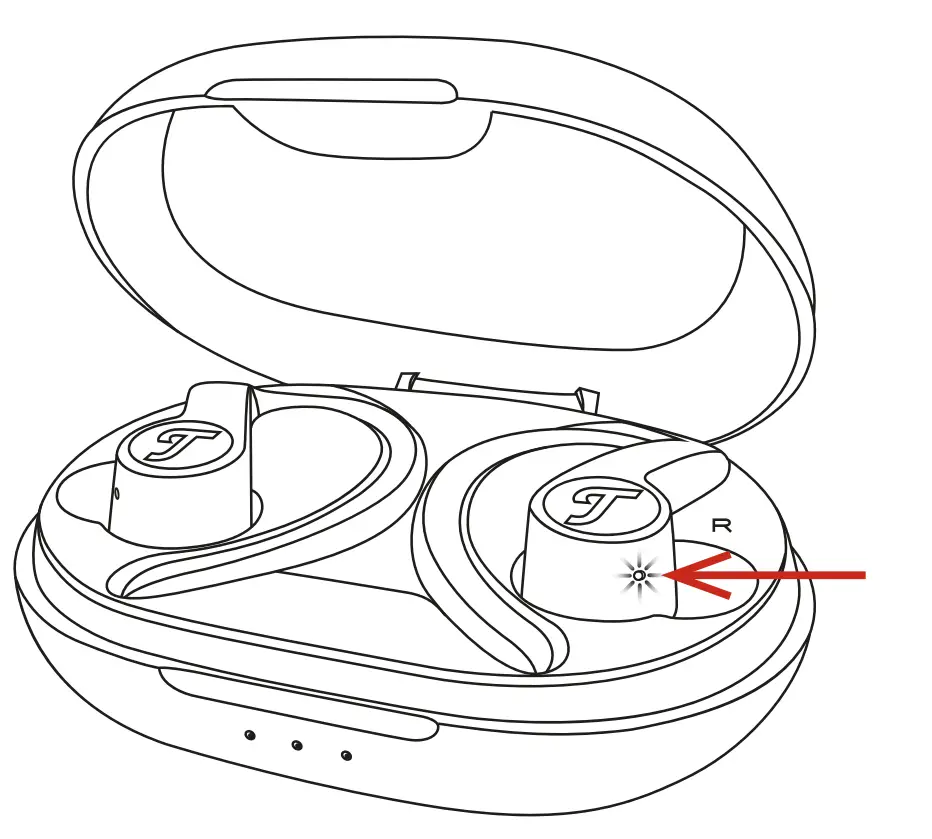

Pairing

First time use: After remove the charging pad protection film, put both earbuds inside the charging case, then take them out, the headphone enter pairing mode.

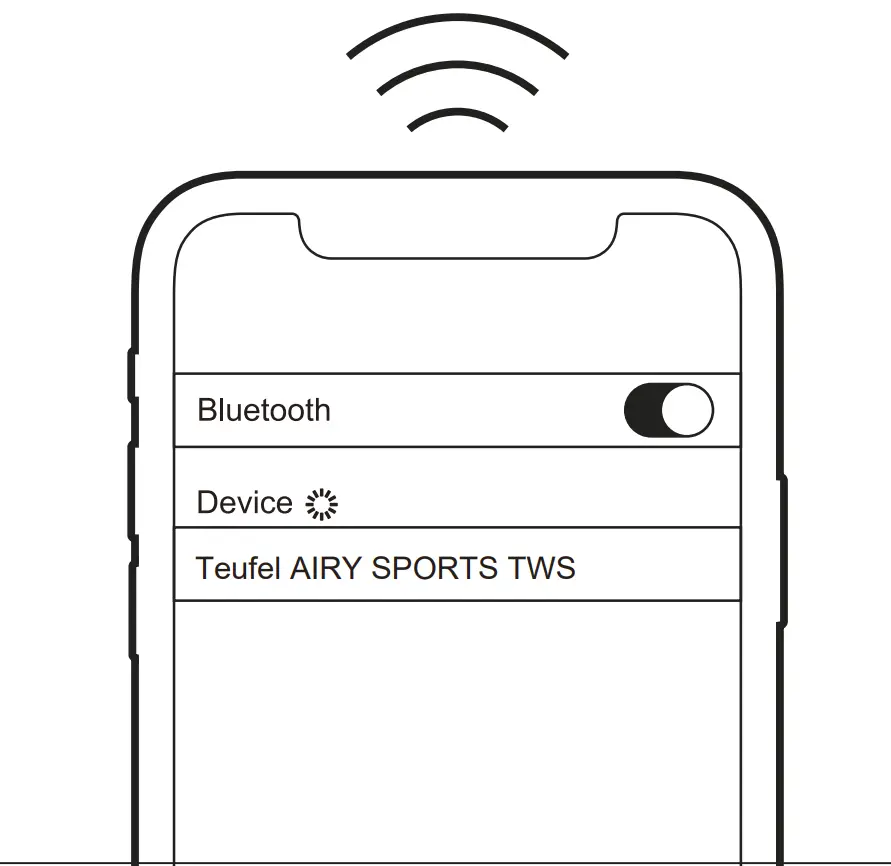

Enable the Bluetooth of your device to search and pair with a new device “Teufel AIRY SPORTS TWS”, the LED turn off after successfully paired.
Connect with a new device: Take both earbuds out, tap and hold both L&R multipurpose area for 4s, the headphone will switch to pairing mode for connect.

How to use

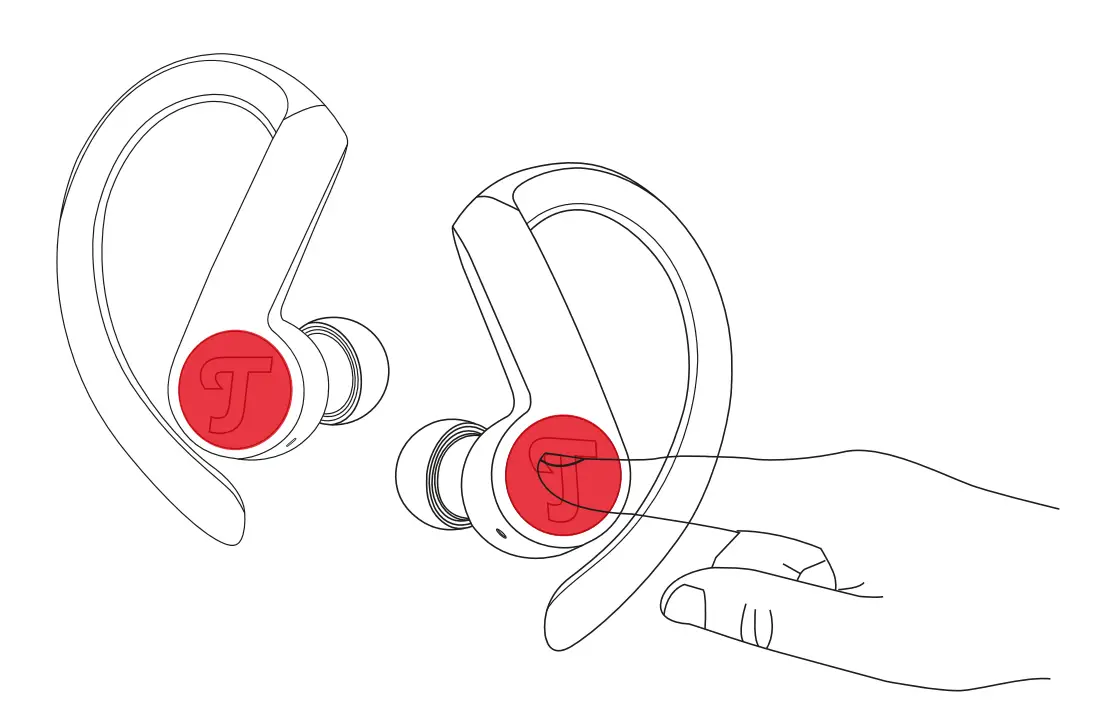

This section describes the multipurpose area.

Playback Controls

R Volume Up
(Not available in single earbud mode)

L Volume Down
(Not available in single earbud mode)

L/R Play/Pause R Next
(Not available in single earbud mode)

L Previous
(Not available in single earbud mode)

Calls

R Volume Up
(Not available in single earbud mode)

L Volume Down
(Not available in single earbud mode)
L/R Accept Call
L/R End Call
L/R Reject Incoming Call

Bluetooth

L&R Force Bluetooth Pairing
Tap and hold both Left and Right earbuds simultaneously when
earbuds are powered on and not in charging case
L&R Clear BT Device List
(when inside charging case)

Voice Assistant

L Activate Voice Assistant
L Stop Voice Assistant

Power

R Power On (Manually)
Tap and hold right earbuds when in a powered off state to wake-up / power on earbuds.

INTERACTION LEGEND
	Single Tap
	Double Tap
	Triple Tap
	5x Tap
	Middle Tap
	Long Tap
	Either Earbud
	Both earbuds simultaneously

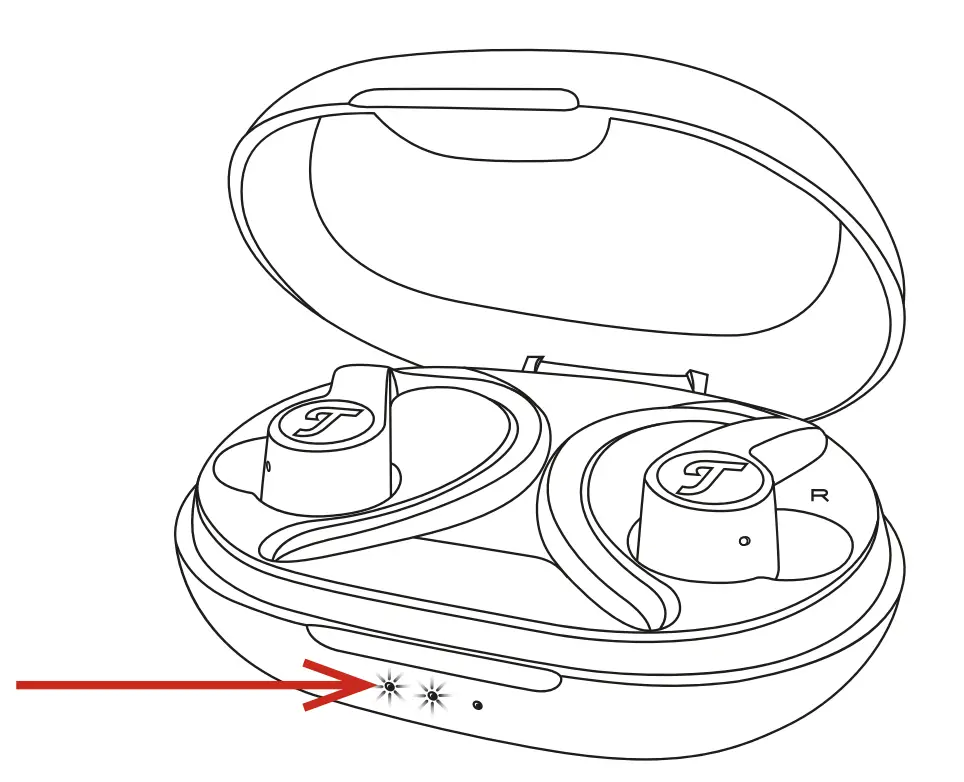

How to charge

Earbuds Charging: Put the earbuds inside the charging case for charging.
Charging Case: Plug the type-c charging cable into the charging port on the back of the charging case to start charging. Make sure to use the conforming 5V charging adapter.
The LEDs can show you the battery charging status once you open or close the charging case.

Battery status

1-32% LED 1 flashes
33-65% LED 1 solid on and LED 2 flashes
66-99% LED 1 + 2 solid on and LED 3 flashes
100% LED 1 + 2 + 3 solid on

Wear your headphone correctly for optimal sound

For the best possible hearing enjoyment and comfortable wearing, please review the following information before you use your headphone. Inappropriately using the eartips or not wearing your headphone correctly may cause you couldn’t hear the full sound or limit the sound quality.

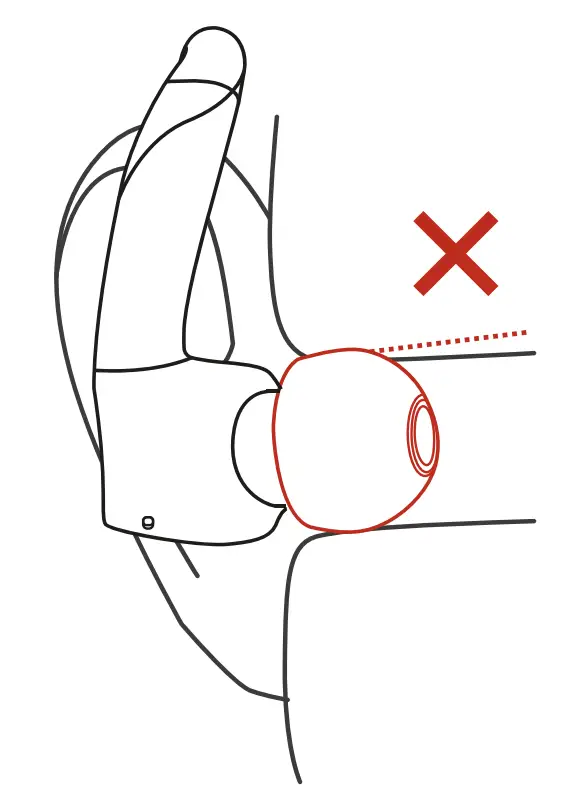

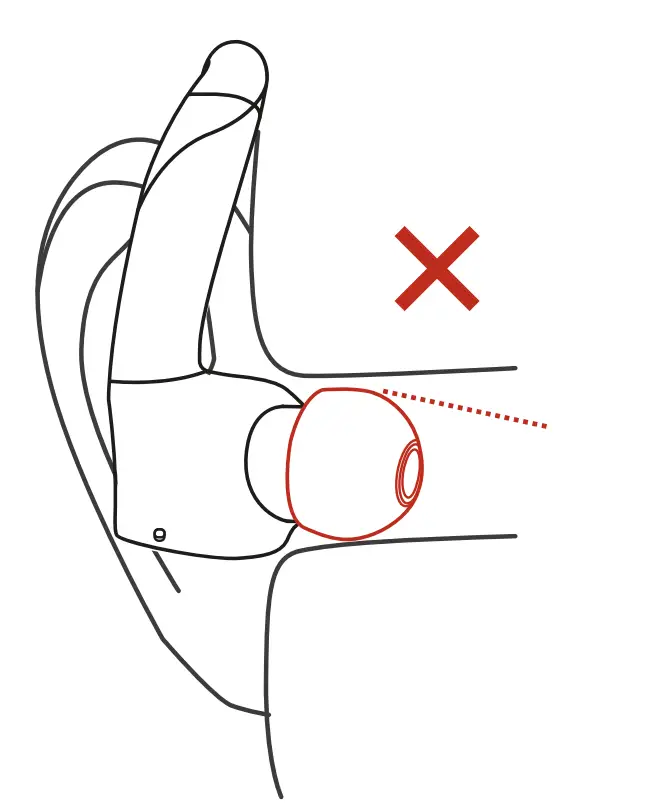

Eartips larger
Not deep enough in the ear: Sound not suitable for music/phoning.

Eartips smaller
Don’t fit: sound not suitable for music/ phoning.

Eartips inserted crooked
Don’t fit: sound not suitable for music/phoning.

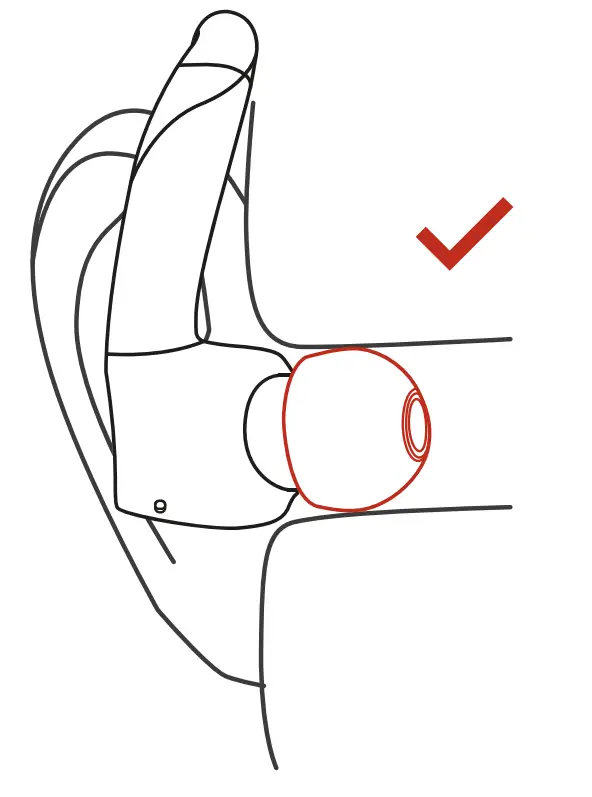

Eartips worn right
Sound image is optimal with lots of bass, very comfortable wearing.

CUSTOMER SUPPORT

Lautsprecher Teufel GmbH Bikini Berlin, Buda pester Str. 4410787 Berlin (Germany)

www.teufelaudio.com
www.teufel.de
www.teufel.ch
www.teufelaudio.at
www.teufelaudio.nl
www.teufelaudio.be
www.teufelaudio.fr
www.teufelaudio.pl
www.teufelaudio.it
www.teufelaudio.es

Telefon:

Deutsch land: +49 (0)30 217 84 217
Osterreich: +4312 05 22 3
Schweiz: +41 43 50 84 08 3
International: 0800 400 300 20
Fax: +49 (0) 30 / 300 930 930
0 n Ii n e-Sup port:
www.teufelaudio.com/service
www.teufel.de/service
Kenta ktformuIar:
www.teufel.de/kontakt

Contact:

www.teufelaudio.com/contact

The battery specifications are as follows.
Earbuds (x2): Lithium-Ion, 3.7 V, 60 mAh
Charging Case (xl): Lithium-Ion, 3.7 V, 500 mAh

The following radio frequency bands and radio transmitting powers are used by this product.

Radio network	Transmission power in mW/dBm	Frequency bands in MHz
Bluetooth®	< 10 mW/< 10 dBm	2400 – 2483.5

The Bluetooth* word mark and Bluetooth® UUe 00 symbol are registered trademarks of Bluetooth SIG, Inc. and any use by Lautsprecher Teufel is licensed. © All trademarks are the property of their respective owners.
