STAND FOR LOG
SPLITTER
Item no. 011545
Instruction Manual

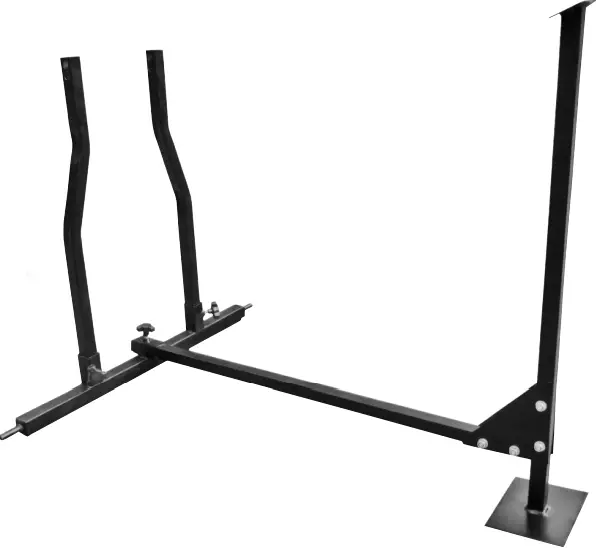

STAND FOR LOG SPLITTER
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
Jula reserves the right to make changes.
For latest version of operating instructions, see www.jula.com
 |  |
 |  |
ASSEMBLY
- Undo the wheels on the product and fit them on the stand.

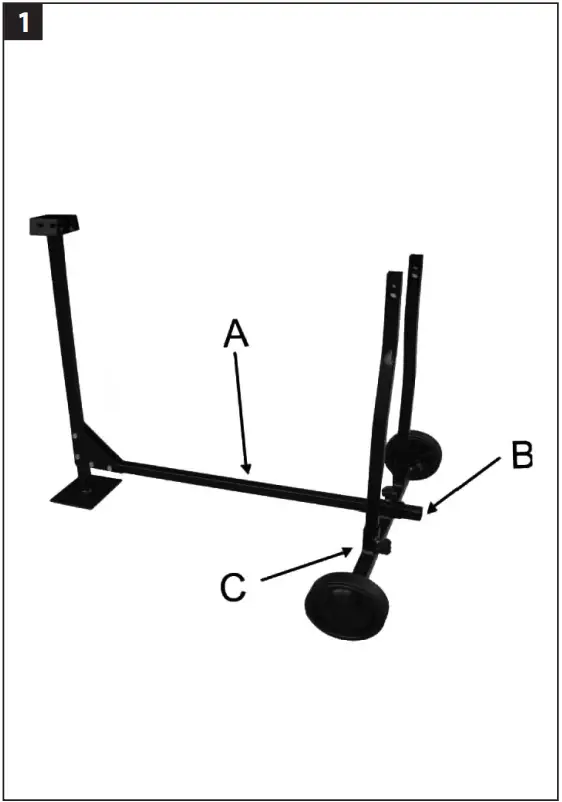

- Place the square tube (A) in the hole (B) in axle (C).

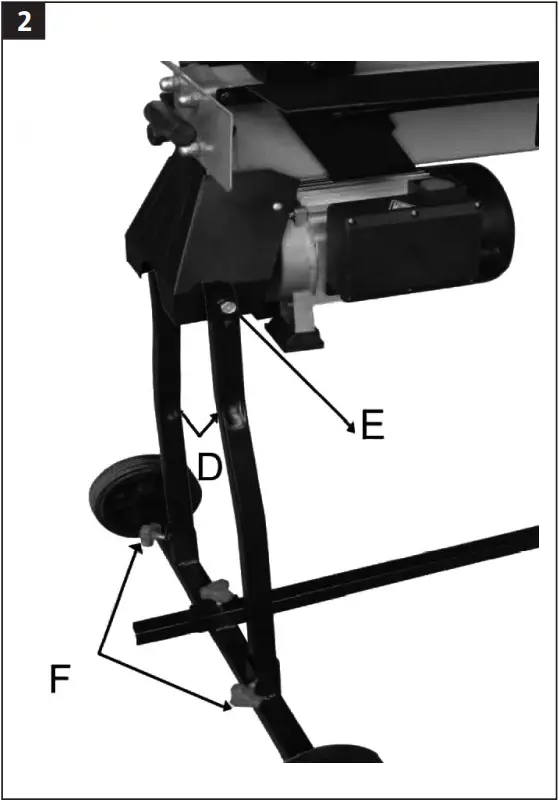

FIG. 1 - Put the product on the front part of the stand. Fit the legs (D) on the product. Check that the cotter (E) goes in the bottom holes. Place the legs in the mounts (F) on the axle. Tighten the locking screws.

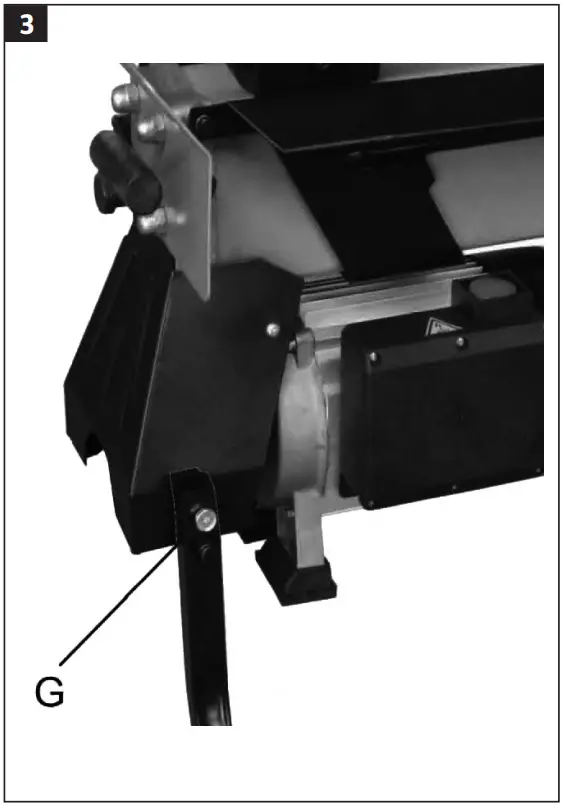

FIG. 2 - Tighten the two screws (G).

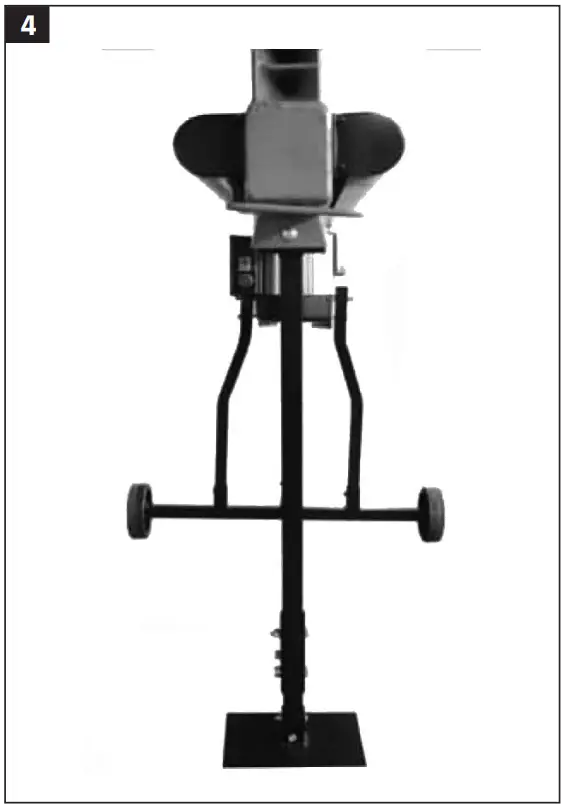

FIG. 3 - Fit the handle.
FIG. 4
2022-03-29
© Jula AB
JULA AB, BOX 363, SE-532 24 SKARA
